Home > Products > Magnetic pump > CQB32-20-125F Magnetic Drive Centrifugal Pump for Chemical Industry

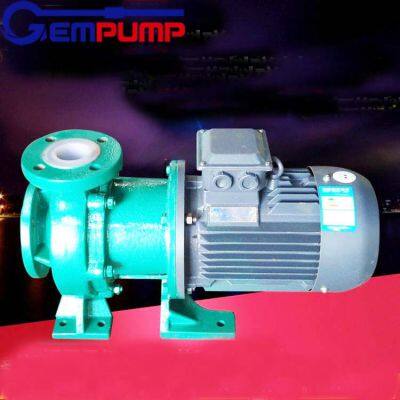

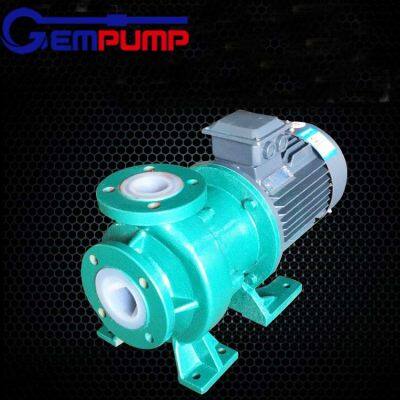

CQB32-20-125F Magnetic Drive Centrifugal Pump for Chemical Industry
- Shanghai
- T/T L/C PayPal
- 7 days
You May Like
-
CQB15-15-65F Marine Sea Water Pump Chemical Centrifugal Magnetic Driven Pumps
-
China Heavy Duty Industrial Mining Mineral Centrifugal Slurry Pump Spare Parts
-
China Wq Centrifugal Submersible Sewage Water Pump for Waste Drainage With Auto Coupling
-
China Centrifugal Vertical Inline Booster Water Pump
-
China Double Suction Split Case Centrifugal Water Pump
-
China High Efficiency Horizontal End Suction Centrifugal Water Pump
Product Details
| Brand Name | Gempump | Place of Origin | China | |
| Model Number | CQB32-20-125F | Application | Sewage | |
| Fuel | Other | Power | Electric | |
| Usage | Water | Theory | Centrifugal Pump | |
| Standard or Nonstandard | Standard | Structure | Single-stage Pump | |
| Pressure | Low Pressure |
Product Description
Working principle of CQB32-20-125F fluoroplastic magnetic pump
The driving device of the magnetic drive pump is directly mounted on the motor shaft by the active magnet coupling, and the pump chamber is completely closed. The impeller with magnet on the pump shaft is indirectly driven to rotate through magnetic coupling, which is compact, safe and energy-saving. The solid and durable pump body structure is made of fluoroplastic, but the pump shell is made of metal, so the pump body can bear the weight of the pipeline and withstand mechanical impact.
Application of cqb-f fluoroplastic magnetic pump
It is widely used in petrochemical industry, acid and alkali production, non-ferrous metal smelting, pickling process of automobile manufacturing, rare earth separation, pesticide, dye, medicine, paper making, electroplating, radio and other industries. Service temperature: - 20 ℃ to 100 ℃.
| Pump model | Size(mm) | Flow (m3/h) | Head (m) | Power (kW) | Speed (r/min） | Material | |
| Inlet | Outlet | ||||||
| CQB20-15-75F | 20 | 15 | 1.6 | 7 | 0.18 | 2900 | Plastic |
| CQB25-20-100F | 25 | 20 | 2.5 | 10.5 | 0.37 | 2900 | |
| CQB40-40-100F | 40 | 40 | 6 | 11 | 0.55 | 2900 | |
| CQB32-20-110F | 32 | 20 | 5.5 | 13 | 0.55 | 2900 | |
| CQB32-20-125F | 32 | 20 | 3.6 | 20 | 1.1 | 2900 | |
| CQB32-20-150F | 32 | 20 | 3.6 | 25 | 2.2 | 2900 | |
| CQB32-20-160F | 32 | 20 | 3.6 | 32 | 2.2 | 2900 | |
| CQB40-25-120F | 40 | 25 | 6.3 | 15 | 0.75 | 2900 | |
| CQB40-40-125F | 40 | 40 | 6.5 | 17.5 | 1.1 | 2900 | |
| CQB40-25-125F | 40 | 25 | 6.3 | 20 | 1.1 | 2900 | |
| CQB40-25-150F | 40 | 25 | 6.3 | 25 | 3 | 2900 | |
| CQB40-25-160F | 40 | 25 | 6.3 | 32 | 3 | 2900 | |
| CQB40-25-200F | 40 | 25 | 6.3 | 50 | 7.5 | 2900 | |
| CQB50-32-125F | 50 | 32 | 12.5 | 20 | 1.5 | 2900 | |
| CQB50-32-150F | 50 | 32 | 12.5 | 25 | 4 | 2900 | |
| CQB50-32-160F | 50 | 32 | 12.5 | 32 | 4 | 2900 | |
| CQB50-32-200F | 50 | 32 | 12.5 | 50 | 7.5 | 2900 | |
| CQB60-50-125F | 60 | 50 | 20 | 20 | 4 | 2900 | |
| CQB60-50-150F | 60 | 50 | 20 | 25 | 4 | 2900 | |
| CQB65-50-160F | 65 | 50 | 20 | 32 | 4 | 2900 | |
| CQB65-50-180F | 65 | 50 | 20 | 36 | 5.5 | 2900 | |
| CQB65-40-200F | 65 | 40 | 20 | 50 | 11 | 2900 | |
| CQB65-40-250F | 65 | 40 | 25 | 80 | 18.5 | 2900 | |
| CQB80-65-125F | 80 | 65 | 50 | 20 | 7.5 | 2900 | |
| CQB80-65-160F | 80 | 65 | 50 | 32 | 11 | 2900 | |
| CQB80-50-200F | 80 | 50 | 50 | 50 | 18.5 | 2900 | |
| CQB100-80-160FL | 100 | 80 | 100 | 32 | 18.5 | 2900 | |

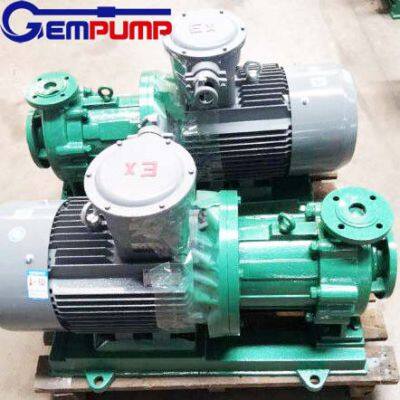

| Note:CQB32-25-125F####CQB100-80-160F Can be equipped with explosion-proof motor | |||||||
