UGM1700A 4 2 6 Reel Web Guiding System Tension control High Speed Paper Roll to sheet Cutting Machine
- 1000 per Month
- T/T Credit Card
You May Like
-
KDFM720 bopp thermal double side laminating machine paper sheet laminator
-
auto mini paper easter bunny baking cup erecting machine, disposable silicone paper pan cake holder wrapper making equipment
-
CTS120 Automatic disposable silicone paper pan cake tray forming machine, egg tarts plate decorating making equipment
-
CTS120 Automatic egg tarts tray decorating tool forming machine, biscuit cookie oil-proof Paper cake tray liner making equipment
-
CTS120 Automatic plumcake paper cup making machine, sweet dessert tray liners forming machine
-
CTS120 Automatic round shaped baking Muffin case Forming Machine, glassine greaseproof paper wrapper making equipment
Product Description

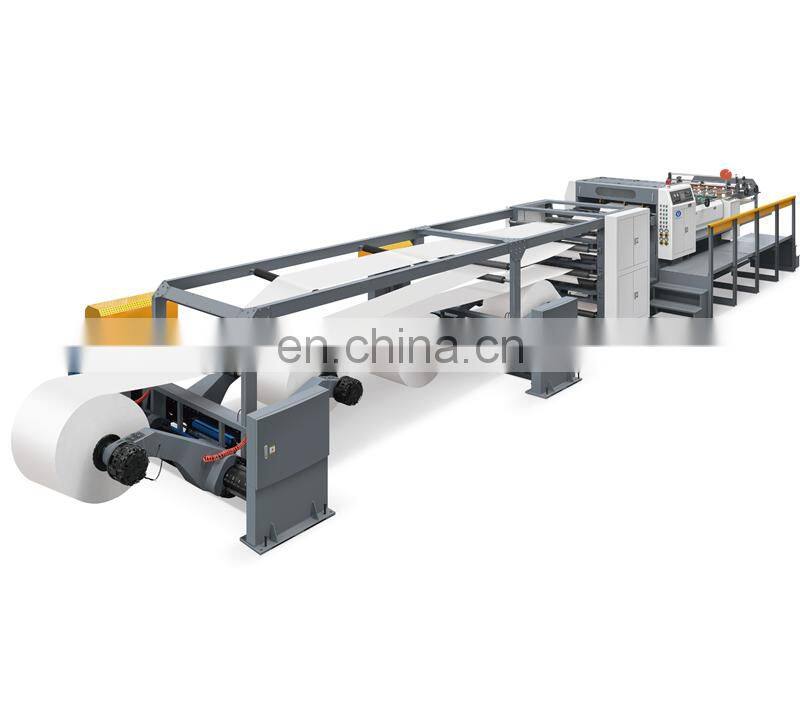

UGM1700A 4 2 6 Reel Web Guiding System Tension control High Speed Paper Roll to sheet Cutting Machine (350cuts/min)
Video demonstration only for reference
Video (2 rolls): /watch?v=F39iZsYtey8
Video (2 rolls): /watch?v=xThtgFvv-TE
Video (2 rolls): /watch?v=vBYSd4QU3gc
Video (6 rolls): /watch?v=ttnm7LbbmtM
Video (5 rolls): /watch?v=vjoWai_JQ5g
Description:
Servo Precision high speed die cutting machine takes the advanced technology of Germany. The machine computer control system takes AC Servo motor and AC transducer. The conveyor belt takes NITTA from Japan. The pneumatic vibrator takes FINDEVA from Switzerland. The electrical system adopts SCHNEIDER & OMRON which leads to the speed of cutting paper much more fast and stable. Germany precise bearing and cutting knife assure the high cutting precision. The controller of soft-touch computer screen is simple and convenient to operate. The anti-curve rack assures the paper flat. This machine is the paper processing machine which is very popular in the paper making and printing industry. It can improve the efficiency and benefit of your work.
Parameter:
|
Model: |
UGM1100/1400/1700/1900A |
|
Cutting Mode: |
The top knife cuts reciprocally and the down knife is fixed |
|
Paper Cutting Thickness: |
60-550GSM |
|
Cutting Precision: |
Cutting length≤1000mm: +/-0.5mm; Cutting length>1000mm: +/-0.1% |
|
Max Cutting Frequency: |
350 cutting stroke/min |
|
Max Cutting Speed: |
350m/min |
|
Cutting Range: |
450-1450mm(UGM1100A), 450-1600mm(UGM1400/1900A) |
|
Max Unwinding Diameter: |
1500mm(UGM1100A), 1800mm(UGM1400/1900A) |
|
Max Paper Cutting Width: |
1100mm/1400mm/1700mm/1900mm |
|
Gross Weight: |
11000kg/13000kg/15000Kg/17000Kg |
Features:
1,High speed rotary cutting knife
2, elimination system
3, Pneumatic Knife for Middle slitting and waste collection
4, Automatic counting and label inserting device
5, Paper transporting equipment
6, Automatic paper trimming and collecting system
7, Electric control unit
8, Double arm oil hydraulic shaftless mill roll stand
9, Automatic paper tension controller
10, Automatic vacuum system
11, Web guiding system
12, Photo senor registration tracking system
13, LCD control panel
14, AC servo motor
Machine Description:

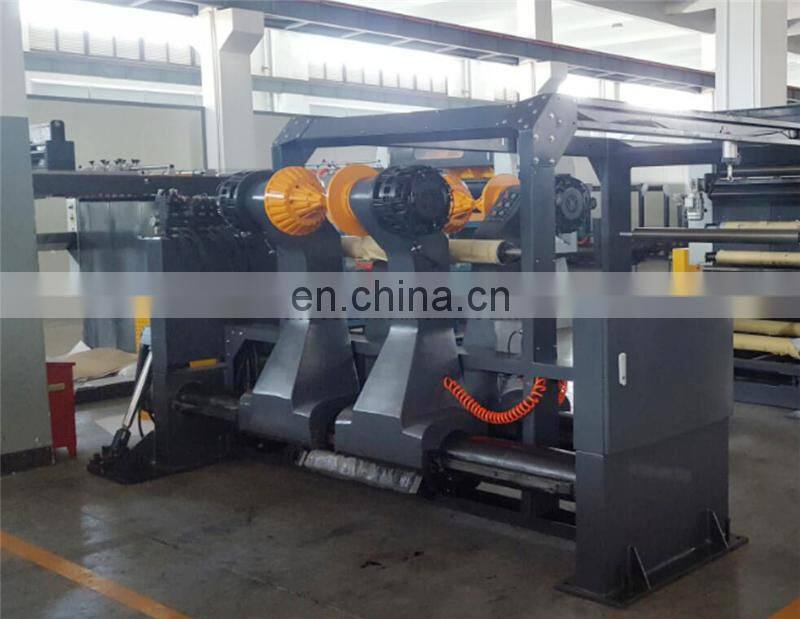

1,Shaftless Mill Roll Stand
2, Web Guiding System (Optional)

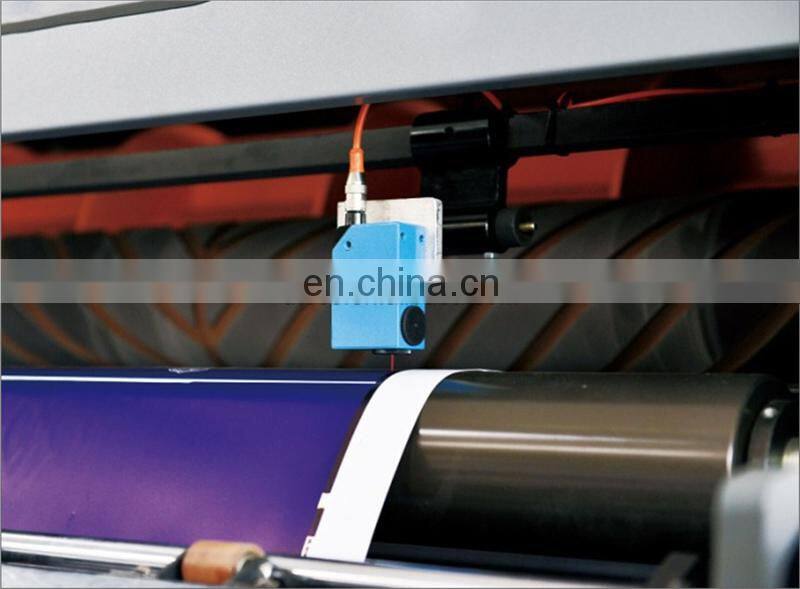

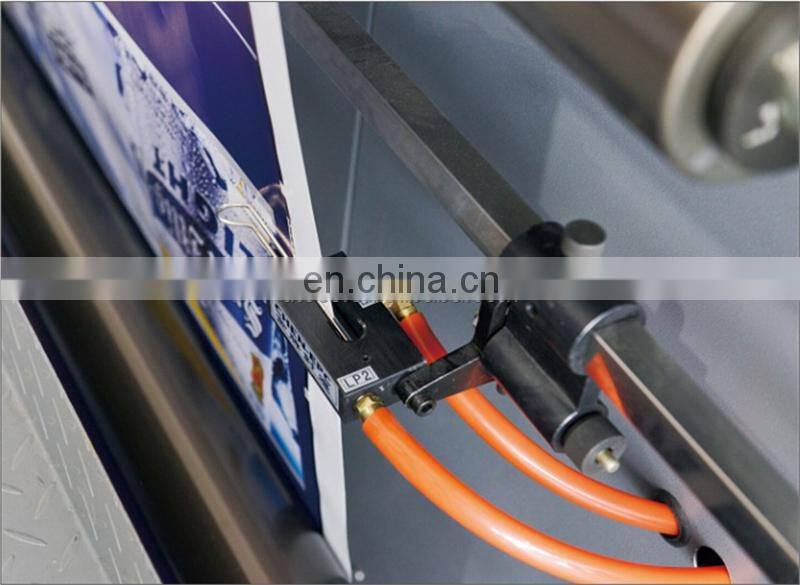

3, Photo Sensor Tracking Registration System For Printed Paper (Optional)

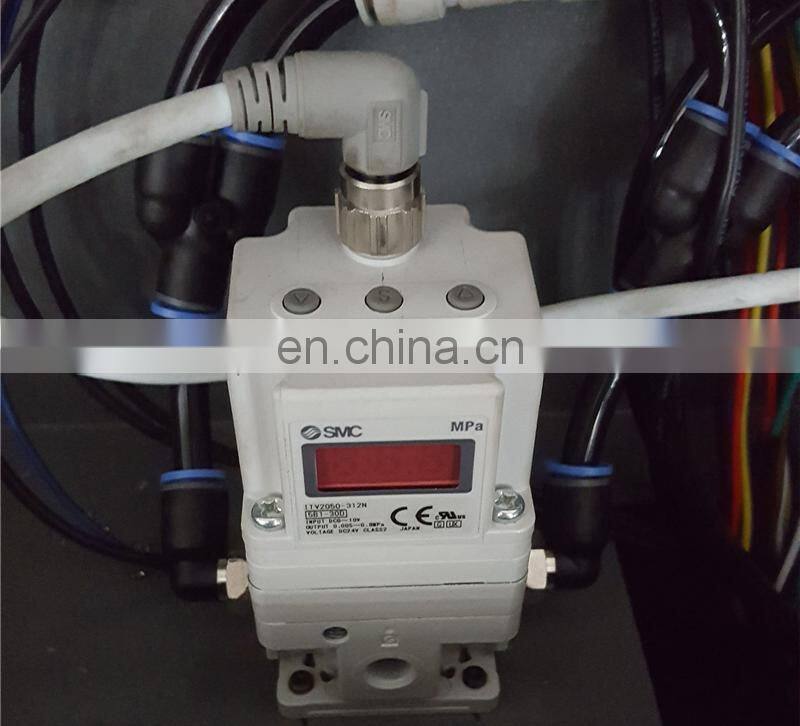

4, Automatic tension controller

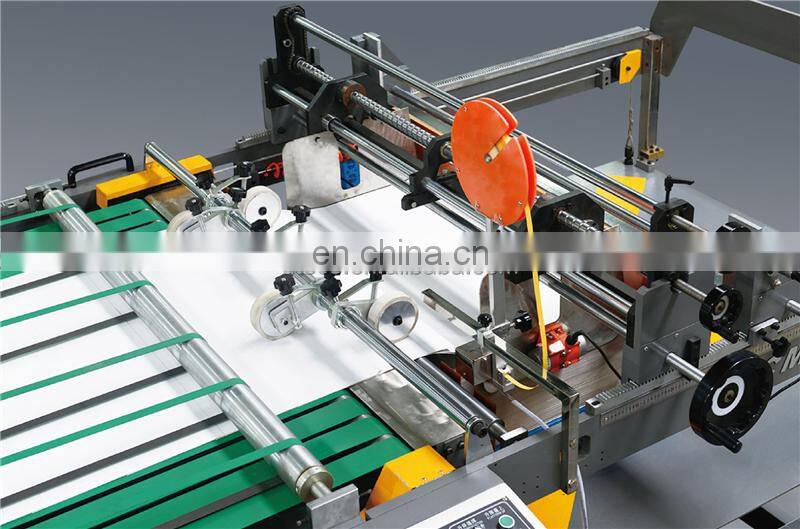

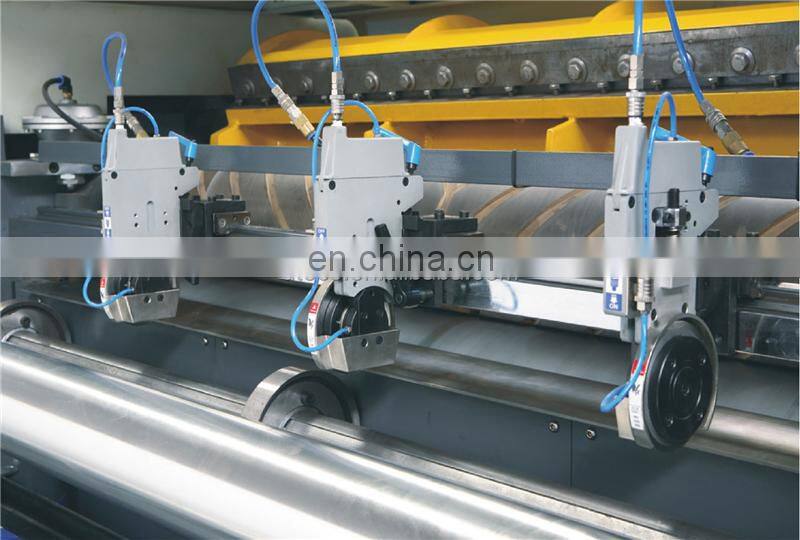

5, Pneumatic Slitting System with Side Trimming (Optional)

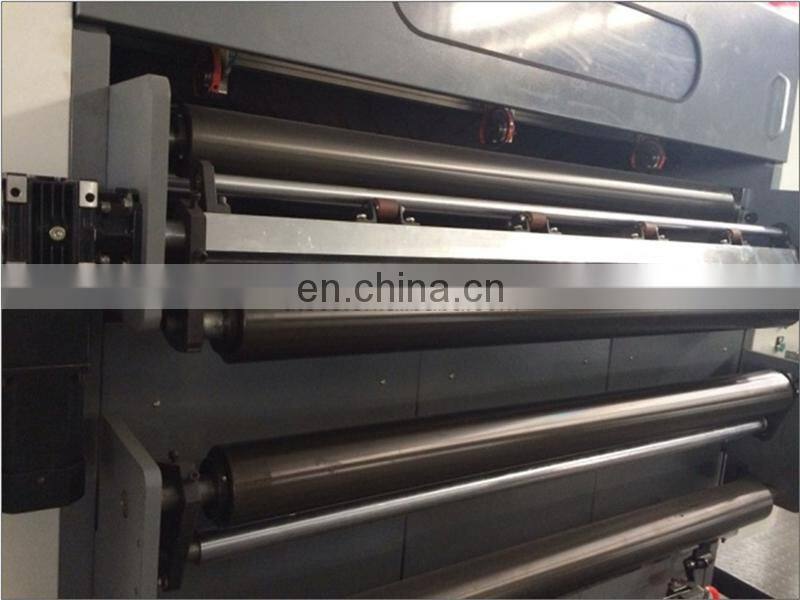

5, Anti-Curve System

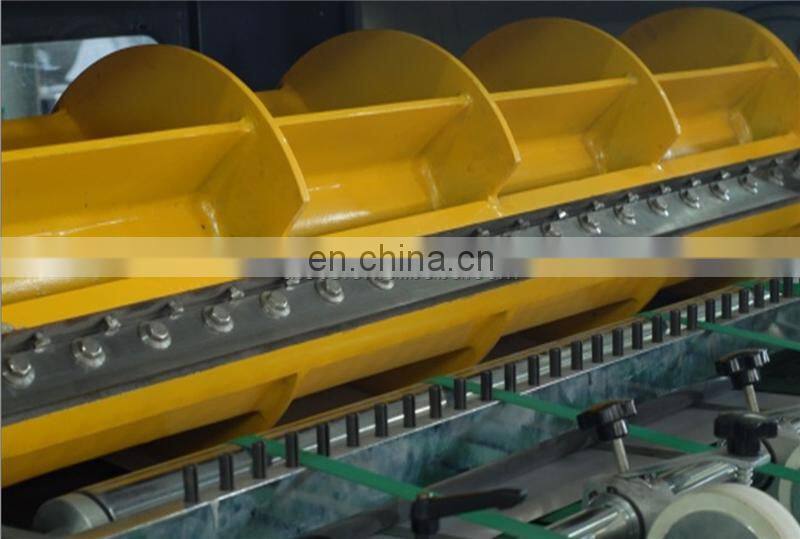

6, High Speed Rotary Cutting Section

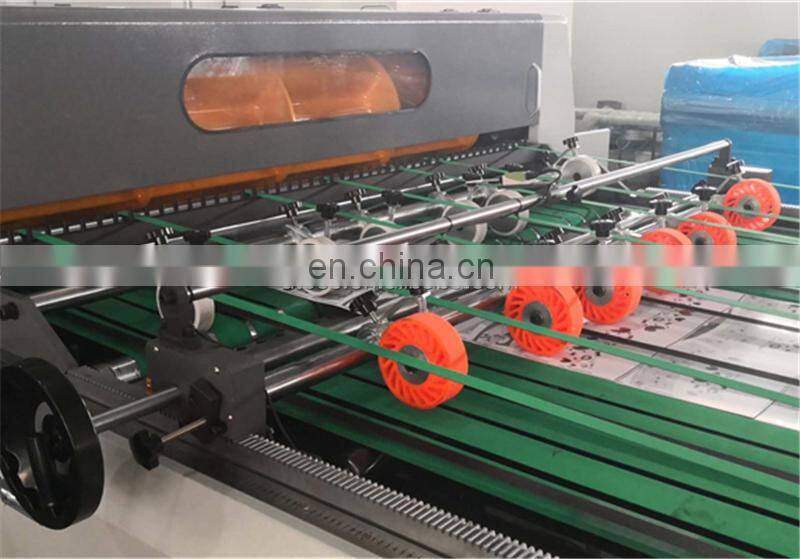

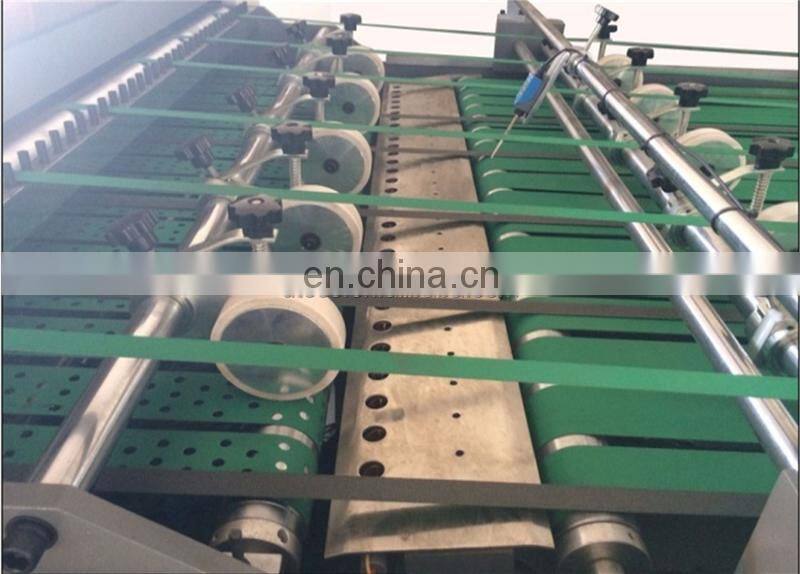

7, Paper Delivery and Overlapping System
8, Automatic Vacuum System
9, Label Inserter and Paper Stacker
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
1.Q: What information should i let you know if i want to get a quotation?
A: What is your Max and Min product size in mm?
B: What is your paper thickness in GSM?
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
Container Load and Transport
YOU ARE WELCOME TO CONTACT US ANYTIME AVAILABLE.
Mobile/Whatsapp/Wechat: +86-18258286679
Email: utecs@ , utecsinter@ , danielsuer@
Skype: danielsuer
Web:
