Home > Products > Extrude > KLHS Double stage single screw extruder Plastic pipe extrusion equipment PE water supply pipe production equipment

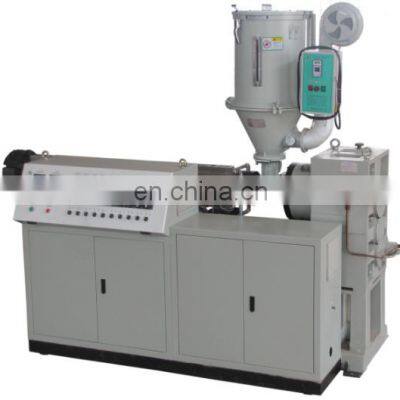

KLHS Double stage single screw extruder Plastic pipe extrusion equipment PE water supply pipe production equipment
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
KLHS PVC extruder Affordable price Screw Plastic pipe profile extruder Plastic single screw extruder products PVC
-
AJN Economic Vacuum Transfer Auto Hopper Loader for Powder
-
Kunlun Haisu 65 / 28 single screw plastic extruder Specifications and models can be customized Flexible PVC pipe production
-
AJN Stainless Steel Vacuum Plastic Pellets Auto loader
-
Good Quality low speed edge plastic bottle crusher machine
-
Silent Recovery System Injection Molding Machine Edge Crusher Energy Saving Slow Speed Crusher
Product Description
Product Description
Specification
item | value |
Application | PIPE, Sheet, Profile |
Plastic Processed | PE, PP, PVC, PC, FRPP/PVC, HDPE, ABS/PP, HDPE/PP, PE/PP |
Condition | New |
Screw Design | Double-screw |
Co-rotating Parallel Twin-screw | |
Screw Material | 38CrMoALA |
Screw diameter (mm) | 75 |
Screw L/D Ratio | 30:1 |
Screw Speed (rpm) | 60rpm |
Showroom Location | None |
Place of Origin | China |
Shandong | |
Brand Name | Kunlun Haisu |
Voltage | 380V |
Dimension(L*W*H) | 4500*1500*2400mm |
Power (kW) | 45 |
Weight | 3 |
Warranty | 1 Year |
Key Selling Points | Multifunctional |
Applicable Industries | Manufacturing Plant, Machinery Repair Shops |
Marketing Type | Hot Product 2021 |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Warranty of core components | 1 Year |
Core Components | Bearing, Motor, Pump, Gear, PLC, Other, Pressure vessel, Engine, Gearbox, Screw |
Name | Extrusion Machine |
Raw material | PP PE PVC |
Usage | Plastic Extrusion |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
The extruder is mainly composed of screw, barrel, transmission system, head connector, electrical control box and so on.
(1) Screw
It is the key part to complete the transportation and plasticization of plastic. Due to its rotation, it pushes the plastic forward, so as to achieve the purpose of compaction, melting, mixing and homogenization. The thread is composed of different functional sections, which has good transportation, compaction, mixing and plasticization effects and high output. The screw material is nitrided steel (38CrMoAlA), which is processed by nitriding and fine grinding. It has high corrosion and wear resistance and long service life.
(2) Barrel
It is a part matched with the screw. The barrel is made of nitrided steel. The inner hole is nitrided, with high hardness, good wear resistance and certain corrosion resistance. There are five groups of heaters on its outer surface. The heat is transmitted from the barrel to the plastic to melt and plasticize the plastic. Five temperature measuring points are set at each part of the heater barrel, which can be automatically controlled within the plastic processing temperature range The fifth heating zone of the barrel is equipped with air circulation cooling, which can accelerate the accuracy of barrel cooling and temperature control
FAQ
1. who are we?
We are based in Shandong, China, start from 2009,sell to Eastern Europe(23.00%),Southeast Asia(21.00%),Domestic Market(20.00%),South America(9.00%),North America(7.00%),Africa(7.00%),South Asia(7.00%),Mid East(4.00%),Western Europe(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Energy Saving Hopper Dryer/Energy Saving Heater/Casting Heater/Ceramic Band Heater/Air Cooling Protective Cover/Air Blower Fan
4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Shandong, China, start from 2009,sell to Eastern Europe(23.00%),Southeast Asia(21.00%),Domestic Market(20.00%),South America(9.00%),North America(7.00%),Africa(7.00%),South Asia(7.00%),Mid East(4.00%),Western Europe(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Energy Saving Hopper Dryer/Energy Saving Heater/Casting Heater/Ceramic Band Heater/Air Cooling Protective Cover/Air Blower Fan
4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
