Automatic Plastic pe pp Ppr pu Hdpe Pvc Pipe Extrusion Production Line
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Automatic Plastic Pipe Extrusion Machine Line for Pipe
-
Automatic Pvc Pipe Machine High Speed
-
Automatic pp pe Hdpe Plastic Pipe Single Double Disk Winder Machine
-
Automatic Pp/ppr/pe Pipe Making Single Screw Extruder Machine
-
AJN Direct Deal Particle Feeder Vacuum Feeder Automatic Suction Machine Vacuum Dust-free Automatic Feeding Machine
-
KLHS Injection Molding Machine Side Slow Pulverizer Gnawing Tooth Crusher for Waste Plastic Nozzle Material
Product Description
Product Description

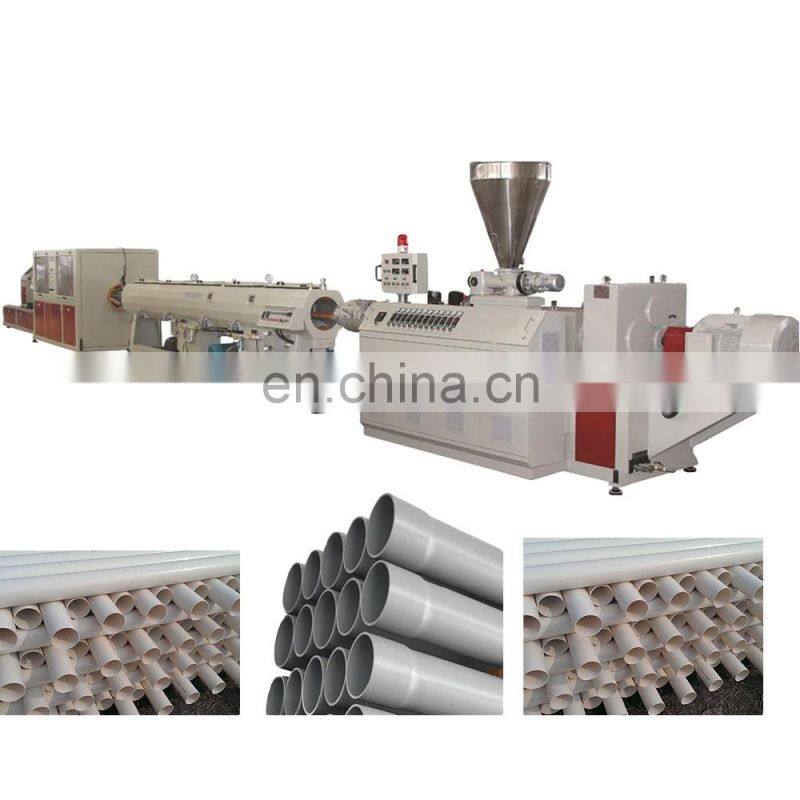

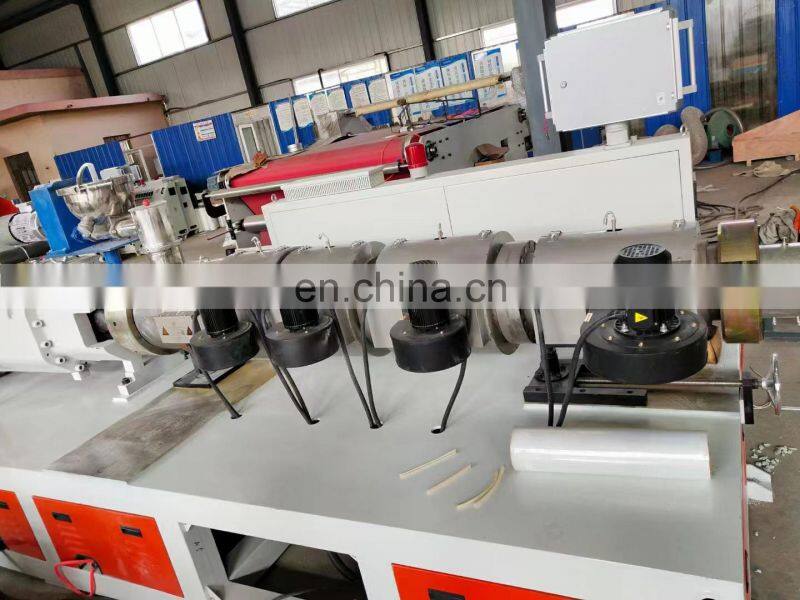

Plastic pipe extrusion line/Plastic tube making machinery

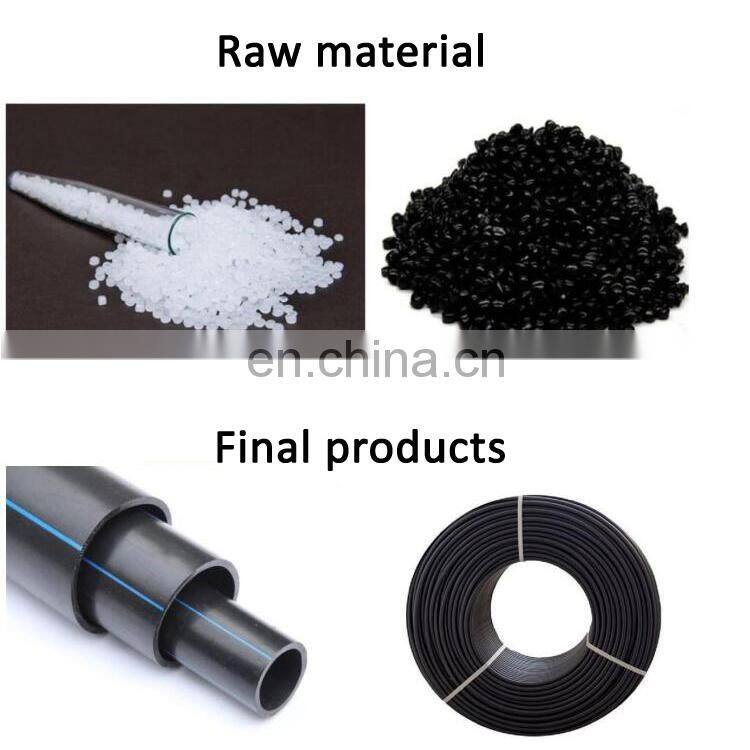

Raw material

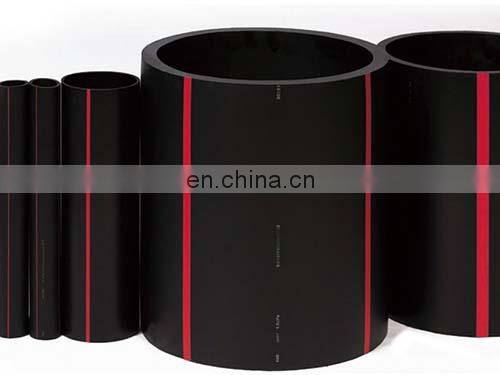

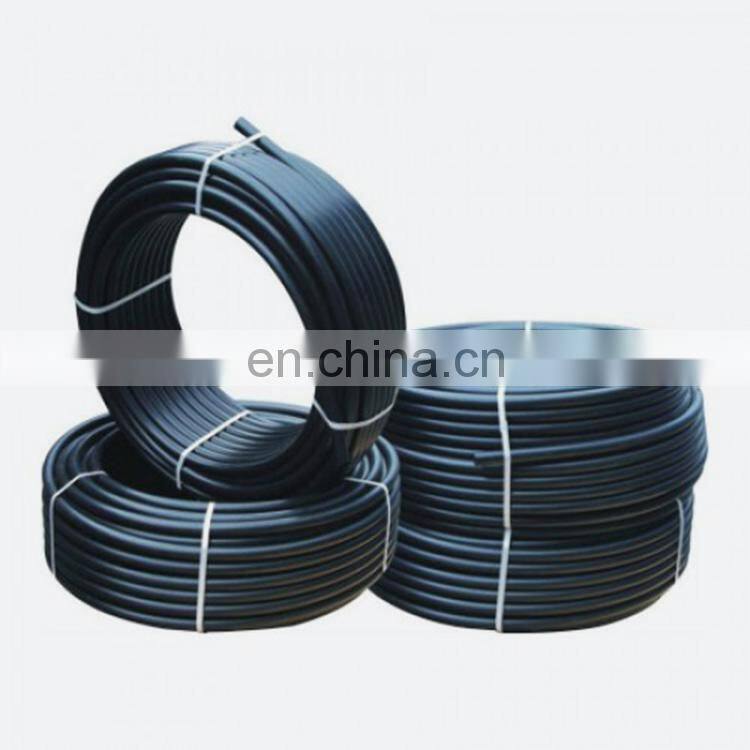

Final products
Product Details
Application Description:
This Extrusion Line can be used for different diameter PE Pipe production which have excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on. So, this pipe production line is a preferred for ductwork system of gas, water pipe and agricultural irrigation pipe between city and village.
Flow chart of PE pipe extrusion line:

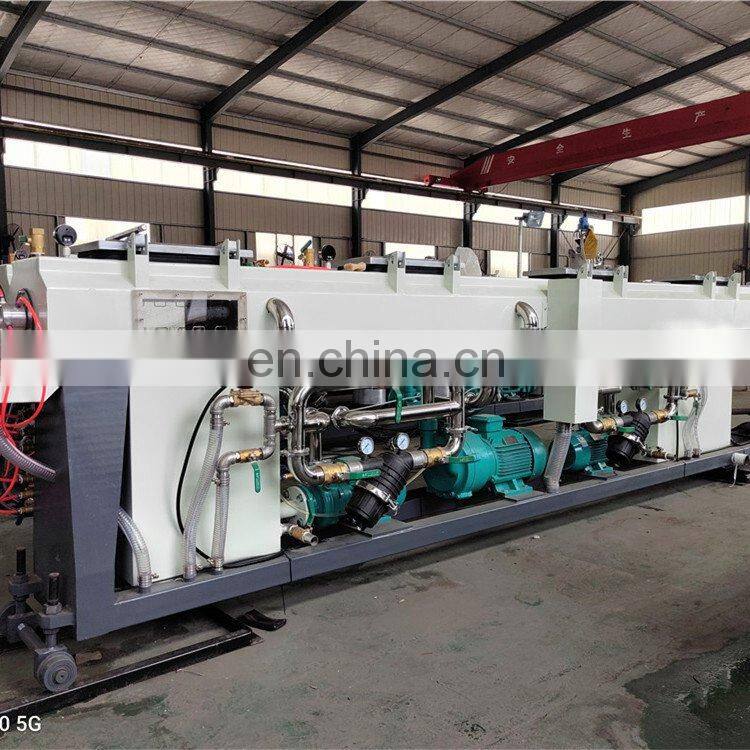

Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder→ color band extruder → mould and calibrator → vacuum calibration machine → cooling tank→ haul-off machine → cutting machine → stacker(Winding machine)
Flow chart of PE pipe extrusion line:
Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder→ color band extruder → mould and calibrator → vacuum calibration machine → cooling tank→ haul-off machine → cutting machine → stacker(Winding machine)
Technical Parameter for PE pipe production machine
Pipe Range (mm) | 16-63 | 20-110 | 75-160 | 90-250 |
Extruder | 65/30 | 65/33 | 75/30 | 75/33 |
Motor power (KW) | 30/37 | 55/75 | 75/90 | 90/110 |
Capacity (Kg/h) | 60-130 | 100-150 | 200-300 | 220-350 |
Max. Speed (m/min) | 25 | 15 | 10 | 6 |
Packing & Delivery
packing by wooden or carton,which depend on your requirement.
Company Profile
FAQ
Q: Are you trading company or manufactory ?
A: both. Which means we can strictly guarantee product quality and lead time.
Q: Do you provide material testing service?
A: Yes, we offer testing service on our machine. An additional testing fee will be charged depends on the testing
costs(electricity, labor), however, if you eventually made a purchase with us ,the testing fee will counts as deduction of machine
cost.
Q: How am I suppose to trust you the machine I received matches your description?
A:Appearance of Final products may differ from pictures shown, but we can make sure each component and technical parameters
remains the same as quoted, we also provide videos of whole traceable production process if necessary.
Q: Do you provide samples for free?
A: Yes, we could offer the sample for free but we do not pay the cost of freight. Also we can provide detailed sample pictures or
videos.
Q: How can I make sure the machine running good in my plants?
A: we will have a home commissioning in our factory for your inspection.
A: both. Which means we can strictly guarantee product quality and lead time.
Q: Do you provide material testing service?
A: Yes, we offer testing service on our machine. An additional testing fee will be charged depends on the testing
costs(electricity, labor), however, if you eventually made a purchase with us ,the testing fee will counts as deduction of machine
cost.
Q: How am I suppose to trust you the machine I received matches your description?
A:Appearance of Final products may differ from pictures shown, but we can make sure each component and technical parameters
remains the same as quoted, we also provide videos of whole traceable production process if necessary.
Q: Do you provide samples for free?
A: Yes, we could offer the sample for free but we do not pay the cost of freight. Also we can provide detailed sample pictures or
videos.
Q: How can I make sure the machine running good in my plants?
A: we will have a home commissioning in our factory for your inspection.
