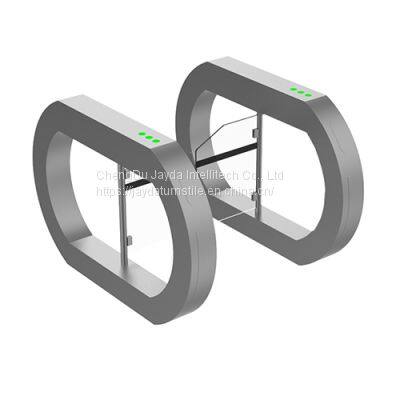

Access control turnstile swing barrier/ optical swing barrier turnstile/ waist high swing turnstile

• Access control turnstile swing barrier, optical swing barrier turnstile, waist high swing turnstile is widely used in various indoor and outdoor environments

•


• Access control turnstile swing barrier JDBZ-21 runs in a fast, effecient and reliable way with low noise and low power consumption, adopting slim and stylish design blending into the aesthetics of the surrounding space. It comes with multiple physical barrier height and lane widths providing easy access to the disabled, wheelchairs, and people with large objects or deliveries, meeting both accessibility and security requirements. Finally, access control turnstile swing barrier JDBZ-21 is flexibly compatible with all access control systems with dry contact output, and provides single directional and bi-directional access control modes.

Features

1.Slim cabinet design for a smaller footprint
2. Detects tailgating and exact position of users
3. Intelligent drive system and pinpoint control of moving panels
4. Multiple operational modes including controlled passage, free passage and visitor
5. Supports very rapid throughput
6. Superior unauthorized passage and unauthorized presence detection
7. Standard and handicapped width lanes have same cabinet dimensions
8. Perfectly suited to any type of architecture
9. Fault visualization for easy to check on site
10. Widely used in various indoor and outdoor environments

Applications　
Industrial parks
Commercial buildings
Fitness center
Universities
Public transportation systems
Government facilities

Parameters

Access Control Turnstile Swing Barrier Design

Access Control Turnstile Swing Barrier Dimensions

Access Control Turnstile Swing Barrier Systems  Diagram

Project Cases for Access Control Turnstile Swing Barrier

What is access control turnstile swing barrier ?
Access control turnstile swing barrier, a typical optical turnstile, utilizes the internal infrared technology coupled with a physical barrier to provide added security against unwanted entry. Swing barrier optical turnstile cabinets can be installed as close to or as far apart from each other as needed. This provides flexibility and allows lanes to be handicap accessible.

How does access control turnstile swing barrier work?
Access control turnstile swing barrier, functions by fixing in pairs, by which it is important to choose the right number of these turnstiles for specific projects. Meanwhile, considering the quantity for pedestrian traffic and for access for the disabled is also very important. Take swing gate turnstile JDBZ-25 as example, which include single-wing type and dual-wing type. 2 single-wing type are required for a single-lane pass, and a 2-lane passage includes 2 singe-wing type JDBZ-25 fixed on each side of a dual-wing type JDBZ-25. In addition, most of our touchless turnstiles provide wide lane up to 900mm width for disabled access.

Can access control turnstile swing barrier be integrated with 3rd party access control systems ?
Off course, access control turnstile swing barrier is comptiable with a wide variety of access control systems by dry contact. Card pass, fingerprint / handprint reader, face recognition, barcode reader, thermal camera and token applications can integrate with such access control turnstiles.

What will happen when power  off and in emergency situation?
Access control turnstile swing barrier instantly automatically unlocks for free passage under emergency situations (power outages, fire, etc)

Can access control turnstile swing barrier be used indoor and outdoor?
Off course, access control turnstile swing barrier is made for indoor or outdoor situations. For all outdoor applications, we use 304 stainless steel to prevent corrosion.

Does access control turnstile swing barrier give access to ADA pedestrians?
Yes, access control turnstile swing barrier provides wide lane up to 900mm for the disabilities to allow for wheelchairs
