Home > Products > SDLG WHEEL LOADER > SDLG 7ton Wheel Loader L975F Pay Loader With 4.2m3 Bucket

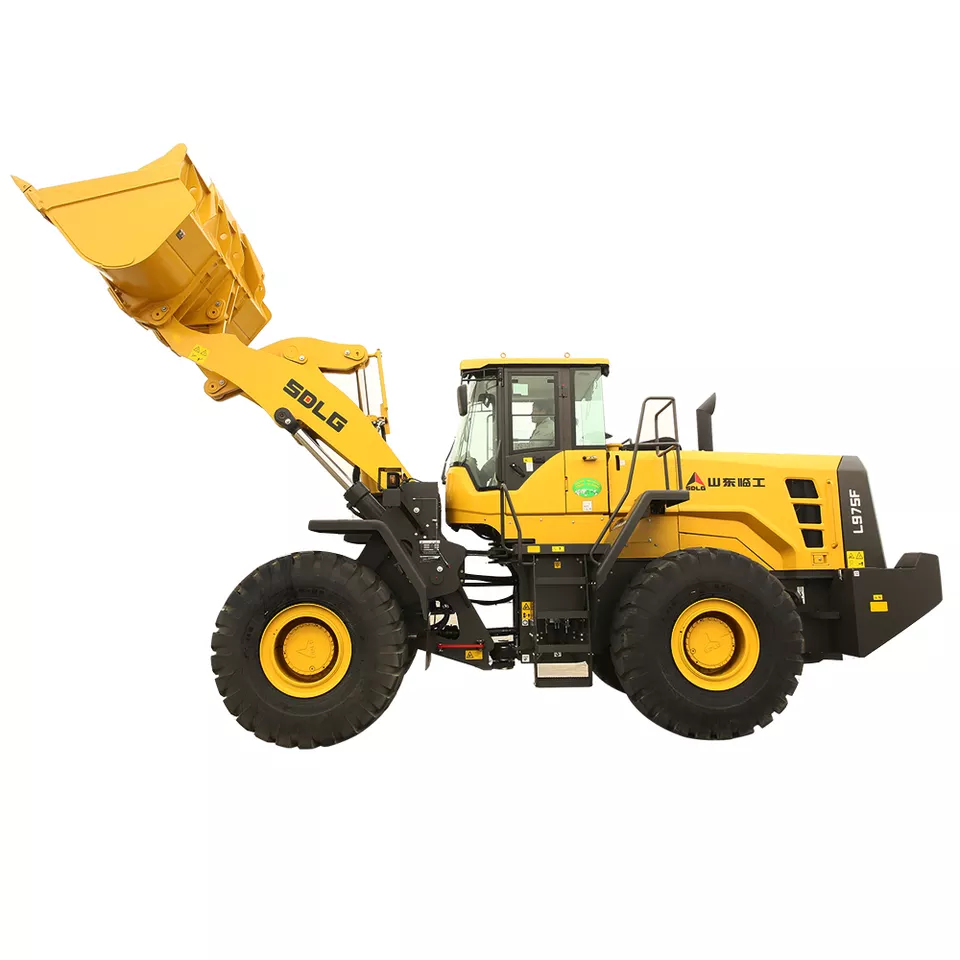

SDLG 7ton Wheel Loader L975F Pay Loader With 4.2m3 Bucket

FOB Price

US$ 100000 - 110000 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SDLG	Place of Origin	China
Model Number	L975F	Type	Front Loader
Certification	ISO900	After-sales Service Provided	Engineers available to service machinery overseas
Warranty	12 months	Condition	New
Dimension(Long * Breadth * High)	868030383470mm	Moving Type	Wheel Loader
Rated Load	7000kgs

Overall dimension
LWH	952533203620mm
Wheel base	3550mm
Min. ground clearance	506mm
Max. dumping height	3600mm
Lifting height	4695mm
Dumping distance	1300mm
Dumping angle	45
wheel tread	2350mm
steering angle	38
horizontal crossing radius	7550mm
Min. turning radius	6330mm
Overall parameters
Backet capacity	4.2m3
Rated load	7000kg
operating weight	24900kg
Max. tractive force	226kN
Max. breakout force	195kN
Tipping load	140kN
Engine
Model	WD10G270E341
Type	Inline, watercooled, dry cylinder liner, direct injection
Rated power	199kW
Rated speed	2200r/min
Engine displacement	9726ml
Max. torque	1300N.m
Emission standard	GB 20891-2014(China Phase III)
Min. fuel-consume ratio	215g/kw.h
Transmission system
Torgue converter	single-stage three-element single-turbine hydraulic torque converter
Transmission type	Axis-fixed electro-hydraulic transmission
Gears	Forward 4 reverse 4
Hydraulic system of working device
Type	Double ball head handle hydraulic pilot control
total time	10.9s
Brake system
Service brake type	Full hydraulic dry brake
Parking brake type	Pressure release caliper disc type
Steering system
Type	Load sensing full hydraulic articulated steering
System pressure	21 Mpa
Fill capacity
Fuel	380L
Hydraulic oil	230L
Engine	20L
Transmission	55L
Drive axle	Forward 44L+ reverse 37L
