PDA Pile Driver Analysis High Strain Testing
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Dynamic load testing services Pile Foundation Testing
-
Pile Driving Analyzer(PDA) Testing High Strain Dynamic Load Test
-
PDA Pile Dynamics Driver Analyzer
-
Factory Price High Strain Dynamic Load Test Pile Driving Analyzer PDA
-
High Strain Pile Driving Analyzer(PDA) Dynamic Load Test
-
Geonoise Instruments Pile Dynamics Revamps Analyzer
Product Description
Product Description

PDA Testing will provide prediction on the pile bearing capacity, pile integrity, driving stresses and hammer performance for a given pile penetration. It is a relative low cost type of pile testing compared to static load test (MLT or CRP). The testing technique is quick and accurate.
PDA also can be used to perform high strain pile bearing monitoring to evaluate pile driving information for pile bearing capacity, pile integrity, driving stresses and transferred energy against pile penetration. The results are essential for the actual pile driving process and to obtain valuable data on the hammer, pile & soil system for re-design on the piled foundation (if necessary).
PDA also can be used to perform high strain pile bearing monitoring to evaluate pile driving information for pile bearing capacity, pile integrity, driving stresses and transferred energy against pile penetration. The results are essential for the actual pile driving process and to obtain valuable data on the hammer, pile & soil system for re-design on the piled foundation (if necessary).
Specification
Specifications | |
Size/Weight | L255×W180×H56mm / 1.8kg with battery |
Touch screen | 8.4-inch TFT true color LCD with 800 × 600 resolution |
Temperature Range in Operating | -5 ºC ~ +40 ºC |
Temperature Range in Storage | -20 ºC ~ +70 ºC |
Power | 6 working hours (internal battery) |
Controlling System | Industrial computer |
Operating System | Unix OS |
Converter | 3×16 bit A/D converter |
Sampling Interval | 5 to 65536 μs |
Sampling Accuracy | Within 0.01% |
Trigger level | Multiple level |
System Noise Level | <2μv |
Frequency Bandwidth | 10 to 12000 Hz |
Dynamic Range | ≥ 100dB |
Data Storage | 3000 piles |
Data Transfer Mode | USB 2.0 |
Data Length | 1k |
Data Channel | 4 channels |
Data Sensor | Accelerometer, strain transducer |
Test Mode | 2V+2F; 2V+2V |

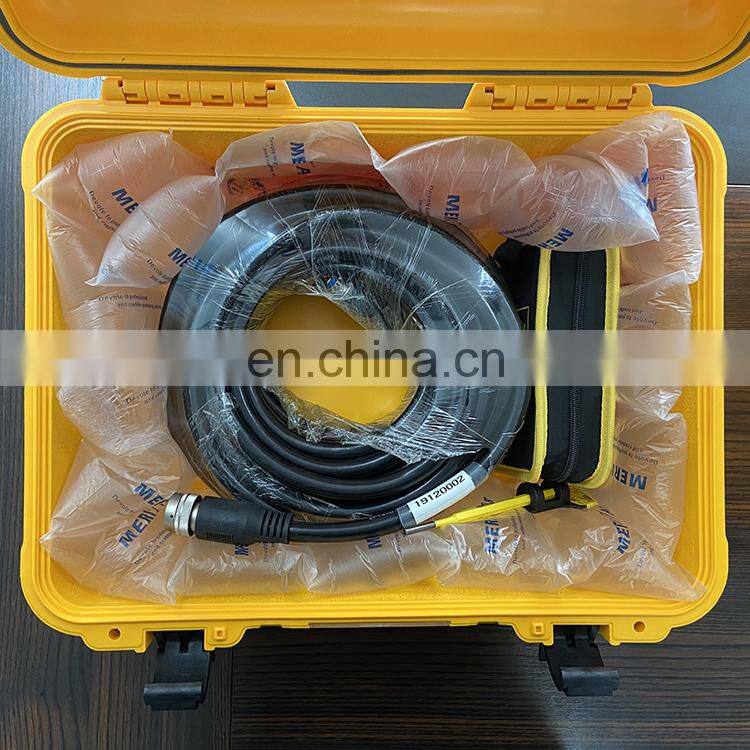

Packing & Delivery


To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. One set is in one strong box.
Company Profile

Iwin testing equipment company is a high-tech enterprise focusing on the research and development, production and sales of engineering quality test and testing instruments.The company serves in the construction, the railroad, the highway, the water conservancy, the electric power, the university and the scientific research institute,To provide quality products, services and solutions for the industry,And establish a good long-term cooperative relationship with it.
The company's entire line of products passed: ISO9001 quality management system certification,The entire line of products has independent intellectual property rights,A number of products have applied for national patents.Meanwhile, iwin has passed the high-tech enterprise certification.
The company's entire line of products passed: ISO9001 quality management system certification,The entire line of products has independent intellectual property rights,A number of products have applied for national patents.Meanwhile, iwin has passed the high-tech enterprise certification.
FAQ
Q: Are your company a trading one or a factory?
A: Factory+ trade (integration), More than 10 years focusing on test instruments field.
Q: After an order is placed, How long it be delivered?
A: Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days Please be aware that our production lead times depend on specific items and item quantities.
Q: What about the warranty with after-sales services?
A: The testing machine is guaranteed for 12 months by gaotiejian, we can help you to repair your problem controller freely, even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q: What about the product' services and quality?
A: Each instruments must be carried out 100% quality examination and test when shipping and delivery goods Product use training,each of our product provide video training to show you how to install operate We can arrange engineer to train the operation of equipment to customers company when you need. Products are widely recognized and trusted by users.
A: Factory+ trade (integration), More than 10 years focusing on test instruments field.
Q: After an order is placed, How long it be delivered?
A: Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days Please be aware that our production lead times depend on specific items and item quantities.
Q: What about the warranty with after-sales services?
A: The testing machine is guaranteed for 12 months by gaotiejian, we can help you to repair your problem controller freely, even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q: What about the product' services and quality?
A: Each instruments must be carried out 100% quality examination and test when shipping and delivery goods Product use training,each of our product provide video training to show you how to install operate We can arrange engineer to train the operation of equipment to customers company when you need. Products are widely recognized and trusted by users.
