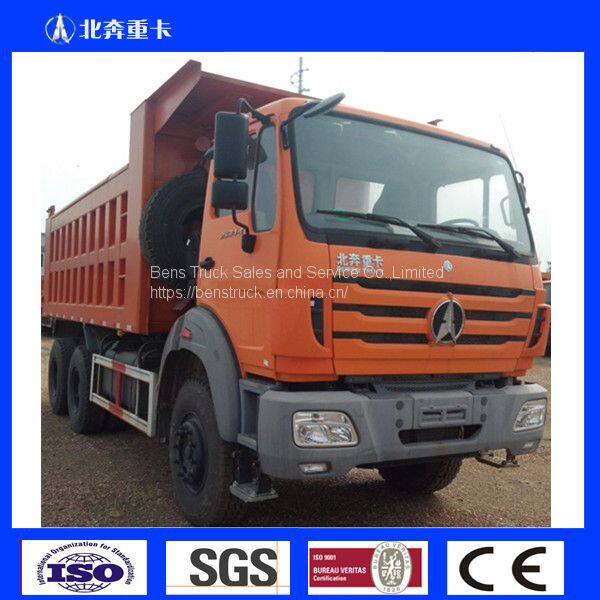

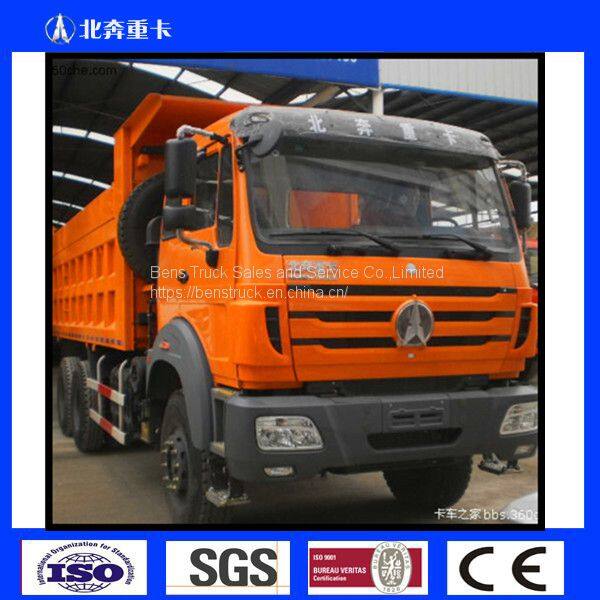

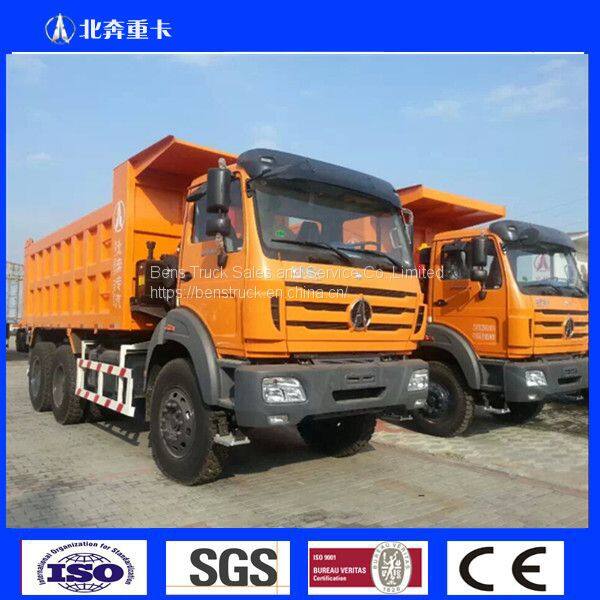

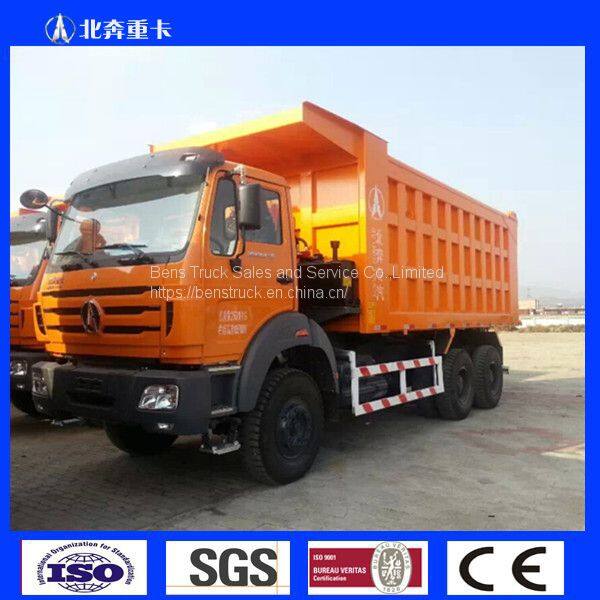

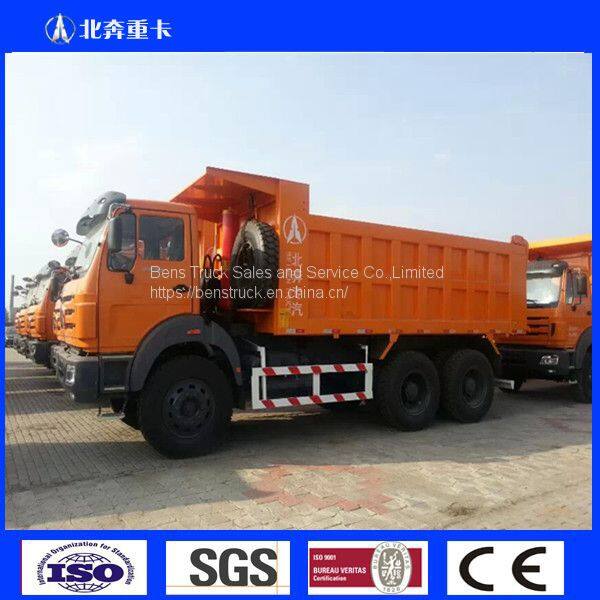

North Benz Beiben NG80 Tipper Truck Dump Truck Low Price From China for Sale

Cargo Box Dimension（L*W*H） (mm)

5600×2300x1500

Overhang(front/rear) (mm)

1410/1687

Wheel base (mm)

3800+1450

Max speed （km/h（kg）

12200

Engine

Model

WP10.340E32，turbocharged,

Fuel type

Diesel

Rated Power / rotating

250Kw/2200rpm

Maximum Torque / rotating speed）

9726

Fuel tanker capacity ）300

Clutch

Model

，Hydraulic boosting

Gearbox

Model

12JS160T, mechanical type，12 Forward speed gear. Based on Fuller technology.

Brake system

Service brake

Brake gap can be adjusted automatically, double circuit
air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

Model

ZF8098, whole
circulation in ball type, hydraulic boosting

Frame

Equal width and
sections, section size 300*90*8+6+8(8mm integrated reinforced steel plate)

Front axle

Double-shoe pneumatic brake, non-driving steering
axle

Middle and Rear axle

Double-shoe reinforced
pneumatic brake, ductile casting casing, with hub reductor, double reduction
driving axle, reinforced wheel rim.

Tire

12.00R20 radial tire

Qty of tire

11

Electrical
system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cab

Full steel skeleton structure, covered with double layer steel plate;Can be tippedforwardly;

interior trimming:High back/shockabsorption seat for driver.Inner A/C, Steering wheel can be adjusted. Manual

door locks, manual glass lift

Exterior trimming:NG80B front gridplate, Metal bumper, three steps, sun visor, new mirror system.
