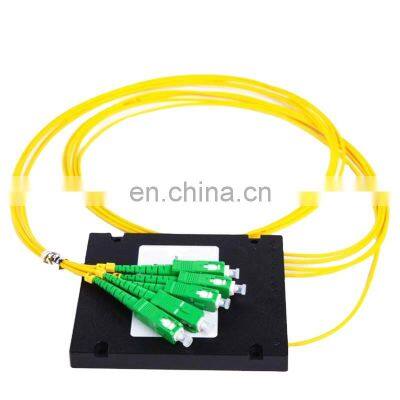

G657A 2.0MM 3.0mm sc/apc abs box type 1*8 Fiber Optical PLC Splitter
- 1000 per Month
- T/T Credit Card
You May Like
-
FTTH G652D/G657A1 2.0/3.0mm Without Connector ABS Box Type Model 1*8 PLC Splitter
-
Single Mode Fiber Optical ABS Box Type 1x4 1X8 Coupler PLC Splitter without connector
-
PLC Splitter 1x8 Fiber Optic ABS Box Type PLC optical Splitter 0.9mm SC UPC Connector Singlemode
-
SC UPC Optical Fiber 1X2 1X4 1X8 1X16 1X32 1X64 PLC Splitter
-
Best Price Fiber optic splitter ABS SC UPC 1x2 1x3 1x4 1x8 1x16 1x32 2x2 2x4 2x8 2x16 2x32 Outdoor PLC
-
FTTH 1X8 3.0mm 1m fiber optic ABS box PLC splitter PLC
Product Description
1).Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical
waveguide technology.
2).It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
3).We provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.
4).All products meet GR-1209-CORE and GR-1221-CORE requirements.
|
Parameter |
Specification |
||||||||
|
Operating Wavelength (nm) |
1260 ~ 1650 |
||||||||
|
Type |
1x4 |
1x8 |
1x16 |
2x4 |
2x8 |
2x16 |
1x32 |
2x32 |
1x64 |
|
Insertion Loss (dB) Max. * |
<7.3 |
<10.5 |
<13.5 |
<7.6 |
<11.2 |
<14.5 |
<16.2 |
<18.2 |
<20.5 |
|
Uniformity (dB) Max.* |
<0.8 |
<1.0 |
<1.5 |
<1.0 |
<1.5 |
<2.0 |
<2.0 |
<2.5 |
<2.5 |
|
PDL(dB)Max.* |
<0.2 |
<0.2 |
<0.3 |
<0.3 |
<0.3 |
<0.4 |
<0.3 |
<0.4 |
<0.3 |
|
Directivity (dB) |
≥55 |
||||||||
|
Return Loss (dB) |
UPC ≥55 APC ≥60 |
||||||||
|
Operating Temperature (°C) |
-5~ +75 |
||||||||
|
Storage Temperature (°C) |
-40 ~ +85 |
||||||||
|
Fiber length |
1m or custom length |
||||||||
|
Fiber Type |
Corning SMF-28e fiber |
||||||||
|
Connector Type |
Custom specified |
||||||||
|
Power Handling (mW) |
300 |
||||||||
Notes:1.Specified without connectors. 2.Add an additional 0.2dB loss per connector
