Product Description

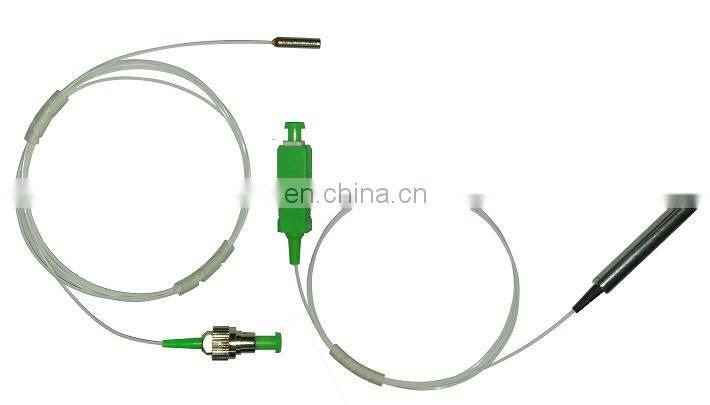

1x2 optic fiber Polarization Beam Combiner/Splitter,1310/1480/1550/1064nm wavelength
1. Description
The PBC/PBS is built based on PM collimator and Wollaston prism, with All-glass technique sealed
Process. lt can combine two polarization state into one single mode fiber or split single mode into
Two vertical polarization states.Mostly used in Raman Amplifier,combine two vertical polar states
To get a double power light.
2. Features
High Extinction Ratio
Low lnsertion Loss
Flexible polarization light path
3. Applications
High power EDFA
Fiber sensor
Fiber Amplifiers
4. Specifications
|
Parameters |
Unit |
Value |
|
|
Center Wavelength(λc) |
nm |
1310,1480,1550 |
1064 |
|
Operating wavelength range |
nm |
±40 |
±20 |
|
Typ. lnsertion Loss at Tr* |
dB |
0.4 |
0.6 |
|
lnsertion Loss at To* |
dB |
≤0.6 |
≤0.8 |
|
Return Loss(lnput/Output) |
dB |
≥50 |
≥50 |
|
Extinction Ratio(only for splitter) |
dB |
≥22 |
≥20 |
|
Power handling(CW laster) |
mW |
≤500 |
|
|
Tensile Load |
N |
≤5 |
|
|
Fiber Type |
--- |
PM panda fiber for Port1&2. Single mode or PM Panda fiber for Port3(find details in ordering information) |
|
|
Operating Temperature |
℃ |
-5 to +70 |
|
|
Storage Temperature |
℃ |
-40 to +85 |
|
Remark:
*Tr=Room temperature,To=Opearting temperature.
*Above specifications are for device without connector.
*For devices with connectors, specification please refer to PM patchcord spec.
*The PM fiber and the connector key are aligned to the slow axis.(Default if customer no special request)
5.Ordering lnformation
| PG-PBC/PBS 1*2 |
wavelength |
Pigtail type |
Fiber type on port3 |
package |
Connector |
Fiber length |
|
|
1064nm 1310nm 1480nm 1550nm |
0=Bare 1=0.9mm Loose tube |
0=SM fiber (SMF-28e or Hi1060) 1=PMF,slow axis align 450 to port1 2=PMF,slow Axis align to port1 |
5.5x35mm |
FP=FC/PC FA=FC/APC SP=SC/PC SA=SA/APC etc |
0.5m 0.8m 1.0m etc |

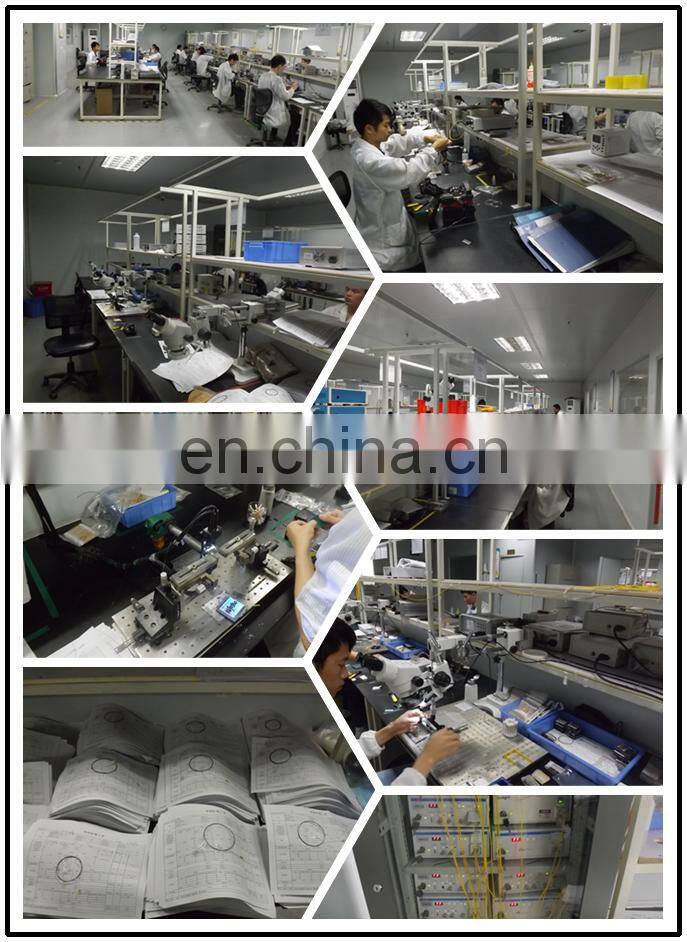

6.Our factory
