Product Description
Product Description

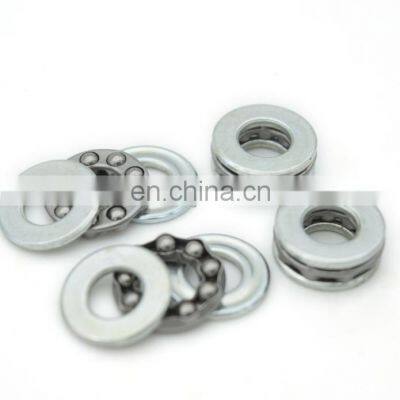

SF8-16 stainless steel mini thrust ball bearing 8x16x5 SF8-16M
The F Metric Thrust Ball Bearing Series is a high precision line of miniature thrust ball bearings that can accommodate axial loads in a single direction. The bearings in this series are designed with flat raceways and are suitable for applications with smaller load and speed requirements than that of the FM miniature thrust bearing series.
These bearings are available with bore sizes as small as 2mm (0.0787 inches) and as large as 10mm (0.3937 inches), and with the race ODs ranging from 6mm (0.2362 inches) to 18mm (0.7087 inches).
These bearings are typically manufactured with SAE 52100 chrome steel races
but can be manufactured in stainless steel upon request
Bearings | SF8-16 stainless steel mini thrust ball bearing 8x16x5 SF8-16M |
d | 8mm |
D | 16mm |
B | 5 mm |
weight | 0.002 KG |
Package | BOX,CARTON,WOODEN,PALLETS |
Payment | TT,WESTER UNION,PAYPAL |
Time | 3-5DAYS |
contact | 86-18710180456 |
email | sales1 at |
Detailed Images
8x16x5mm Chrome Stainless steel Brass Cage Miniature Thrust Ball Bearing SF8-16 F8-16 F8-16M
Recommend Products
ModelNo.(steel cage) | ModelNo.(brass cage) | d (mm) | D (mm) | H (mm) | W (KG) | numberof ball | ball size |
F2.5-6 | F2.5-6M | 2.5 | 6 | 3 | 0.0007 | 6 | 1.2 |
F3-8 | F3-8M | 3 | 8 | 3.5 | 0.001 | 7 | 1.588 |
F4-9 | F4-9M | 4 | 9 | 4 | 0.0012 | 8 | 1.588 |
F4-10 | F4-10M | 4 | 10 | 4 | 0.0016 | 9 | 1.588 |
F5-10 | F5-10M | 5 | 10 | 4 | 0.0015 | 9 | 1.588 |
F5-11 | F5-11M | 5 | 11 | 4.5 | 0.0021 | 9 | 1.588 |
F5-12 | F5-12M | 5 | 12 | 4 | 0.0022 | 9 | 1.58 |
F6-11 | F6-11M | 6 | 11 | 4.5 | 0.002 | 9 | 1.588 |
F6-12 | F6-12M | 6 | 12 | 4.5 | 0.0024 | 9 | 2 |
F6-14 | F6-14M | 6 | 14 | 5 | 0.0036 | 5 | 2.381 |
F7-13 | F7-13M | 7 | 13 | 4.5 | 0.0025 | 9 | 2 |
F7-15 | F7-15M | 7 | 15 | 5 | 0.004 | 8 | 3 |
F7-17 | F7-17M | 7 | 17 | 6 | 0.006 | 6 | 3 |
F8-16 | F8-16M | 8 | 16 | 5 | 0.004 | 9 | 3 |
F8-19 | F8-19M | 8 | 19 | 7 | 0.009 | 10 | 3.175 |
F9-17 | F9-17M | 9 | 17 | 5 | 0.0045 | 10 | 3 |
F9-20 | F9-20M | 9 | 20 | 7 | 0.0089 | 7 | 3.175 |
F10-18 | F10-18M | 10 | 18 | 5.5 | 0.006 | 10 | 3.175 |
F12-21 | F12-21M | 12 | 21 | 5 | 0.006 | 11 | 3 |
F12-23 | F12-23M | 12 | 12 | 7.5 | 0.013 | 11 | 3 |
2805 | 2805 | 11.1 | 22.2 | 6.35 | 0.01 | 11 | 3 |
Product packaging
Packing ：
1. Industrial packing
2. Single box +carton +pallets /case
3. According to customers demand
Delivery time :
1. Generally after payment: within 3 days .
2. If need produce , about 30 days
Payment
A less USD1000 , 100% T/T in advance .
1. More USD1000 , 30% T/T in advance , 70%T/T before shipment
Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...
Application
Factory
Company introduction
LANDLION BEARING CO.,LTD is an export-oriented enterprise, specializing in manufacturing and marketing several types of bearings for more than 10 years. We can produce the bearings accordingly to the customers' samples or drawings.LANDLION has a large top brand bearing NSK NTN UBC ASAHI IKO NACHI KOYO in stock.
