Home > Products > Thrust Ball Bearing > 234421 BM P5 HRB thrust angular contact ball bearing 234421MP4 234421-M-SP
234421 BM P5 HRB thrust angular contact ball bearing 234421MP4 234421-M-SP
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
3x6x3.5mm F3-6M Axial miniature plane thrust ball bearing F3-6M
-
high quality 3x6x2.8 F3-6M-2.8 Axial miniature plane thrust ball bearing F3-6M
-
EZO F3-8 miniature brass thrust ball bearing F3-8M bearing 3x8x3.5mm
-
4x10x4mm Thrust Ball Bearing F4-10M stainless steel bearing SF4-10M F4-10
-
F8-16 F8-16M stainless steel mini thrust ball bearing 8x16x5 SF8-16M
-
high quality Axial miniature thrust ball bearing F7-13M F7-15 F7-17m toys bearing stainelss steel
Product Description
Product Description
234421 BM P5 HRB thrust angular contact ball bearing 234421MP4 234421-M-SP
Axial angular contact ball bearings 234421
Bearing number : 234421
Size (mm) : 105x160x33
Brand : HRB
Bore Diameter (mm) : 105
Outer Diameter (mm) : 160
Width (mm) : 33
Bearing dimensions and specification in HRB catalogue:
d - 105 mm
D - 160 mm
C - 33 mm
H - 66 mm
Weight - 4,15 Kg
Bearing number : 234421
Size (mm) : 105x160x33
Brand : HRB
Bore Diameter (mm) : 105
Outer Diameter (mm) : 160
Width (mm) : 33
Bearing dimensions and specification in HRB catalogue:
d - 105 mm
D - 160 mm
C - 33 mm
H - 66 mm
Weight - 4,15 Kg
Double direction axial angular contact ball bearings are precision bearings without self-retention and with restricted tolerances to class SP. They comprise solid shaft locating washers, a spacer ring, a housing locating washer and ball and cage assemblies with solid brass cages. The bearing parts are matched to each other and can be fitted separately, but must not be interchanged with parts from bearings of the same size.
A detailed description of axial angular contact ball bearings (calculation, lubrication, rigidity, machining tolerances of bearing seats) is given in Catalogue AC 41 130, Super Precision Bearings.
Suffix
Description
Design
M
Solid brass cage, ball-guided
Standard
SP
Restricted tolerance class SP
UP
Restricted tolerance class UP
Special design, available by agreement
Description
Design
M
Solid brass cage, ball-guided
Standard
SP
Restricted tolerance class SP
UP
Restricted tolerance class UP
Special design, available by agreement
Bearing Model | 234421MP4 234421-M-SP |
Structure | Axial angular contact ball bearings Double direction thrust angular contact ball |
Application | spindle bearing for CNC |
feature | tolerable rotational speed and accuracy is higher.double row ball bearing |
(dxDxB) | 105x160x33 |
Weight / | 4.15 KG |
HS CODE | 8482500000 |
Lead Time | Within 3 Days |
Contact Person | sara (Ms) |
WhatsApp | +86-18710180456 |

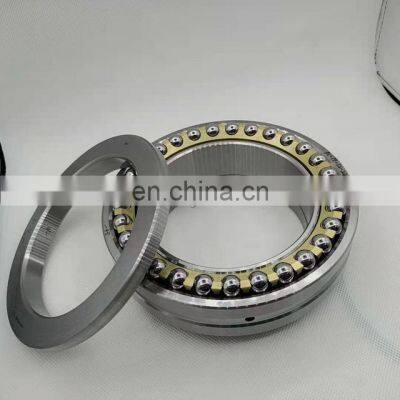

Detailed Images
Angular Contact Thrust Ball Bearings Double Direction 234421-M-SP
234421.M.SP 234421M.SP Double Direction Thrust Bearing 105x160x66 mm Angular Contact Ball Bearing 234421-M-SP
if have any item of this type bearings.pls check as following:
BEARING | d | D | B |
mm | mm | mm | |
234406-M-SP | 30 | 55 | 32 |
234407-M-SP | 35 | 62 | 34 |
234408-M-SP | 40 | 68 | 36 |
234409-M-SP | 45 | 75 | 38 |
234410-M-SP | 50 | 80 | 38 |
234411-M-SP | 55 | 90 | 44 |
234412-M-SP | 60 | 95 | 44 |
234413-M-SP | 65 | 100 | 44 |
234414-M-SP | 70 | 110 | 48 |
234415-M-SP | 75 | 115 | 48 |
234416-M-SP | 80 | 125 | 54 |
234417-M-SP | 85 | 130 | 54 |
234418-M-SP | 90 | 140 | 60 |
234419-M-SP | 95 | 145 | 60 |
234420-M-SP | 100 | 150 | 60 |
234421-M-SP | 105 | 160 | 66 |
234422-M-SP | 110 | 170 | 72 |
234424-M-SP | 120 | 180 | 72 |
234426-M-SP | 130 | 200 | 84 |
234428-M-SP | 140 | 210 | 84 |
234430-M-SP | 150 | 225 | 90 |
234432-M-SP | 160 | 240 | 96 |
234434-M-SP | 170 | 260 | 108 |
234436-M-SP | 180 | 280 | 120 |
234438-M-SP | 190 | 290 | 120 |
234440-M-SP | 200 | 310 | 132 |
234444-M-SP | 220 | 340 | 144 |
234448-M-SP | 240 | 360 | 144 |
234452-M-SP | 260 | 400 | 164 |
234456-M-SP | 280 | 420 | 164 |
Product packaging
Packing ：
1. Industrial packing
2. Single box +carton +pallets /case
3. According to customers demand
Delivery time :
1. Generally after payment: within 3 days .
2. If need produce , about 30 days
Payment
A less USD1000 , 100% T/T in advance .
1. More USD1000 , 30% T/T in advance , 70%T/T before shipment
Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...
Application
Factory
Company introduction
LANDLION BEARING CO.,LTD is an export-oriented enterprise, specializing in manufacturing and marketing several types of bearings for more than 10 years. We can produce the bearings accordingly to the customers' samples or drawings.LANDLION has a large top brand bearing NSK NTN UBC ASAHI IKO NACHI KOYO in stock.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and trader .
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us .
