Samick LMES16 Self Aligning Ball Bushings 16 mm Linear Motion Bearing LMES16UU
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Original SAMICK Linear Motion Bearing LMES10 LMES10 OP LMES10UU
-
Samick Slide Bushing Bearing LM30UU Linear Motion Ball Bearing LM30UU
-
Samick Linear Bearing LM12LUU Linear Motion Ball Bearing CNC Slide Bushing LM12UU
-
Rexroth Linear Runner Block Ball Rail Guide R162432320 R162421420 Carriage Block Bearing
-
SLF016 TBI Spline Ball SLF016T2-NNS-300-P0 With Shaft
-
SLF Series TBI Ball Spline SLF013T2 Spline Nut With Shaft SLT013
Product Description
Product Description
original samick LMES16 Self Aligning Ball Bushings 16 mm Linear Motion bearing LMES16UU
Linear ball bearing LMES16
Bearing number : LMES16
Brand : Samick
Bore Diameter (mm) : 16
Outer Diameter (mm) : 26

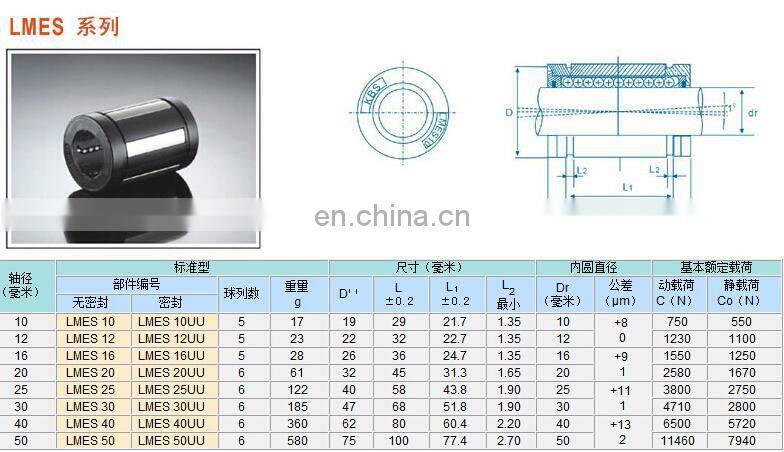

Bearing dimensions and specification in Samick catalogue:
d - 16 mm
D - 26 mm
L ±0.2 - 36 mm
L1 ±0.2 - 24,7 mm
L2 min. - 1,35 mm
Weight - 0,028 Kg
Basic dynamic load rating (C) - 1,55 kN
Basic static load rating (C0) - 1,25 kN
Tags : Samick
Bearing number : LMES16
Brand : Samick
Bore Diameter (mm) : 16
Outer Diameter (mm) : 26
Bearing dimensions and specification in Samick catalogue:
d - 16 mm
D - 26 mm
L ±0.2 - 36 mm
L1 ±0.2 - 24,7 mm
L2 min. - 1,35 mm
Weight - 0,028 Kg
Basic dynamic load rating (C) - 1,55 kN
Basic static load rating (C0) - 1,25 kN
Tags : Samick
Basic dynamic load rating (C) - 0,75 kN
Basic static load rating (C0) - 0,55 kN
Tags : Samick
LMES 10 LMES 10UU
LMES 12 LMES 12UU
LMES 12P LMES 12UUO
LMES 16 LMES 16UU
LMES 16OP
LMES 16UUOP
LMES 20 LMES 20UU
LMES 20OP LMES 20UUOP
bearing name | Linear ball bearing LMES16 |
Material : | bearing : chrome steel |
brand | LSBC |
size : | 16MM |
email | sales1@landlionbearing.com |
Tel/ whatsapp | +86-18710180456 |
LMES16 Self Aligning Ball Bushings 16 mm Linear Motion LMES16UU
Size Information
The HG series linear guideways are designed with load capacity and rigidity higher than other similar products with circular-arc groove and structure optimization. It features equal load ratings in the radial, reverse radial and lateral directions, and self-aligning to absorb installation-error. Thus, the HG series linear guideways can achieve a long life with high speed, high accuracy and smooth linear motion
