EASE SDB8 Steel Retainer Slide Bearing SDB8 SDM8
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Original EASE SDM25 Linear Bearing SDM25 Linear Motion Bearings SDM25Y
-
TRS25VS Original TBI Linear Guide TRS25VN Linear Motion Guide Block S25VS S25VN
-
Original TBI Motion TRS20VN Linear Guide S20VN Slide Block
-
H30FN TRH30FN/TRH30FE Original TBI Linear Motion Guide Block TRH30FN
-
TRH35FN Linear Guide Linear Slider Block Bearing TBI TRH20FN TRH25FN TRH30FN TRH35FN
-
TBI Slider Ball Screw SFNUR01610T3D Single Ball Nut for SCR1610 Ball Screw
Product Description
Product Description

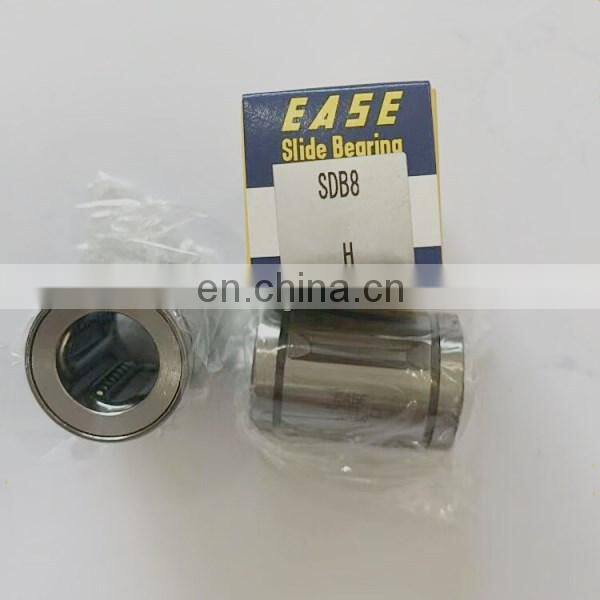

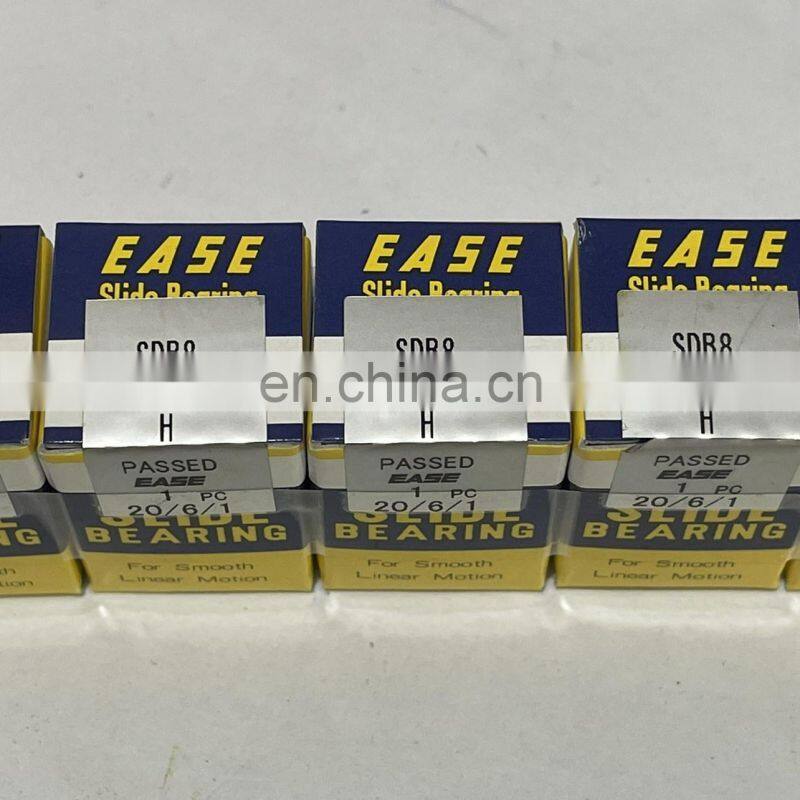

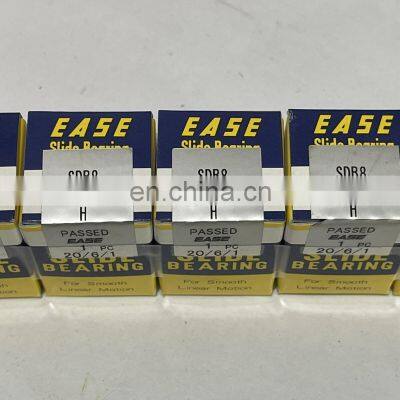

EASE SDB8 Steel Retainer Slide Bearing SDB8 SDB8-OH
SDB4 SDB6 SDB8 SDB10 SDB12 SDB16 SDB20 SDB24
) Linear Bearing widely used in many precision equipment,like electronic equipment,
tension tester and digital 3d coordinate measurement equipment etc.
2) Linear Bearing widely used in many machines,like multi-axis machine, punch,
tool grinding machine, automatic cutting machine, printer, card sorting machine,
ShiPinBao installed the sliding parts such as industrial machinery
3)Suitable for Countless Applications: Sliding Doors, Windows and Other Furnitures,etc.
tension tester and digital 3d coordinate measurement equipment etc.
2) Linear Bearing widely used in many machines,like multi-axis machine, punch,
tool grinding machine, automatic cutting machine, printer, card sorting machine,
ShiPinBao installed the sliding parts such as industrial machinery
3)Suitable for Countless Applications: Sliding Doors, Windows and Other Furnitures,etc.
bearing name | EASE SDB8 Steel Retainer Slide Bearing SDB8 SDB8-OH |
Material : | bearing : chrome steel |
brand | Ease |
size : | 12.7*22.225*31.75 |
email | sales1@landlionbearing.com |
Tel/ whatsapp | +86-18710180456 |
Size Information
Shaft diameter d mm | Part No. | lnscribed circle diameter | ||||||||||||
Standard type | AJ Adjustable type | Ball track | OP形 Open type | Ball track | Fw mm | Tolerance | ||||||||
Precision grade Um | High grade Um | |||||||||||||
6.350 | SDB4 | 3 | 6.350 | 0 -6 | 0 -9 | |||||||||
9.525 | SDB6 | 3 | 9.525 | |||||||||||
12.700 | SDB8 | SDB8 AJ | 4 | SDB8 OP | 3 | 12.700 | ||||||||
15.875 | SDB10 | SDB10 AJ | 4 | SDB10 OP | 3 | 15.875 | ||||||||
19.050 | SDB12 | SDB12 AJ | 5 | SDB12 OP | 4 | 19.050 | 0 -7 | 0 -10 | ||||||
25.400 | SDB16 | SDB16 AJ | 5 | SDB16 OP | 4 | 25.400 | ||||||||
31.750 | SDB20 | SDB20 AJ | 6 | SDB20 OP | 5 | 31.750 | 0 -8 | 0 -12 | ||||||
38.100 | SDB24 | SDB24 AJ | 6 | SDB24 OP | 5 | 38.100 | ||||||||
50.800 | SDB32 | SDB32 AJ | 6 | SDB32 OP | 5 | 50.800 | ||||||||
65.500 | SDB40 | SDB40 AJ | 6 | SDB40 OP | 5 | 65.500 | 0 -9 | 0 -15 | ||||||
76.200 | SDB48 | SDB48 AJ | 6 | SDB48 OP | 5 | 76.200 | ||||||||
101.600 | SDB64 | SDB64 AJ | 6 | SDB64 OP | 5 | 101.600 | 0 -10 | 0 -2 | ||||||
EASE Linear Bearings Type:
SDM (Steel Retainer)
SDM AJ (Steel Retainer)
SDM OP (Steel Retainer)
SDM OP (Steel Retainer)
SDM-Y (Plastic Retainer)
SDM-Y AJ (Plastic Retainer)
SDE (Steel Retainer)
SDE AJ (Steel Retainer)
SDE OP (SteelRetainer)
SDE-Y (Plastic Retainer)
SDE-Y AJ (Plastic Retainer)
SDB (Steel Retainer)
SDB AJ (Steel Retainer)
SDB OP (Steel Retainer)
SDMF(Steel Retainer)
SDMK (Steel Retainer)
SDMF-Y (Plastic Retainer)
SDMK-Y (Plastic Retainer)
SDM-LY (Standard)
SDMF-LY (Standard)SDMK-LY(Standard)
haft size | Designation | Major dimensions mm | Basic loading arting | Weight/G | ||||||
Фd | ФD | L | Dynamic Cr/ N | Static Co /N | ||||||
6 | SDM6 | 6 | 12 | 19 | 206 | 265 | 8.5 | |||
8 | SDM8 | 8 | 15 | 17 | 176 | 216 | 11 | |||
8 | SDM8S | 8 | 15 | 24 | 274 | 392 | 17 | |||
10 | SDM10 | 10 | 19 | 29 | 372 | 549 | 36 | |||
12 | SDM12 | 12 | 21 | 30 | 510 | 784 | 42 | |||
13 | SDM13 | 13 | 23 | 32 | 510 | 784 | 49 | |||
16 | SDM16 | 16 | 28 | 37 | 774 | 1180 | 76 | |||
20 | SDM20 | 20 | 32 | 42 | 882 | 1370 | 100 | |||
25 | SDM25 | 25 | 40 | 59 | 980 | 1570 | 240 | |||
30 | SDM30 | 30 | 45 | 64 | 1570 | 2740 | 270 | |||
35 | SDM35 | 35 | 52 | 70 | 1670 | 3140 | 425 | |||
40 | SDM40 | 40 | 60 | 80 | 2160 | 4020 | 654 | |||
50 | SDM50 | 50 | 80 | 100 | 3820 | 7940 | 1700 | |||
60 | SDM60 | 60 | 90 | 110 | 4700 | 10000 | 2000 | |||
80 | SDM80 | 80 | 120 | 140 | 7350 | 16000 | 4520 | |||
100 | SDM100 | 100 | 150 | 175 | 14100 | 34800 | 8600 | |||
120 | SDM120 | 120 | 180 | 200 | 16400 | 40000 | 15000 | |||
150 | SDM150 | 150 | 210 | 240 | 21100 | 54300 | 20250 | |||
Related Products
Packing&Shipping
Packing ：
1. Industrial packing
2. Single box +carton +pallets
3. According to customers demand
Delivery time :
1. Generally after payment: within 3 days .
2. If need produce , about 30 days
Payment
A less USD1000 , 100% T/T in advance .
1. More USD1000 , 30% T/T in advance , 70%T/T before shipment .
1. Industrial packing
2. Single box +carton +pallets
3. According to customers demand
Delivery time :
1. Generally after payment: within 3 days .
2. If need produce , about 30 days
Payment
A less USD1000 , 100% T/T in advance .
1. More USD1000 , 30% T/T in advance , 70%T/T before shipment .
