Home > Products > Crossed Roller Bearing > High quality THK Cross Roller Bearing RA15008UU Industrial Tobot Bearing RA15008 150x166x8

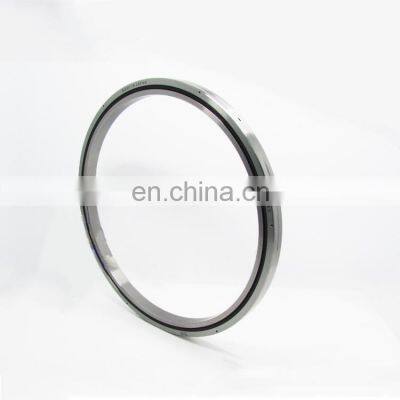

High quality THK Cross Roller Bearing RA15008UU Industrial Tobot Bearing RA15008 150x166x8
Negotiable
1 (Min.Order)
- T/T Credit Card
You May Like
-
RA17013 China High quality Crossed Roller Bearing XRA17013 Industrial Robot Bearing
-
THK Ultra-thin Cross Roller Bearings RA6008 CRBS608 for Machine Tool slewing ring bearings
-
THK RA18013 UUCC0 Crossed Roller Bearing Robot 180x206x13mm RA18013
-
Crossed Roller bearing RU124G RU124X RU124UU RU124UUCC0 RU124
-
RA Series Crossed Roller Bearing cross bearing RA 13008 Robots bearings RA13008
-
RU445G High Accuracy Crossed Roller Bearing cross bearing Robots bearings RU445
Product Description
Product Description
The Structure and Character of Cross Roller Bearing
we can offer the type of RA, RB, RE, RU, CRBH, SX，XSU, XV, SHF, CSF for industrial robots.
Crossed roller bearing is a special type bearing with split inner ring and outer ring rotation. The divided inner ring or outer ring is fixed with the cross roller collar after the roller and the spacer are installed to prevent separation, so the operation is simple when installing the cross roller collar.
because the inner or outer ring of the cross roller bearing has a two-part structure, the bearing gap can be adjusted, and even if a preload is applied, a high-precision rotary motion can be obtained. Moreover, due to its special structure, it can be applied to the joints and rotating parts of industrial robots, rotary tables of machining centers, rotating parts of manipulators, precision rotary tables, medical equipments, measuring instruments, IC manufacturing machines, etc.
Bearing Model | RA15008 |
Application | robots arm |
Type | Crossed Roller Bearing |
Structure | Separable Outer Ring Cross Roller Bearing |
(dxDxB) | 150x166x8mm |
Mass / | 0.2 KG |
Origin | JAPAN |
Grade | P2 P4 P5 |
Lead Time | Within 3 Days |
Contact | jessi (Ms) |
WhatsApp / Webchat | +86 18753110215 |
E | lbc001at |
Detailed Images
Model RA (Separable Outer Ring Type for Inner Ring Rotation) Based on model RB, this model is a light and compact type with the thinnest possible inner and outer rings. It is optimal for locations where weight reduction and downsizing are required, such as the hand swiveling unit of robots and manipulators.
Bearing NO. | Dimension(mm) | Weight (Kg) | ||||||
THK | IKO | d | D | B | ||||
RA5008 | CRBS508 | 50 | 66 | 8 | 0.08 | |||
RA6008 | CRBS608 | 60 | 76 | 8 | 0.09 | |||
RA7008 | CRBS708 | 70 | 86 | 8 | 0.1 | |||
RA8008 | CRBS808 | 80 | 96 | 8 | 0.11 | |||
RA9008 | CRBS908 | 90 | 106 | 8 | 0.12 | |||
RA10008 | CRBS1008 | 100 | 116 | 8 | 0.15 | |||
RA11008 | CRBS1108 | 110 | 126 | 8 | 0.16 | |||
RA12008 | CRBS1208 | 120 | 136 | 8 | 0.17 | |||
RA13008 | CRBS1308 | 130 | 146 | 8 | 0.18 | |||
RA14008 | CRBS1408 | 140 | 156 | 8 | 0.19 | |||
RA15008 | CRBS1508 | 150 | 166 | 8 | 0.2 | |||
RA16013 | CRBS16013 | 160 | 186 | 13 | 0.59 | |||
RA17013 | CRBS17013 | 170 | 196 | 13 | 0.64 | |||
RA18013 | CRBS18013 | 180 | 206 | 13 | 0.68 | |||
Application
Main Products
Product packaging
Packing ：
1. Industrial packing
2. Single box +carton +pallets /case
3. According to customers demand
Delivery time :
1. Generally after payment: within 3 days .
2. If need produce , about 30 days
Payment
A less USD1000 , 100% T/T in advance .
1. More USD1000 , 30% T/T in advance , 70%T/T before shipment
Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...
Application
Factory
Company introduction
LANDLION BEARING CO.,LTD is an export-oriented enterprise, specializing in manufacturing and marketing several types of bearings for more than 10 years. We can produce the bearings accordingly to the customers' samples or drawings.LANDLION has a large top brand bearing NSK NTN UBC ASAHI IKO NACHI KOYO in stock.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and trader .
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us .
