XRU5515 RU85 CRBF5515AT Crossed Roller bearing RU85UU
Negotiable
1 (Min.Order)
- T/T Credit Card
You May Like
-
THK slewing bearing RB12016UUC0 P5 P4 crossed roller bearing RB12016
-
high Precision THK slewing bearing RB 9016 Crossed Roller Bearing RB9016 RB9016UUCC0P5 P4
-
high quality RU124 Crossed Roller bearing RU124G RU124X RU124UU RU124UUCC0 P5 P6 P4 P2
-
XRU35045 Crossed Roller Bearings XRU35045G Slewing Bearing RU445G RU445
-
XSU crossed roller bearing XSU080218 thin section slewing bearing XSU 080218 188x255x25.4mm
-
XSU080168 Cross Roller bearing 130x205x25.4mm thin section slewing bearing XSU080168
Product Description
Product Description
XRU5515 RU85 CRBF5515AT Crossed Roller bearing RU85UU
we have P5 P4 P2 and P6(normal grade) for you.difference price.pls contact with us before place order.
The Structure and Character of Cross Roller Bearing
Crossed roller bearing is a special type bearing with split inner ring and outer ring rotation. The divided inner ring or outer ring is fixed with the cross roller collar after the roller and the spacer are installed to prevent separation, so the operation is simple when installing the cross roller collar.
because the inner or outer ring of the cross roller bearing has a two-part structure, the bearing gap can be adjusted, and even if a preload is applied, a high-precision rotary motion can be obtained. Moreover, due to its special structure, it can be applied to the joints and rotating parts of industrial robots, rotary tables of machining centers, rotating parts of manipulators, precision rotary tables, medical equipments, measuring instruments, IC manufacturing machines, etc.Bearing Model | XRU5515 bearing |
Application | robots arm |
Type | Crossed Roller Bearing |
Structure | Separable Outer Ring Cross Roller Bearing |
(dxDxB) | 55X120X15 mm |
Mass / | 1.0 KG |
Grade | P2 P4 P5 |
Lead Time | Within 3 Days |
Contact | Sara |
WhatsApp / Webchat | +86 18710180456 |
E | sales1at |
Detailed Images

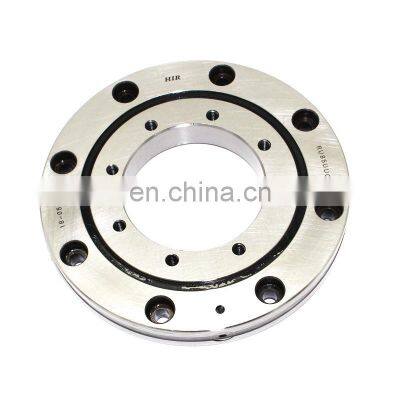

THK Crossed roller bearing XRU5515 RU85 CRBF5515AT
THK JAPAN Crossed roller bearing RU42UUCC0
Japan thk cross roller bearing RB3510 RB3510UUCC0 P5
Original thk cross roller bearing RA10008UU RA10008UUCC0
Model RU (Integrated Inner/Outer Ring Type) Since the mounting holes are provided, this model does not require a presser flange or housing. In addition, because it has an integrated inner/outer ring structure and is equipped with washers, its performance is minimally affected by the mounting procedure, ensuring stable rotation accuracy and torque.
This model can be used for both inner-ring rotation and outer-ring rotation.
Model No | THK | Dimension(mm) | Basic load rating(kn) | Weight(kg) | ||||||
d | D | B | C | Co | ||||||
XRU1008 | 10 | 52 | 8 | 2.91 | 2.43 | 0.12 | ||||
XRU2012 | RU42 | 20 | 70 | 12 | 7.35 | 8.35 | 0.29 | |||
XRU2512 | 25 | 80 | 12 | 8.61 | 10.6 | 0.4 | ||||
XRU3515 | RU66 | 35 | 95 | 15 | 17.5 | 22.3 | 0.66 | |||
XRU5515 | RU85 | 55 | 120 | 15 | 20.3 | 29.5 | 1 | |||
XRU8022 | RU124 | 80 | 165 | 22 | 33.1 | 50.9 | 2.6 | |||
XRU8022G | RU124X | 80 | 165 | 22 | 33.1 | 50.9 | 2.6 | |||
XRU8022X | RU124X | 80 | 165 | 22 | 33.1 | 5.9 | 2.6 | |||
XRU9025 | RU148 | 90 | 210 | 25 | 49.1 | 76.8 | 4.9 | |||
XRU9025G | RU148G | 90 | 210 | 25 | 49.1 | 76.8 | 4.9 | |||
XRU9025X | RU148X | 90 | 210 | 25 | 49.1 | 76.8 | 4.9 | |||
XRU11528 | RU178 | 115 | 240 | 28 | 80.3 | 135 | 6.8 | |||
XRU11528G | RU178G | 115 | 240 | 28 | 80.3 | 135 | 6.8 | |||
XRU11528X | RU178X | 115 | 240 | 28 | 80.3 | 135 | 6.8 | |||
XRU16035 | RU228 | 160 | 295 | 35 | 104 | 173 | 11.4 | |||
XRU16035G | RU228G | 160 | 295 | 35 | 104 | 173 | 11.4 | |||
XRU16035X | RU228X | 160 | 295 | 35 | 104 | 173 | 11.4 | |||
XRU21040 | RU297 | 210 | 380 | 40 | 156 | 281 | 21.3 | |||
XRU21040G | RU297G | 210 | 380 | 40 | 156 | 281 | 21.3 | |||
XRU21040X | RU297X | 210 | 380 | 40 | 156 | 281 | 21.3 | |||
XRU35045 | RU445 | 350 | 540 | 45 | 222 | 473 | 35.4 | |||
XRU35045G | RU445G | 350 | 540 | 45 | 222 | 473 | 35.4 | |||
XRU35045X | RU445X | 350 | 540 | 45 | 222 | 473 | 35.4 | |||
Application
Main Products
Certifications
Product packaging
Packing ：
1. Industrial packing
2. Single box +carton +pallets /case
3. According to customers demand
Delivery time :
1. Generally after payment: within 3 days .
2. If need produce , about 30 days
Payment
A less USD1000 , 100% T/T in advance .
1. More USD1000 , 30% T/T in advance , 70%T/T before shipment
Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...
Application
Factory
Company introduction
LANDLION BEARING CO.,LTD is an export-oriented enterprise, specializing in manufacturing and marketing several types of bearings for more than 10 years. We can produce the bearings accordingly to the customers' samples or drawings.LANDLION has a large top brand bearing NSK NTN UBC ASAHI IKO NACHI KOYO in stock.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and trader .
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us .
