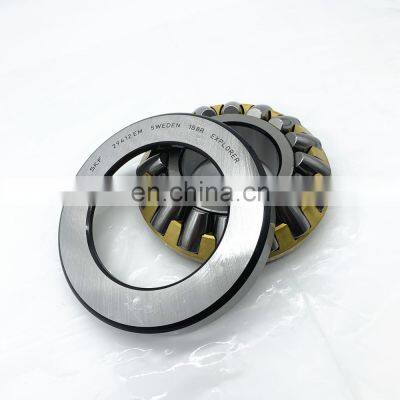

29420E NTN NSK Spherical thrust roller bearing 29420EM 29420 E 29420M

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

spherical roller thrust bearings have specially designed raceways and asymmetrical rollers. The bearings can accommodate axial loads acting in one direction and simultaneously acting radial loads. The load is transmitted between the raceways via the rollers at an angle to the bearing axis, while the flange guides the rollers

Bearing	Spherical roller thrust bearing
ITEM	29420 E 29420 EM 29420 M
d	100 mm
D	210 mm
B	67 mm
Application	face mask machine parts
Weight	10.5kg
skype	tradingbearing
whatsapp	+8618753110215
email	lbc001@landlionbearing.com

Detailed Images

Thrust Roller Bearings size as following:

principal dimensions					Basic load ratings			load limit	Speed ratings	Designation
					dynamic	static		Reference speed	Limiting speed
d[mm]	D[mm]	H[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]
60	130	42	390	915	114	2800	5000	29412 E
65	140	45	455	1080	137	2600	4800	29413 E
70	150	48	520	1250	153	2400	4300	29414 E
75	160	51	600	1430	173	2400	4000	29415 E
80	170	54	670	1630	193	2200	3800	29416 E
85	150	39	380	1060	129	2400	4000	29317 E
85	180	58	735	1800	212	2000	3600	29417 E
90	155	39	400	1080	132	2400	4000	29318 E
90	190	60	815	2000	232	1900	3400	29418 E
100	170	42	465	1290	156	2200	3600	29320 E
100	210	67	980	2500	275	1700	3000	29420 E
110	190	48	610	1730	204	1900	3200	29322 E
110	230	73	1180	3000	325	1600	2800	29422 E
120	210	54	765	2120	245	1700	2800	29324 E
120	250	78	1370	3450	375	1500	2600	29424 E
130	225	58	865	2500	280	1600	2600	29326 E
130	270	85	1560	4050	430	1300	2400	29426 E
140	240	60	980	2850	315	1500	2600	29328 E
140	280	85	1630	4300	455	1300	2400	29428 E
150	215	39	408	1600	180	1800	2800	29230 E
150	250	60	1000	2850	315	1500	2400	29330 E
150	300	90	1860	5100	520	1200	2200	29430 E
160	270	67	1180	3450	375	1300	2200	29332 E
160	320	95	2080	5600	570	1100	2000	29432 E
170	280	67	1200	3550	365	1300	2200	29334 E
170	340	103	2360	6550	640	1100	1900	29434 E
180	250	42	495	2040	212	1600	2600	29236 E
180	300	73	1430	4300	440	1200	2000	29336 E
180	360	109	2600	7350	710	1000	1800	29436 E
190	320	78	1630	4750	490	1100	1900	29338 E
190	380	115	2850	8000	765	950	1700	29438 E
200	280	48	656	2650	285	1400	2200	29240 E
200	340	85	1860	5500	550	1000	1700	29340 E
200	400	122	3200	9000	850	850	1600	29440 E
220	300	48	690	3000	310	1300	2200	29244 E
220	360	85	2000	6300	610	1000	1700	29344 E
220	420	122	3350	9650	900	850	1500	29444 E
240	340	60	799	3450	335	1100	1800	29248
240	380	85	2040	6550	630	1000	1600	29348 E
240	440	122	3400	10200	930	850	1500	29448 E
260	360	60	817	3650	345	1100	1700	29252
260	420	95	2550	8300	780	850	1400	29352 E
260	480	132	4050	12900	1080	750	1300	29452 E
280	380	60	863	4000	375	1000	1700	29256
280	440	95	2550	8650	800	850	1400	29356 E
280	520	145	4900	15300	1320	670	1200	29456 E
300	420	73	1070	4800	465	900	1400	29260
300	480	109	3100	10600	930	750	1200	29360 E
300	540	145	5000	16600	1340	670	1200	29460 E
320	440	73	1110	5100	465	850	1400	29264
320	500	109	3350	11200	1000	750	1200	29364 E
320	580	155	5700	19000	1530	600	1100	29464 E
340	460	73	1130	5400	480	850	1300	29268
340	540	122	2710	11000	950	600	1100	29368
340	620	170	6700	22400	1760	560	1000	29468 E
360	500	85	1460	6800	585	750	1200	29272
360	560	122	2760	11600	980	600	1100	29372
360	640	170	6200	21200	1630	560	950	29472 EM
380	520	85	1580	7650	655	700	1100	29276
380	600	132	3340	14000	1160	530	1000	29376
380	670	175	6800	24000	1860	530	900	29476 EM
400	540	85	1610	8000	695	700	1100	29280
400	620	132	3450	14600	1200	530	950	29380
400	710	185	7650	26500	1960	480	850	29480 E
400	710	185	7650	26500	1960	480	850	29480 EM
420	580	95	1990	9800	815	630	1000	29284
420	650	140	3740	16000	1290	500	900	29384
420	730	185	7800	27500	2080	480	850	29484 EM
440	600	95	2070	10400	850	630	1000	29288
440	680	145	5200	19300	1560	530	850	29388 EM
440	780	206	9000	32000	2320	430	750	29488 EM
460	620	95	2070	10600	865	600	950	29292
460	710	150	4310	19000	1500	450	800	29392
460	800	206	9300	33500	2450	430	750	29492 EM
480	650	103	2350	11800	950	560	900	29296
480	850	224	9550	39000	2800	340	670	29496 EM
500	670	103	2390	12500	1000	560	900	292/500
500	750	150	4490	20400	1560	430	800	293/500
500	870	224	9370	40000	2850	340	670	294/500 EM
530	710	109	3110	15300	1220	530	850	292/530 EM
530	800	160	5870	26500	2080	400	750	293/530 EM
530	920	236	10500	44000	3100	320	630	294/530 EM
560	750	115	2990	16000	1220	480	800	292/560
560	980	250	12000	51000	3550	300	560	294/560 EM
600	800	122	3740	18600	1460	450	700	292/600 EM
600	1030	258	13100	56000	4000	280	530	294/600 EM
630	850	132	4770	23600	1800	400	670	292/630 EM
630	950	190	8450	38000	2900	320	600	293/630 EM
630	1090	280	14400	62000	4150	260	500	294/630 EM
670	1150	290	15400	68000	4500	240	450	294/670 EM
710	1060	212	9950	45500	3400	280	500	293/710 EM
710	1220	308	17600	76500	5000	220	430	294/710 EF
750	1280	315	18700	85000	5500	200	400	294/750 EF
800	1060	155	6560	34500	2550	320	530	292/800 EM
800	1180	230	11300	55000	3900	240	450	293/800 EM
800	1360	335	20200	93000	5850	190	360	294/800 EF
850	1440	354	23900	108000	7100	170	340	294/850 EF
900	1520	372	26700	122000	7200	160	300	294/900 EF
950	1600	390	28200	132000	7800	140	280	294/950 EF
1000	1670	402	31100	140000	8650	130	260	294/1000 EF
1060	1770	426	33400	156000	8500	120	240	294/1060 EF

Product packaging

Packing ： 1. Industrial packing 2. Single box +carton +pallets 3. According to customers demand Delivery time : 1. Generally after payment: within 3 days . 2. If need produce , about 30 days Payment A less USD1000 , 100% T/T in advance . 1. More USD1000 , 30% T/T in advance , 70%T/T before shipment

Shipping

PACKING:bag+box+carton+pallet/wooden case.

Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...

Factory

Warehouse

workshop

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory and trader .

Q: How long is your delivery time?

A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
