23038 Split Spherical Roller Bearings PF23038MB/W33 190X290X75mm
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
F-217411.01.RNN Slovakia Cylindrical Roller Bearing F-217411
-
558320C 558830C Railway Bearing Locomotive Head Bearing 558320.03. ZL Z-558320
-
Japan Quality 480*600*118MM RS4896E4 Cylindrical Roller Bearing RS-4896E4
-
RSL18 2211 A SLOVAKIA Cylindrical Roller Bearing RSL182211 RSL182211A Size 55X88.81X25
-
RSL18 2207 A SLOVAKIA Cylindrical Roller Bearing RSL182207 RSL182207A Size 35X63.97X23
-
10-8326 KOYO Cylindrical Roller Bearing CPM 2464 38X54.69X29.5mm
Product Description
Product Description

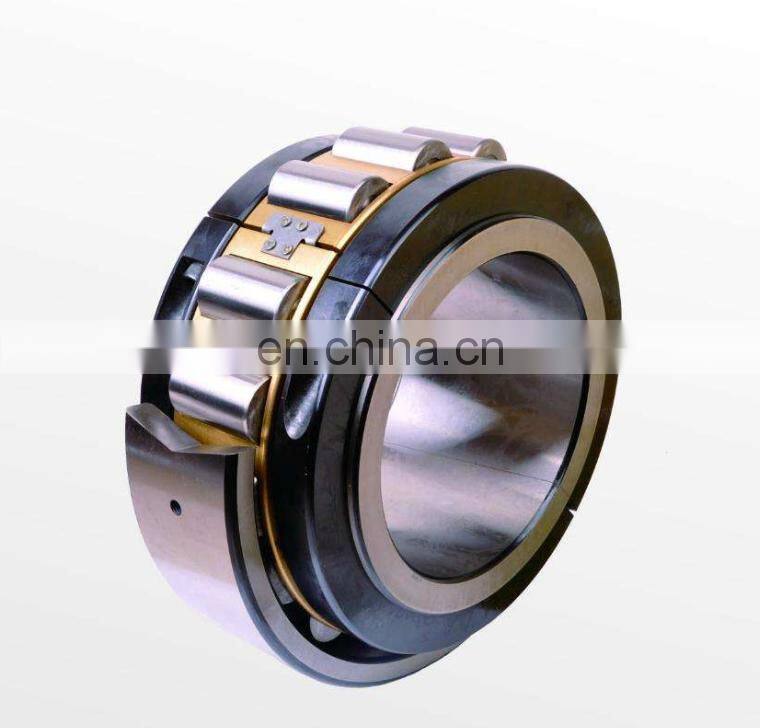

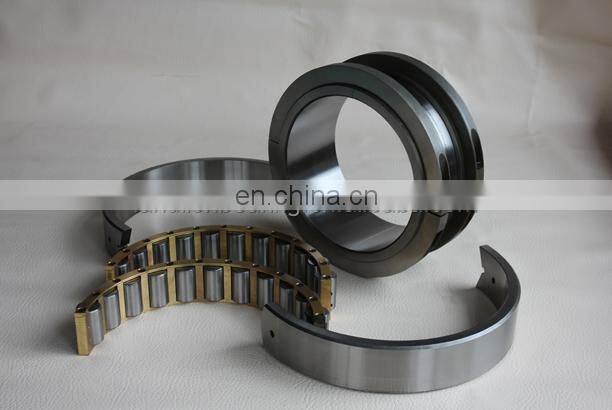

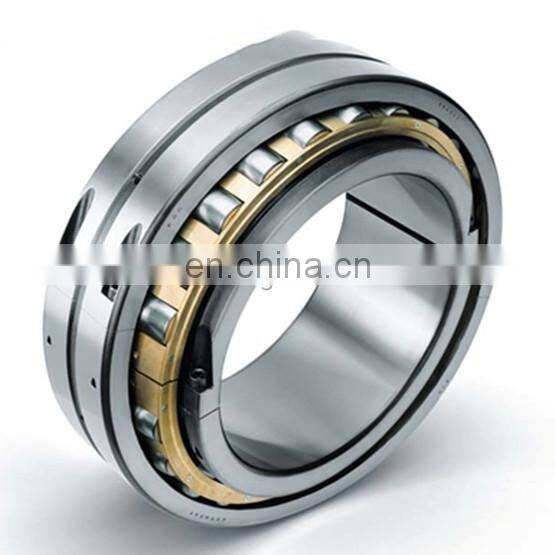

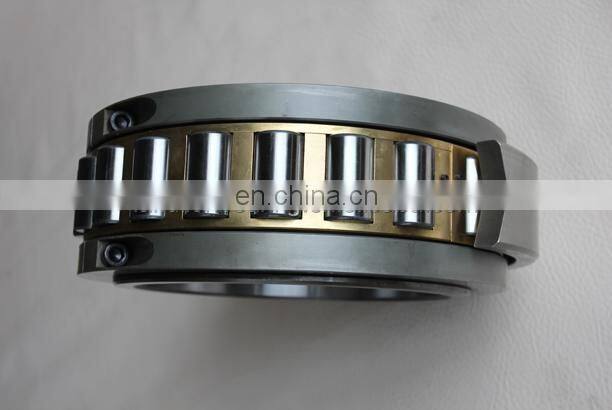

Split Spherical Roller Bearings PF23038D/C3W33S4 23038D/S3C3W33 PF23038MB/W33
Application examples in the pulp and paper industry:
• Fans and ventilators
Mixing and stirring plant
Dryer rolls •
Drive and transmission shafts
• Conveying equipment • Comminution machinery
split spherical roller bearing Replacement for bearings with adapter sleeve ·
Fitting in split plummer block housings
bearing name | Split Spherical Roller Bearings PF23038D/C3W33S4 |
bearing size : | 190X290X75mm |
bearing weight | 19 kg |
cage material | steel cage , E type , CC , CA , MB |
material | chrome steel |
brand | LSBC or S KF NSK NTN TIM KEN |
Email | sales1 at |
contact | Sara |
whatsapp | +86-18710180456 |
230SM220-MA 230SM125-MA

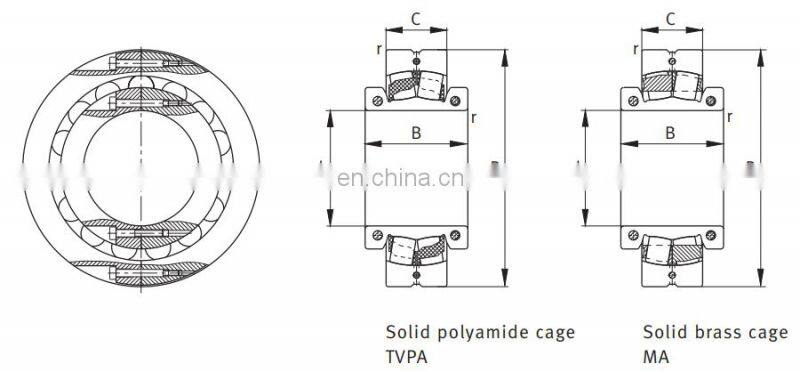

Part No. | Mass(kg) | Dimensions (mm) | ||||||||
d | D | C | B | r (min.) | ||||||
230SM150-MA | 17.4 | 150 | 260 | 67 | 112 | 2,1 | ||||
231SM150-MA | 28 | 150 | 280 | 88 | 133 | 2,1 | ||||
222SM150-TVPA | 35.5 | 150 | 310 | 86 | 128 | 4 | ||||
230SM160-MA | 24.4 | 160 | 280 | 74 | 123 | 2,1 | ||||
231SM160-MA | 32.7 | 160 | 300 | 96 | 140 | 2,1 | ||||
222SM160-TVPA | 37.6 | 160 | 320 | 86 | 131 | 4 | ||||
230SM170-MA | 23.6 | 170 | 290 | 75 | 120 | 2,1 | ||||
231SM170-MA | 40.6 | 170 | 320 | 104 | 142 | 2,1 | ||||
222SM170-TVPA | 43.6 | 170 | 340 | 92 | 142 | 4 | ||||
230SM180-MA | 30 | 180 | 310 | 82 | 134 | 2,1 | ||||
231SM180-MA | 56.4 | 180 | 340 | 112 | 160 | 3 | ||||
222SM180-MA | 52.7 | 180 | 360 | 98 | 154 | 4 | ||||
230SM200-MA | 45 | 200 | 340 | 90 | 136 | 3 | ||||
231SM200-MA | 61.8 | 200 | 370 | 120 | 175 | 4 | ||||
222SM200-MA | 69.6 | 200 | 400 | 108 | 162 | 4 | ||||
230SM220-MA | 42.6 | 220 | 360 | 92 | 156 | 3 | ||||
231SM220-MA | 86 | 220 | 400 | 128 | 190 | 4 | ||||
222SM220-MA | 90.9 | 220 | 440 | 120 | 170 | 4 | ||||
230SM240-MA | 57.4 | 240 | 400 | 104 | 160 | 4 | ||||
231SM240-MA | 118 | 240 | 440 | 144 | 210 | 4 | ||||
222SM240-MA | 136 | 240 | 480 | 130 | 200 | 5 | ||||
230SM260-MA | 63.6 | 260 | 420 | 106 | 170 | 4 | ||||
231SM260-MA | 109 | 260 | 460 | 146 | 190 | 5 | ||||
222SM260-MA | 147 | 260 | 500 | 130 | 200 | 5 | ||||
230SM280-MA | 96 | 280 | 460 | 118 | 176 | 4 | ||||
231SM280-MA | 160 | 280 | 500 | 160 | 218 | 5 | ||||
222SM280-MA | 157 | 280 | 540 | 140 | 200 | 5 | ||||
230SM300-MA | 108 | 300 | 480 | 121 | 186 | 4 | ||||
231SM300-MA | 184 | 300 | 540 | 176 | 225 | 5 | ||||
222SM300-MA | 214 | 300 | 580 | 150 | 212 | 5 | ||||
Certifications
Main Products
Product packaging
Packing ：
1. Industrial packing
2. Single box +carton +pallets /case
3. According to customers demand
Delivery time :
1. Generally after payment: within 3 days .
2. If need produce , about 30 days
Payment
A less USD1000 , 100% T/T in advance .
1. More USD1000 , 30% T/T in advance , 70%T/T before shipment
Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...
Application
Factory
Company introduction
LANDLION BEARING CO.,LTD is an export-oriented enterprise, specializing in manufacturing and marketing several types of bearings for more than 10 years. We can produce the bearings accordingly to the customers' samples or drawings.LANDLION has a large top brand bearing NSK NTN UBC ASAHI IKO NACHI KOYO in stock.
