High Precision Angular Contact Ball Bearing 7013 P4 7013CTYNSULP4

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

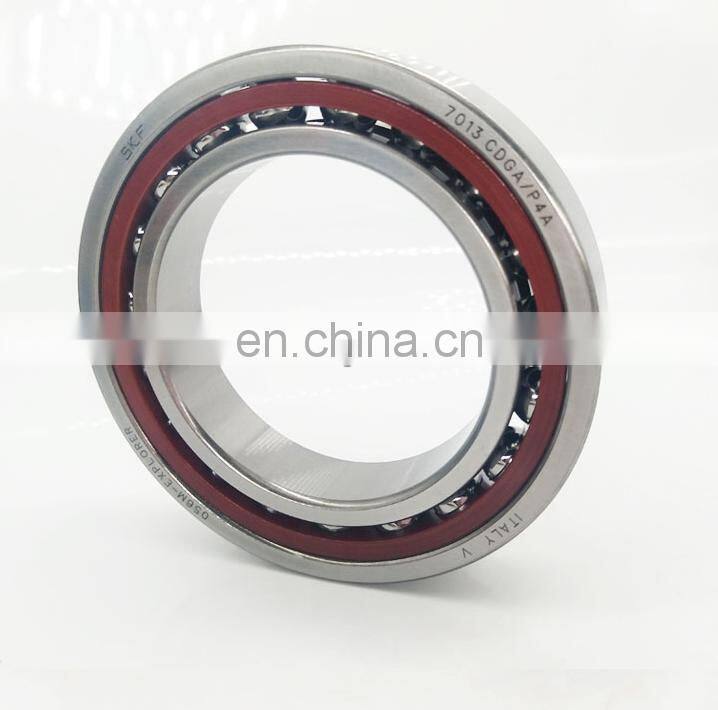

7013 CDGA/P4 Precision Angular Contact Ball Bearing 7013 CD P4 for CNC machinery

bearing Features
* it is suitable for high radial and axial loads in one direction
* it has also an axial load carrying capacity on both sides in the X- or O-arrangement in pairs
* medium series for a broad range of applications
* accuracy grade: P4S (main dimensions at least according to ISO-tolerance class 4)
* all running tolerances are classified according to ISO-tolerance class 2
* it is designed for a high running accuracy and high speeds with maximum rigidity and operational safety
* not separable
* The mounting orientation is identifiable by the colour of the seals. The side with the higher shoulder is marked by a red seal, the opposite seal is black. This colour coding of the seals allows to see and check the mounting orientation, even when the bearing is already assembled.
* material: 100Cr6 (rolling bearing steel), phenol resin (cage)
* seal: 2RSD (2-side non contact rubber seal)
* temperature resistance up to circa 80°C in the long run, temporarily up to circa 120°C

name	7013 CDGA/P4 Precision Angular Contact Ball Bearing 7013 CD P4 for CNC machinery
ID	65MM
OD	100MM
B	18MM
Product weight	0.43kg
Cage Material:	Phenolic Resin
material	chrome steel
mail	sales1@landlionbearing.com
Tel	+86-18710180456

Contact Us

Jinan Landlion Bearing Co., Ltd.

*Email
Please enter Your valid email address.
*To

Jinan Landlion Bearing Co., Ltd.
*Message
Your inquiry content must be between 20 to 5000 characters.
Please enter a correct verification code.

Product Categories

Angular Contact Ball Bearing	Automotive&truck Bearing	Crossed Roller Bearing	Cylindrical Roller Bearing
Deep Groove Ball Bearing	Engineered Bearings	Linear Guide Way	Needle Roller Bearing
other bearing	Pillow Block Ball Bearing	Self-Aligning Ball Bearing	Spherical Roller Bearing
Taper Roller Bearings	Thrust Ball Bearing	Thrust Roller Bearing	Ungrouped

bearing	d	D	B	c	Da	da	contact angle	weight KG
B7000-C-2RSD-T-P4S-UL	10	26	8	6.4	22	14	15°	0.02
B7001-C-2RSD-T-P4S-UL	12	28	8	6.7	24.5	16.5	15°	0.02
B7002-C-2RSD-T-P4S-UL	15	32	9	7.6	28	19	15°	0.03
B7003-C-2RSD-T-P4S-UL	17	35	10	8.5	32	21	15°	0.04
B7004-C-2RSD-T-P4S-UL	20	42	12	10.2	37	25	15°	0.07
B7005-C-2RSD-T-P4S-UL	25	47	12	10.8	42	30	15°	0.08
B7006-C-2RSD-T-P4S-UL	30	55	13	12.3	49	36	15°	0.11
B7007-C-2RSD-T-P4S-UL	35	62	14	13.5	56	41	15°	0.15
B7008-C-2RSD-T-P4S-UL	40	68	15	14.7	62	46	15°	0.19
B7009-C-2RSD-T-P4S-UL	45	75	16	16	69	51	15°	0.24
B7010-C-2RSD-T-P4S-UL	50	80	16	16.7	74	56	15°	0.25
B7011-C-2RSD-T-P4S-UL	55	90	18	18.7	83	62	15°	0.38
B7012-C-2RSD-T-P4S-UL	60	95	18	19.4	88	67	15°	0.4
