Home > Products > Angular Contact Ball Bearing > 7308 BECBM single row Angular contact ball bearing7308 7308B

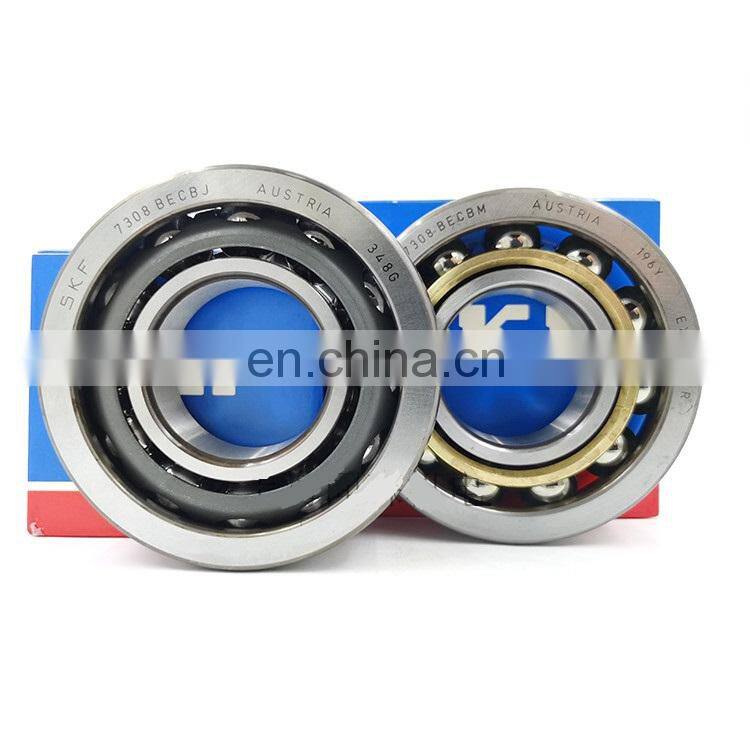

7308 BECBM single row Angular contact ball bearing7308 7308B

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

7308 BECBM single row Angular contact ball bearing7308 7308B 40x90x23mm

Angular contact ball bearings have raceways in the inner and outer rings that are displaced with respect to each other in the direction of the bearing axis. This means that they are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads.
Bearing Designation system

A ：30° contact angle

AB：20° contact angle (inch bearing

AC：25° contact angle

B：40° contact angle

E：Optimized internal design

B : Modified internal construction
JP : Sheet steel cage
MP :Solid brass cage
TVH / TVP : Solid cage made from glass fibre reinforced polyamide
UA :Universal design for fitting in pairs, bearing pair has small axial internal clearance in O and X arrangement
UL: Universal design for fitting in pairs, bearing pair has slight preload in O and X arrangement
UO: Universal design for fitting in pairs, bearing pair is clearance-free in O and X arrangement

2RS :Contact seals on both sides
Open angular contact ball bearings can be used at operating temperatures from –30 °C to +150 °C. Bearings with a diameter D ＞ 240 mm are dimensionally stable up to +200 °C.
Angular contact ball bearings with cages made from glass fibre reinforced polyamide are suitable for operating temperatures up to+120 °C, restricted by the cage material.

Bearing sets, matched bearings

DB：Two bearings matched for mounting back-to-back

DF：Two bearings matched for mounting face-to-face

DT：Two bearings matched formounting in tandem

Common Applications:
* Machine tools* Gearboxes* Pumps* Printing machinery* Motors* CNC machinery

name	7308 BECBM single row Angular contact ball bearing7308 7308B 40x90x23mm
ID	40MM
OD	90MM
B	23MM
Product weight	0.675kg
Cage Material:	brass
ball material	chrome steel
mail	sales1@landlionbearing.com
Tel	+86-18710180456

Related Products

d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	Pu[kN]	[r/min]	[r/min]	bearing model
10	30	9	7.02	3.35	0.14	30000	30000	7200 BECBP
10	30	9	7.02	3.35	0.14	30000	30000	7200 BEP
12	32	10	7.61	3.8	0.16	28000	26000	7201 BECBP
12	32	10	7.61	3.8	0.16	28000	26000	7201 BEGAP
12	32	10	7.61	3.8	0.16	28000	26000	7201 BEP
12	37	12	10.6	5	0.208	26000	20000	7301 BE-2RZP
12	37	12	10.6	5	0.208	26000	24000	7301 BEP
15	35	11	8.32	4.4	0.183	24000	20000	7202 BE-2RZP
15	35	11	8.32	4.4	0.183	24000	24000	7202 BEP
15	35	11	8.8	4.65	0.196	24000	26000	7202 BECBP
15	35	11	8.8	4.65	0.196	24000	26000	7202 BEGAP
15	35	11	8.8	4.65	0.196	24000	26000	7202 BEGBP
15	35	11	10.2	5.2	0.224	26000	40000	7202 ACCBM
15	42	13	13	6.7	0.28	22000	17000	7302 BE-2RZP
15	42	13	13	6.7	0.28	22000	20000	7302 BECBP
15	42	13	13	6.7	0.28	22000	20000	7302 BEP
17	40	12	10.4	5.5	0.236	20000	20000	7203 BEY
17	40	12	10.4	5.5	0.236	22000	17000	7203 BE-2RZP
17	40	12	10.4	5.5	0.236	22000	20000	7203 BEP
17	40	12	11	5.85	0.25	22000	22000	7203 BECBP
17	40	12	11	5.85	0.25	22000	22000	7203 BEGAP
17	40	12	11	5.85	0.25	22000	28000	7203 BECBM
17	40	12	12.5	6.7	0.285	24000	34000	7203 ACCBM
17	47	14	15.9	8.3	0.355	20000	15000	7303 BE-2RZP
17	47	14	15.9	8.3	0.355	20000	19000	7303 BECBP
17	47	14	15.9	8.3	0.355	20000	19000	7303 BEGAP
17	47	14	15.9	8.3	0.355	20000	19000	7303 BEP
20	47	14	13.3	7.65	0.325	19000	14000	7204 BE-2RZP
20	47	14	13.3	7.65	0.325	19000	18000	7204 BEP
20	47	14	14.3	8.15	0.345	19000	19000	7204 BECBJ
20	47	14	14.3	8.15	0.345	19000	19000	7204 BECBP
20	47	14	14.3	8.15	0.345	19000	19000	7204 BECBPH
20	47	14	14.3	8.15	0.345	19000	19000	7204 BECBY
20	47	14	14.3	8.15	0.345	19000	19000	7204 BEGAP
20	47	14	14.3	8.15	0.345	19000	19000	7204 BEGBP
20	47	14	14.3	8.15	0.345	19000	24000	7204 BECBM
20	47	14	16	9.3	0.39	20000	30000	7204 ACCBM
20	52	15	17.4	9.5	0.4	17000	13000	7304 BE-2RZP
20	52	15	17.4	9.5	0.4	17000	16000	7304 BEP
20	52	15	19	10	0.425	17000	18000	7304 BECBP
20	52	15	19	10	0.425	17000	18000	7304 BECBPH
20	52	15	19	10	0.425	17000	18000	7304 BEGAP
20	52	15	19	10	0.425	17000	18000	7304 BEGBP
20	52	15	19	10	0.425	17000	22000	7304 BECBM
20	52	15	20.4	11.2	0.475	17000	18000	7304 BECBY
20	52	15	20.8	11.2	0.475	19000	26000	7304 ACCBM
25	52	15	14.8	9.3	0.4	16000	12000	7205 BE-2RZP
25	52	15	14.8	9.3	0.4	16000	15000	7205 BEGAP
25	52	15	14.8	9.3	0.4	16000	15000	7205 BEGAY
25	52	15	14.8	9.3	0.4	16000	15000	7205 BEGBY
25	52	15	14.8	9.3	0.4	16000	15000	7205 BEP
25	52	15	14.8	9.3	0.4	16000	15000	7205 BEY
25	52	15	15.6	10	0.43	16000	17000	7205 BECBP
25	52	15	15.6	10	0.43	16000	17000	7205 BECBPH
25	52	15	15.6	10	0.43	16000	17000	7205 BECBY
25	52	15	15.6	10	0.43	16000	20000	7205 BECBM
25	52	15	18	11.4	0.49	17000	26000	7205 ACCBM
25	62	17	24.2	14	0.6	14000	11000	7305 BE-2RZP
25	62	17	24.2	14	0.6	14000	14000	7305 BEGBY
25	62	17	24.2	14	0.6	14000	14000	7305 BEP
25	62	17	24.2	14	0.6	14000	14000	7305 BEY
25	62	17	26.5	15.3	0.655	14000	15000	7305 BECBP
25	62	17	26.5	15.3	0.655	14000	15000	7305 BECBPH
25	62	17	26.5	15.3	0.655	14000	15000	7305 BECBY
25	62	17	26.5	15.3	0.655	14000	15000	7305 BEGAP
25	62	17	26.5	15.3	0.655	14000	15000	7305 BEGBP
25	62	17	26.5	15.3	0.655	14000	19000	7305 BECBM
25	62	17	29	17	0.72	15000	22000	7305 ACCBM
25	80	21	39.7	23.6	1	11000	15000	7405 BCBM
25	80	21	39.7	23.6	1	11000	15000	7405 BM
30	62	16	22.5	14.3	0.61	13000	10000	7206 BE-2RZP
30	62	16	22.5	14.3	0.61	13000	13000	7206 BEP
30	62	16	24	15.6	0.655	13000	14000	7206 BECBP
30	62	16	24	15.6	0.655	13000	14000	7206 BECBPH
30	62	16	24	15.6	0.655	13000	14000	7206 BEGAP
30	62	16	24	15.6	0.655	13000	14000	7206 BEGBP
30	62	16	24	15.6	0.655	13000	18000	7206 BECBM
30	62	16	24	15.6	0.655	14000	14000	7206 BEGAJ
30	62	16	25.5	17	0.71	13000	14000	7206 BECBY
30	62	16	25.5	17	0.71	14000	14000	7206 BEGAY
30	62	16	27.5	17.3	0.735	15000	20000	7206 ACCBM
30	72	19	32.5	19.3	0.815	12000	9500	7306 BE-2RZP
30	72	19	32.5	19.3	0.815	12000	12000	7306 BEP
30	72	19	32.5	19.3	0.815	12000	16000	7306 BEGBM
30	72	19	34.5	21.2	0.9	12000	12000	7306 BEGBY
30	72	19	35.5	21.2	0.9	12000	13000	7306 BECBP
30	72	19	35.5	21.2	0.9	12000	13000	7306 BEGAP
30	72	19	35.5	21.2	0.9	12000	13000	7306 BEGAPH
30	72	19	35.5	21.2	0.9	12000	13000	7306 BEGBP
30	72	19	35.5	21.2	0.9	12000	16000	7306 BECBM
30	72	19	35.5	21.2	0.9	12000	16000	7306 BEGAM
30	72	19	37.5	23.2	0.98	12000	13000	7306 BECBY
30	72	19	39	23.6	1	13000	19000	7306 ACCBM
30	90	23	47.5	29	1.22	10000	13000	7406 BCBM
30	90	23	47.5	29	1.22	10000	13000	7406 BM
35	72	17	29.1	19	0.815	11000	9000	7207 BE-2RZP
35	72	17	29.1	19	0.815	11000	11000	7207 BEP
35	72	17	31	20.8	0.88	11000	12000	7207 BECBP
35	72	17	31	20.8	0.88	11000	12000	7207 BECBPH
35	72	17	31	20.8	0.88	11000	12000	7207 BEGAP
35	72	17	31	20.8	0.88	11000	12000	7207 BEGBP
35	72	17	31	20.8	0.88	11000	15000	7207 BECBM
35	72	17	31	20.8	0.88	11000	15000	7207 BEGAM
35	72	17	31	20.8	0.88	12000	12000	7207 BECBY
35	72	17	31	20.8	0.88	12000	12000	7207 BEGAY
35	72	17	31	20.8	0.88	12000	12000	7207 BEGBY
35	72	17	35.5	23.2	0.98	12000	18000	7207 ACCBM
35	80	21	39	24.5	1.04	11000	8500	7307 BE-2RZP
35	80	21	39	24.5	1.04	11000	10000	7307 BEP
35	80	21	41.5	26.5	1.14	11000	11000	7307 BECBP
35	80	21	41.5	26.5	1.14	11000	11000	7307 BECBY
35	80	21	41.5	26.5	1.14	11000	11000	7307 BEGAP
35	80	21	41.5	26.5	1.14	11000	11000	7307 BEGAPH
35	80	21	41.5	26.5	1.14	11000	11000	7307 BEGBP
35	80	21	41.5	26.5	1.14	11000	14000	7307 BECBM
35	80	21	41.5	26.5	1.14	11000	14000	7307 BEGAM
35	80	21	46.5	30	1.27	11000	17000	7307 ACCBM
35	100	25	60.5	38	1.6	9000	12000	7407 BCBM
35	100	25	60.5	38	1.6	9000	12000	7407 BM
40	80	18	34.5	24	1.02	10000	8000	7208 BE-2RZP

Product packaging

Packing ： 1. Industrial packing 2. Single box +carton +pallets /case 3. According to customers demand Delivery time : 1. Generally after payment: within 3 days . 2. If need produce , about 30 days Payment A less USD1000 , 100% T/T in advance . 1. More USD1000 , 30% T/T in advance , 70%T/T before shipment

Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...

Application

Factory

Company introduction

LANDLION BEARING CO.,LTD is an export-oriented enterprise, specializing in manufacturing and marketing several types of bearings for more than 10 years. We can produce the bearings accordingly to the customers' samples or drawings.LANDLION has a large top brand bearing NSK NTN UBC ASAHI IKO NACHI KOYO in stock.

FAQ

Q: Are you trading company or manufacturer ? A: We are factory and trader . Q: How long is your delivery time? A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: What is your terms of payment ? A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us .
