McGill Spherical Roller Bearing SB22208W33SS SB-22208W33SS SB 22208 W33 SS
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
SB 22207 W33 SS McgillI Spherical Roller Bearings SB22207W33SS 35x72x23mm
-
SB 22206 W33 SS McGill Spherical Roller Bearing SB 22206 W33SS SB22206 W33SS
-
SB22205 McGill Spherical Roller Bearing SB22205W33SS SB 22205 W33 SS
-
22206 E 22206EK/C3 Spherical Roller Bearing 30x62x20
-
Explorer E Type Cage Spherical Roller Bearing 22220EK 22220 EK/C3
-
105x190x36mm Barrel Bearing 20221M Spherical Roller Bearing 20221MB 20221
Product Description
Product Description

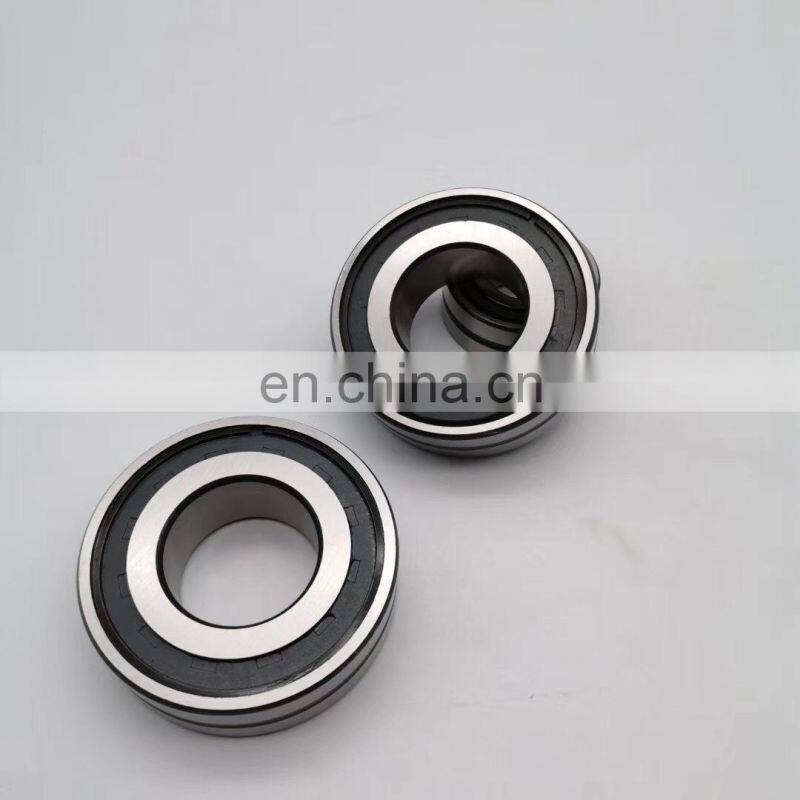

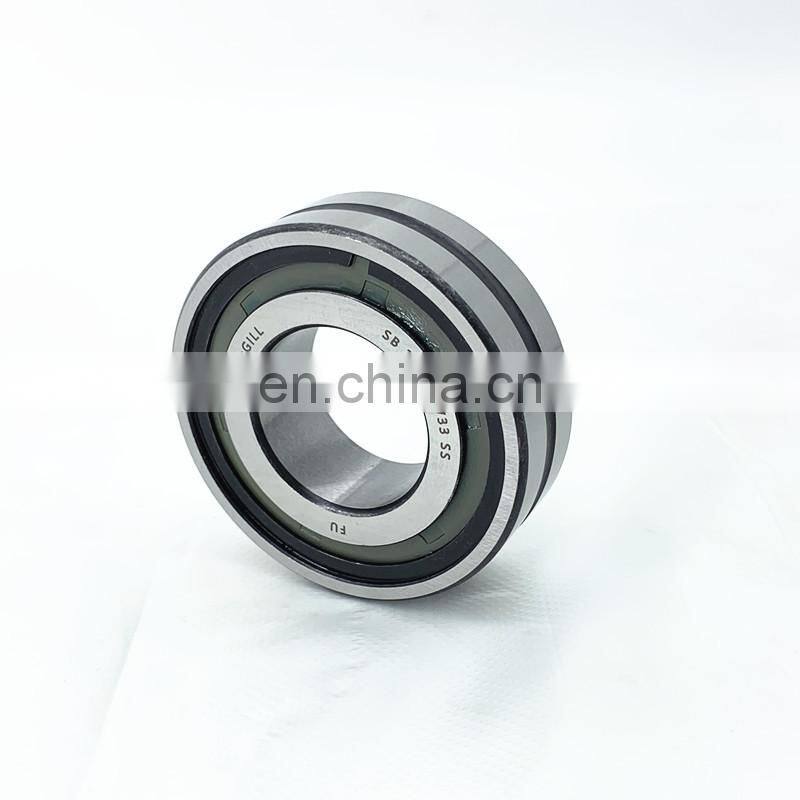

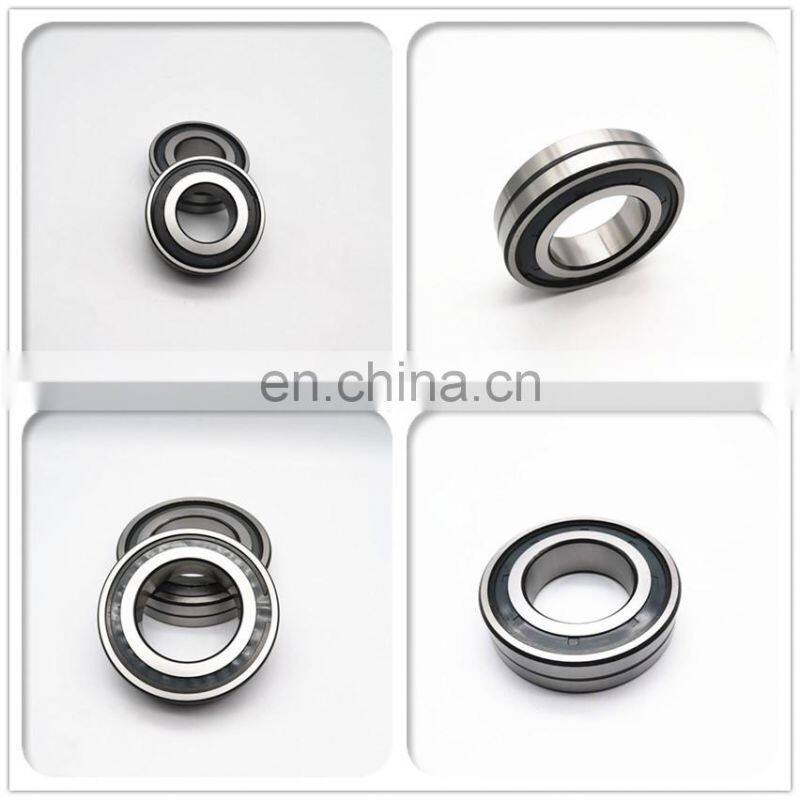

SB 22208W33SS single row sealed spherical roller bearing SB-22208w33ss McGill brand
There are two designation systems for sealed spherical roller bearings. One identifies sealed bearings in the standard ISO dimension series and the other extended width versions.Below is shown how the two designation systems are to be interpreted. Other suffixes, denoting special bearings or frequent variants, e.g. radial internal clearance other than Normal, are added according to the standard designation system.
bearing name | single row sealed spherical roller bearing SB 22208 W33 SS |
bearing size : | 40x80x23 mm |
bearing weight | 0.56 kg |
cage material | steel cage , E type , CC , CA , MB |
material | chrome steel |
brand | LSBC |
mail | lbc001at |
Whatsapp | +86-18753110215 |
SB22208W33SS SB 22208 W33 McGill Spherical roller bearings SB-22208-W33-SS SS SB 22208 C3 W33 S
Mcgill SB 22208 W33 SS SB-22208W33SS SB22208W33SS 22208-2RS spherical roller bearing with seal ,single row
Bore Size | OUTSIDE DIAMETER B | WIDTH C | ||||||
Bearing | ||||||||
Number | MM | Inch | MM | Inch | MM | |||
SB-2220W33SS | 15 | 0.5906 | 35 | 1.378 | 14 | |||
SB-2220W33SS | 17 | 0.6693 | 40 | 1.5748 | 16 | |||
SB-22204W33SS | 20 | 0.7874 | 47 | 1.8504 | 18 | |||
SB-22205W33SS | 25 | 0.9843 | 52 | 2.0472 | 18 | |||
SB-22206W33SS | 30 | 1.1811 | 62 | 2.4409 | 20 | |||
SB-22207W33SS | 35 | 1.378 | 72 | 2.8346 | 23 | |||
SB-22208W33SS | 40 | 1.5748 | 80 | 3.1496 | 23 | |||
SB-22209W33SS | 45 | 1.7717 | 85 | 3.3465 | 23 | |||
SB-22210W33SS | 50 | 1.9685 | 90 | 3.5433 | 23 | |||
SB-22211W33SS | 55 | 2.1654 | 100 | 3.937 | 25 | |||
SB-22212W33SS | 60 | 2.3622 | 110 | 4.3307 | 28 | |||
SB-22213W33SS | 65 | 2.5591 | 120 | 4.7244 | 31 | |||
SB-22214W33SS | 70 | 2.7559 | 125 | 4.9213 | 31 | |||
SB-22215W33SS | 75 | 2.9528 | 130 | 5.1181 | 31 | |||
SB-22216W33SS | 80 | 3.1496 | 140 | 5.5118 | 33 | |||
SB-22217W33SS | 85 | 3.3465 | 150 | 5.9055 | 36 | |||
SB-22218W33SS | 90 | 3.5433 | 160 | 6.2992 | 40 | |||
SB-22219W33SS | 95 | 3.7402 | 170 | 6.6929 | 43 | |||
SB-22220W33SS | 100 | 3.937 | 180 | 7.0866 | 46 | |||
SB-22222W33SS | 110 | 4.3307 | 200 | 7.874 | 53 | |||
SB-22224W33SS | 120 | 4.7244 | 215 | 8.4646 | 58 | |||
SB-22226W33SS | 130 | 5.1181 | 230 | 9.0551 | 64 | |||
SB-22228W33SS | 140 | 5.5118 | 250 | 9.8425 | 68 | |||
SB-22230W33SS | 150 | 5.9055 | 270 | 10.6299 | 73 | |||
Certifications
Main Products
Product packaging
Packing ：
1. Industrial packing
2. Single box +carton +pallets /case
3. According to customers demand
Delivery time :
1. Generally after payment: within 3 days .
2. If need produce , about 30 days
Payment
A less USD1000 , 100% T/T in advance .
1. More USD1000 , 30% T/T in advance , 70%T/T before shipment
Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...
Application
Factory
Company introduction
LANDLION BEARING CO.,LTD is an export-oriented enterprise, specializing in manufacturing and marketing several types of bearings for more than 10 years. We can produce the bearings accordingly to the customers' samples or drawings.LANDLION has a large top brand bearing NSK NTN UBC ASAHI IKO NACHI KOYO in stock.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and trader .
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us .
