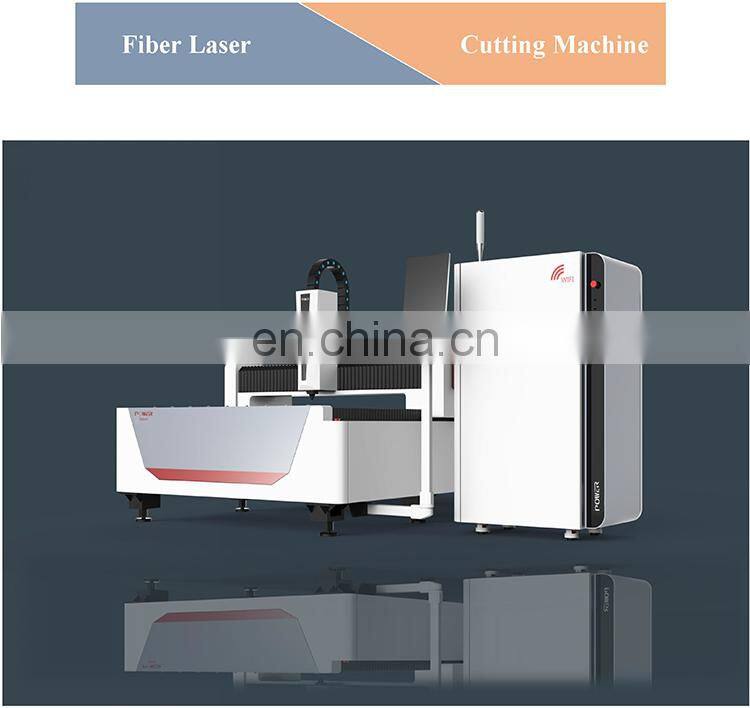

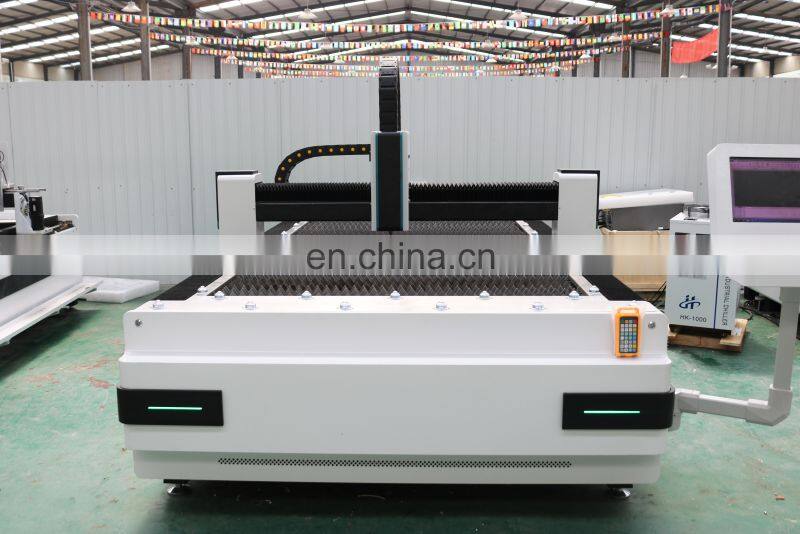

Factory Outlet 3000w Industrial Fiber Laser Cutting Machine Metal Sheet Fiber Laser Cutting Machine 1000w Fiber Laser Cutting ma

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Advantages of optical fiber laser cutting machine over CO2 laser cutting machine:

1) Excellent beam quality: smaller focus spot, finer cutting line, higher working efficiency and better processing quality;

2) Extremely high cutting speed: 2 times of CO2 laser cutting machine with the same power;

3) High stability: with the world's top imported fiber laser, the performance is stable, and the service life of key components can reach 100000 hours;

4) Extremely high electro-optical conversion efficiency: the photoelectric conversion efficiency of fiber optic laser cutting machine is about 30%, which is 3 times higher than that of CO2 laser cutting machine, with energy saving and environmental protection;

5) Extremely low use cost: the power consumption of the whole machine is only 20-30% of that of the same CO2 laser cutting machine;

6) Very low maintenance cost: no laser working gas; fiber transmission, no reflector; can save a lot of maintenance costs;

7) Easy operation and maintenance: optical fiber transmission, no need to adjust the optical path;

8) Super flexible light guide effect: small size, compact structure, easy to flexible processing requirements.

9)The Fiber Lasers bring you a cost effective, low-maintenance, low operating cost, environmentally friendly solution to your organization. We deliver a machine that provides quality cutting and tolerances with small productivity loss between jobs, equating to higher returnon investments. Our fiber laser cutting machines are developed and sold based on these criteria.

• Manufactured by people who use their own machines.
• The resonator comes with a 100,000 hour warranty from the manufacturer (IPG/Raycus)
• Higher cutting speeds possible
• Dual interchangeable tables allow for faster loading and unloading, reducing downtime

Product parameter

Name	Parameter
Working Area	15003000mm/15004000/20004000/25006000
Total Power	14-25kw
Maximum Load Bearing of Table	1100kg
Optional Laser Power	1000w/2000w/3000w/4000w/6000w/8000w
Repositioning Resolution	0.02mm
Max Linkage Speed	60-90m/min
Positioning Accuracy	0.03mm
Plate Cutting Thickness	1-30mm
Lathe Bed	HT250 casting
Gantry	Integrated casting, T6 solid solution treatment
Laser Device	IPG/RAYCUS/MAX (Optional)
Guide Rail	P class guide rail sliders for Bosch rexroth, Germany
Fine Grinding Rack	Taiwan YYC rack
Laser Head	Automatic private server focusing
Motor	YASKAWA motor, Japan
Reducer	Planetary reducer
Cooling System	Stainless steel water cooled circulating pump
Intelligent Lubrication System	American BIJUR lubrication system
Working Voltage	AC380v/50hz
Graphic Format	AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Control Software	PRECITEC/CYPCUT

Details Images

Main Features:

1. Welded structure lathe bed, after quenching, tempering and stress relief treatment, the platform and mounting hole position are processed by CNC machining center at once time to ensure machine strength and precision;

2. Imported grinding grade ball screw and high-precision linear guide rail, rack, with high processing precision;

3. Equipment with servo motor and driver, the torque is stronger and the running speed is faster and smoother;

4. Follow-up smoking system, smoking effect is better, saving energy;

5.Adopting advanced laser cutting head and lens, focusing spot is smaller, cutting line is finer, work efficiency is higher and processing quality is better.

Germany Bosch Rexroth Configuration

1. Only high-precision CNC machining center (other laser brand or other type of precision equipment) can be equipped with this kind of guide rail. It is made of exclusive steel material by fine grinding process. Or through professional motion test, the precision can reach 0.002. Wear resistance ability is 2-3 times higher than the general guide rail.

2. According to customer feedback, we found that after 2-3 years, the Taiwan guide rail has different degrees of 0.002-0.008 wear gap problems. Germany Bosch rexroth customer feedback has been good for five years. Most laser machine companies do not use, one is the cost control reason, single meter expensive ￥300. Second, Bosch rexroth rail and slide interchangeability is good.

Applications

Fiber Laser Cutting Machine Applicable Target Customers
» This series fiber laser cutting machine is suitable for the customers who need to process plenty of thin metal sheet and high reflective metal materials.

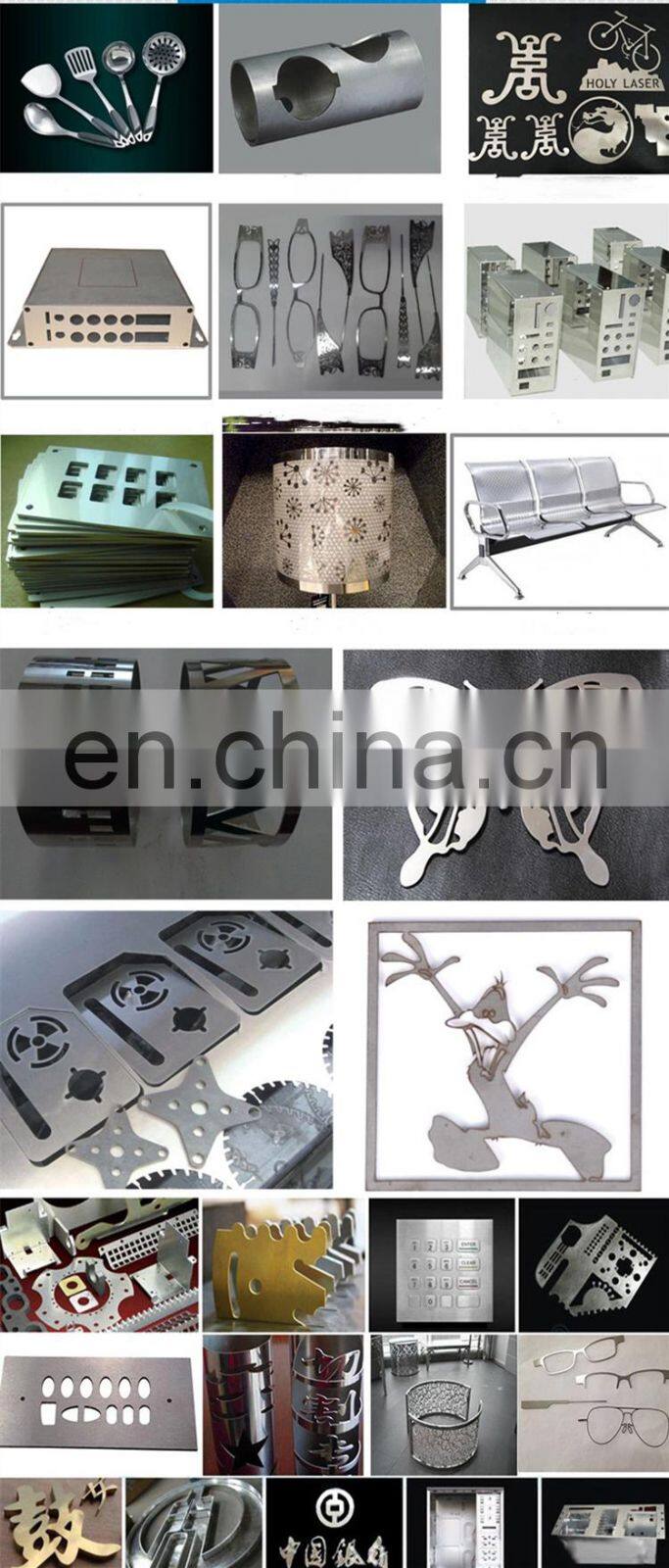

Fiber Laser Cutting Machine Applicable material
» Specially for carbon steel, stainless steel, alloy, aluminum, galvanized steel, titanium, brass, copper and other metal sheets.

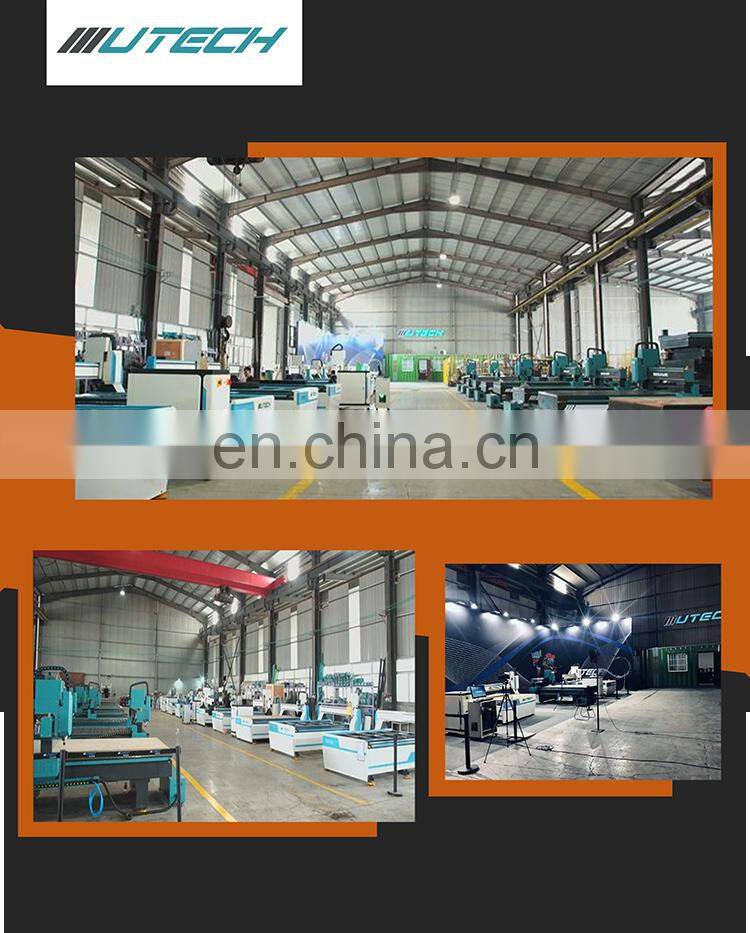

Company Profile

Shandong U-MAY CNC Technology CO., LTD. Is located in Jinan, the spring city of China. The brand name on the market is UTECH,which is a new brand launched by the company since its construction in 2014. The main products of the company are CNC machine tools, laser engraving machines, plasma engraving machines, fiber laser marking machines, etc. Regarding products, we have been adhering to the business philosophy of "Smart Solution, Better Tomorrow", aiming to provide the CNC engraving machines with high quality and excellent guarantee for the whole world.

In recent years, our company has followed the development of The Times and entered the transition period. By 2019, our carving machines are more actively sold to North America, the Middle East, Western Europe, southeast Asia, Africa, South America and other regions, and have a stable dealer agency in some regions.

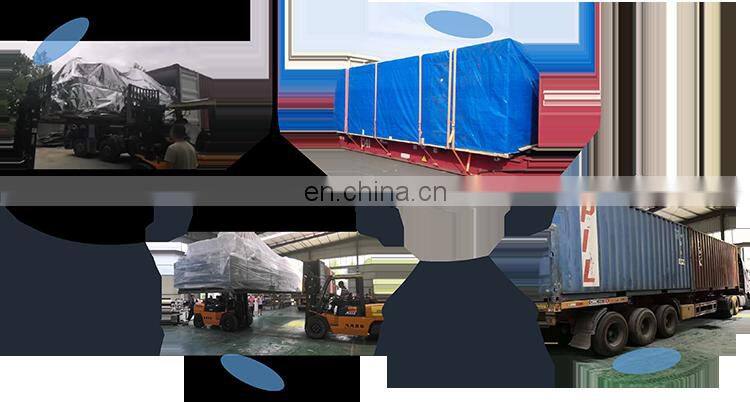

Packing

Ⅰ The parts are individually wrapped in plastic film and carton, the whole machine will be protected by the foam board；

Ⅱ The middle layer is wrapped with environmental protection material； Ⅲ And the outermost layer is wrapped with PE stretch film, finally add a wooden plywood base.

1. In general, the size of fiber laser machine no more than 1325 (1300*2500mm) will be packaged with wooden case. Before that, the machine parts will be put on the machine bed except for the chiller, the machine will be protected by the foam board of the four corners and wrapped with the film before shipping.

2. Fiber laser machines of which the size is over 1530 (1500*3000mm) cannot be packaged plywood case because the width of the machine exceeds the container’s. The machine will be fix on the pallet.

3. Fiber laser machine 1530 size (1500*3000mm) with enclosed cover and exchange table need to be shipped with 20 feet frame rack and the 20 feet container. If the size is bigger, the packaging and the shipping way needs to be confirmed.
