Affordable Cnc Router for Sale Factory Direct Sales Cnc Woodworking Router Wood Working Cnc Router ATC

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Affordable cnc router for sale factory direct sales cnc woodworking router wood working cnc router ATC

>>>5*10ft working size
>>>10 pcs linear tool changer (Pneumatic tool change, it takes only 6s.)
>>>Weihong NK280B, support ATC and 4th rotary axis.
>>>Bakelite plate vacuum and aluminum clamping bed, with 10 adsorption zone, could be independent control to achieve adsorb and
clamp.
>>>Side rotary axis structure can be split, processing 3D materials.
>>>1.5M grinding grade helical rack, high precision linear guide.
>>>Ac servo motor drive, Japan SHIMPO reducer.
>>>Independent vertical control cabinet, can place an industrial computer or personal monitor.
>>>Industrial welding machine bed, precision milling by machining center, professional strengthening rib structure to ensure
bearing capacity, stability, rigidity, and geometric accuracy.

Specification

Machine name	SOFIA 4th ATC CNC ROUTER
Working table	Vaccum table and pump
Workable size	15003000200mm
Spindle motor	HQD 9kw air cooling spindle
Control system	Weihong NK280B Controller
X Y Z traveling Positioning accuracy	±0.01
Max Working Speed	24000mm/min
Working Voltage	AC380V/50/60HZ
Command language	G Code
Operating system	YASKAWA servo motor
X,Y,Z Guide Rail	Taiwan 25 Square Rail
Computer Interface	USB
Flash memory	128M(U Disk)
Collet	ISO30
Software	Type3/Wentai/Artcam

Product parameter

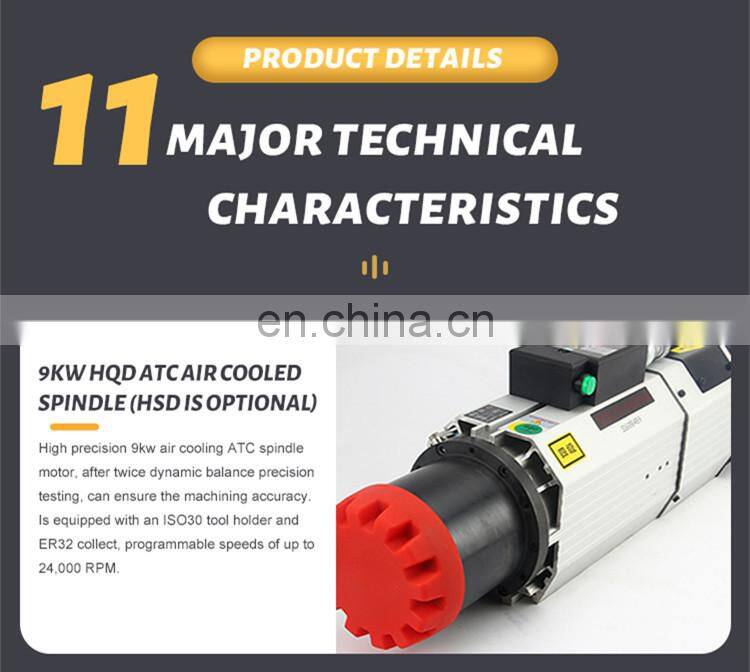

9kw HQD ATC Air Cooled Spindle (HSD is optional)

High precision 9kw air cooling ATC spindle motor, after twice dynamic balance precision testing, can ensure the machining accuracy. Is equipped with an ISO30 tool holder and ER32 collect, programmable speeds of up to 24,000 RPM.

Automatic Tool Calibrater

The equipment with the tool calibrater can automatically set the offset value of the tool to the workpiece coordinate system after the tool setting, so that the workpiece coordinate system can be automatically established. In this way, the setting of the workpiece coordinate value can be easily realized. It can be said that the use of the tool setting instrument not only saves time,
but also improves efficiency.

Independent Vertical Control Cabinet

Generally, machines equipped with industrial control systems such as ATC will use this independent vertical control cabinet, which is located on the left side of the machine, and the rotary axis is located on the right side of the machine, which is easy to operate. The interior can also be equipped with brackets for placing monitors and computer cabinets, and customers can use desktop computers at will.
It contains all the electronic components related to the machine, and is marked with the label of each cable, which is convenient for inspection and maintenance.

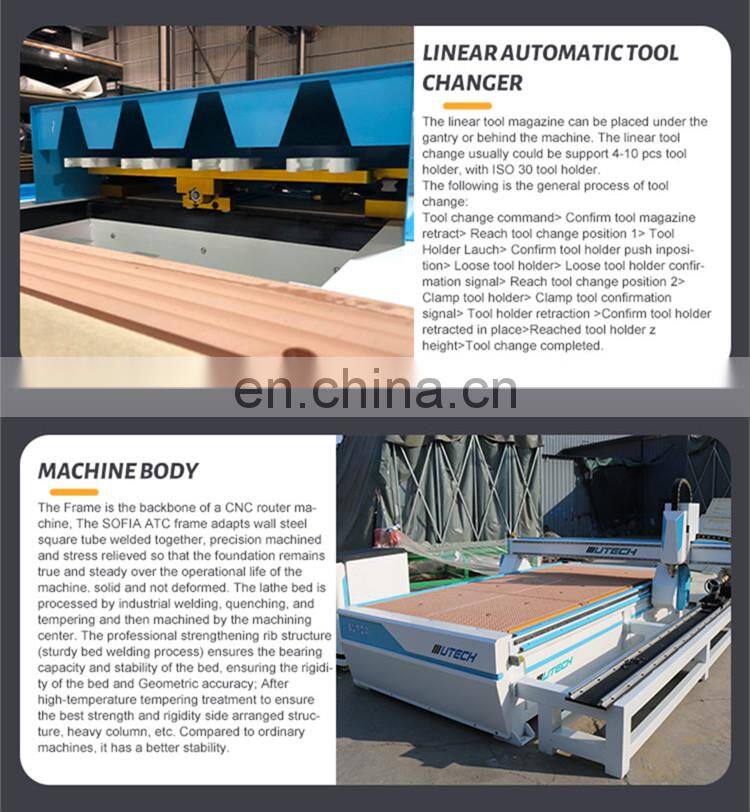

Linear automatic tool changer

The linear tool magazine can be placed under the gantry or behind the machine. The linear tool change usually could be support 4-10 pcs tool holder, with ISO 30 tool holder.
The following is the general process of tool change: Tool change command> Confirm tool magazine retract> Reach tool change position 1> Tool Holder Lauch> Confirm tool holder push
inposition> Loose tool holder> Loose tool holder confirmation signal> Reach tool change position 2> Clamp tool holder> Clamp tool confirmation signal> Tool holder retraction >Confirm tool holder retracted in place>Reached tool holder z height>Tool change
completed.

Machine Body

The Frame is the backbone of a CNC router machine, The SOFIA ATC frame adapts wall steel square tube welded together, precision machined and stress relieved so that the foundation remains true and steady over the operational life of the machine. solid and not deformed. The lathe bed is processed by industrial welding, quenching, and tempering and then machined by the machining center. The professional strengthening rib structure (sturdy bed welding process) ensures the bearing capacity and stability of the bed, ensuring the rigidity of the bed and Geometric accuracy; After high-temperature tempering treatment to ensure the best strength and rigidity side arranged structure, heavy column, etc. Compared to ordinary machines, it has a better stability.

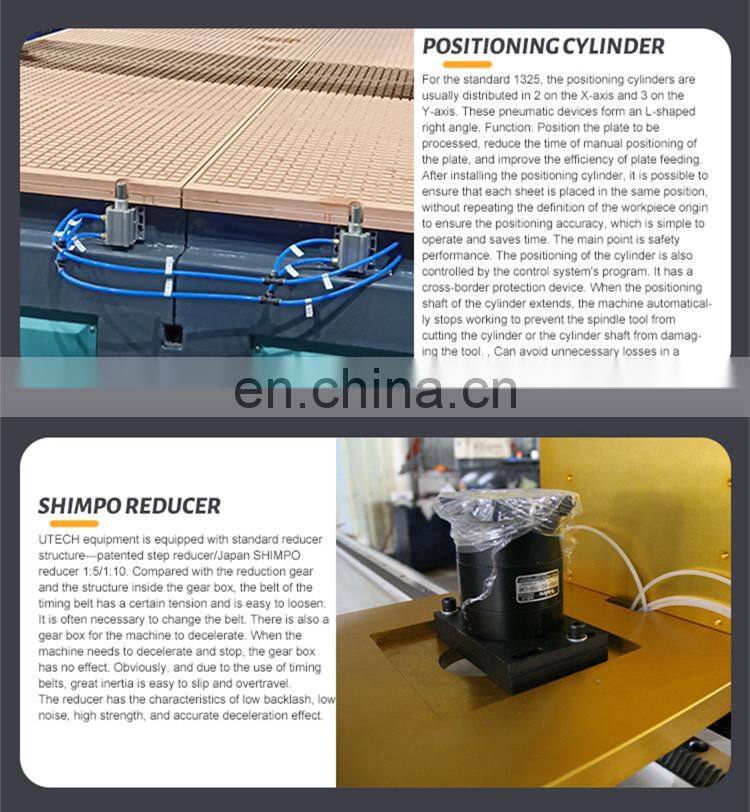

Positioning Cylinder

For the standard 1325, the positioning cylinders are usually distributed in 2 on the X-axis and 3 on the Y-axis. These pneumatic devices form an L-shaped right angle. Function: Position the plate to be processed, reduce the time of manual positioning of the plate, and improve the efficiency of plate feeding. After installing the positioning cylinder, it is possible to ensure that each
sheet is placed in the same position, without repeating the definition of the workpiece origin to ensure the positioning accuracy, which is simple to operate and saves time. The main point is safety performance.

SHIMPO Reducer

UTECH equipment is equipped with standard reducer structure---patented step reducer/Japan SHIMPO reducer 1:5/1:10. Compared with the reduction gear and the structure inside the gear box, the belt of the timing belt has a certain tension and is easy to loosen.
It is often necessary to change the belt. There is also a gear box for the machine to decelerate. When the machine needs to decelerate and stop, the gear box has no effect.

Obviously, and due to the use of timing belts, great inertia is easy to slip and overtravel.

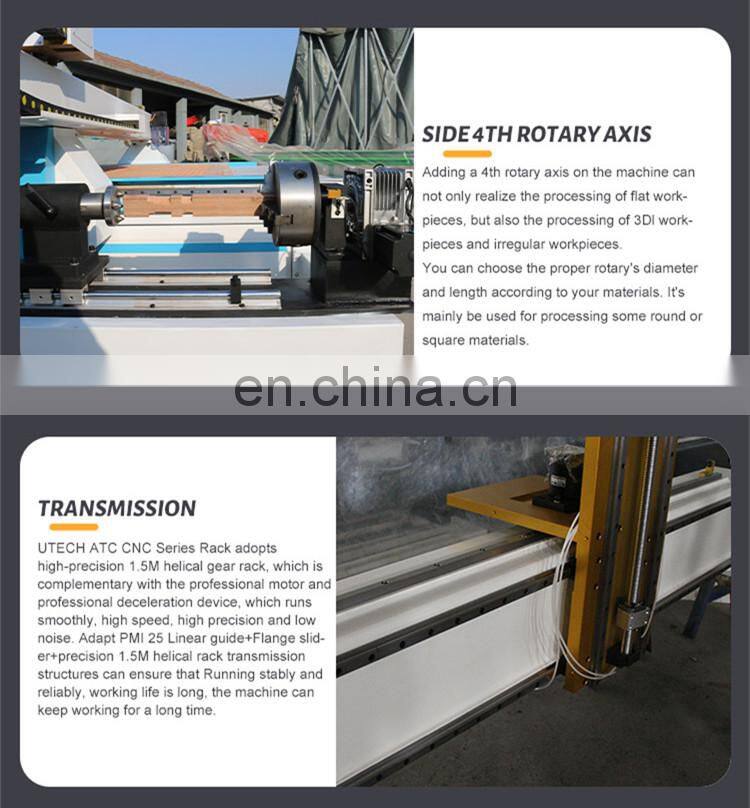

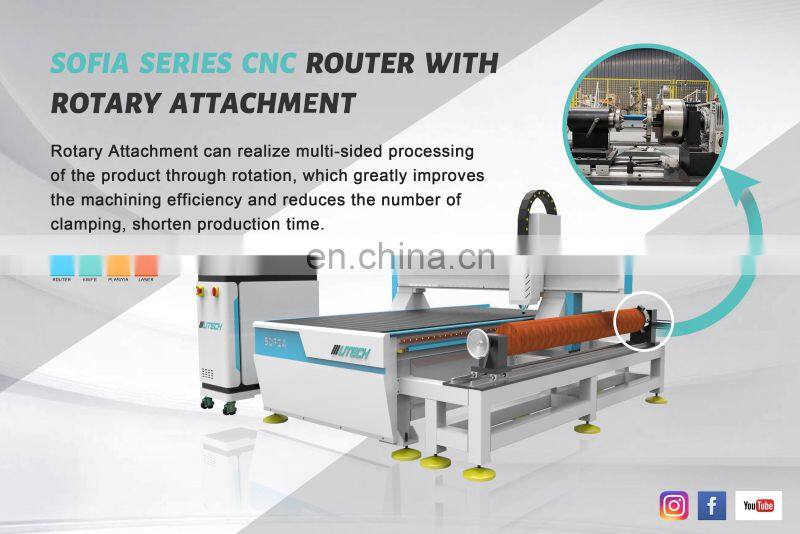

Side 4th Rotary Axis

Adding a 4th rotary axis on the machine can not only realize the processing of flat workpieces, but also the processing of 3D workpieces and irregular workpieces.
You can choose the proper rotary's diameter and length according to your materials. It's mainly be used for processing some round or square materials.

Transmission

UTECH ATC CNC Series Rack adopts high-precision 1.5M helical gear rack, which is complementary with the professional motor and professional deceleration device, which runs smoothly, high speed, high precision and low noise. Adapt PMI 25 Linear guide+Flange slider+precision 1.5M helical rack transmission structures can ensure that Running stably and reliably, working life is long, the machine can keep working for a long time.

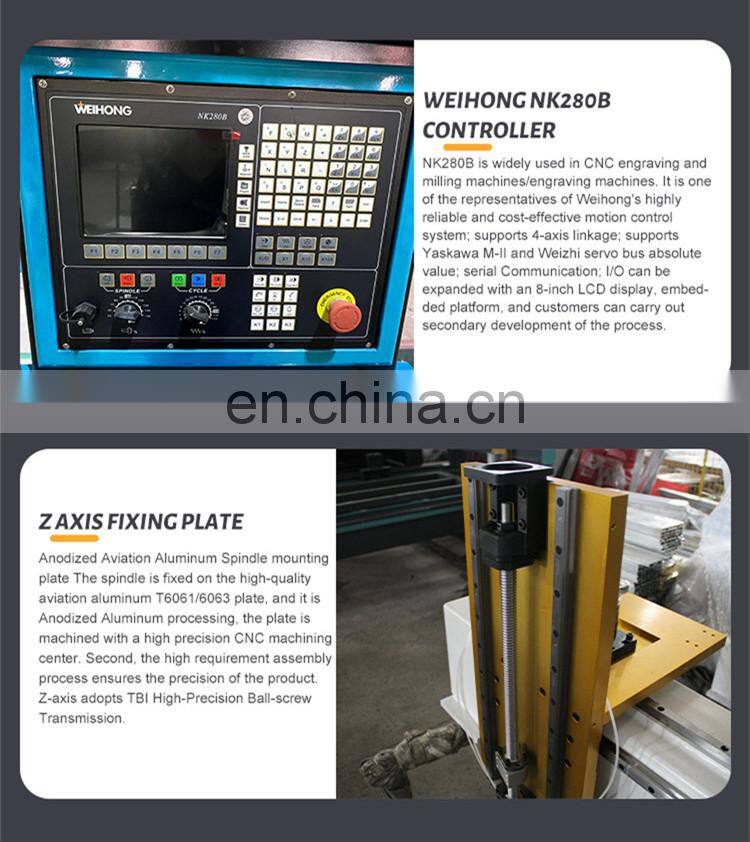

Z axis Fixing Plate

Anodized Aviation Aluminum Spindle mounting plate The spindle is fixed on the high-quality aviation aluminum T6061/6063 plate, and it is Anodized Aluminum processing, the plate is machined with a high precision CNC machining center. Second, the high requirement assembly process ensures the precision of the product. Z-axis adopts TBI High-Precision Ball-screw Transmission.

Weihong NK280B Controller

NK280B is widely used in CNC engraving and milling machines/engraving machines. It is one of the representatives of Weihong's highly reliable and cost-effective motion control system; supports 4-axis linkage; supports Yaskawa M-II and Weizhi servo bus absolute value; serial Communication; I/O can be expanded with an 8-inch LCD display, embedded platform, and customers can carry out secondary development of the process.

Company Profile

"///UTECH" is the new logo brand after the transformation of "Shandong U-May CNC Technology Co., Ltd.". "///" aims to record the important strategic transformation of the company from ordinary business innovation to high-quality operation in the three years after its establishment; "U" is "U-May"'s homophonic characters; "TECH" means the CNC technology. At the same time, when the company was founded three years, the establishment of the Ministry of Foreign Trade, so "///UTECH" became the company's new logo, and the company's development philosophy "Smarter Solution, Better Tomorrow."

Applications

1. Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors, and windows.
2. Wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
3. Plate processing: insulation part, plastic chemical components, PCB, inner body of the car, bowling tracks, stairs, anti-bate
board, epoxy resin, ABS, PP, PE, and other carbon mixed compounds.
4. Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic, and soft metals such as copper, aluminum plate
engraving, and milling process.

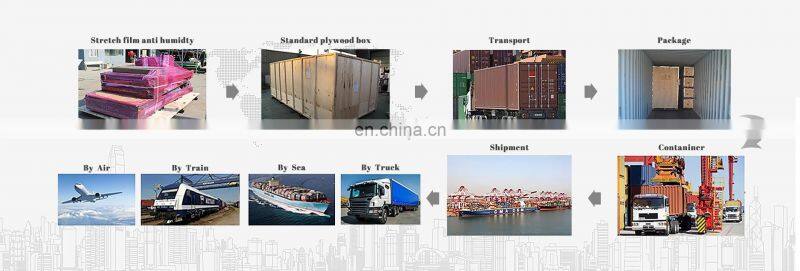

Packing & Delivery

Packing:
1/ If the machine is delivered via LCL, then would be packed with wrapping film, EPE foam, and a standard export plywood box.
2/ If machine delivery via FCL, then don't need a wood box, would be packed with wrapping film and EPE foam.

Shipping:
We support machine delivery via express, air transportation, land transportation, and sea transportation.
1/ Such as some small machine, Mini CNC Router or Small CO2 Laser Machine and Fiber Laser Marking Machine, usually delivered via express and air transportation.
2/ If you wanna us to help you deliver to a domestic warehouse or Russia, Kazakhstan, etc, usually delivered via land transportation.
3/ Large machines or some countries where shipping is more convenient, usually suggest choosing sea transportation.

FAQ

1. Who are we?
We are based in Shandong, China, start from 2014,sell to Domestic Market(19.00%), North America(15.00%), Mid East(12.00%), Western Europe(10.00%), Southeast Asia(7.00%), Eastern Europe(7.00%), Southern Europe(6.00%), South Asia(5.00%),Africa(4.00%), Central America(4.00%), Oceania(4.00%), Northern Europe(3.00%), South America(3.00%), Eastern Asia(1.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. What can you buy from us?
CNC Router, Fiber Laser Cutting Machine, Laser Engraving Cutting Machine, Fiber Laser Marking Machine, Plasma Cutting Machine

4. Why should you buy from us not from other suppliers?
null

5. What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW, DDP, DDU；
Accepted Payment Currency: USD, EUR, CAD, AUD;
Accepted Payment Type: T/T, L/C, D/P, D/A, Credit Card, Western Union, Escrow;
Language Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian.
