China jinan cnc router 4040 metal cutting milling machine for mold
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
milling machine cutting machine mini metal mold cnc small router for metal
-
cnc router machine for metal professional cnc mold machine
-
cnc router engraving machine cnc 8080 5 axis cnc router machine
-
Metal cnc mold making machine /cnc router for mold 6060
-
small metal engraving machine 6060 mini cnc router metal cutting machine
-
Hot sale Economic Price Multi-function Wood and Metal Aluminum CNC Machine 3axis CNC Router
Product Description
Parameter
X,Y,Z Working Area | 400x400x200mm |
X, Y,Z Structure | Hiwin Rail Linear Guide and Ball Screw |
Table Surface | T-slot Table |
Max. Power Consumption | (Without Spindle) 1.0Kw |
Max. Rapid Travel Rate | 16000mm/min |
Max. Working Speed | 10000mm/min |
Frame | cast by iron |
Spindle Power | 3.0KW water cooling spindle |
Drive Motors | Servo Motor |
Spindle Speed | 0-24000RPM |
Operating System | NK 280(Options: Ncstudio/Mach3 PC Software,DSP) |
Flash Memory | 128M(U Disk) |
Relative Humidity | 30% - 75% |
Inverter | Delta/Fuling |
Working Voltage | AC220/380V/50/60Hz,3PH |
Feature
1 .X Linear guide rails and linear guide rails on X, Y and Z (German screw drive) axes are used to ensure high precision and stable performance, and support heavy weight.
2. The water-cooled brushless spindle of domestic famous brand is adopted, which has low noise and strong cutting ability and ensures long-time working.
3. The gantry structure and cast iron ensure strong stability and support. Electronic handwheel is easy to operate.
2. The water-cooled brushless spindle of domestic famous brand is adopted, which has low noise and strong cutting ability and ensures long-time working.
3. The gantry structure and cast iron ensure strong stability and support. Electronic handwheel is easy to operate.

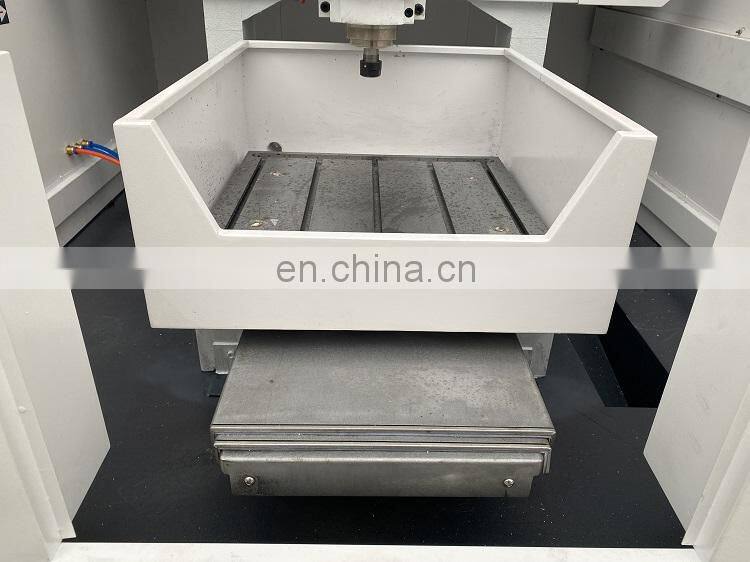

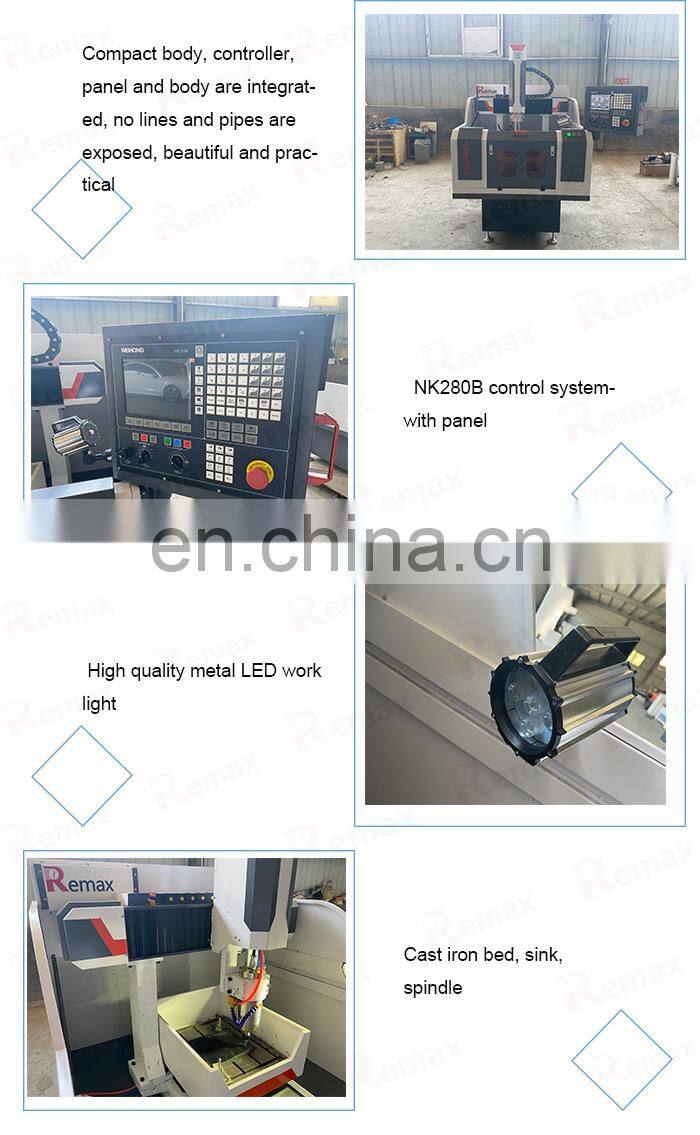

Parts
Company Information
Jinan Remax Machinery Technology Co., Ltd specializes in the development and manufacture of CNCrouter machines, CNC laser machine, CNC plasma cutting machine. Our company sets research anddevelopment, production, sales, maintenance services as a whole,Our products have covered advertisinindustry, woodworking industry, craft gifts, architectural models, electronics, CAD/CAM industry moldindustry, decoration, clothing, packaging, printing, dyeing, logos, seals, etc industries; and because of itsdistinct cost-effective domestic and in various application fields have been completely replacing importedsimilar products. The company will continue to adopt international advanced production technology andproduction processes, development and production of high quality, the high price ratio of numerical contrcequipment, continuing to create maximum value for customers.

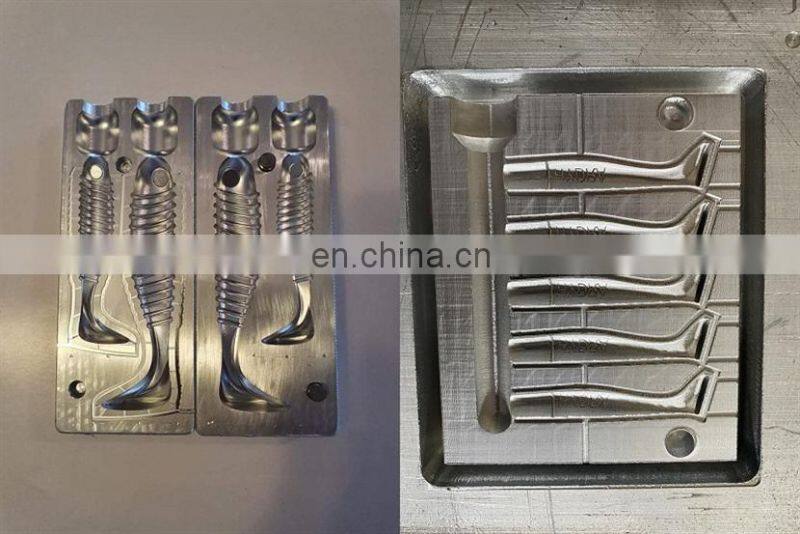

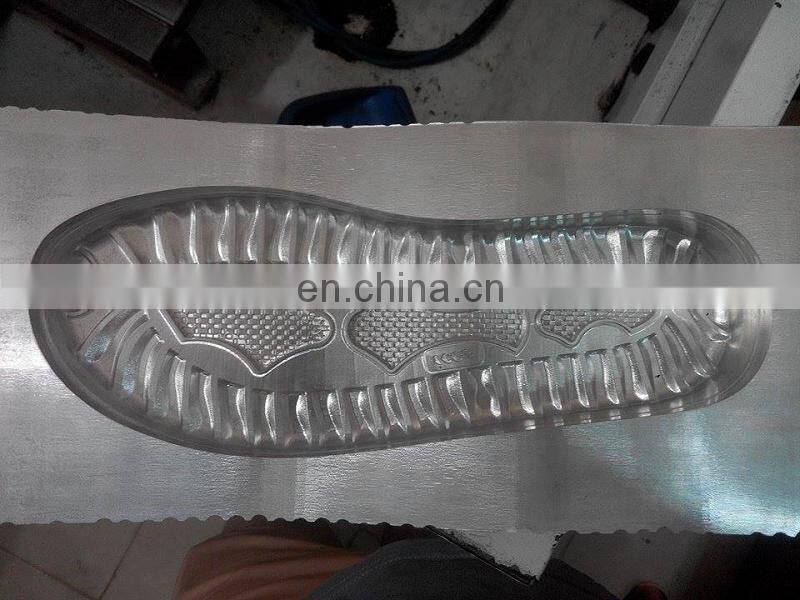

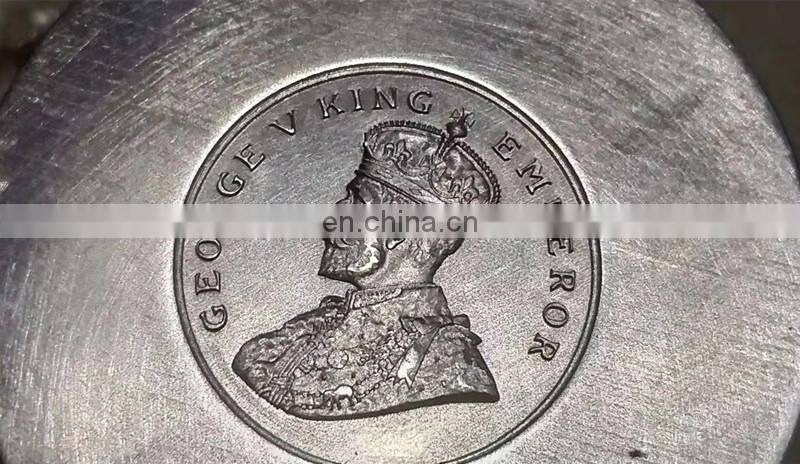

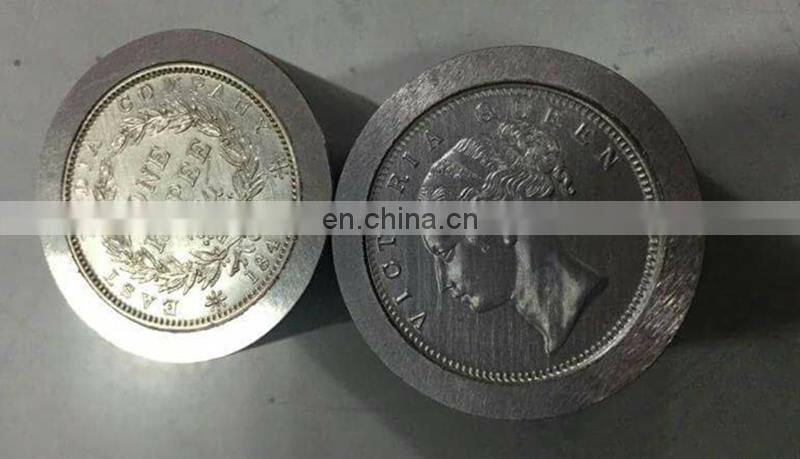

Samples
Why Choose US
1 we are a real factory offering products
2 free technical advice by QUALIFIED MECHANICAL ENGINEERS
3 company in business for many years
4 over 50 countries customers served!
5 buy direct saving your money!
6 all machine with CE, ISO,Bv certificate.
7.Total machine for one year guarantee
8 our engineer can go to your country to provide technical guidance
9 fast delivery, save your time.
Our Service
A Guarantee:
12 months for the whole machine.
Within 12 months under normal use and maintenance,
if something is wrong with machine, you will get spare part for free.;Out of 12 months, you will get spare part at cost price.
You will also get technical support and service all the lifetime.
B Technical support:
1,Technical support by phone, email or MSN/Skype 24 HOURS
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
C After sales services:
Normal machine is properly adjusted before dispatch.You will be able to use the machines immediately.
You will be able to get free training advice towards our machine in our factory.You will also get free suggestion and consulting , technical support and service byemail/fax/tel and lifetime technical support.
FAQ
Q1：This is the first time l use this kind of machine, is it easy to operate?
A1：There are english manual or teaching video that show how to use machine.lf there is still have any question, please contact us by e-mail / skypel phone /trademanager online service at any time.
Q2:MOQ ?
A2:the minimum order is 1 set machine, if you order more one time, the price will be better.
