Economic Price T-slot Table Cnc Router 1224 for Wood Furniture Carving or Cutting Jobs
- T/T Credit Card
You May Like
-
Irregular Size Fabric and Decorative Items Automatic Fabric Cutting Machine
-
SKA-4040L Mini Cnc Lathe Machine Rotary Mini 3d Wood Cnc for Pcb , Plastic, Wood , Metal Carving
-
3d Scanner for CNC Router in Jinan City With Cheaper Price for Sale
-
Senke New Online 1500W 2000W Fiber Laser Metal Welding Machine
-
SENEK CNC Router 4*8FT Marble Stone Granite Carving Machine Double Engraving Heads
-
SENEK CNC Router 50*100 INCH Water Check Cutting Machine Granite Stone Marble Engraving Machine
Product Description

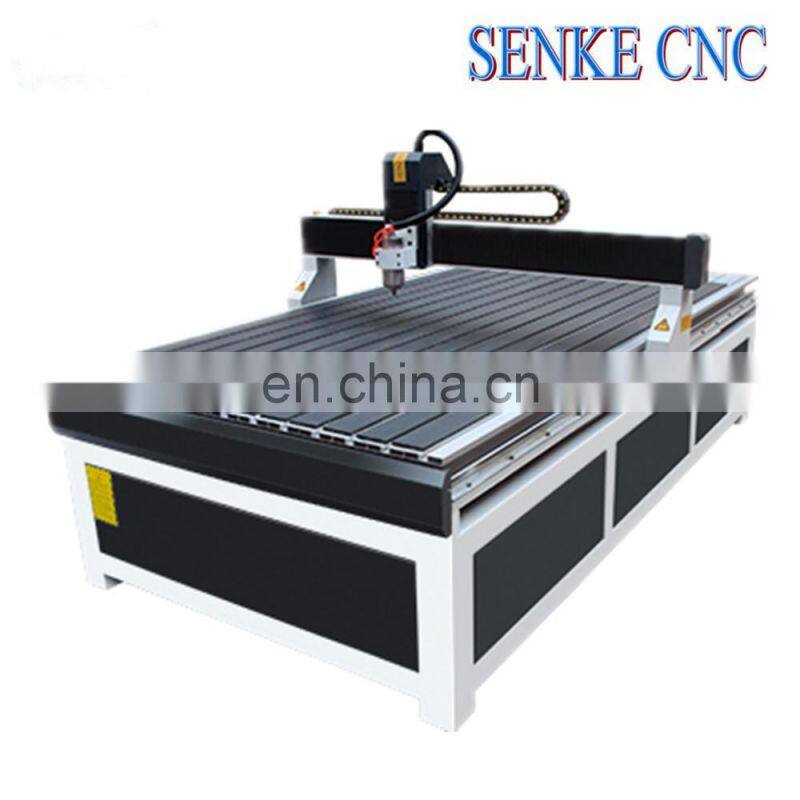

Economic price T-slot table cnc router 1224 for wood furniture carving or cutting jobs
Main features:
1. 3 axis transmission with Gemany/taiwan ball screws ensures stable and smooth movement of the machine.
2. Solid gantry, well structure of lathe bed,stable lathe table.
3. Application of driver with high definition and subdivision ensures fast speed and high accuracy.
4. High-speed spindle with water cooling system works vigorously with low noise,guarantee long time mass processing.
5. Optimized mechanical and electrical design with well-selected brand parts minimizes breakdown rate.
6. Adpot advanced cnc system,configured with practical and easy-learned software,can conveniently check the moving path of tool,and adjust the processing depth of Z axis and the speed of motor
Technical Parameter:
Model | SKA-1212 | SKA-1224 |
X/Y/Z working size | 1200*1200*150mm | 1200*2400*150mm |
Table size | 1750*1520*1400mm | 1750*2720*1400mm |
Spindle power | 1.5KW/2.2KW/3.0KW water cooling (choose) | |
Spindle speed | 0-24,000rpm | |
X/Y/Z movement | Taiwan/Germany ball screw | |
X, Y Resolution | <0.01mm | |
Max moving speed | 18,000mm/min | |
Max engraving speed | 10,000mm/min | |
Drive type | Stepper (servo optional) | |
Inverter power | 1.5KW/2.2kw/3.7kw(depend on spindle choose) | |
Working voltage | AC220V/50Hz/60Hz | |
Working Dictate | G-code | |
Operating system | NC-studio control ( DSP optional ) | |
Software | Artcam/Type 3 | |
Table type | T-slot table | |
Collect | ER20-25 | |
Interface | USB | |
Flash Memory | 128M | |
Packing size (L*W*H) | 1.92*1.92*1.71M | 3.1*1.9*1.73M |
Gross weight | 600kgs | 800kgs
|

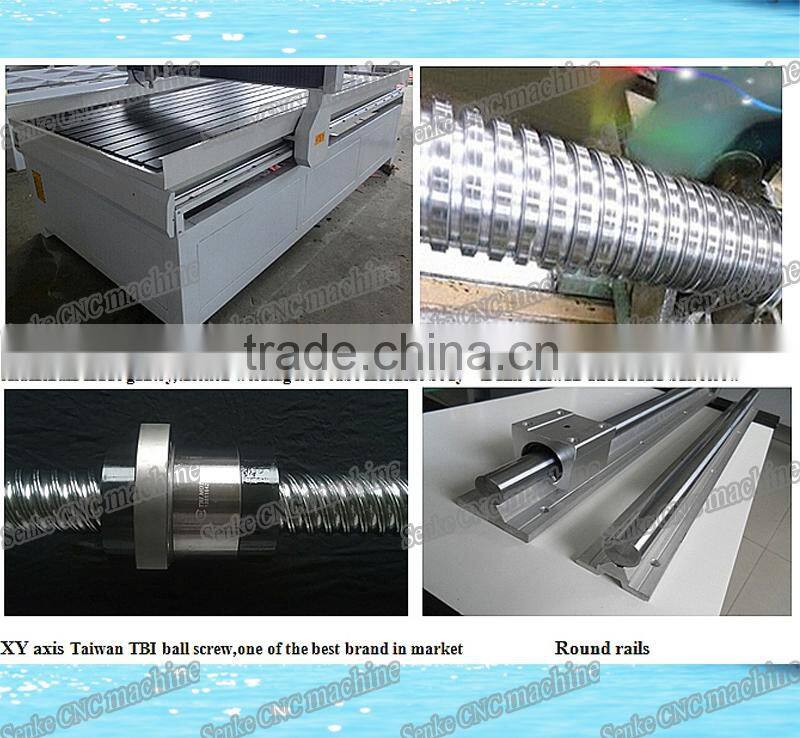

Machinery parts shows:
These are our customers feedback to our machine and service. they are so really that is possible you can contact them to ask any quesiton about our machines and service:
Double paking of protective film and fumigation-free wooden case:
Service:
1 We will provide the user a CD to study the machine installation and commissioning.
2 Our technicists can give user online guide.
3 The user can by call or email us any problems at any time.
4 After-sales service.
Two year warranty for machine maintenance, for equipment maintenance over the warranty period is clearly marked.

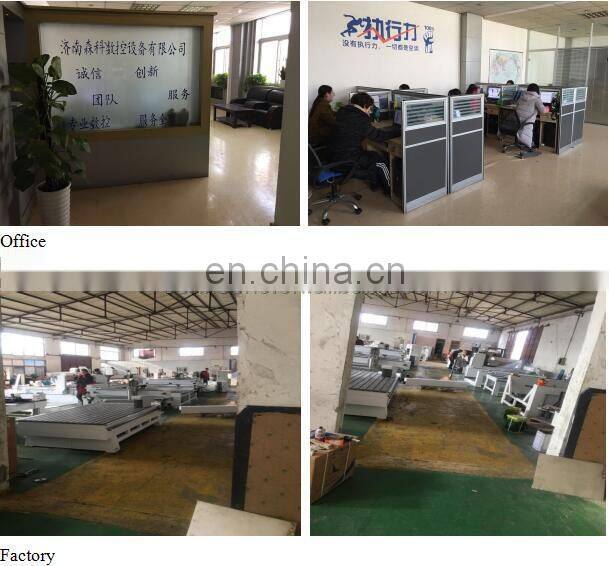

Our factory and work team:
