Product Description
Products Description

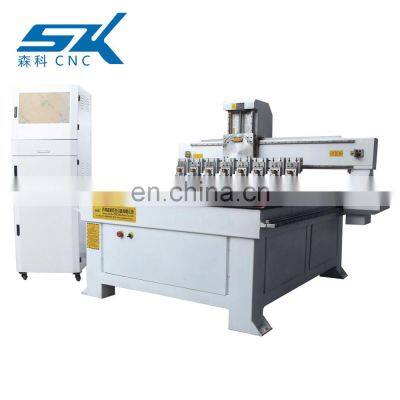

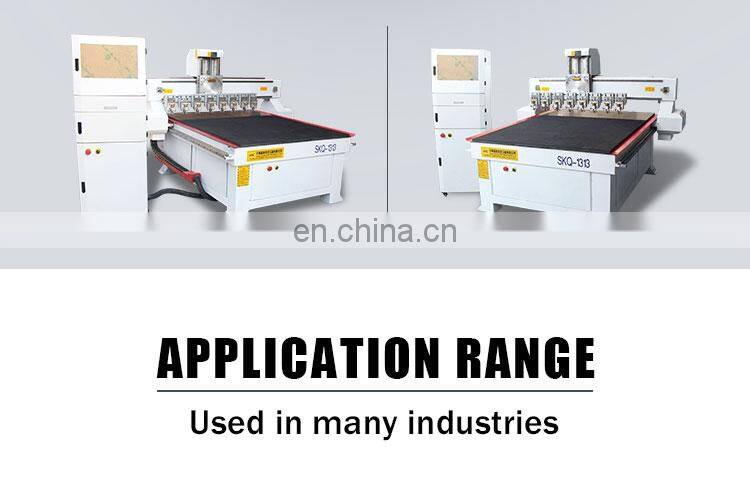

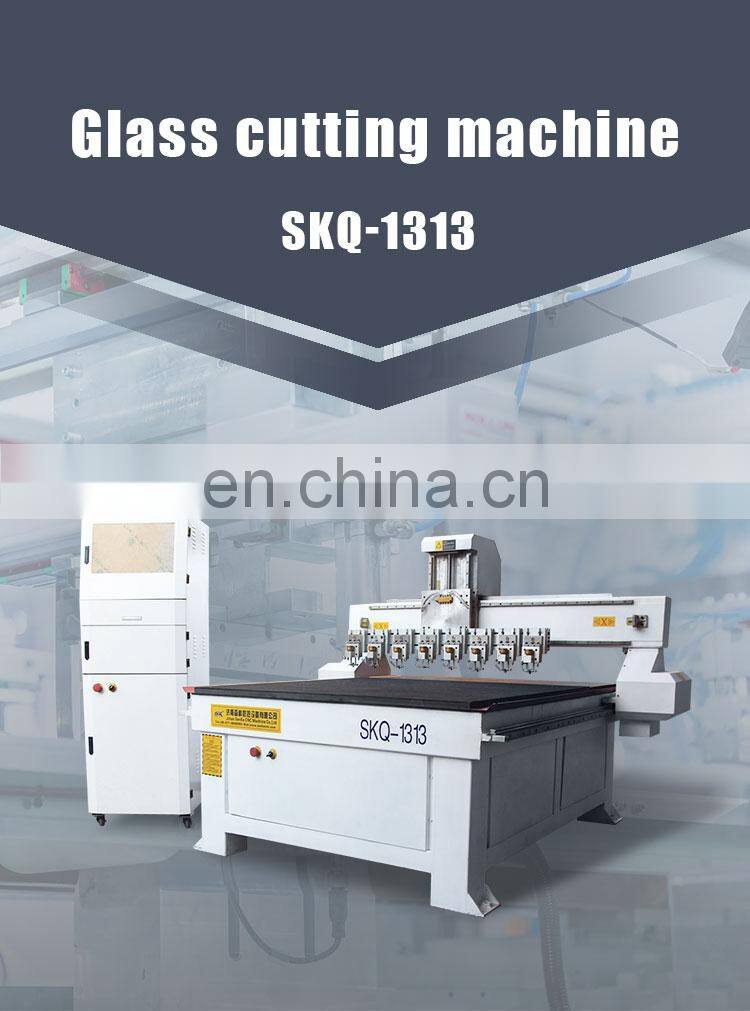

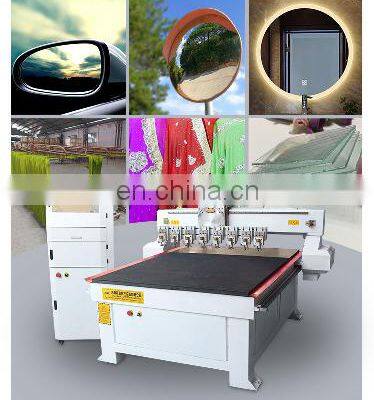

Glass 1313 Automatic Glass Mirror Cutting Machine CNC Glass Cutting Table Multi-Heads Glass Cutting Machine
Technical Paremeters | ||||||||
Model | SKQ-1313/1325 | |||||||
Working area | 1300*1300mm/1300*2500mm | |||||||
Body Structure | Thicken Steel Made Lathe | |||||||
Rails | Taiwan HIWIN Square Rails | |||||||
Transmission Type | Taiwan TBI Ball Screw | |||||||
Max Moving Speed | 40000mm/min | |||||||
Max Cutting Speed | 20000mm/min | |||||||
Interface | USB | |||||||
Voltage | 220V/single phase or other can be customized | |||||||
Drive Type | Stepper Motor& Leadshine Drivers | |||||||
Working Dictate | G Code | |||||||
Operating System | NC-studio Control System | |||||||
Software | Artcam 8.1 (free supply) | |||||||
Oil Lubricator | YES, Include | |||||||
Wire Protect | YES, Include | |||||||
Running Environment | Temperature:-10℃~45℃ | |||||||
After Packed Size | 3.5*2.2*1.80M | |||||||
Main Features
1. Our cnc glass cutting machine is welded with seamless steel structure,which is high temperatureannealing and vibrating stress relief,so the lathe body is stable and will not deform forvever.
2.Three axises adopt taiwan brand linear guide rails with high precision.
3. Z axis adopts imported Germany or Taiwan made ball screw, so high precision and long life time using are assured.
4. X and Y axis is transmitted by helical rack and pinion. This makes the machine work faster and has larger cutting force compared with ball screw transmission.
5. Well compatibility: CAD/CAM designing software, such as type3/castmate/wentai/artcam, etc.
6. Our cnc glass cutting machine has the function of re-carving after break point or power failure and it can estimate the processing time.
7 Manual/automatic oil-injection system allows the machine maintenance mush easier.
2.Three axises adopt taiwan brand linear guide rails with high precision.
3. Z axis adopts imported Germany or Taiwan made ball screw, so high precision and long life time using are assured.
4. X and Y axis is transmitted by helical rack and pinion. This makes the machine work faster and has larger cutting force compared with ball screw transmission.
5. Well compatibility: CAD/CAM designing software, such as type3/castmate/wentai/artcam, etc.
6. Our cnc glass cutting machine has the function of re-carving after break point or power failure and it can estimate the processing time.
7 Manual/automatic oil-injection system allows the machine maintenance mush easier.
