2u Network Appliance Support i7 i9 Xeon W Cpu and Multiple RJ45/ SFP/ 10g SFP+/ 40g Qsfp+

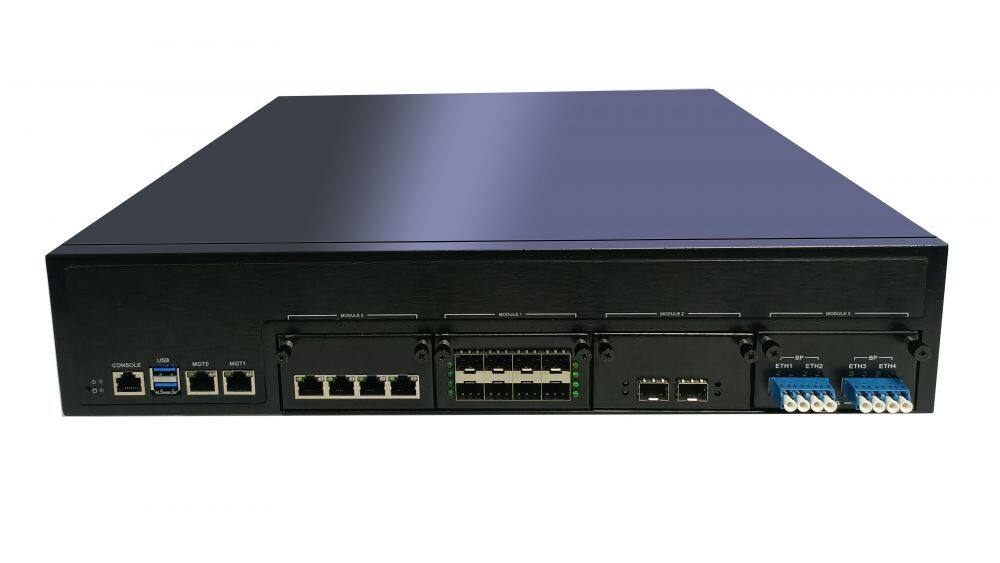

2U network appliance, The F58224 is a rackmount network appliance that can be customized with Intel? Xeon? and i7,i9 CPU , comes with high performance and flexible extensions in NIC for ports SFP/ 10G SFP+/ 40G QSFP+, storage and management, delivering excellent networking capacity for network traffic security, cloud computing and data centers.

2u network appliance support i7 i9 Xeon W CPU and 4 NMC for Flexible Nic RJ45/ SFP/ 10g SFP+/ 40g Qsfp+

• Supports Intel Gen10/Gen11 i3/i5/i7 Core, Xeon W-1200/1300 processor

• Intel W580 chipset(Rocket Lake family)

• Four 288pin 2933/3200MHz DDR4 slots, up to 128GB

• Two Intel 2.5G GbE port, Intel ethernet controllers, supports three channels bypass

• Four extension NMC slot for one NIC with more network RJ45/ SFP/ SFP+/QSFP+ interfaces

• Supports SATA3.0, mSATA, M.2 multiple storages options

• Front USB3.0,Console interface and LED indicators

• CPU Intel Gen10/Gen11 i3/i5/i7 Core, Xeon W-1200/1300 processor

• Chipset Intel W580

• System memory Four DDR4 slots, up to 128GB

• Interface Two SATA3.0 connectors, one mSATA and one M.2 slot

• Hard Drive Supports two 3.5/2.5" HDD tray

• LAN Port Two 2.5G RJ-45 ports

• Ethernet Chip Intel? Ethernet Controller I225-V

• Extension ports Max 32 ports, extending by NMC slots

• Indicator Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED

• USB Two USB3.0

• COM One RJ-45 COM

• Indicator One Power LED, one HDD LED

• Video Built-in one VGA interface, support hot plug(Internal)

• NMC slots Four NMC slots for extension NIC

• Expansion PCIEx8 slots

• Power consumption 250W power supply

• Power input 100 ~ 240V AC input

• Optional DC power or Redundant power

• Mounting Supports rack-mounting or desktop-mounting

• Operate Temperature -10°C ~ 50°C

• Storage Temperature -20°C ~ 75°C

• Operate Humidity 5% ~ 85% non-condensing @ 40°C

• Storage Humidity 5% ~ 95% non-condensing

• Chassis Color Black or OEM

• Front panel PVC (OEM/Neutral)

• Construction 1u chassis, Heavy duty metal

• Dimensions (D x W x H) 500x440x88 mm

• Weight 11.9 kg

• F58224 Network security appliance, 2u rackmount chassis, motherboard based on W580 Chipset, 2x 2.5G RJ45, 4x NMC slots, 250W PSU

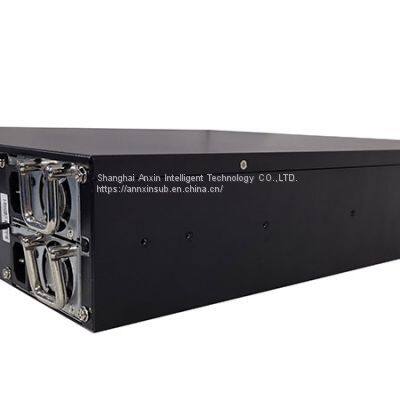

• F58224-P2 Network security appliance, 2u rackmount chassis, motherboard based on W580 Chipset, 2x 2.5G RJ45, 4x NMC slots, 550W redundant PSU

• 35N4 4 GbE RJ-45 LAN ports NIC module Lan card based on Intel I350 controllers

• 35F4 4 GBE SFP LAN ports NIC module LAN card based on Intel I350 controllers

• 35NF4 2 GbE RJ-45 and 2GBE SFP LAN ports NIC module Lan card based on Intel I350 controllers

• 35N8 8 GbE RJ-45 LAN ports NIC module Lan card based on Intel I350 controllers

• 35F8 8 GBE SFP LAN ports NIC module LAN card based on Intel I350 controllers

• 58B2 2 GBE SFP LAN ports NIC module Lan card based on Intel 82580DB controllers, with one channel Bypass

• 59W2 2 10G SFP+ LAN ports NIC module Lan card based on Intel 82599ES controllers

• 59B2 2 10G SFP+ LAN ports NIC module Lan card based on Intel 82599ES controllers, with one channel Bypass

• 71W4 4 10G SFP+ based on Intel XL710 controllers

• 71B4 4 10G SFP+ based on Intel XL710 controllers, supports two channel optial bypass

• 71Q2 2 40G QSFP+ based on Intel XL710 controllers
