FSSD 9 Motors Glass Straight Line Beveling Machine Glass Processing Machine
- foshan port
- T/T
You May Like
Product Details
| Brand Name | Foshan Star | Place of Origin | China | |
| Model Number | ST-261E | Certification | CE | |
| After-sales Service Provided | Overseas third-party support available | Warranty | 1 year | |
| Weight | 4200kg | Dimension(L*W*H) | 6.68mX1.3mX1.9m | |
| Production Capacity | 0.6m-6m/min | Condition | New | |
| Voltage | 380v/50hz | Power(W) | 21kw | |
| Machine Type | Glass Beveling Machine |
Product Description
Machine Introduction

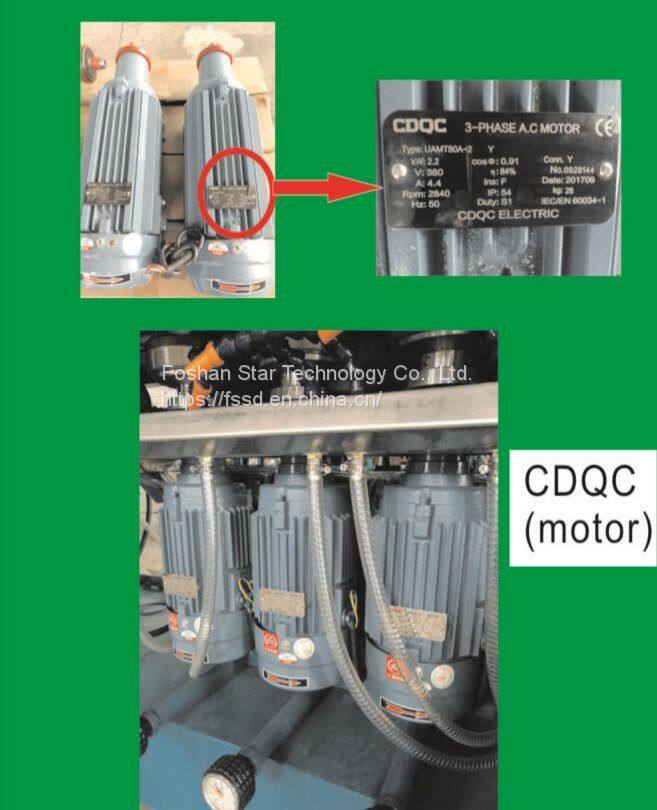

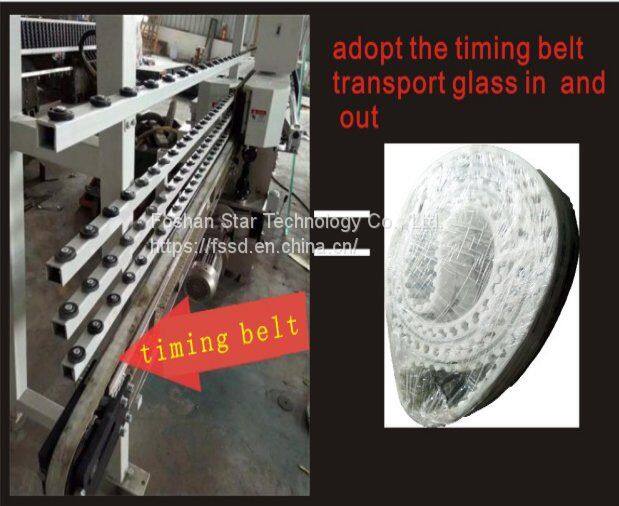

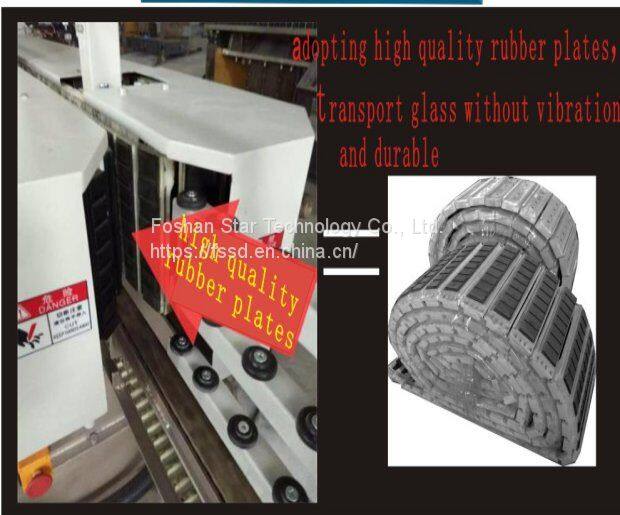

This machine is designed for grinding/polishing bevel edge, with bottom edge grinding. Conveyors use chain transmitting system which consist of anti-friction rubber pads with NO.40# forging steel bone. Timing belt are used in loading and unloading arms to carry glass, which has a stable transportation. Adopt frequency conversion as main conveyor .Grinding wheels are driven by high precision CDQC motors. The machine structure is advanced and high working precision . Easy to operate and keep maintenance.
Technical parameters
Spindles: 9 heads.
Speed: 0.6m-6m/min
Max. bevel width: 35mm
Min. glass size: 80mmX80mm
Maximum glass size:3000*3000mm
Glass thickness: 4mm-12mm
Bevel angle: 0°-25°
Total power: 21 KW (380V 50HZ ,according with customer requirement)
The bevel-ling machine total dimension: 6.68mX1.3mX1.9m
Weight: 4200Kg
