10kA Waterproof LED Street Light Driver Thermal Surge Protector
- T/T Credit Card
You May Like
Product Description
10kA Waterproof LED Street Light Driver Thermal Surge Protector
LED Street Lights Power SPD: TAL22010 designed for protecting 220V LED Driver and could be connected
perfectly with its input port, sealed enclosure, waterproof and dustproof, IP67 protection grade,belongs to Class III power SPD. This SPD use common mode, differential mode, full protection with leakage current and cut the overcurrent capabilities.

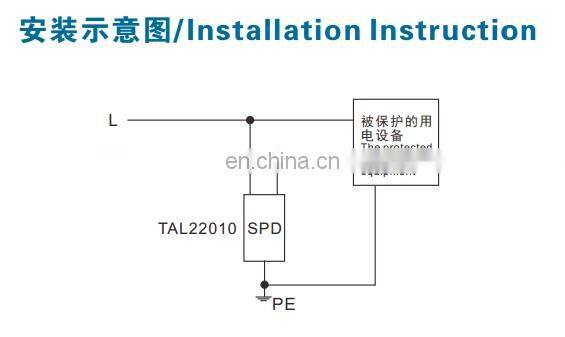

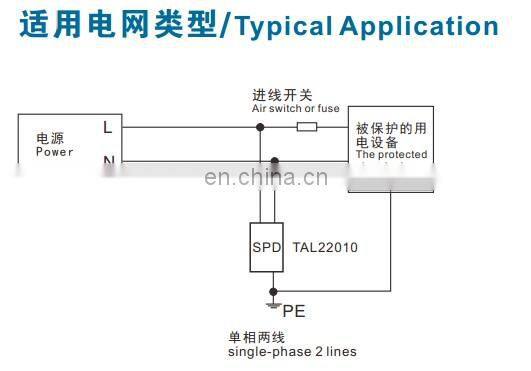

The product size small,81*37.6*13.5 mm(includes mounting holes), using parallel wiring, attached with L, N and PE cable, very convenient in installing. The maximum discharge current is 10kA/line, nominal discharge current is 5kA/line, able to withstand voltage 20kV, the level of protection is below 1.1kV, especially good for protecting LED Street lights form lightning surge damage.
| Type | TAL22010 |
| Nominal operating voltage | 220V AC |
| Max. Continuous operating voltage | 320V |
| Nominal discharge current | 5kA |
| Max.Discharge current | 10kA |
| Protection Level | 1.1kV |
| Frequency | 50~60Hz |
| Response time | 25ns |
| Size | 13.5*37.6*81mm |
| Operating temperature range | -40℃~+80℃ |
| Outer casing protection grade | IP67 |
| Enclosure material | Thermoplastic |
| Testing Standard | GB18802.1-2011;IEC61643.1:2005 |
Any questions,please contact without any hesitate.
Contact Person: Hiven Hu sheryl.ruilon
Ruilongyuan Electornics Co.,Ltd--THE CIRCUIT PROTECTION EXPERTS OF YOUR SIDE.
