Class III High Quality IP65 110V~277V Street Luminaire LED Surge Protector

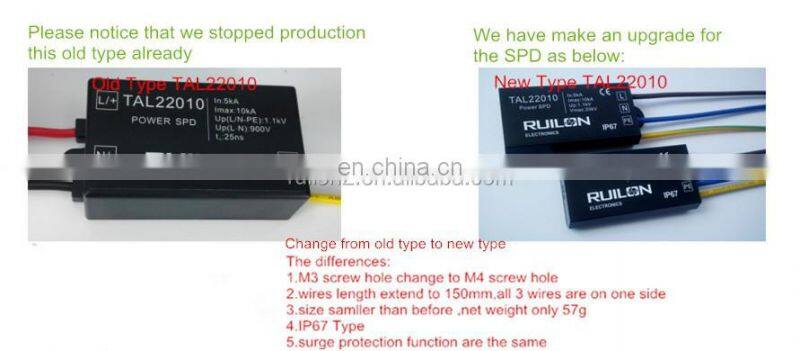

1.Upgrade Notice

1 Years Warranty ,contact to skype:candy-ruilon

2.Package Carton Picture

Contact to skype :candy-ruilon

2.  Structure ,  Applcation Shows :

LED Street Lights Power SPD: TAL22010 designed for protecting 220V LED Driver and could be connected perfectly with its input port, sealed enclosure, waterproof and dustproof, IP67 protection grade,belongs to Class III power SPD. This SPD use common mode, differential mode, full protection with leakage current and cut the overcurrent capabilities. The product size small,81 × 37.6× 13.5mm(includes mounting holes), using parallel wiring, attached with L, N and PE cable, very convenient in installing. The maximum discharge current is 10kA/line, nominal discharge current is 5kA/line, able to withstand voltage 20kV, the level of protection is below 1.1kV, especially good for protecting LED Street lights form lightning surge damage.

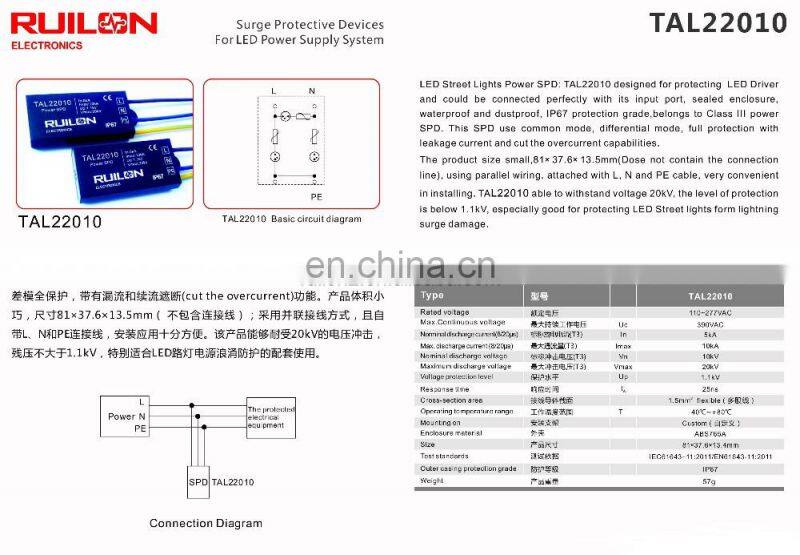

3.Parameters:

4. Surge Protection Module Key Applications :

• Highways

• Rural Roads

• Parking Lots

• Area lighting

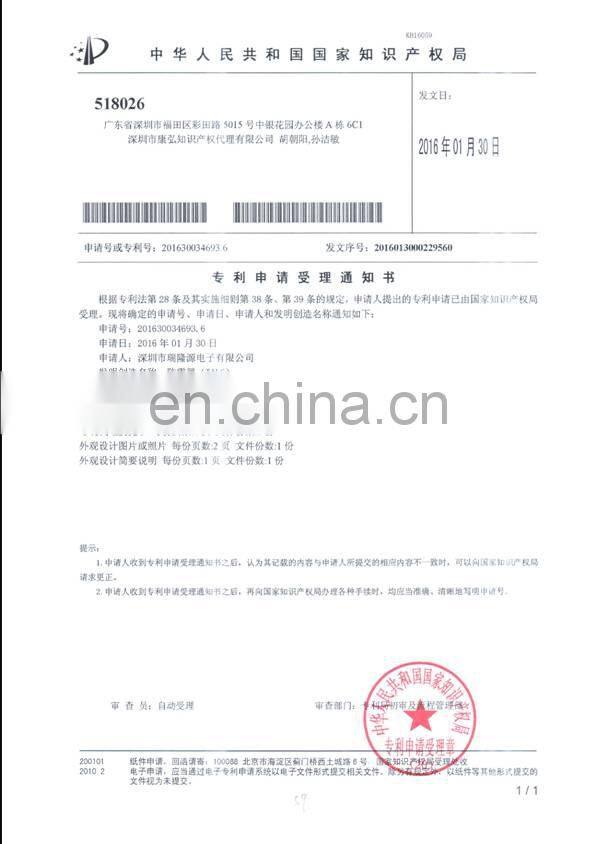

5.Our Patent Certiifcate:

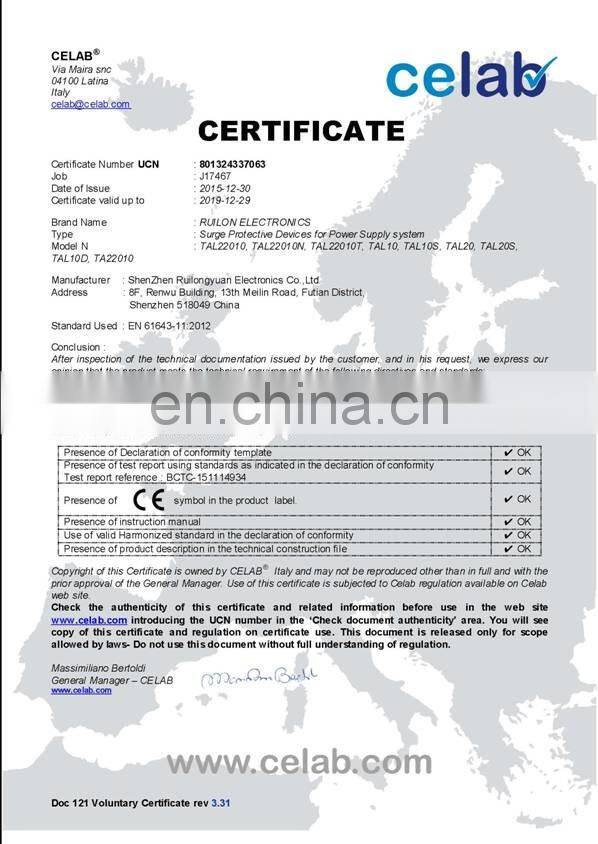

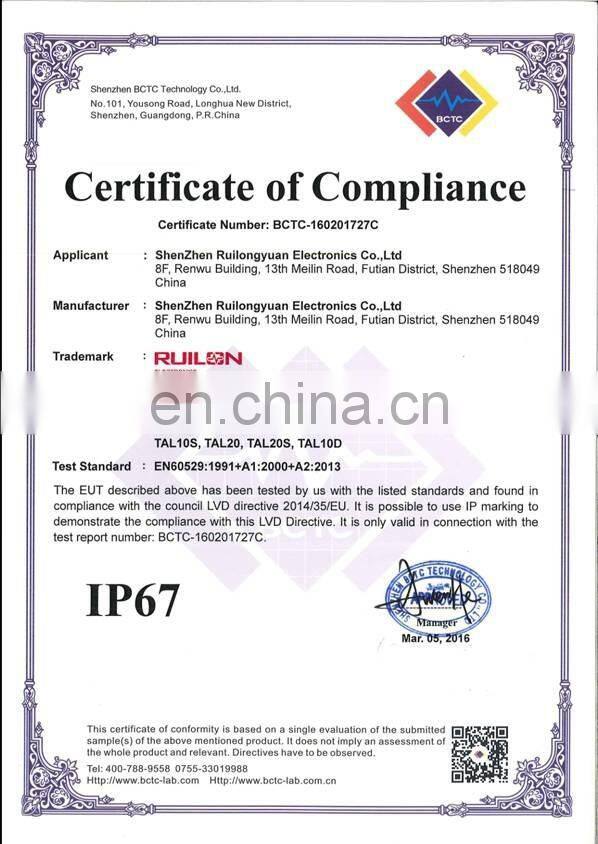

6.CE Approval , IP67 Approval , ISO Aproval

7.Our exhibition:

8.Our Team:
