Product Description

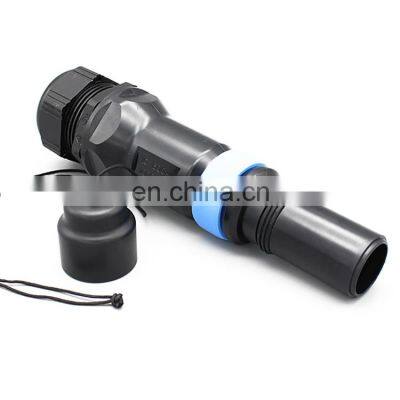

Multi contact 16bv 21mm round Industry Connector 600A
staubli power connector
Product Description
Industrial round connectors Technical Parameters
| Item | Value |
| Rated Current(Amperes) | 600A |
| Rated Voltage(Volts) | 1000V |
| Contact Barrel Wire Size (AWG) | 150~240mm² |
| Contact Materal | Copper, Plated With Silver |
| Insulation Material | PA |
| Flammability | UL94 V-0 |
| Without Load, Contact/Disconnect Cycles | To 5,000 |
| Insulation Resistance | 5000MΩ |
| Average Connection/ Disconnect (N) | 200N |
| Connector Holding Force (lbf) | 150N Min |
| Environment Temperatures | -20℃···+75℃ |
| Insulation Withstanding Test Voltage(Volts AC/DC) | 3000V AC |
Board interface Industrial round connectors
Wire interface Industrial round connectors
Wire interface Industrial round connectors
| Adopt special shrapnel | |
|
Tonch protected in unplugged condition |
| Clearly visible colour marking on the insulation | |
|
IP65 in mated condition |
| Can be equipped with a mi-croswitch as locking status in-dication (assording to IEC 61948) | |
Product Uses
Industrial round connectors Applications
------
