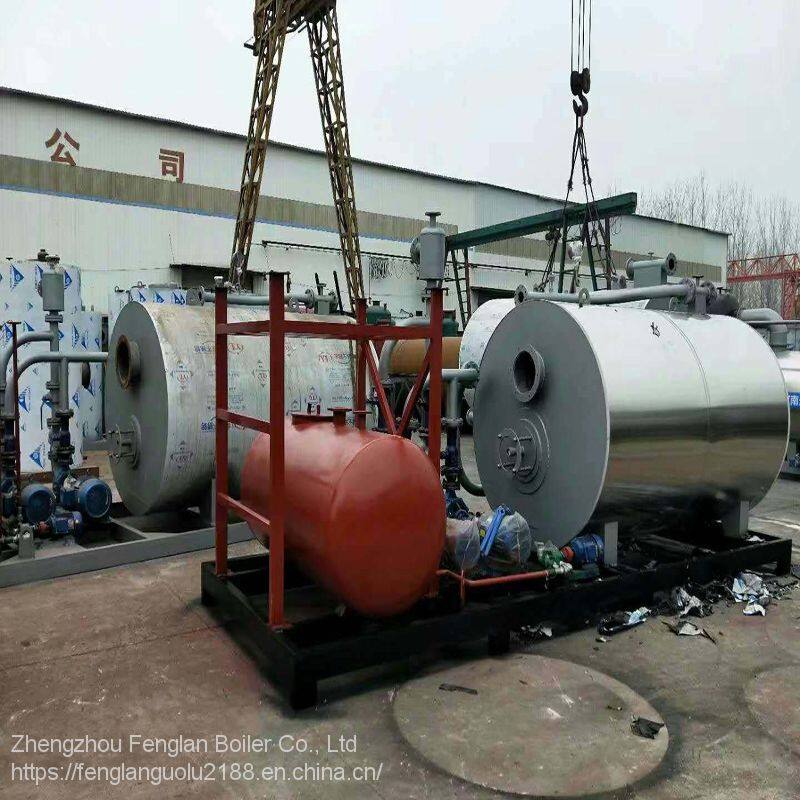

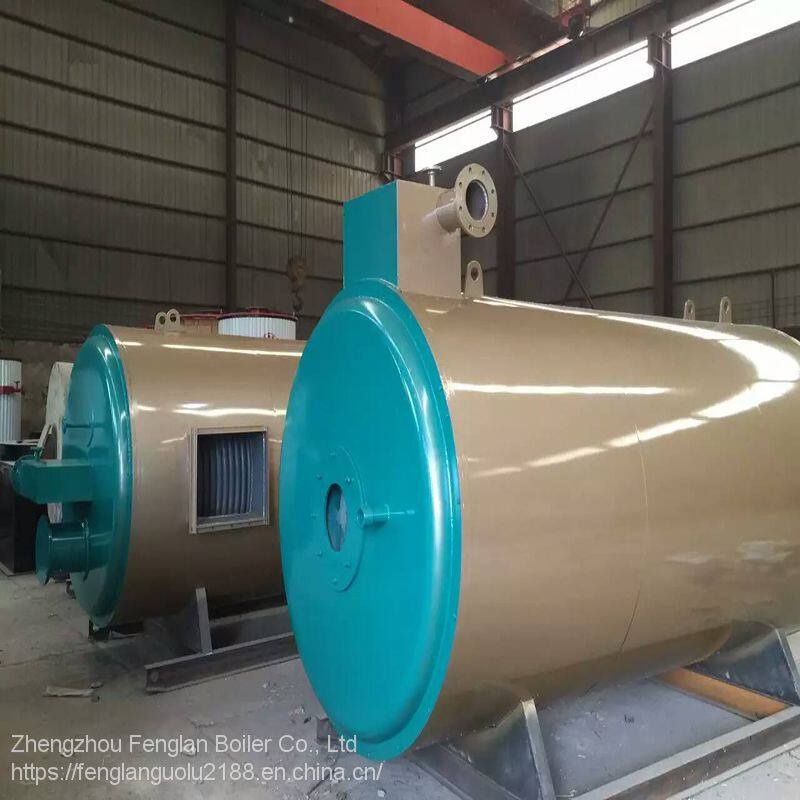

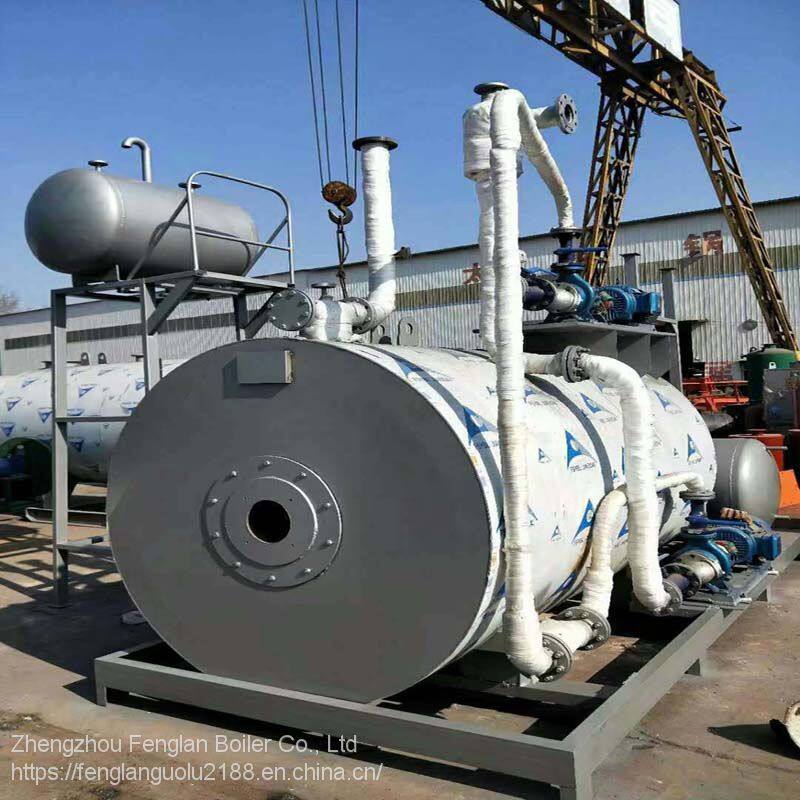

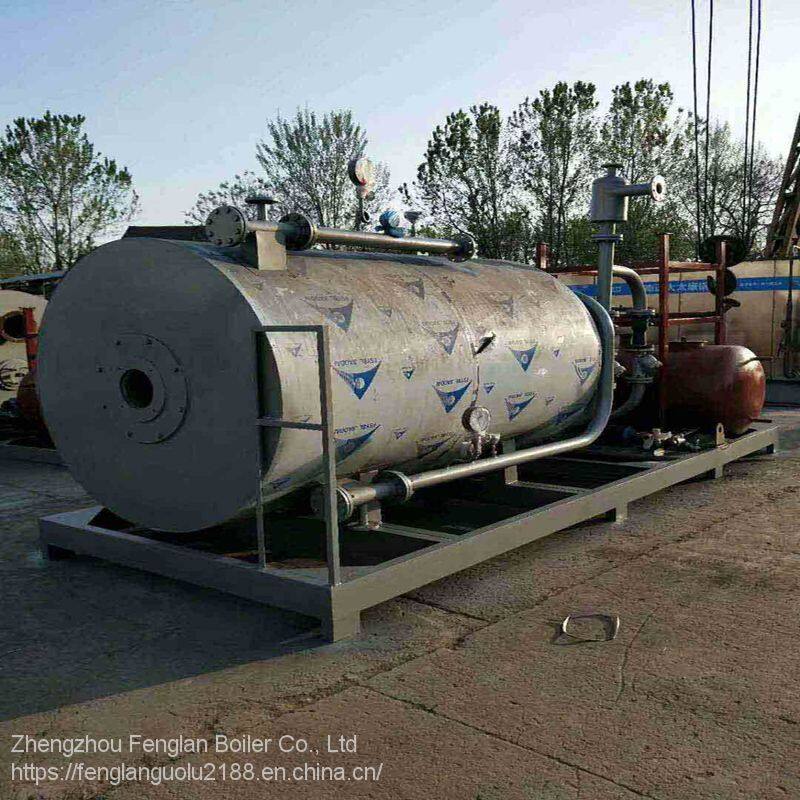

High Temperature Heating Oil Gas Heat Transfer Oil Boiler in Chemical Industry

Application scope of organic heat carrier (heat transfer oil) and organic heat boiler:

Petroleum industry, chemical industry, grease industry, synthetic chemical fiber industry, textile printing and dyeing industry, plastic and rubber industry, paper and printing industry, building materials industry, wood industry, food industry, air conditioning industry, electroplating, steel pickling and other surface treatment and various drying industries.

Heat conducting oil furnace, i.e. organic carrier boiler

In the existing industrial field, there are many heat using units that often need 100 ℃ ~ 300 ℃ or higher temperature heat sources, including fractionation, cracking, concentration and reaction in the petrochemical industry; Heat setting and drying in textile and printing and dyeing industries, asphalt melting, heat preservation and mixing in road construction and construction industries, paint drying in automobile industry, etc. After years of experience, it is concluded that heat transfer oil is an ideal heat carrier to obtain a heat source with a temperature of 200 ℃ ~300 ℃.

The product features are as follows:

It can obtain higher working temperature under lower operating pressure.

Stable heating and temperature regulation.

It has complete operation control and safety monitoring devices.

Substituting coal for electricity and oil has high economic benefits and can recover investment in a short time.

The ideal thermal efficiency can be maintained under different working conditions.

The liquid phase transports heat energy. When the temperature is less than 300 ℃, the heat carrier pressure is 70~80 times less than the saturated steam pressure of water, and the heat transfer oil is not easy to freeze in cold areas.

The utility model can replace the steam boiler with water as the medium for heat supply in areas with poor water resources. Closed loop heat supply, with high heat utilization efficiency.

Oil gas separator:

Generally, the new heat transfer oil contains water. During the heating process of the heat transfer oil, the water will vaporize. If the water gas is not discharged from the heat transfer oil boiler, the outlet pressure of the circulating heat transfer oil will fluctuate and become unstable. The function of the oil-gas separator is to separate water and gas from the heat transfer oil and discharge them out of the boiler to ensure the stability of the oil outlet pressure of the heat transfer oil boiler.

Steam water separator:

From the literal meaning, the operation and principle can be understood directly: steam and water are separated, the steam rises and is directly sent to the equipment, and the water drops and returns to the boiler through the pipeline, which improves the steam quality and reduces the steam water content.

Specification and model ф 159- ф 500，

The working pressure is 1-2.5mpa,

Operating temperature: 0 ~ 400 ℃,

Working medium: steam, water and oil.

Ordering instructions:

Provide diameter, pressure and temperature parameters
