Low price coal briquette extruder machine/charcoal making equipment/coal briquetting extrusion machine

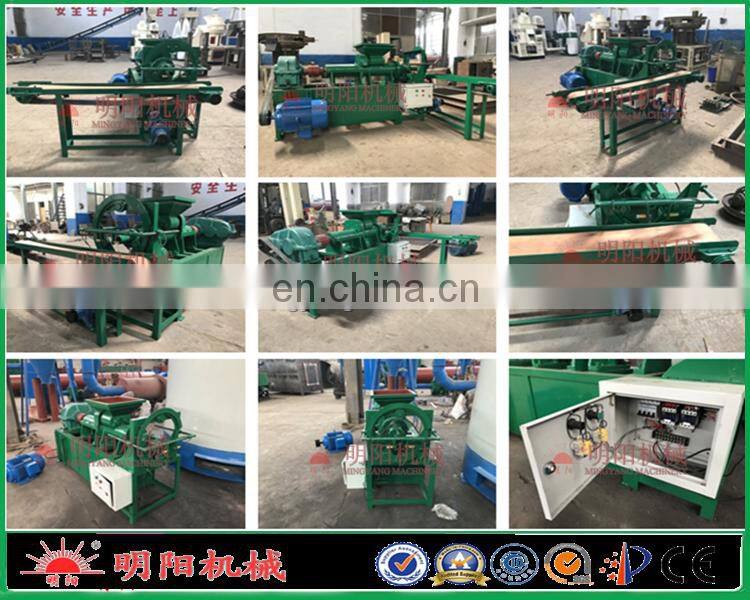

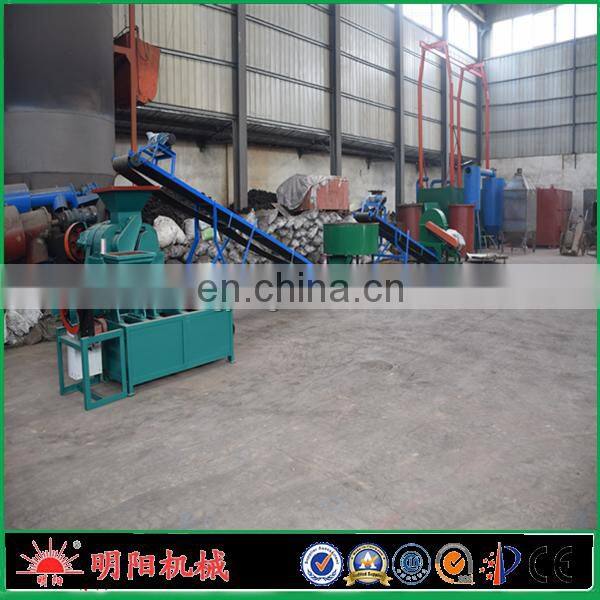

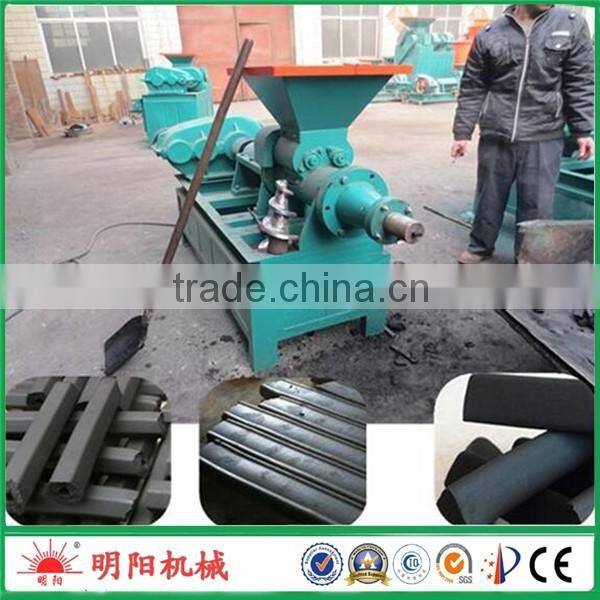

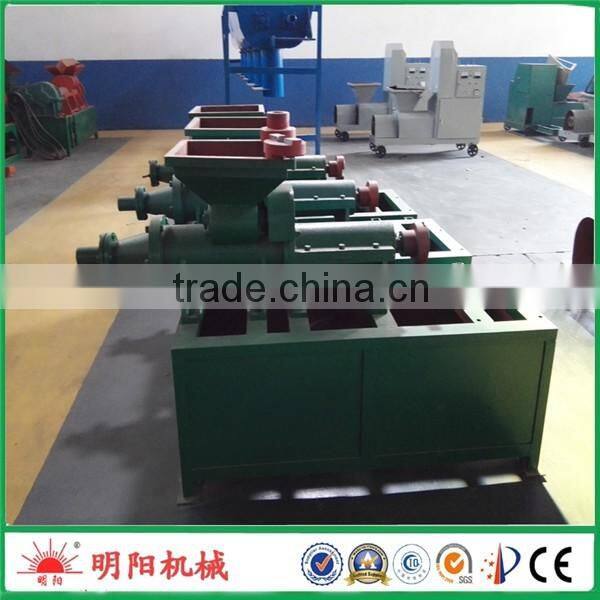

1.Introduction of coal briquette extruder machine

1) charcoal briquetting machine is mianly use to making man-made charcoal from charcoal dust

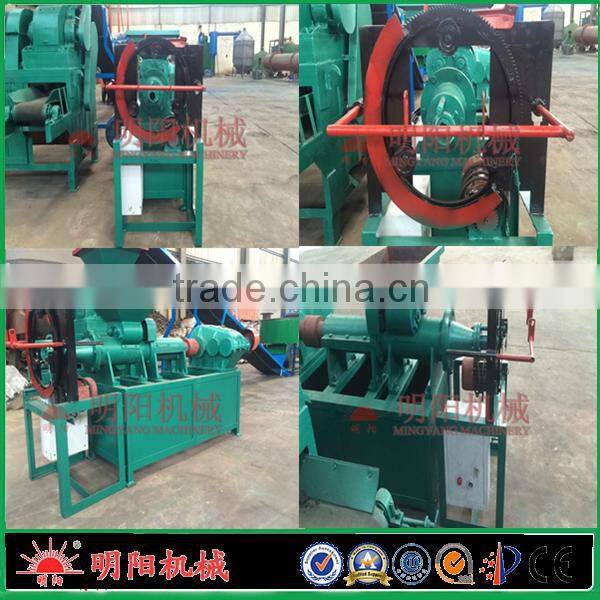

 2) The motor transmits power to transmission through the V-belt.

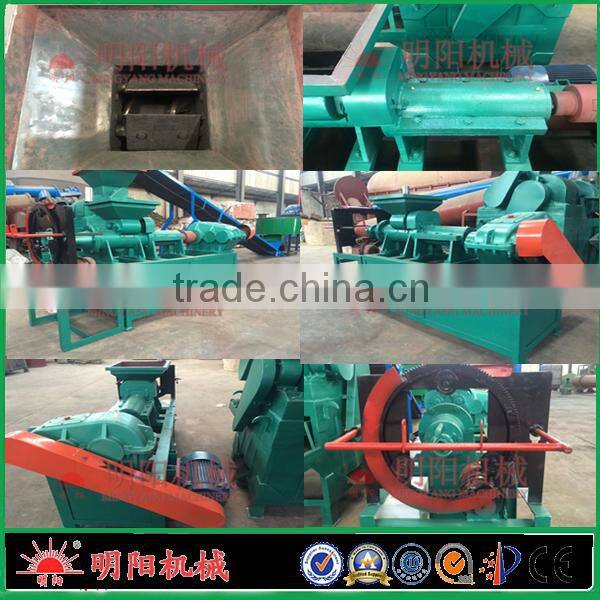

3) The transmission output shaft transmits power to propeller through the floating coupling, and the thruster of propeller push forward coal through forming die to produce the ideal high-pressure coal-stick.

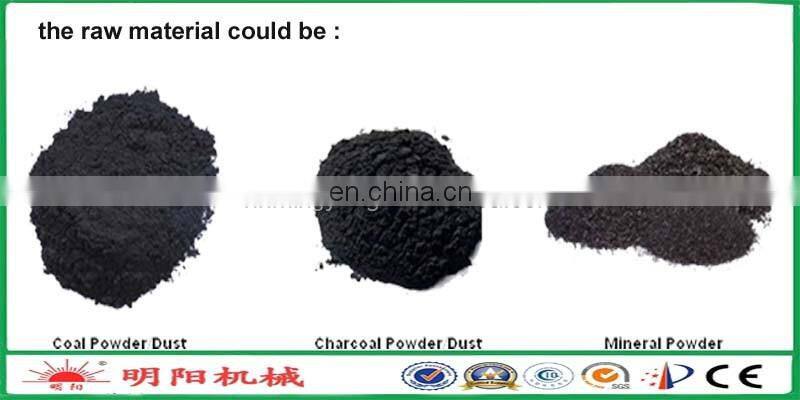

2.Raw materials of thecoal briquette extruder machine couble be :

1 Raw material can be processed: Coal dust like brown coal, lignite coal, lean coal, anthracite, peat, and the old brown coal, charcoal fines, coke dust/fines, peacoke, carbon black, carbon dust, clay, activated carbon, etc.

2 The materials size and moisture requests before briquetting: In order to ensure the good quality and mechanical strength of the final product, special care should be taken to ensure that the granule size fed to the machine is maintained below 3mm, preferably in the range of 30-40% smaller than 1–2 mm, with no more than 10% over 2 mm.

The Main Applications:

1,suitable for charcoal powder, wood charcoal powder, coco nut shell charcoal powder, rice husk charcoal powder , charcoal dust, coal powder Material suitable size : <3mm

2,The shape and size of stick can be made as require, like round, hexagon, cinquefoil, and others. In the stick center, it can with hole or not.

3,For the length of final products, the auto cutter can do it.

Working Principle:

1.This coal extruder uses the principle of spiral extrusion, compressed the prepared pulverized coal into a certain intensity of rodlike shape.

2.Coal briquette extruder is the main equipment in the system of molding fuel,it can make the squeeze powdered coal into a certain hardness coal briquette sticks (various shapes according to customer's requirements),in place of block coal,it can make full use of coal dust to reduce fuel cost.

Main Feature:

1,Advantages of our machine: it has high efficiency, energy-saving and environmental protection.

2,The final briquettes are easy to transport and store.The shapes of the sticks can be made by the customers' requirements. It can also do Shisha Charcoal and Silver Charcoal.

The Technical Parameters:

MBJ140	MBJ160	MBJ210	MBJ300	MBJ400
production capacity	1-2T	2-3T	3-4T	3-5T	6-10T
specifications	20-40	20-60	20-80	20-80	20-80
principal axis speed	46-60/min	39-60/min	35-60/min	35-60/min	35-60/min
screw piece	4	4	4	4	4
remarks column	the production have some change according your material ,as your material ,and the output you want.

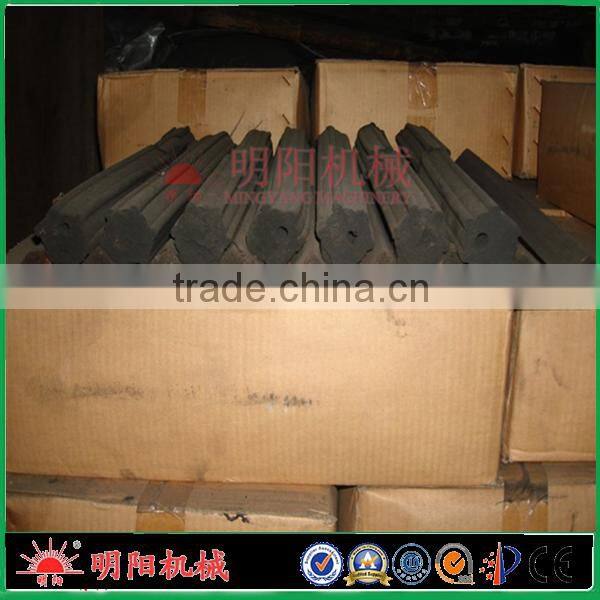

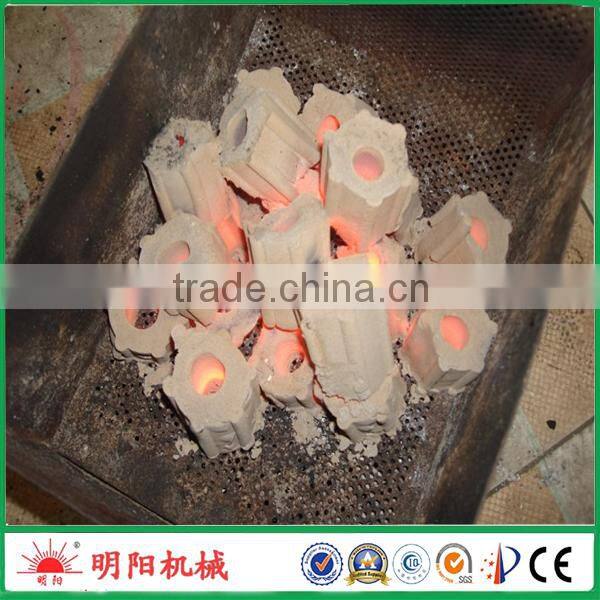

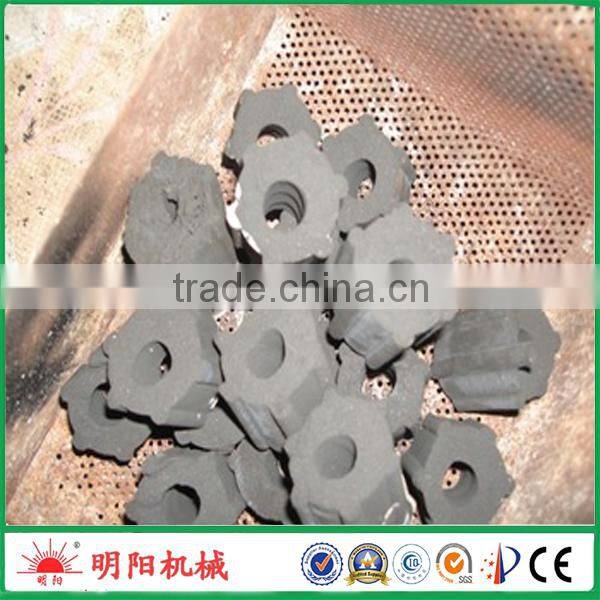

2. final product of the coal briquette extruder machine

Just changing moulds, you can get different products, fingers shapes, square shape and so on.





Company information

 Gongyi Xiaoyi Mingyang Machinery Plant are

1.established in 2000, after 15 years development, now the coampany have two manufacturing bases

2. covered an area of 10000 squre meters,currently has 118 employess, devide to 7 deparment,

3  have designed and produce 6 production line ,more than 150kind of machinery, and awarded 5 patent in Chine

4. the products are widely accepted in both domestic and world market,exported to more than 150 countries

5. the company is enlarged to make room for high-tech automatic production euipment for meet the market requirment,





Contact information

We have the professional and experienced team to assist you;  If there is any questions, please feel free to contact me, I am always here online waiting for your calling, also click the name card to get more information;

Looking forward to hearing from you soon:

Sales manager: Bella Ren

Phone: 0086-15039052281

Whatsapp: 0086-15039052281

Wechat: 0086-15039052281

Skype: bella616919



NOTE

Note

Before we give you the professional recommendation, please confirm the following information: Requirement and specification: 1. name of the raw material ?  2. size&moisture of the raw material? 3.  how many raw material you have one day? 4. how many hours you want to working per day? 5. what's the output you need? 6. what's the kind of the final product you need? ( the shape, diameter, length) 7. the usage of the final product ? 8. electrical supply in your place?
