Factory Wood Sawdust Rice Husk Charcoal Briquetting Molding Machine
Product Description
Factory Wood Sawdust Rice Huks Charcoal Briquetting Molding Machine
1.The general introduction of Factory Wood Sawdust Rice Huks Charcoal Briquetting Molding Machine
1. charcoal briquetting machine is mianly use to making man-made charcoal from charcoal dust ,coal powder,etc.
2.The motor transmits power to transmission through the V-belt.
3.The transmission output shaft transmits power to propeller through the floating coupling, and the thruster of propeller push forward coal through forming die to produce the ideal high-pressure coal-stick.

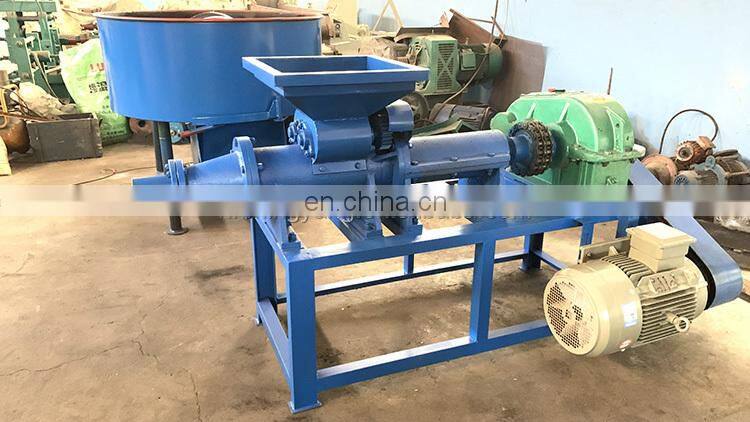

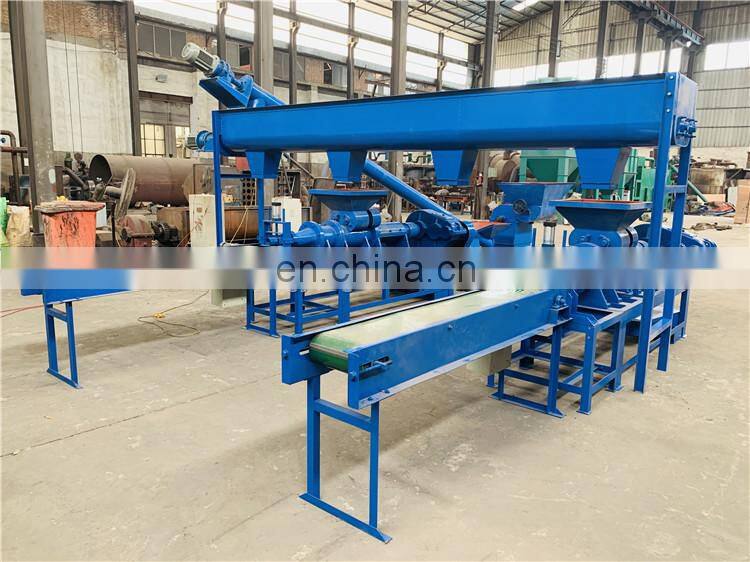

1.This coal extruder uses the principle of spiral extrusion, compressed the prepared pulverized coal into a certain intensity of rodlike shape.
2.Coal briquette extruder is the main equipment in the system of molding fuel,it can make the squeeze powdered coal into a certain hardness coal briquette sticks (various shapes according to customer's requirements),in place of block coal,it can make full use of coal dust to reduce fuel cost.
6.Main Feature of Factory Wood Sawdust Rice Huks Charcoal Briquetting Molding Machine
1,Advantages of our machine: it has high efficiency, energy-saving and environmental protection.

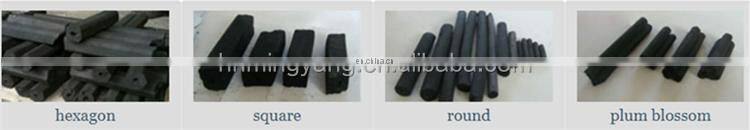

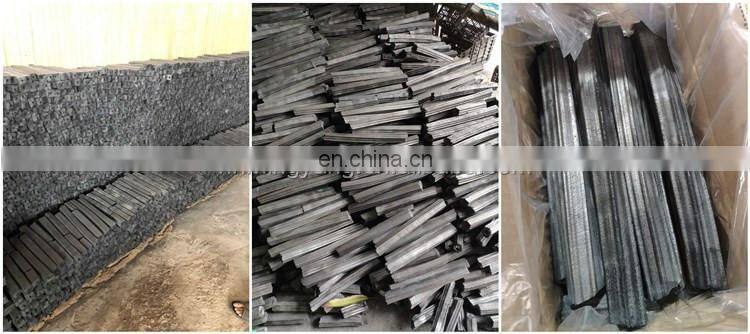

2,The final briquettes are easy to transport and store.The shapes of the sticks can be made by the customers' requirements. It can also do Shisha Charcoal and Silver Charcoal.
|
No. |
MODLE Briquette press machine |
PARAMETER |
|||
|
|
|
MBJ140 |
MBJ180 |
MBJ300 |
MBJ450 |
|
1 |
Output(t/h) |
1-2(charcoal) 2-4(coal) |
2-3(charcoal) 4-6(coal) |
4-6(charcoal) 8-12(coal) |
8-12(charcoal) 16-24(coal) |
|
2 |
Power(kw) |
11-15 |
18.5-22 |
75 |
220 |
|
3 |
Rotation rate(rpm) |
46-60 |
39-60 |
60 |
118 |
|
4 |
Coal rod section shape(mm) |
Φ20-30 |
Φ20-30 |
Φ18-30 |
Φ20-30 |
|
5 |
Spiral blade number |
5 |
5 |
3 |
4 |
|
6 |
Screw impeller diameter(mm) |
Φ140 |
Φ180 |
Φ300 |
Φ420 |
|
7 |
Density |
End products fall down from 2M high, 75% are not broken. |
|||
|
8 |
Size(mm) |
1900×1100×1170 |
2210×1370×1440 |
3200×2200×1220 |
5130×1520×1480 |
|
9 |
Working current(A) |
You decide |
You decide |
120-140 |
320-360 |
|
10 |
Raw material fineness(mm) |
<5 |
|||
|
11 |
Moisture content(%) |
12-14 |
|||

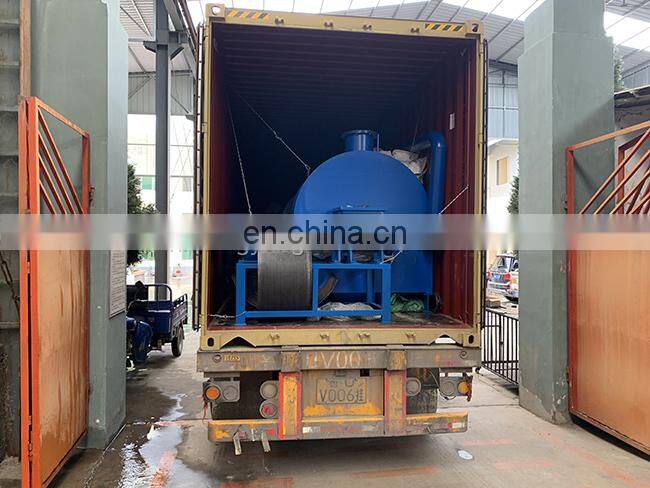

For one set we packed in standard container.For more sets machines, we pack them in the standard container.
Gongyi Xiaoyi Mingyang Machinery plant is located in Zhengzhou.Henan province. Our machineryplant is specialize in WOOD BRIQUETTE MACHINE 26 years.

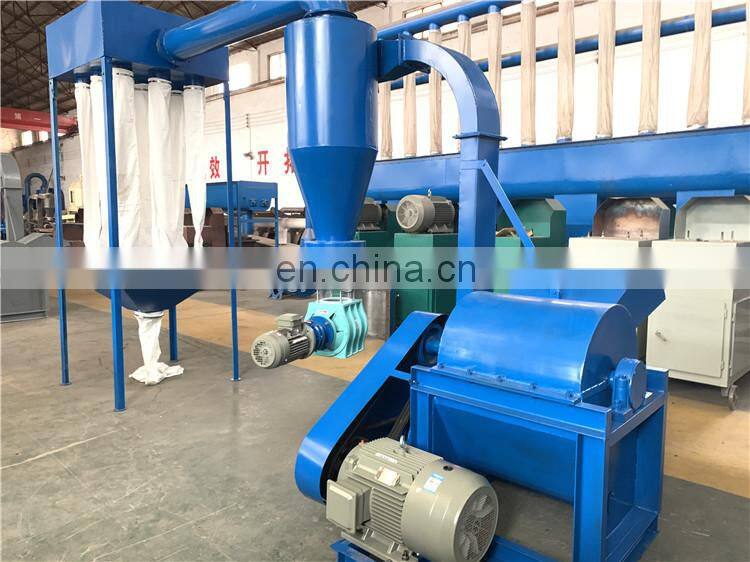

There have production line of makingwood charcoal briquette(including crusher , dryer , wood briquette machine, carbonization stove) ,
production line of making wood pellet (including crusher, dryer , wood pellets machine , dust separation plant and packaging machine)
production line of making coal ball briquette(includingvertical crusher, mixing machine, coal briquette pressing machine and dryer machine for coal briquette)
and other equipment such as screw conveyor, belt conveyor, scrap conveyor , sawdust carbonization stove, floating fish feed machine and so on.
Our machines have the best quality and we have got many certification such as CE, ISO, BV.
If you need our product , you can communication with me in any way as follows.
