Factory Sullpied Directly Coal Charcoal Briquetting Machine With the Best Competitive Price

Coal charcoal briquetting machine is specialized in processing powder materials like coal powder,charcoal powder, iron powder, coking coal, aluminum, iron, tin oxide, carbon powder, coal powder, slag, gypsum, tailings, sludge, kaolin clay, activated carbon, coke breeze, and other kinds of powder, scrap, waste, residue, etc. The briquettes made by this machine are round, pillow, oval shapes, and are energy saving, environmental friendly, easy to transport and energy-efficient.
Coal charcoal briquetting machine  is familiar to the people in coal and mine powder ball briquette making field. Its function is to process the powdery material into briquettes.

As its name indicates,Coal charcoal briquetting machine  is used to press briquettes, that is, to press materials into briquette shape. It is characterized by high pressure, which means it can press materials into briquettes easily.Therefore, we should vigorously develop resource conservation and environmental protection industry-based economy; we need to consider for our next generation, and to leave valuable resources for our future generations.

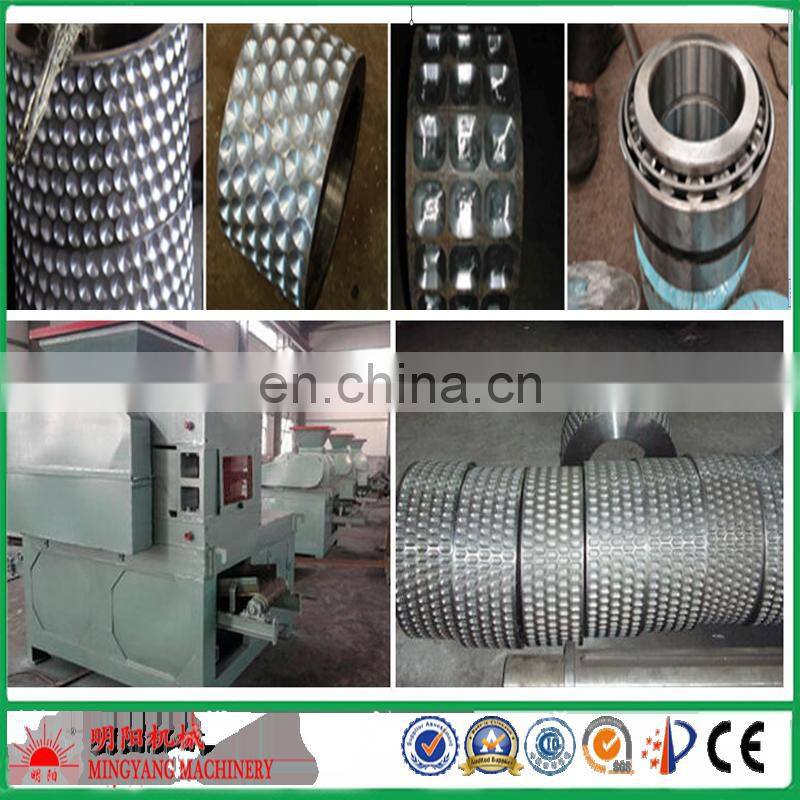

1. Superior roller alloy guarantee excellent servicing life

2. Unique design with sieving system, convenient operating in the mass production

3. Prepress system various speed adjustable, suits to different materials compressing

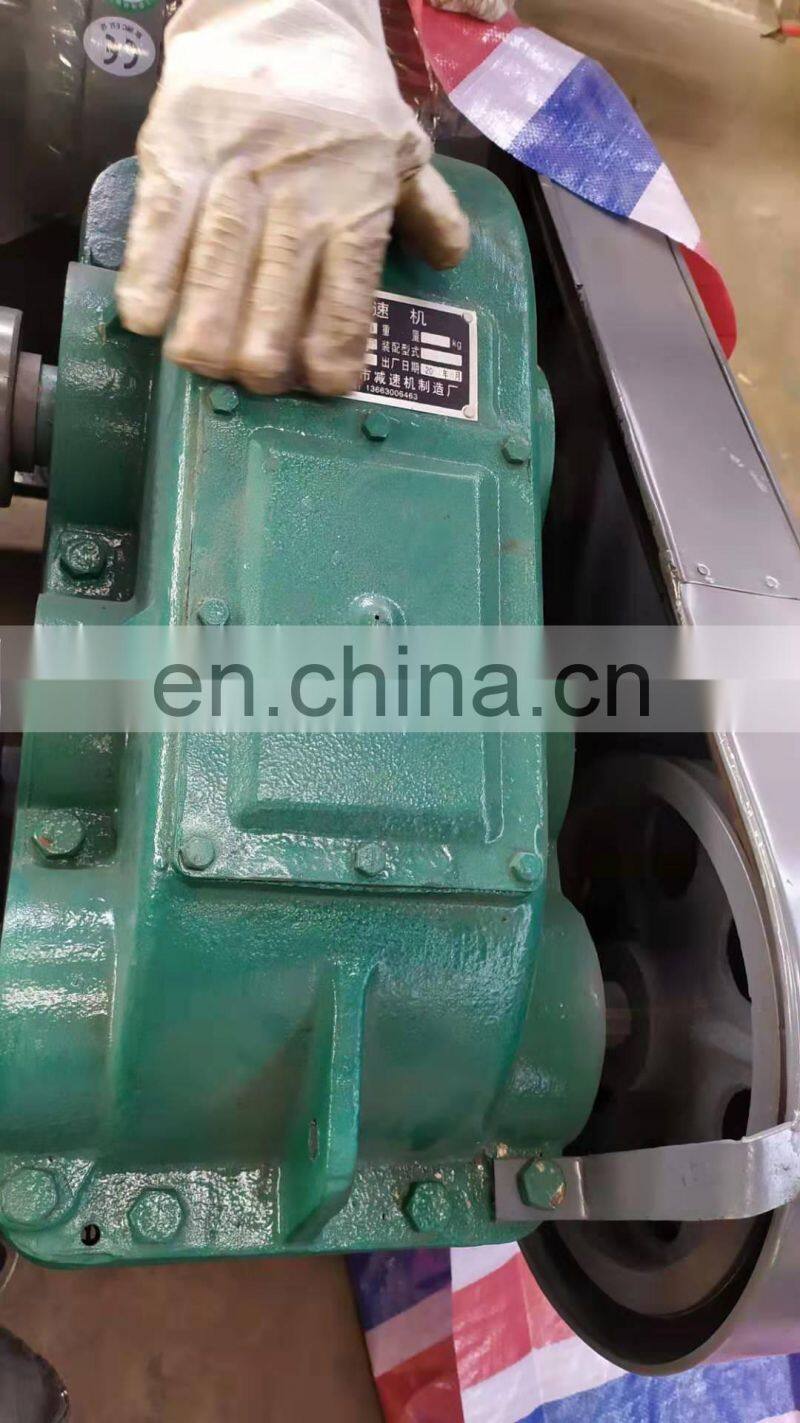

1. The Coal charcoal briquetting machine  uses main motor to transmit the motive powder to speed reducer through the V-shape triangle belt and to main drive spindle through coupling, and then uses the main driven split gear to send it to the main driven spindle to make the two rollers fall into step (inverted running with uniform speed).
2. The passive roller is held by the piston of the hydraulic oil cylinder, the hydraulic system completes the circuit and the control valve in the hydraulic system keeps the pressure.
3. Materials enter evenly into the bunker of the forming machine through the quantitative equipment and then poured into the breaker rolls evenly adjusted by the regulating sluice.

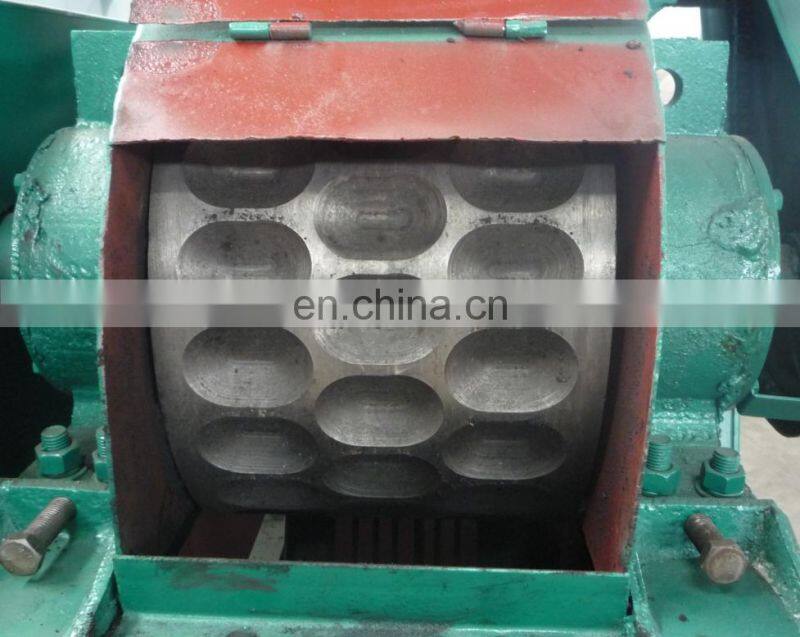

4. The breaker rolls of reverted running with uniform speed push a pressure force on the materials from low to high.
5. The forming pressure maximizes at the central sideline and diminished quickly after the materials pass through the line.
6. Then materials successfully complete the ball doffing.

Gongyi Xiaoyi Mingyang Machinery Plant is one of the largest and earliest manufacturers of the biomass energy equipment ( Coal charcoal briquetting machine , charcoal making production line, wood pellet production line and the related machinery) for over 30 years. Now it has been an efficient group with more than 120 experienced workers. having a over 12000 square meter high level standard workshop with advanced producing equipment, Experienced technicians. We can produced 6 production line, more than 150 kinds of machines, awarded 10 patents in China.

a. Sales team will suggest suitable project.
b. Technical team analyse and design special molds for you.
c. Pick you up at airport, arrange hotel-booking.
d. Other travel arrangements.

a. Assist you build up factory and production line.
b. Install and maintain machines.
c. Training your workers to achieve skillful operation.
d. Offer technical support through telephone or online videos at any time.
