Hot Sell Energy Saving Continuous 2ton per 24h Bamboo Carbonization Stove With Factory Price

Introduction of  bamboo carbonization stove

bamboo carbonization stove is an ideal equipment to have anoxic distillation carbonization. This bamboo carbonization stove is an ideal equipment to have anoxic distillation carbonization. Its rational structure can save much heat consumption. bamboo carbonization stove  adopted Superheated Stream cooling system, which leads to high speed cooling; high quality charcoal and much shorter production cycle its horizontal condenser can retrieve much wood tar.

what kind of raw material can be used this bamboo carbonization stove

Crop stalks, twigs, bark, wood shavings, bamboo shavings, smoke foam, peanut shells and other carbon-containing material.

The application of  bamboo carbonization stove

bamboo carbonization stove is the ideal equipment for wood briquettes to have anoxic distillation carbonization. The final products charcoal briquette bars can be used for heating furnace, industrial boilers, biomass power plant. Barbecue and so on.

Basic features of  bamboo carbonization stove

1.none stoping,working for 24 hours
2.large capacity,one day can reach to 7.2 tons
3.environmental protection,burn the furnace smoke itself,so no smoke go out
4.energy saving,burn smoke as power.
5. make sawdust ,rice hush,coconut shell,ect into charcoal timely.

Working principle  of  bamboo carbonization stove

A.drying stage from the start of ignition to the furnace temperature up to 160 °C, when the moisture contained rod mechanisms rely mainly on external heat and the heat generated by the combustion itself is evaporated . The chemical composition of rod mechanism hardly changed .

B.the initial stage of carbonization this phase depends mainly on the rod 's own combustion heat, the furnace temperature to rise to between 160 ~ 280 °C . In this case, a thermal decomposition reaction wood , the composition began to change . Wherein the composition is unstable , such as hemicellulose decomposition of CO2, CO , and a small amount of acetic acid and other substances.

C. This phase full carbonization temperature of 300 ~ 650 °C. In this stage , the wood material is thermally decomposed rapidly , while generating a large number of acetic acid , methanol and wood tar and other liquid products . Also produced methane, ethylene and other flammable gases , the combustion of combustible gas in the furnace . Thermal decomposition and combustion gases generated a lot of heat, the furnace temperature rises , carbonized wood into carbon at high temperatures .

Parameter of the bamboo carbonization stove

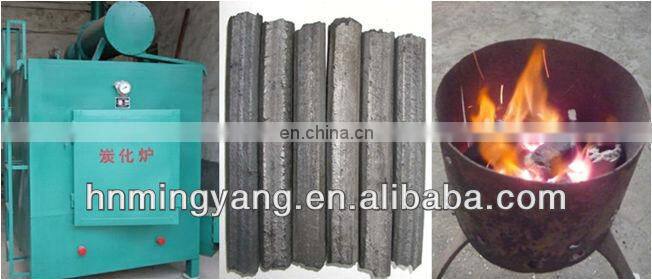

final product of  wood briquette bamboo carbonization stove

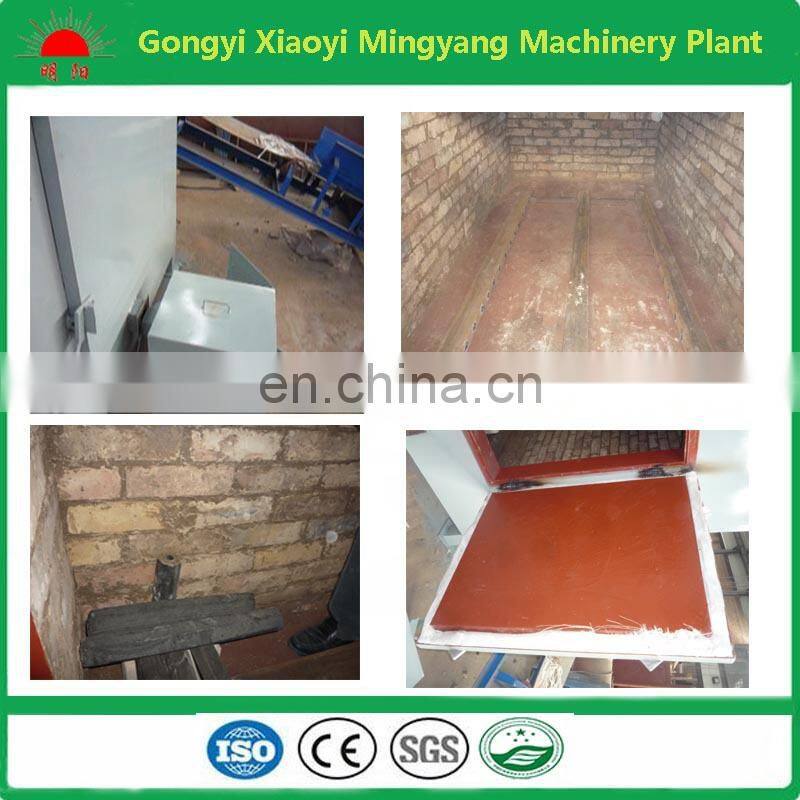

the structure of  wood briquette bamboo carbonization stove

bamboo carbonization stove  is the cylinder shape. And this model stove consists of main furnace (outer stove), carbon basket (inner stove), and fume extraction tube, smoking purification system and hoisting equipment.

Gongyi Xiaoyi Mingyang Machinery Plant is one of the largest and earliest manufacturers of the biomass energy equipment ( biomass briquette machine line, charcoal making production line, wood pellet production line and the related machinery).
* one of the largest and earliest manufacturers of the charcoal making machine, biomass briquette machine and wood pellet production line in China with 30 years experience.
* Covered an area of 12000 square meters, currently has more than 120 employees, divided to 7 department.
* Designed and produced 6 production line, more than 150 kinds of machines, awarded 10 patents in China.
* Products are widely accepted in both domestic and world market ,more than 150 countries.
* The company enlarged for building one experimental Center of high-tech automtaic production equipment to meet the market requirement.
* Professional after-sales service team to be able to handle client issues in a timely manner.
* high level standard workshop, advanced producing equipment, Experienced technicians, fine workmanship with 30 year working experience.
* stock for based goods, accessories in stock to meet you need,stocked your samples and all the details of the goods of the next order.
* strict inspection personnel and process, and we are strictly ensure the quality of the international standard.
* We have the test center of the machine, Each machine will running before delivery.
* recommend clients for free, offer the layout drawing and the profit table and install video and free stuff training.
