Smokeless Charcoal Terrofaction Machine Biomass Pyrolysis Kiln for Charcoal Making

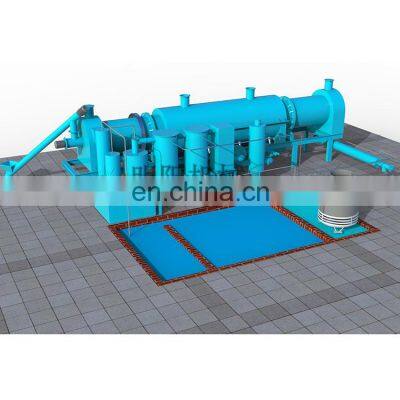

The Smokeless Biomass Pyrolysis Kiln is COMPOSED by a carbonziation furnace, a charcoal powder grinder,a charcoal mixer and a charcoal briquettes making machine. Hereby i recommend you our rotary coconut shell charcoal carbonizing furnace. The main and basic equipment in this plant. It is an external heated drying and internal carbonizing machine. The whole production process does not produce harmful gas and no smoke emission.It produces charcoal directly from Peanut shells, sawdust, corn stalk, bagasse, branches, rice husk, bamboo shavings, sorghum stalk, sunflower seed shell, lees, corn cobs, coconut, coffee grounds, cotton pole, bean pole, dead leaves, sweet potatoes, grass biomass raw materials, waste residues, medical pharmaceutical companies, sludge, and other materials with size less than 50 mm. This is the best choice of waste agriculture recycling as well as an efficient way to reduce the tension of supply and demand of resources in our country.

Biomass particles no more than 50mm and moisture content less than 30% can be directly carbonized into this sawdust Carbonization Kiln Coconut shell Torrefaction Furnace, for example: sawdust, rice husk, fruit husk, palm husk, peanut husk, bamboo shavings, shavings and so on can be directly carbonized;Raw materials with large size (above 50mm), such as branches, bark, coconut shell, straw, hemp stalk and tobacco stalk, need to be crushed firstly.If the moisture content is more than 30%, we need to choose a dryer to cooperate with the production process.

Description of process gas AND airflow: gasifier (liquefied gas or natural gas) is used for heating in the early stage of the main engine.Internal temperature rise to a certain degree of carbonized machine began to furnace feed, raw material in the furnace pipe after drying, carbonizing, begin to produce flue gas, flue gas recovery after spraying, cooling, purification, the induced draft fan sent to the burner for carbonizer continue heating, Gasifier works gradually stop to shut down, only the use of natural gas;The carbonized raw materials enter the finished products for cooling and output.Since then, the equipment can continuously feed, continuously out of the finished products, into the continuous carbonization stage;Spray water and cooling water of purification system and cooling system can be recycled.

1,Good Raw Manufacturing Materials:Boiler Grade for our Inner carbonizing Drum: With good welding and cold bending properties, certain high temperature strength, alkali corrosion resistance, oxidation resistance, no deformation. More safe in production and longer lifespan.

2.Ignition and alarm control system: Turn-key ignition, gas leakage, flame out alarm system

3.Stainless steel inverter fan: The frequency conversion speed control device is used to change the fan's air volume to meet the needs of the production process

4.Advanced Smoke Collection System: There are 7 purification tanks for the carbonizing smoke and flammable gas filtering and recycle. Environment protection. No pollution.

5.Discharge cooling conveyor: Using the three layers cooling system which can let the final charcoal temperature cooled down to low temperature. Safe for the storage of final charcoal product.

Gongyi Xiaoyi Mingyang Machinery Plant is one of the largest and earliest manufacturers of the biomass energy equipment (Rotary Continuous Coconut shell charcoal plant, biomass briquette machine line, charcoal making production line, wood pellet production line and the related machinery) for over 30 years. Now it has been an efficient group with more than 120 experienced workers. having a over 12000 square meter high level standard workshop with advanced producing equipment, Experienced technicians. We can produced 6 production line, more than 150 kinds of machines, awarded 10 patents in China.

a. Sales team will suggest suitable project.
b. Technical team analyse and design special molds for you.
c. Pick you up at airport, arrange hotel-booking.
d. Other travel arrangements.

a. Assist you build up factory and production line.
b. Install and maintain machines.
c. Training your workers to achieve skillful operation.
d. Offer technical support through telephone or online videos at any time.
