Wood Biomass Char Making Machine Sawdust Charcoal Kiln Continuous Coconut Shell Carbonization Furnace

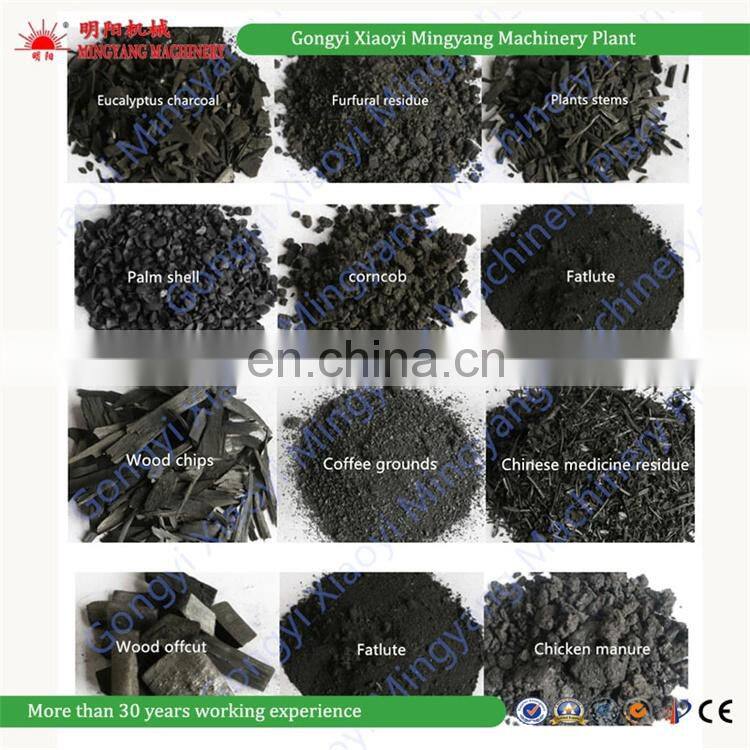

The Rotary Continuous wood Biomass Rice Husk Torrefaction Carbonization Furnace(drying and carbonizing tandem machine) is a new type of carbonizing machine which can feed raw materials and produce finished charcoal at the same time. It is an external heated drying and internal carbonizing machine. The whole production process does not produce harmful gas and no smoke emission.It produces charcoal directly from Peanut shells, sawdust, corn stalk, bagasse, branches, rice husk, bamboo shavings, sorghum stalk, sunflower seed shell, lees, corn cobs, coconut, coffee grounds, cotton pole, bean pole, dead leaves, sweet potatoes, grass biomass raw materials, waste residues, medical pharmaceutical companies, sludge, and other materials with size less than 50 mm. This is the best choice of waste agriculture recycling as well as an efficient way to reduce the tension of supply and demand of resources in our country.

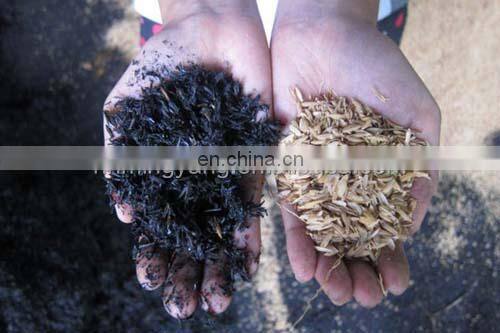

Biomass particles no more than 50mm and moisture content less than 30% can be directly carbonized into this Biomass Carbonization Kiln Wood Torrefaction Furnace, for example: sawdust, rice husk, fruit husk, palm husk, peanut husk, bamboo shavings, shavings and so on can be directly carbonized;Raw materials with large size (above 50mm), such as branches, bark, coconut shell, straw, hemp stalk and tobacco stalk, need to be crushed firstly.If the moisture content is more than 30%, we need to choose a dryer to cooperate with the production process.

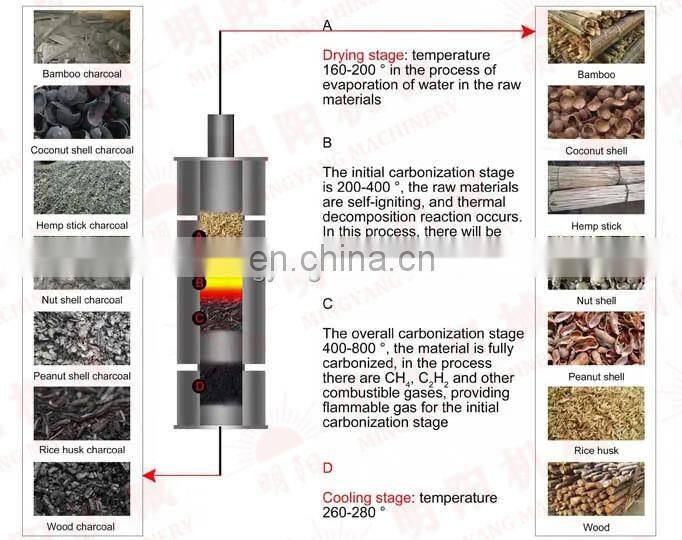

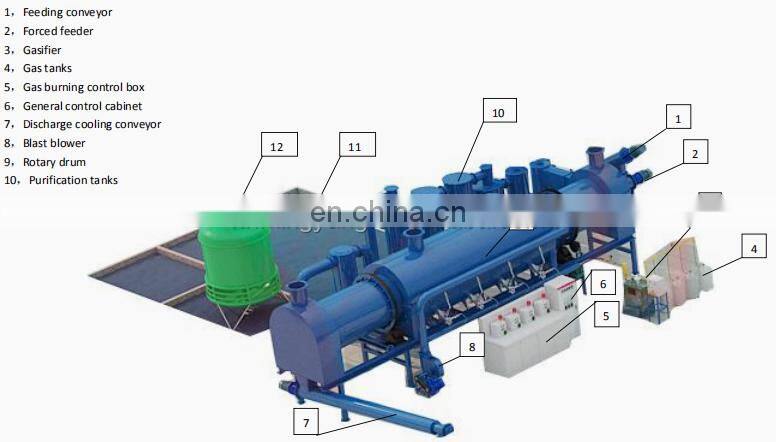

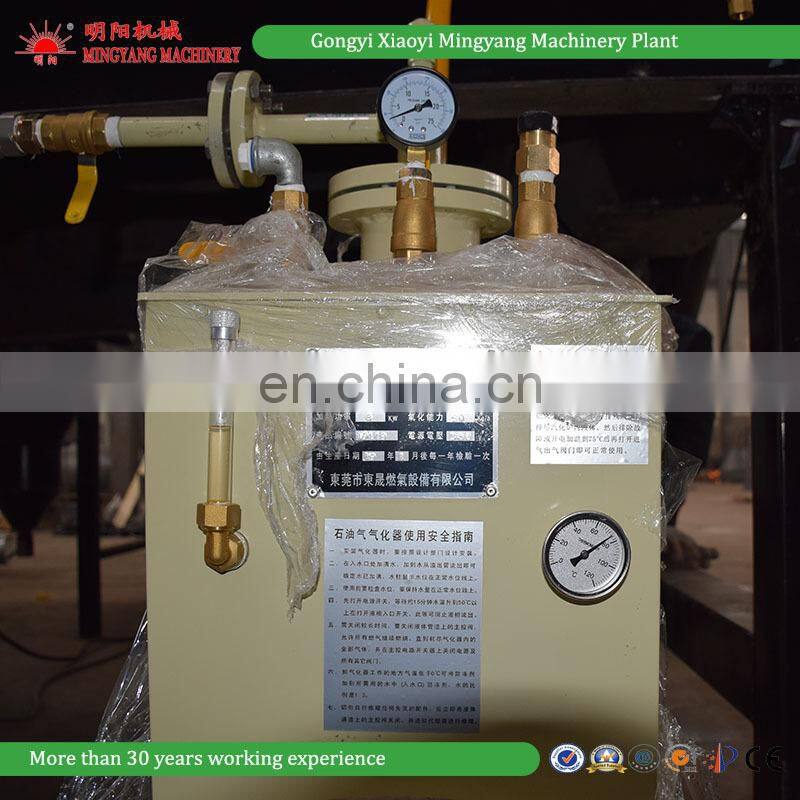

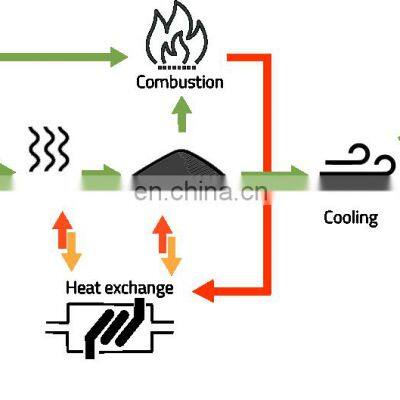

Description of process flow: gasifier (liquefied gas or natural gas) is used for heating in the early stage of the main engine.Internal temperature rise to a certain degree of carbonized machine began to furnace feed, raw material in the furnace pipe after drying, carbonizing, begin to produce flue gas, flue gas recovery after spraying, cooling, purification, the induced draft fan sent to the burner for carbonizer continue heating, Gasifier works gradually stop to shut down, only the use of natural gas;The carbonized raw materials enter the finished products for cooling and output.Since then, the equipment can continuously feed, continuously out of the finished products, into the continuous carbonization stage;Spray water and cooling water of purification system and cooling system can be recycled.

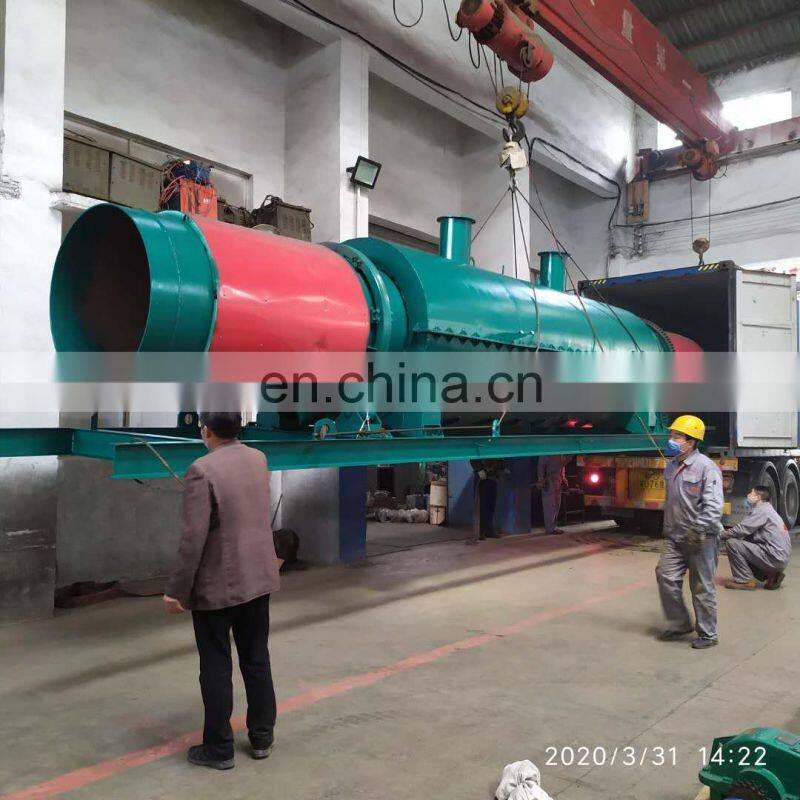

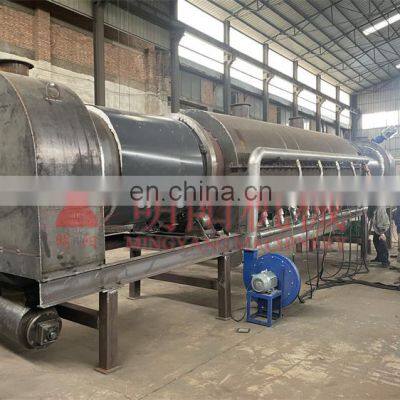

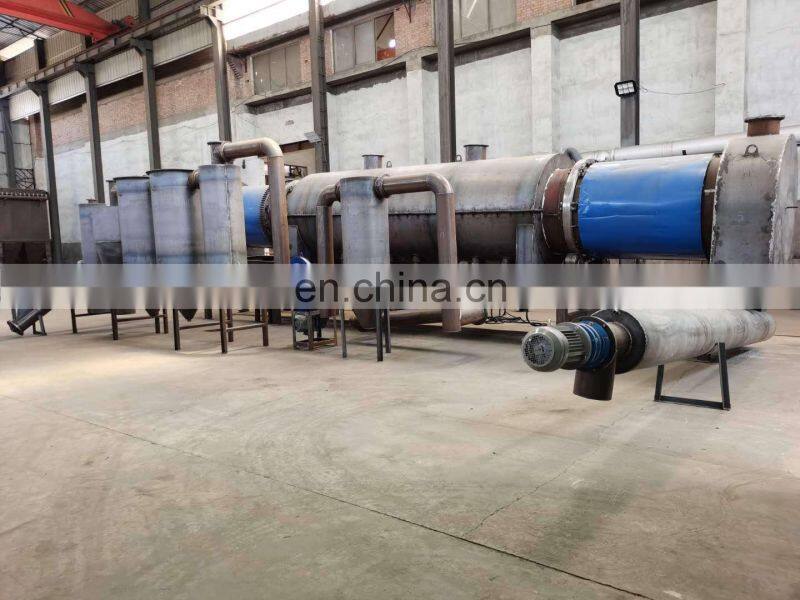

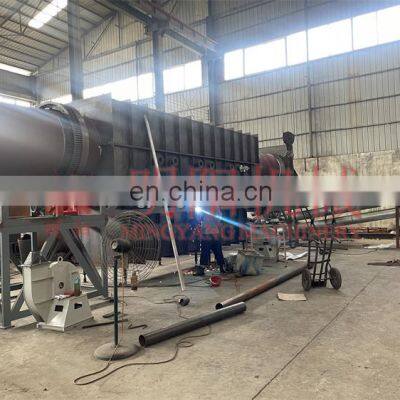

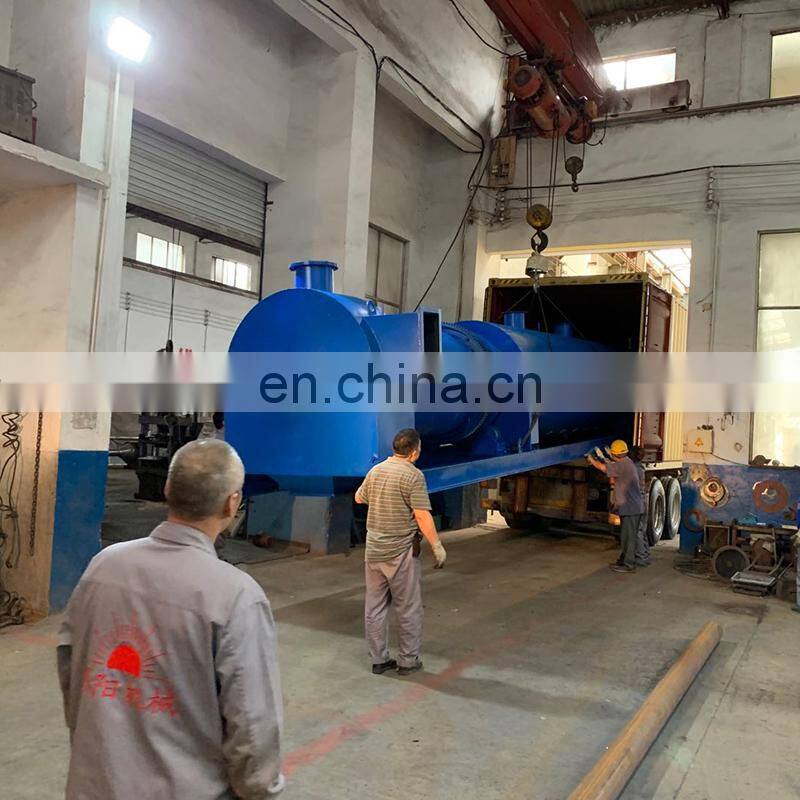

The Rotary Continuous Bio Coal Torrefaction Furnace (drying and carbonizing tandem machine) host: for the cylinder horizontal, the overall diameter of 1500 mm, length of 11 m (also can be customized according to the customer demand), for the hot spot in the middle of the cylinder, the host has simple structure, convenient operation, compared with the previous generation of vertical tube carbonization machine more than mechanical transmission parts have sharply reduced, a design more reasonable, reduce the failure rate more than 80%;Compared with the previous generation of vertical carbonizer, the feed size of the host machine increases by more than 20-30 mm.The cylinder of the main engine keeps rotating to avoid the disadvantage of the old generation vertical carbonizing machine only burning a little, greatly extending the service life of the carbonizing machine, at the same time the output and carbonizing uniformity and quality have been greatly improved.

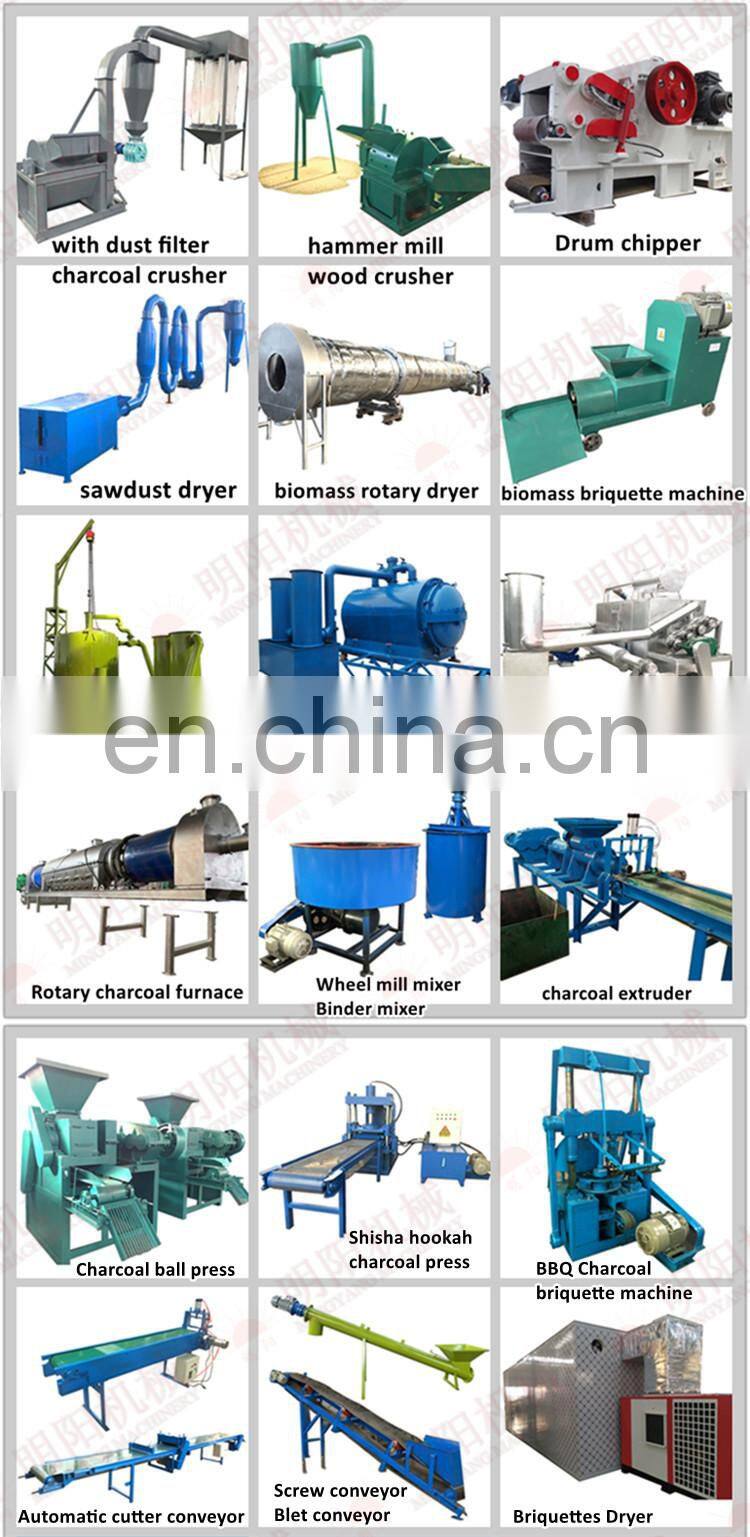

Gongyi Xiaoyi Mingyang Machinery Plant is one of the largest and earliest manufacturers of the biomass energy equipment (Rotary Continuous Bio Charcoal Wood Torrefaction Furnace, biomass briquette machine line, charcoal making production line, wood pellet production line and the related machinery) for over 30 years. Now it has been an efficient group with more than 120 experienced workers. having a over 12000 square meter high level standard workshop with advanced producing equipment, Experienced technicians. We can produced 6 production line, more than 150 kinds of machines, awarded 10 patents in China.

a. Sales team will suggest suitable project.
b. Technical team analyse and design special molds for you.
c. Pick you up at airport, arrange hotel-booking.
d. Other travel arrangements.

a. Assist you build up factory and production line.
b. Install and maintain machines.
c. Training your workers to achieve skillful operation.
d. Offer technical support through telephone or online videos at any time.
