Electric Diesel Palm Fruit Bunches Coconut Shell Bamboo Log Branch Wood Drum Chipper Machine Price
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Wood Chips Hammer Mill Sugarcane Biomass Waste Small Wood Crusher Wood Sawdust Making Machine
-
Movable Working Gasoline Petrol Big Tree Shredder EFB Crushing Machine Diesel Engine Wood Chipper
-
Petrol Tree Stumps Crusher Diesel Engine Wood Shredding Machine Gasoline Powered Wood Chipper
-
Hammer Crushing Wood Grinding Shredder for Sale Waste Wood Shredder Machine Factory Directly
-
Factory Price 500kg per Hour Low Noise Disc Type Wood Shaving Machine Used for Paper Mill
-
Wide Application Wooden Materials Crusher Waste Wood Board Shredder Sawdust Making Machine
Product Description
Electric Diesel Palm Fruit Bunches Coconut Shell Bamboo Log Branch Wood Drum Chipper Machine Price
Product Description

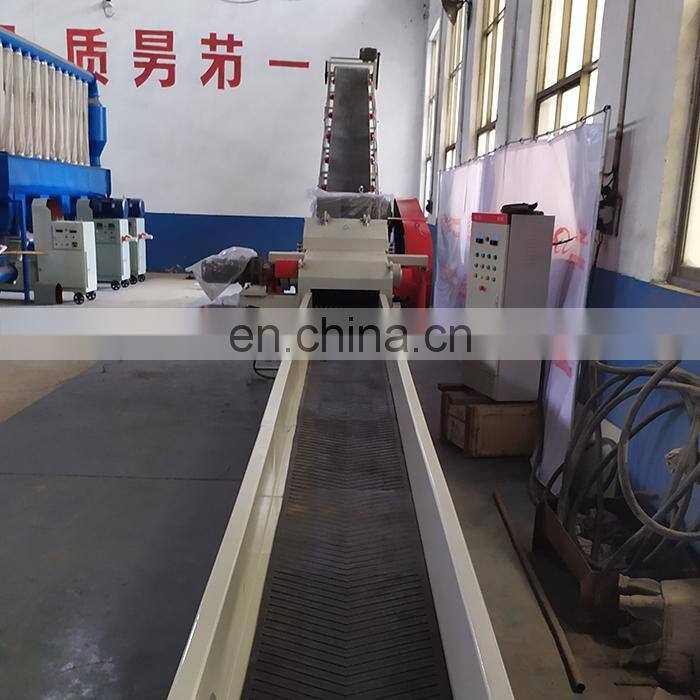

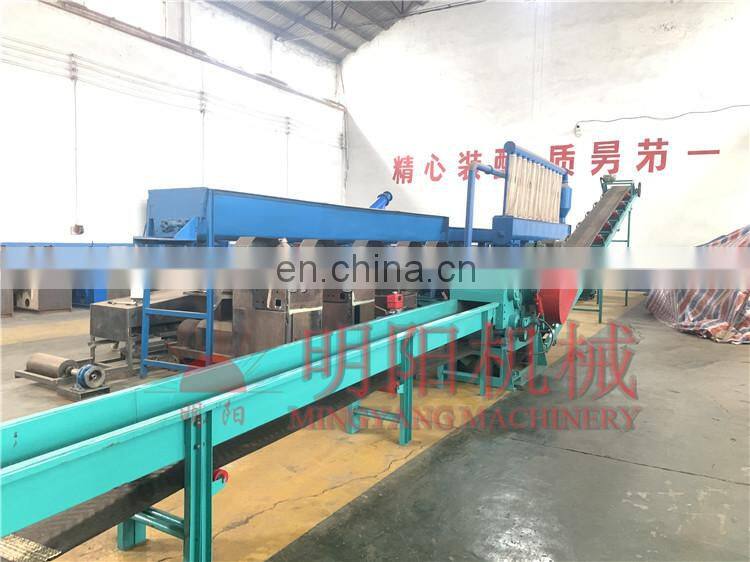

Mingyang Brand wood drum chipper machine is widely used in particleboard, fiberboard and paper making and other industrial production of material preparation section, as well as wood chip plant. The raw materials of the drum chipper are mainly path wood, wood cutting leftovers (branches etc) and wood processing leftovers (veneer, lath, garden wood core, waste veneer etc). It can also be used for cutting non-wood materials (such as hemp, cotton, reed, bamboo etc). The materials after chipping, into a certain specification of small wood chips which can be done for the next steps, like making biochar charcoal, biomass briquettes, biomass pellets and can also be used as fuel directly.
* 01/ Stable working performance
* 02/ High throughput capacity and high quality chips
* 03/ Easy operation With input and output conveyor and Electric control cabinet
* 04/ Can adjust final chips size
* 05/ Suitable for Multiple material
* 02/ High throughput capacity and high quality chips
* 03/ Easy operation With input and output conveyor and Electric control cabinet
* 04/ Can adjust final chips size
* 05/ Suitable for Multiple material





Specification
Mode | MY-BX215 | MY-BX216 | MY-BX218 | MY-BX2113 | |||
Power | 37+3+2.2+3+1.1 kw | 55+4+3+3+1.1 kw | 90+4+5.5+4+1.1 kw | 220+11+11+5.5+4+3+4 kw | |||
Knife qty | 2/3/4 pieces | 2/3/4 pieces | 2/3/4 pieces | 2/3/4 pieces | |||
Output capacity | 3000-500 kg/h | 6000-8000 kg/h | 12000-15000 kg/h | 20000-30000 kg/h | |||
Feeding port size | 430*170 mm | 540*240 mm | 700*310 mm | 700*450 mm | |||
Knife roller speed | 592 r/min | 590 r/min | 650 r/min | 500 r/min | |||
Weight | 3500kg | 4300kg | 7100kg | 18000kg | |||
Machine size | 1.47*1.55*0.97 m | 1.8*1.9*1.21 m | 2.2*2.15*1.5 m | 3.67*2.517*2.05 m | |||
Feeding conveyor | belt conveyor with 6m length | 6m | 6m | 6m | |||
Discharging conveyor | Belt conveyor with 10m length, and height is with 4.5m | 10m | 10m | 10m | |||
Final chips size | Normal size it is with length 25-35mm and thickness 7-8mm, and also we can customize the chips size for you according to your requirement. | ||||||
Consists | Main chipping machine, feeding conveyor, discharging conveyor, oil pump and electric control cabinet | ||||||
Loading in container | 1*20GP | 1*20GP | 1*20GP | 1*40GP | |||

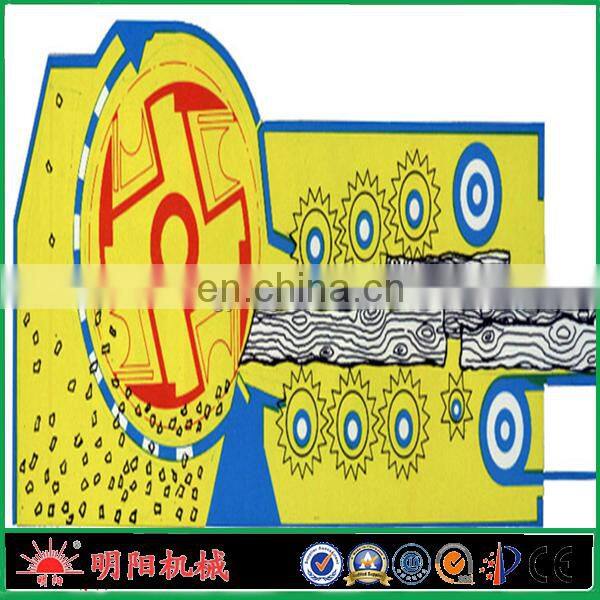

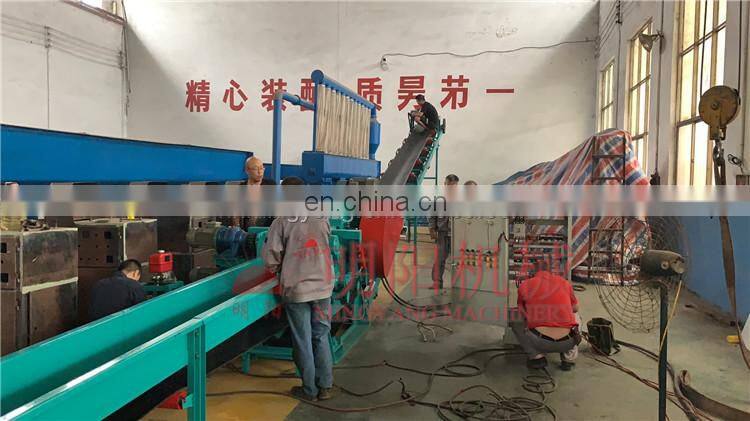

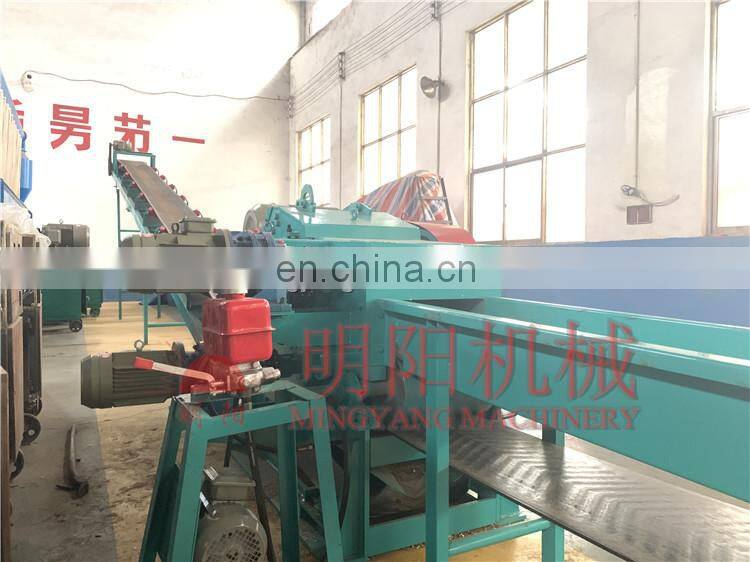

Working processing

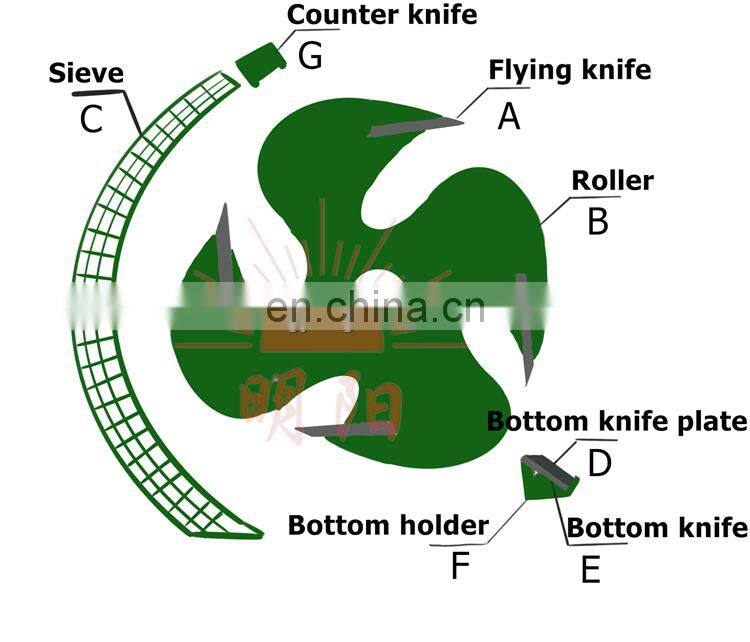

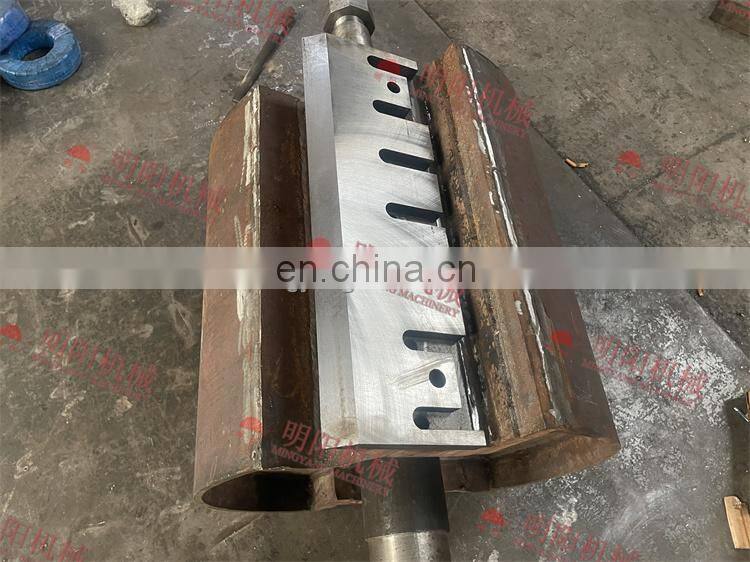

Spindle with blade

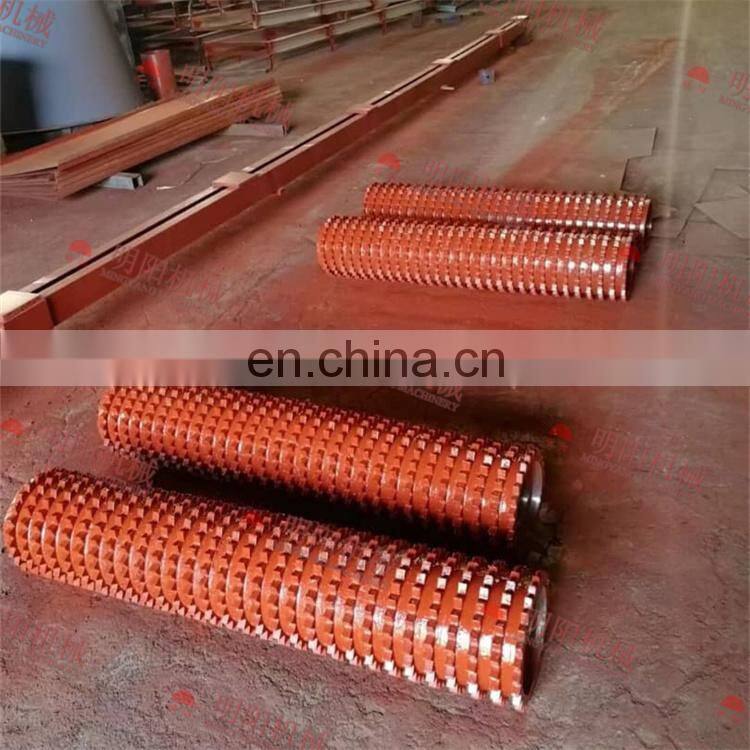

Pressure roller

Suitable Raw Materials
Pine wood, coconut shell, and other types of wood and bamboo, slab, slicing veneer, bamboo wood, corn stalk, cotton stalk, reed and other non-wood fiber rod can be cut into pieces of uniform chips.

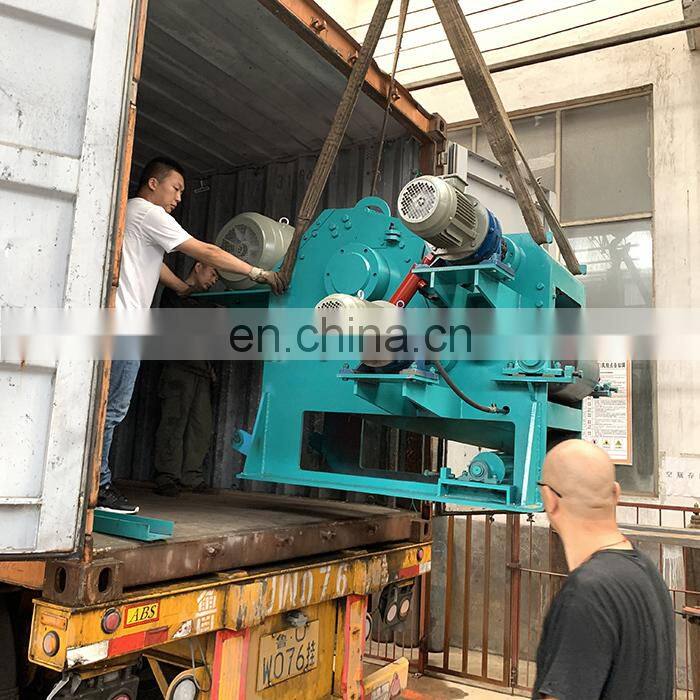

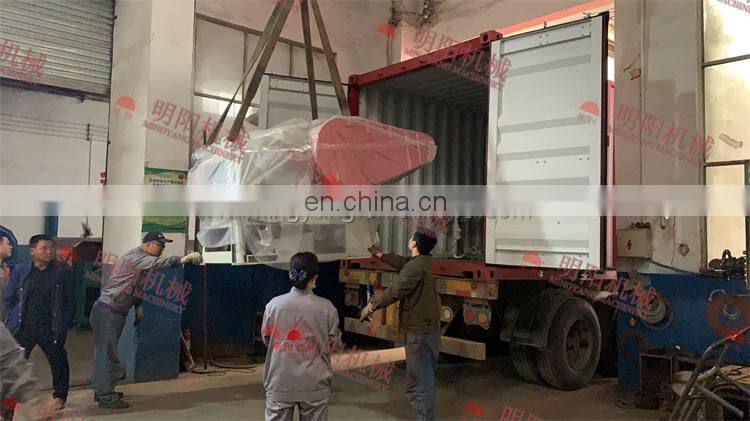

Packing & Delivery


For our Wood drum chipper machine, it can be loaded in one standard container directly.
Related Products


Biomass briquette charcoal making machine

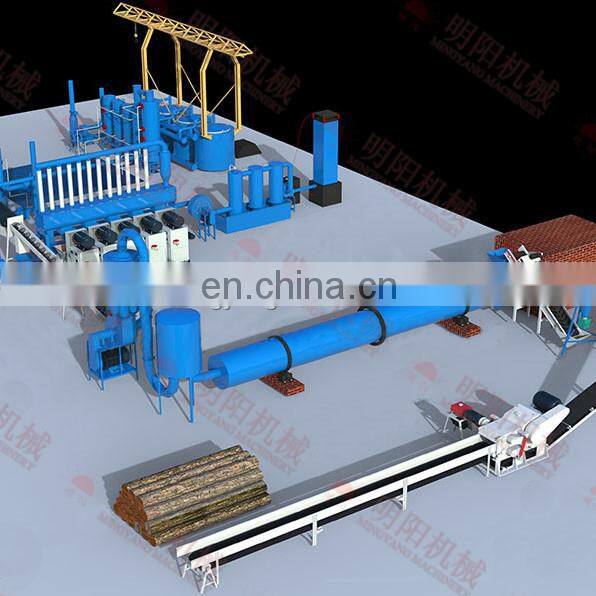

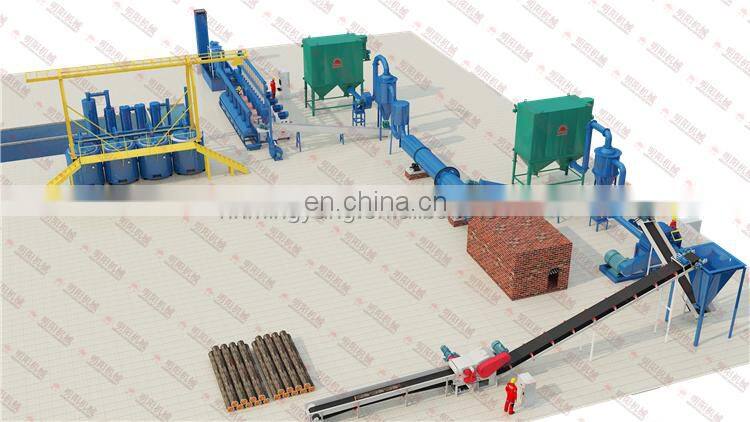

Mingyang biomass briquette charcoal production line, including the crusher, dryer, briquette machine and charcoal carbonization
furnace. We can provide you the different capacity production line according to your requirements.
Raw material size: within 3-5mm
Raw material moisture content: 8-12%
Final briquette size: 50mm, 60mm, 70mm, 80mm
Final briquette shape: hexagon, square and round with six edges, with a hole in the center.
furnace. We can provide you the different capacity production line according to your requirements.
Raw material size: within 3-5mm
Raw material moisture content: 8-12%
Final briquette size: 50mm, 60mm, 70mm, 80mm
Final briquette shape: hexagon, square and round with six edges, with a hole in the center.

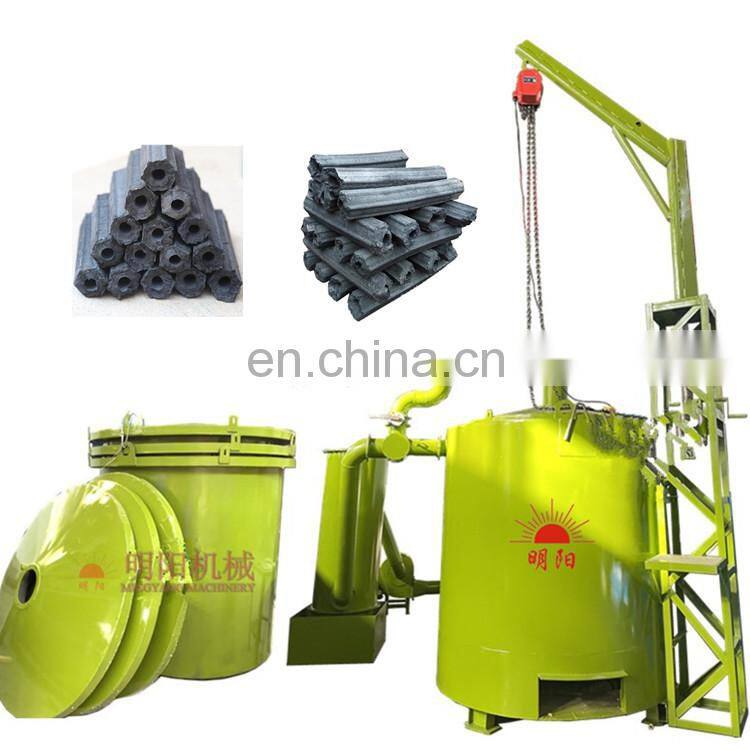

Vertical Hoist Charcoal Carbonization furnace
Mingyang Brand Vertical Hoist Charcoal Carbonization furnace can use the wood, log, branch, coconut shell, bamboo, jute stick, nuts shell, biomass briquettes etc biomass material as raw materials to make charcoal directly.
Consists:inner stove, outer stoves, Covers, E-hoist, Frame, Purification system, fan and operation table.
We have the types: QHL-1, QHL-2, QHL-3, QHL-4 and QHL-5 etc and also we can cutomized for you.

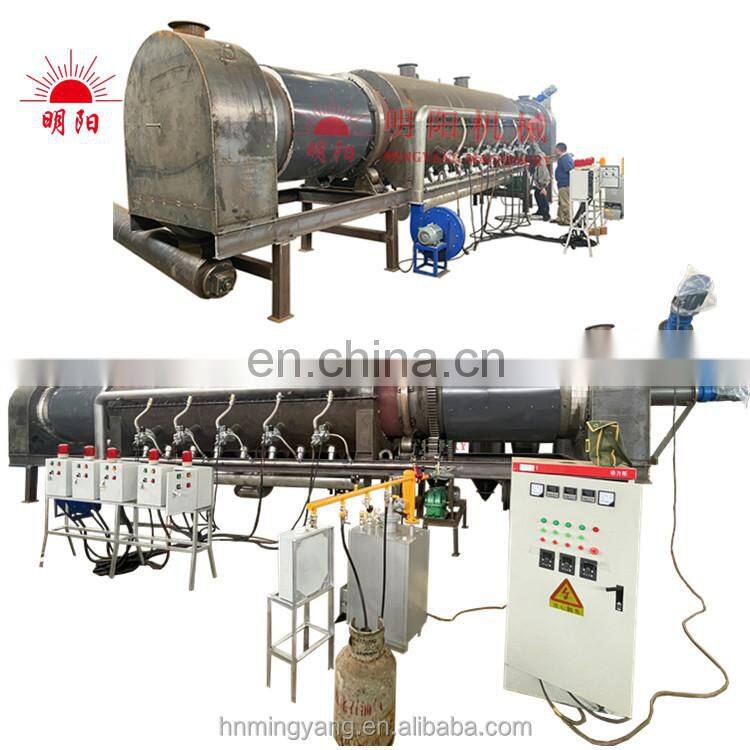

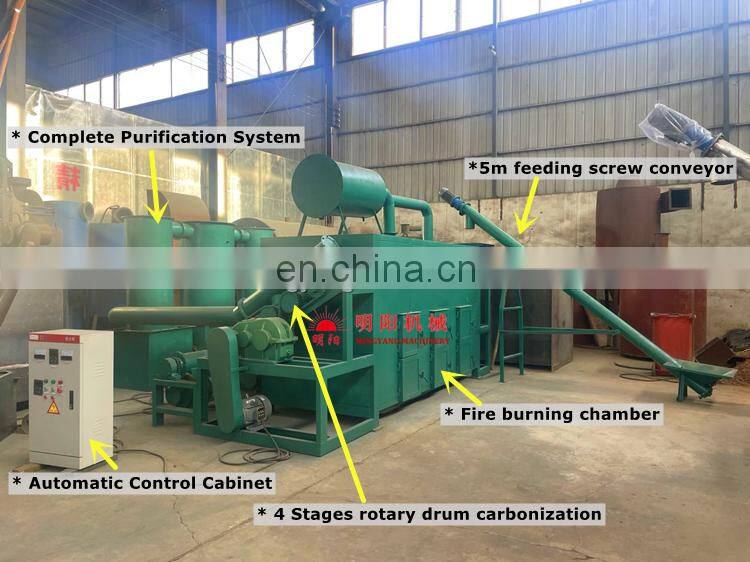

Continuous Rotary Charcoal Making Machine
Mingyang Brand Continuous Rotary Charcoal Making Machine suits the raw material like wood chips, wood sawdust, bamboo chips,
coconut shell chips, peanut shell, rice husk, nuts shell etc biomass materials; Raw material size: within 5-6cm
Raw material moisture content before carbonizing: within 15%; if the moisture content is higher, then you need one dryer before
feeding into the rotary charcoal making machine.
We have the model below:
THJ1000: diameter: 1.0m capacity 300-500kg/h
THJ1200: diameter: 1.2m, capacity: 500-700kg/h
THJ1500: diameter: 1.5m, with capacity: 800-1500kg/h
coconut shell chips, peanut shell, rice husk, nuts shell etc biomass materials; Raw material size: within 5-6cm
Raw material moisture content before carbonizing: within 15%; if the moisture content is higher, then you need one dryer before
feeding into the rotary charcoal making machine.
We have the model below:
THJ1000: diameter: 1.0m capacity 300-500kg/h
THJ1200: diameter: 1.2m, capacity: 500-700kg/h
THJ1500: diameter: 1.5m, with capacity: 800-1500kg/h

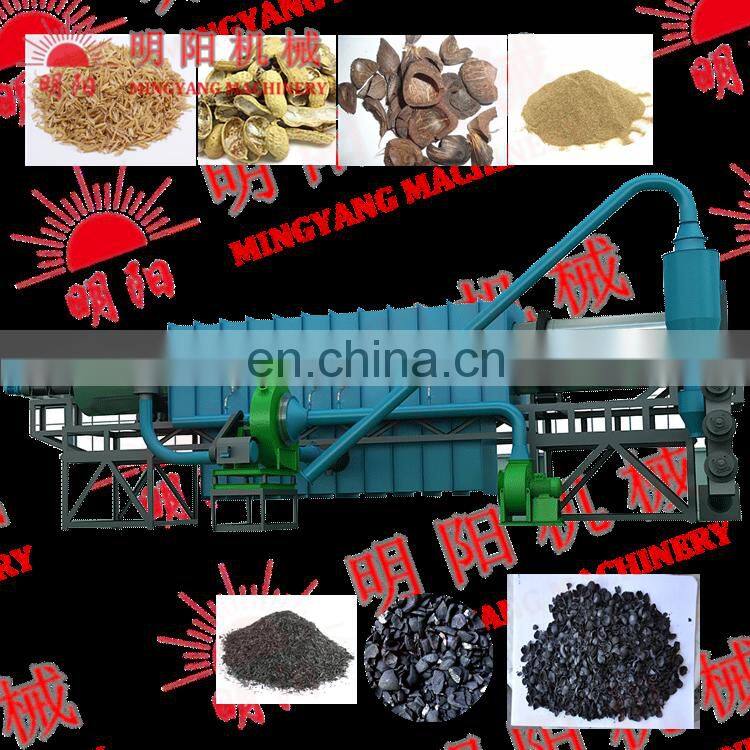

Smokeless Rotary Continuous Biochar Charcoal Making Machine
Mingyang Brand Smokeless Continuous Rotary Charcoal Making Machine suits the raw material like wood chips, wood sawdust, bamboo
chips, coconut shell chips, peanut shell, rice husk, nuts shell etc biomass materials; Raw material size: within 5-6cm
Raw material moisture content before carbonizing: within 15%; if the moisture content is higher, then you need one dryer before
feeding into the rotary charcoal making machine.
We have the model below:
THJ1000-1: diameter: 1.0m capacity 300-500kg/h
THJ1200-2: diameter: 1.2m, capacity: 500-700kg/h
THJ1500-3: diameter: 1.5m, with capacity: 800-1500kg/h
chips, coconut shell chips, peanut shell, rice husk, nuts shell etc biomass materials; Raw material size: within 5-6cm
Raw material moisture content before carbonizing: within 15%; if the moisture content is higher, then you need one dryer before
feeding into the rotary charcoal making machine.
We have the model below:
THJ1000-1: diameter: 1.0m capacity 300-500kg/h
THJ1200-2: diameter: 1.2m, capacity: 500-700kg/h
THJ1500-3: diameter: 1.5m, with capacity: 800-1500kg/h


Horizontal charcoal carbonization furnace
Mingyang Brand Horizontal charcoal carbonization furnace can carbonize the wood, log, branch, coconut shell, biomass briquette,
bamboo, straw, stalks etc.It consists of: inner stove, outer stove, Insulation layer, purification system, fan, cart and steel basket.
We have two molde:
WTH3000: inner stove inside diameter: 1.5m inner stove inside depth: 3m, total volume is 5.3CBM
WTH4500: inner stove inside diameter: 1.5m, inner stove inside depth: 4.5m, total volume: 8.0CBM
bamboo, straw, stalks etc.It consists of: inner stove, outer stove, Insulation layer, purification system, fan, cart and steel basket.
We have two molde:
WTH3000: inner stove inside diameter: 1.5m inner stove inside depth: 3m, total volume is 5.3CBM
WTH4500: inner stove inside diameter: 1.5m, inner stove inside depth: 4.5m, total volume: 8.0CBM
Continuous Sawdust carbonization machine
Mingyang Brand sawdust carbonization machine can carbonize the sawdust, rice husk, peanut shell etc small size biomass materials
to charcoal directly.
Model:THJ
Capacity: 150-200kg/h, it can work 24 hours continuous
Power: 5.5kw(main power)+1.5kw(Fan power which is Stainless steel variable frequency fan with adjustable speed) +1.5kw(Feeding
conveyor power)
Consists:Main carbonizing body, feeding conveyor, electric control cabinet, and purification system.
to charcoal directly.
Model:THJ
Capacity: 150-200kg/h, it can work 24 hours continuous
Power: 5.5kw(main power)+1.5kw(Fan power which is Stainless steel variable frequency fan with adjustable speed) +1.5kw(Feeding
conveyor power)
Consists:Main carbonizing body, feeding conveyor, electric control cabinet, and purification system.


Charcoal Coal Stick Briquette Extruding Machine
Mingyang Brand Charcoal coal briquette extruder machine can make the charcoal coal briquette with different size and shape.
Also if you want to make the briquette with same length, you'd better to choose one automatic cutter with conveyor.
Briquette shape: round, hexagon, square, etc with a hole or without a hole in the center. Also we can customize the shape
according to your requirement.
Also if you want to make the briquette with same length, you'd better to choose one automatic cutter with conveyor.
Briquette shape: round, hexagon, square, etc with a hole or without a hole in the center. Also we can customize the shape
according to your requirement.
Charcoal coal ball Briquette Roller Press Machine
Charcoal coal ball briquette roller press machine can make the briquette with round, egg, pillow, square, piles, oval etc and also
the size and shape can be customized too.
the size and shape can be customized too.
The final charcoal briquettes usually used in the BBQ.


Punching type charcoal briquette making machine
Punching type charcoal briquette making machine is the hydraulic type, which can make the charcoal briquettes with hexagon, round,
square, flower etc with a hole in the center.
Briquette height: normally it is with 4-8cm
Briquette diameter: normally it is 4cm
If you need different size and shape, please contact me to get the right information.
square, flower etc with a hole in the center.
Briquette height: normally it is with 4-8cm
Briquette diameter: normally it is 4cm
If you need different size and shape, please contact me to get the right information.
Biomass Rotary Drum Dryer
If your raw material moisture content is higher, and you want to get the lowest moisture content, then the dryer machine is your
best choice.
best choice.
We have small airflow dryer with HJ-4, HJ-6 and HJ-10; and the rotary drum dryer with GT-630, GT-800, GT-1000,
GT-1200, GT-1500, GT-1800, GT-2000.
GT-1200, GT-1500, GT-1800, GT-2000.
Also we can customize the dryer according to your requirement.


Company Profile
Gongyi Xiaoyi Mingyang Machinery Plant is one of the largest and earliest manufacturers of the biomass energy equipment ( biomass briquette machine line, charcoal making production line, wood pellet production line and the related machinery).
* one of the largest and earliest manufacturers of the charcoal making machine, biomass briquette machine and wood pellet production line in China with 30 years experience.
* Covered an area of 12000 square meters, currently has more than 120 employees, divided to 7 department.
* Designed and produced 6 production line, more than 150 kinds of machines, awarded 10 patents in China.
* Products are widely accepted in both domestic and world market ,more than 150 countries.
* The company enlarged for building one experimental Center of high-tech automtaic production equipment to meet the market requirement.
* Professional after-sales service team to be able to handle client issues in a timely manner.
* high level standard workshop, advanced producing equipment, Experienced technicians, fine workmanship with 30 year working experience.
* stock for based goods, accessories in stock to meet you need,stocked your samples and all the details of the goods of the next order.
* strict inspection personnel and process, and we are strictly ensure the quality of the international standard.
* We have the test center of the machine, Each machine will running before delivery.
* recommend clients for free, offer the layout drawing and the profit table and install video and free stuff training.
* one of the largest and earliest manufacturers of the charcoal making machine, biomass briquette machine and wood pellet production line in China with 30 years experience.
* Covered an area of 12000 square meters, currently has more than 120 employees, divided to 7 department.
* Designed and produced 6 production line, more than 150 kinds of machines, awarded 10 patents in China.
* Products are widely accepted in both domestic and world market ,more than 150 countries.
* The company enlarged for building one experimental Center of high-tech automtaic production equipment to meet the market requirement.
* Professional after-sales service team to be able to handle client issues in a timely manner.
* high level standard workshop, advanced producing equipment, Experienced technicians, fine workmanship with 30 year working experience.
* stock for based goods, accessories in stock to meet you need,stocked your samples and all the details of the goods of the next order.
* strict inspection personnel and process, and we are strictly ensure the quality of the international standard.
* We have the test center of the machine, Each machine will running before delivery.
* recommend clients for free, offer the layout drawing and the profit table and install video and free stuff training.





Contact me
We have the professional and experienced team to assist you; If there is any questions, please feel free to contact me, I am always here online waiting for your calling, also click the name card to get more information;
Looking forward to hearing from you soon:
Sales manager: Bella Ren
Phone: 0086-15039052281
Whatsapp: 0086-15039052281
Wechat: 0086-15039052281
Skype: bella616919

Contact Us
- Gongyi Xiaoyi Mingyang Machinery Plant
Product Categories
New Products
-
High Quality Waste Wood Crusher Machine Agricultural Crusher Machine Crusher Machine For Peanut
-
Farming Tool Low Power Needed Wood Crusher Hammer Mill for Sale
-
Industrial Drum Wood Chipper Machine Big Sugarcane Bagasse Waste Wood Pallet Drum Type Crusher
-
Wood Sawdust Fine Powder Grinding Making Machine Factory Supply Directly
-
Wheat Straw Bean Stalks Wood Chip Hammer Mill Crusher
-
Glass Bottle Crusher Machine Portable Concrete Crusher For Sale Corn Cob Crusher
-
Professional Plant Sale Wood Grinder Wood Crusher Machine With Cheap Price
-
Good Performance Farm Use Biomass Waste Wood Log Wood Pallet Wood Crusher
-
Wood Chipping Wood Shredding Branch Pulverizer Wood Crusher Chipper Shredder Machinery
-
Big Output Wood Pulverizer Machine In Malaysia Hand Wood Sawdust Wood Crusher
-
Wood Chipper Making Machine Wood Crusher Machine Wood Sawdust Crusher
-
Tree Branch Water Drip Wood Crusher Feed Grinder Wood Pellet Wood Crush Machine
-
New Energy Efficient Wood Crusher For Tree Branch Wood Crush Machine
-
Hammer Mill Crusher Machine Design For Corn Nut Shell Rice Husk Tree Branch
-
Vertical Type Charcoal Hammer Mill Crusher Wood Sawdust Wood Chipps Hammer Mill Making Machine Suppliers
-
Waste Wood Chipper Bean Stalks Animation Manufacturer Hammer Mill
-
Sugar Cane Bagasse Hammer Mill Hammer Mill For Oyster Shell Hmmer Mill
-
Small Rice Husk Corn Cocnut Shell Hammer Mill Make Sawdust Hammer Mill
-
Home Use Powder Grinding Pulverizer Machine Agricultural Machinery For Pulverization
-
Hardwood Pine Tree Logs Wood Chipper Shredder From 200mm To 20mm Wood Crusher
-
Best Price Disc Type 300kg per Hour Electrical Shaver Machine for Wood Shaving
-
30 Years Professional Wood Chipper Machine With Gasoline Engine for Wood Trimmings Crushing
-
Hardwood Pine Tree Logs Wood Chipper Shredder From 200mm to 20mm
-
Leftovers Crusher Wood Sawdust Crusher Machine Wood Hammer Mill
Popular Searches
- transplanter
- wood grinder
- wood chipper
- log splitter
- chipper
- log trailer
- forestry trailer
- timber crane
- forestry equipment
- bx42 wood chipper
- wood splitter
- wood chipper machine
- wood chipping machine
- chipper shredder
- branch shredder
- shredder chipper
- wood chipper shredder
- leaf shredder
- wood chipper garden shredder
- gasoline garden shredder
- tree branch shredder
- electric garden shredder
- log grapple
- wood log splitter
- gasoline shredder chipper
- atv timber trailer
- bad oil
- cut branch
- tree cutting machine
- video splitter
Recommended Products
- Complete Set of Wood Crusher for Branch Scraps
- Panqi Heavy Industry Diesel Engine Powered Wood Slicer Manufacturer
- High-quality Double-shaft Crusher Equipment Manufacturer
- Multifunctional Double-shaft Shredder Produced in China
- Multifunctional Fully Automatic Wood Crusher Shredder
- Fully Automatic Forced Feeding Wood Chipper Production Plant
- Machinery and Equipment for Producing Wood Into Wood Chips and Sawdust
- Panqi Heavy Industry Wood Slicer Wood Flaker
- Easy-to-use Wood Crusher Sawdust Crusher Equipment
- Wood Chipper Crusher
- Changyun Technology Bamboo Winch Log Skidder Bamboo Trailer Timber Tractor
- Efficient and Sustainable Wood Pallet Shredding Machine– Pallet Recycling Crusher Machine
Find Similar Products By Category
- Manufacturing & Processing Machinery > Agricultural Machinery > Forestry Machine
- Please Enter your Email Address
- Please enter the content for your inquiry.
We will find the most reliable suppliers for you according to your description.
Send Now
Gongyi Xiaoyi Mingyang Machinery Plant
AIBot OnlineThis conversation is AI-generated. Contact manufacturer before transaction to confirm info.
-
sales
Hi there! Welcome to my shop. Let me know if you have any questions.
Your message has exceeded the limit.
- Contact supplier for lowest price
- Customized Request
- Request Sample
- Request Free Catalogs
Your message has exceeded the limit.
-
Purchase Quantity
-
*Sourcing Details
Your inquiry content must be between 10 to 5000 characters.
-
*Email
Please enter Your valid email address.
-
Mobile





Wood Chips Hammer Mill Sugarcane Biomass Waste Small Wood Crusher Wood Sawdust Making Machine
Movable Working Gasoline Petrol Big Tree Shredder EFB Crushing Machine Diesel Engine Wood Chipper
Petrol Tree Stumps Crusher Diesel Engine Wood Shredding Machine Gasoline Powered Wood Chipper
Hammer Crushing Wood Grinding Shredder for Sale Waste Wood Shredder Machine Factory Directly
Factory Price 500kg per Hour Low Noise Disc Type Wood Shaving Machine Used for Paper Mill
Wide Application Wooden Materials Crusher Waste Wood Board Shredder Sawdust Making Machine
High Quality Waste Wood Crusher Machine Agricultural Crusher Machine Crusher Machine For Peanut
Industrial Drum Wood Chipper Machine Big Sugarcane Bagasse Waste Wood Pallet Drum Type Crusher
Wood Sawdust Fine Powder Grinding Making Machine Factory Supply Directly
Wheat Straw Bean Stalks Wood Chip Hammer Mill Crusher
Professional Plant Sale Wood Grinder Wood Crusher Machine With Cheap Price
Big Output Wood Pulverizer Machine In Malaysia Hand Wood Sawdust Wood Crusher
Wood Chipper Making Machine Wood Crusher Machine Wood Sawdust Crusher
Tree Branch Water Drip Wood Crusher Feed Grinder Wood Pellet Wood Crush Machine
Hammer Mill Crusher Machine Design For Corn Nut Shell Rice Husk Tree Branch
Waste Wood Chipper Bean Stalks Animation Manufacturer Hammer Mill
Small Rice Husk Corn Cocnut Shell Hammer Mill Make Sawdust Hammer Mill
Hardwood Pine Tree Logs Wood Chipper Shredder From 200mm To 20mm Wood Crusher
30 Years Professional Wood Chipper Machine With Gasoline Engine for Wood Trimmings Crushing
Hardwood Pine Tree Logs Wood Chipper Shredder From 200mm to 20mm
Leftovers Crusher Wood Sawdust Crusher Machine Wood Hammer Mill
