Product Description

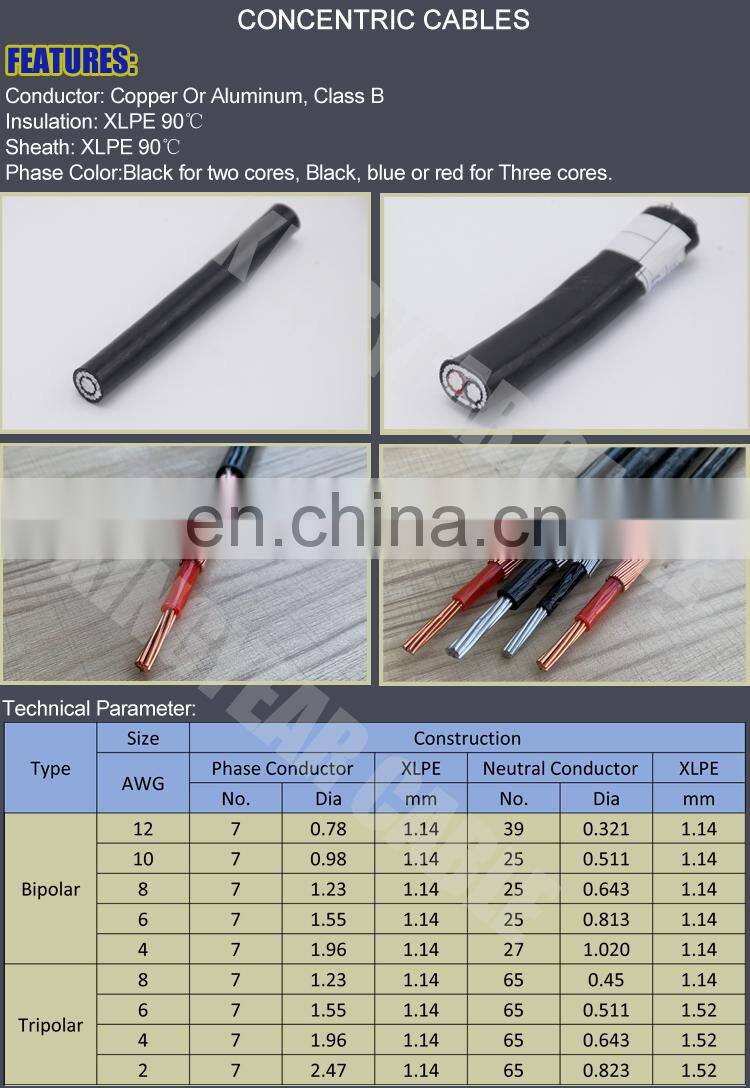

0.6-35kv Aerial Service Low Medium Voltage Communication Cable XLPE PVC Insulated Concentric Neutral Split Cable
WHY CHOOSE US
PRODUCT DESCRIPTION
KINGYEAR Cable is one of the leading cable products production enterprise in China,our mainly products are electric wire,power cable, control cable,bare conductor (AAC/AAAC/ACSR),ABC Aerial Bundled Cable
Regards 0.6-35kv Aerial Service Low Medium Voltage Communication Cable XLPE PVC Insulated Concentric Neutral Split Cable
Applications:
The insulated neutrals and bare earth wires are laid in a concentric layer around the insulated phase conductor with XLPE string separators separating the neutral and earths. This is then bound with a clear polyester tape and then PE sheathed.
This type of conductor can be used in dry and wet places, directly buried or outdoors,its maximum temperature of operation is 70 degree (PVC or PE insulation ) or 90 degree(XLPE Insulation ) and its voltage of service for all the applications is 600V..
Construction
Phase Conductor: 8000s Aluminum Alloy Conductor or Copper Conductor
Insulation:XLPE/PE/PVC
Bedding:Non-woven tape
Concentric Conductor:Aluminum alloy conductor
Outer sheath:XLPE/PE/PVCe.
The insulated neutrals and bare earth wires are laid in a concentric layer around the insulated phase conductor with XLPE string separators separating the neutral and earths. This is then bound with a clear polyester tape and then PE sheathed.
This type of conductor can be used in dry and wet places, directly buried or outdoors,its maximum temperature of operation is 70 degree (PVC or PE insulation ) or 90 degree(XLPE Insulation ) and its voltage of service for all the applications is 600V..
Construction
Phase Conductor: 8000s Aluminum Alloy Conductor or Copper Conductor
Insulation:XLPE/PE/PVC
Bedding:Non-woven tape
Concentric Conductor:Aluminum alloy conductor
Outer sheath:XLPE/PE/PVCe.
Common Use Size
2*8AWG, 2*6 AWG, 2*4AWG, 2*2AWG, 2*1/0AWG, 2*2/0AWG,
3*8AWG, 3*6AWG, 3*4AWG, 3*2AWG, 3*1/0AWG, 3*2/0AWG,
4*8AWG, 4*6AWG, 4*4AWG,4*2AWG and so on
2*8AWG, 2*6 AWG, 2*4AWG, 2*2AWG, 2*1/0AWG, 2*2/0AWG,
3*8AWG, 3*6AWG, 3*4AWG, 3*2AWG, 3*1/0AWG, 3*2/0AWG,
4*8AWG, 4*6AWG, 4*4AWG,4*2AWG and so on
The detail technical data of XLPE PVC Insulated Concentric Neutral Split Cable as below for reference,any customized is available.
ASTM 600/1000v | ||||||||||||||||||
Core | AWG | Structure Size (mm) | Copper cable (kg/km) | |||||||||||||||
Conductor | Insulation | Concentric conductor | Outer sheath | |||||||||||||||
Single wire | XLPE | Single wire | UV-PVC | |||||||||||||||
No. | Dia. | Thick | No. | Dia. | Thick | Dia. | ||||||||||||
1 | 16 | 7 | 0.49 | 1.14 | 39 | 0.321 | 1.14 | 6.82 | 81.46 | |||||||||
1 | 10 | 7 | 0.98 | 1.14 | 34 | 0.511 | 1.14 | 8.67 | 172.04 | |||||||||
1 | 8 | 7 | 1.23 | 1.14 | 25 | 0.643 | 1.14 | 9.68 | 221.58 | |||||||||
1 | 6 | 7 | 1.55 | 1.14 | 25 | 0.813 | 1.14 | 10.98 | 160.5 | |||||||||
1 | 4 | 7 | 1.96 | 1.14 | 27 | 1.02 | 1.14 | 12.62 | 509.26 | |||||||||
IEC 60502-1 IEC 60228 600/1000v | ||||||||||||||||||
Size (mm2) | Structure Size mm | Copper cable (kg/km) | ||||||||||||||||
Concuctor | Insulation | Concentric conductor | Outer sheath | |||||||||||||||
Single wire | Dia. | PVC | Single wire | UV-PVC | ||||||||||||||
No. | Dia. | Thick | No. | Dia. | Thick | Dia. | (kg/km) | |||||||||||
10 | 7 | 1.35 | 4.05 | 1.55 | 20 | 0.85 | 1.4 | 11.79 | 301.55 | |||||||||
16 | 7 | 1.7 | 5.1 | 1.55 | 32 | 0.85 | 1.4 | 12.84 | 431.7 | |||||||||
25 | 7 | 2.14 | 6.42 | 1.6 | 29 | 1.13 | 1.5 | 15.02 | 647.46 | |||||||||
16 | 7 | 1.7 | 5.1 | 1.55 | 26 | 1.13 | 1.4 | 13.42 | 244.16 | |||||||||
25 | 7 | 2.14 | 6.42 | 1.6 | 29 | 1.13 | 1.5 | 15.02 | 307.3 | |||||||||
35 | 19 | 1.53 | 7.65 | 1.65 | 27 | 1.35 | 1.6 | 16.99 | 390.15 | |||||||||
RELATED PRODUCT
Similar Products（Different structure; Different size）
Standard: ANSI/ICEA S-76-474, NF C 33-209, AS3560-1-2000, IEC 60228, and ect.
Any customized standard are all can be designed by our R&D team.
COMPANY STRENGTH
COMPANY PROFILE
HENAN KINGYEAR GROUP was founded in 2006,located in the Gongyi industry area of Henan Province.Occupies more than 1200,000 square meters,more than 800 employees.Our company consists of 3 main subsidiaries,Business specialized in development,manufacture and distribution of aluminum and cable products.Mainly including aluminum plate,aluminum coil,bare aluminum conductor,aerial bundled cable,Low voltage and medium voltage power cable,Electrical wire,control cable,etc... CLICK MORE
PLANT AND OFFICE SHOWN:
3 workshops of Low-voltage concentric communication cable. 1 office building of international trade.
TESTING MACHINE SHOWN:
XLPE PVC Insulated Concentric Neutral Split Cable testing :
CERTIFICATE SHOWN:
ISO,CE,CCC,ROHS,UL,VDE of XLPE PVC Insulated Concentric Neutral Split Cable
CUSTOMER
After more than 20 years of development, our customers have spread to more than 40 countries and regions around the world, And more than 50% are old customers.The power cable,control cable,ABC cable,bare conductor(AAC/AAAC/ACSR) are more favorited by them.We are proud of our good quality---KINGYEAR CABLE.
PACKAGE
PACKAGING FLOW of XLPE PVC Insulated Concentric Neutral Split Cable as below,customized is accepted.
Some of our products packaging records shown:
They are about XLPE PVC Insulated Concentric Neutral Split Cable
FAQ
Q:I didn't find the cable which I need in this page?
A:If you didn't find the species of cables you need, please contact us directly, we will reply you quickly.
Q:What's your minimum order quantity?
A:It is not so sure, you can confirm it with us. Normally, it will be 1000 meters.
Q:What's your delivery time?
A:It depends on whether we just has the stock for your type.Normally,it takes about 7-15days to achieve production.
Q:How can I get a sample from your company? Is the sample free?
A:If you need the sample to check the quality, please contact us,we will send you the free sample, but the freight charge should be paid.
Q:How to ensure quality ?
A:For any quality problems, we will arrange the technical personnel to solve or return the goods as soon as possible, and bear the corresponding customer losses.
Q:What if the cable which we need have some differences on specifications from yours?
A: Any difference, we can design and produce according to your requests, which include cable, color, material, processing requirement etc.
