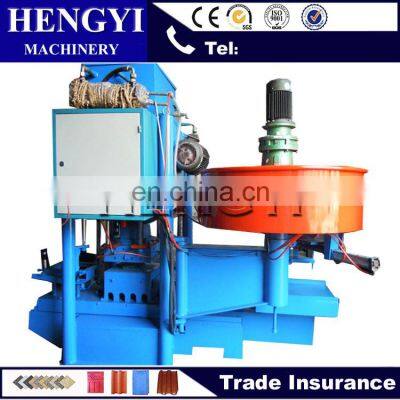

Factory directly supply parking tiles making machine

The full-automatic concrete parking tiles making machine  is the most advanced innovative, cost-effective and eco-friendly professional tile forming equipment.

This parking tiles making machine  works in many ways. By changing molds, it could produce roof tile, stair tile...

Application of automatic parking tiles making machine :
parking tiles making machine is used for producing terrazzo floor tiles, it adopts hydraulic pressure, it integrated semi-automatic and fully-automatic control together, the operater can decide the automation on PLC control box. There are 3 models to produce 300*300 mm , 400*400 mm, 500*500 mm, 600*600 mm...floor tiles/roof tiles/ceramic...

1. Terrazzo tile making machine

parking tiles making machine is researched and produced independently, it has used the high speed filter-pressing principle of the raw materials, wear-resisting and accurate mold. Morever, marble terazzo stone floors machine uses the PLC control program, which is very advanced in the world, for these reasons, parking tiles making machine is considered as the advanced equipment which integrates machinery,hydraulic pressure,pneumatic and computer control system.

Feature of parking tiles making machine :

1. Adopt imported PLC Programmable controller& 2-3 workers

2. Imported hydraulic components are adopted in hydraulic system, the floor tile making machine pressure can be adjusted.

3. Take Use "program-controlled" Transmission positioning,stable transmission, accurate setting.

4. Take vibration on worktable ,Rotating multi-layer cloth, high frequency pressure.,Automatic propulsion,etc,make molding cycle is short,high production efficiency, quality and density of large bricks, high strength, dimensional accuracy.

5. Just changing different moulds, it can produce a variety of ridge tiles

parking tiles making machine is PLC controlled, is simple to operate and maintain; and it is with the fuction of data input and output, logic control and fault, and self diagnotic,etc.

Imported hydraulic components are adpoted in hydraulic system, the pressure can be adjusted. and precise control compenets action.

All of the parts of floor tile making machine are precision finishing, adopting cast steels and other high quality steels, high compression stength, high resistance to deformation with stable performance, firm and durable.

 The whole Line and Parameters :

Workflow of parking tiles making machine :

1. Put all the raw materials into bucket elevator ;

2. Start mixing the raw materials by wheel grinding mixer ;

3. Pour the mixed raw materials into dosing feeder ;

4. The meatured raw materials come down on the tile mold below ;

5. The host molding machine starts to press and the final tile can be produced ;

6. The worker take out the final tiles and put in the frame.

7. After 5-7 days, the ceramic can be polished by polisher

 Raw Material:

 Final Products&Application:

Production Flow:

 Foreign working site:

Packages & Shipping:

1. Before Service

*According to our customers special requirements, provide the most suitable project design, process design and the purchase program.

2. On sale service:

* Manufacturer the equipments as the contact appears at first time after receive your deposit.

* Inspect the machine before shipping to confirm the machine runs normally.

* Arrange the delivery timely.

3. After-sales service:

* 12 months warranty against shipping

* 24 hours on line to solve customers' concerns.

* Engineer overseas available to instruct the installation and operation.

Certificate:

FAQ:

1.MOQ: 1 Set

2.Warranty: 18 months.

3.What's the lead time: 15 working days

4.What is the package: Wood carton or as per your request

5.Can we change moulds? Yes

6.Certification: ISO CE

7.Area required: 500M2

8.How much manpower needed:2-3

9.Raw material: cement, sand, glass, stone....
