Professional Manufacture High Efficiency Cleanroom Air Shower Class 100 48 Nozzles Air Shower Room

--Overview

The air shower is a highly versatile local purification equipment installed between the clean room and the non-clean room. When people and goods need to enter the clean area, they need to be blown by the device. The clean air blown out can blow off the dust carried by people and goods, effectively blocking or reducing the dust source from entering the clean area. The device can also act as an air lock to block unpurified air from entering the clean area. It has the characteristics of compact structure, beautiful appearance, low noise, convenient installation and maintenance. This product is very practical and widely used in pharmaceutical, hospital, food, plastic packaging printing, laboratory, electronics and other industries.

--Structural characteristics

1. The internal air duct is specially designed to ensure the high-strength wind speed of the air outlet

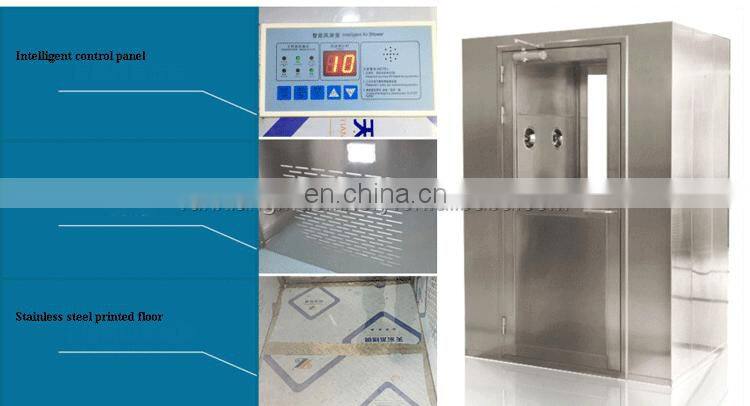

2. Adopt digital display, adjustable air shower time, and display the air shower time

3. Clean air is designed for internal circulation to ensure cleanliness

4. Designed for low-efficiency and high-efficiency two-stage filtration

5. The configuration control system is a voice intelligent control system, which can be divided into manual, semi-automatic and fully automatic control types according to different applications.

 --Working principle

Ambient air passes through an air filter and is pressed into the static pressure box by a dedicated fan, and a high-speed clean air flow is blown from the air outlet surface. The clean air flow is sprayed onto the person at a high-speed wind speed by a rotatable nozzle, effectively and quickly removing attached clothes Or dust particles on the cargo

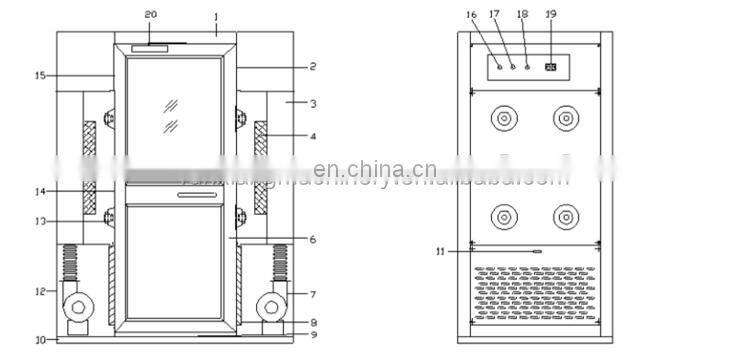

1. Top cover

2. Circuit control board

3. Positive pressure box

4. High efficiency filter,

5. Right standing

6. Stainless steel door

7. Fan

8. Primary filter

9. Foot pedal

10. Chassis

11. Photoelectric switch

12. Right standing

13. Wind mouth

14. Wind mouth version

15. Lamp cover

16. Emergency stop switch

17. Wind shower

18. Lighting

19. Time display

20. Door closer

--Two Person Full Stainless Steel Air Shower technical parameter

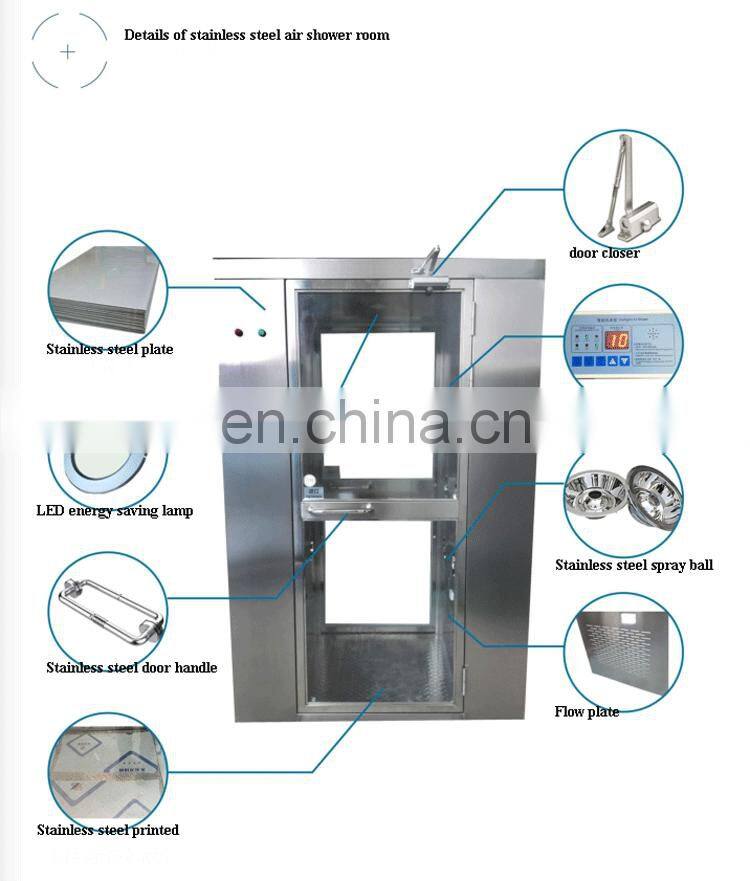

 --Detail image

 --Packing and Delivery
