Apricot Jam Processing Plant Marmalade Production Line Making Machine
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Fruit Jam Paste Cherry Mango Squish Strawberry Jam Processing Production Line Machine
-
Fruits Confiture Paste Making Machine Fruit Jam Production Line
-
Jam Production Equipment Small Fruit Jam Processing Line
-
Date Apple Jam Production Equipment Small Fruit Jam Marmalade Processing Line
-
Cheapest Price Henan Automatic Cherry Olive Kernel Corer Date Seed Pit Pitter Corer
-
Automic Vegetable Potato Peeling Machine Brush Washing Machine
Product Description
Product Description

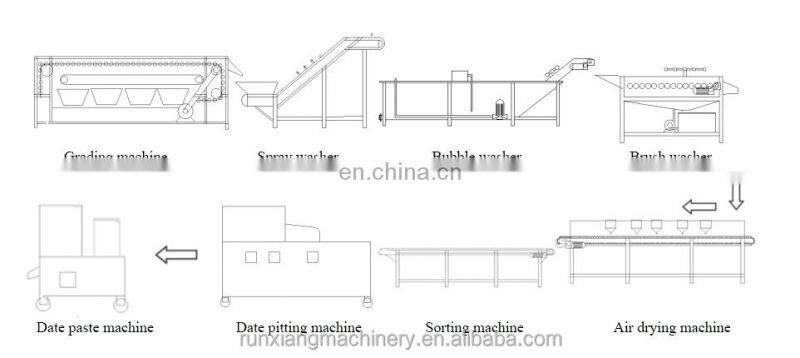

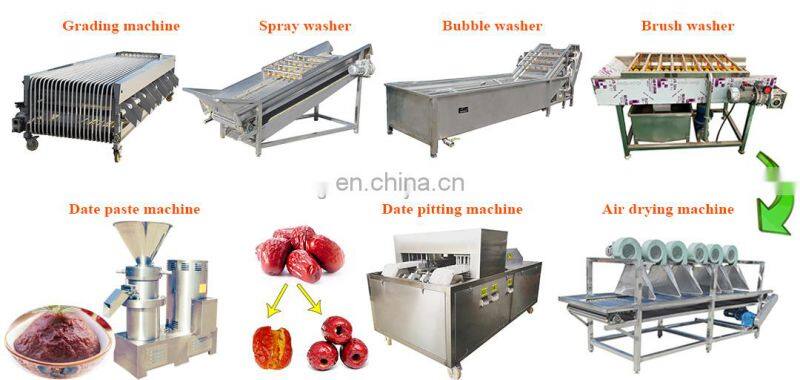

Date Paste/Jam Grading -- Washing -- Drying -- Pitting -- Grinding Processing Line
This production line is a semi-automatic production line, which saves labor costs to the greatest extent and is easy to operate. From grading to cleaning, to de-nucleation, and finally to paste/jam, each machine has a good division of labor. It can be customized according to the different requirements of customers.
Specification

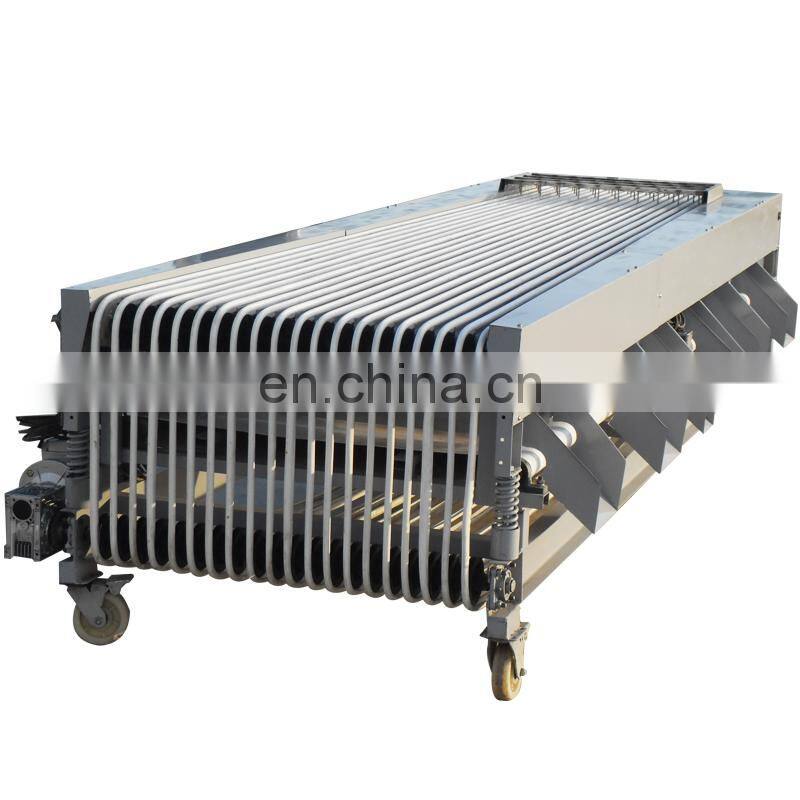

1. Grading machine
1. This is a multifunctional machine, which is widely used and easy to move and maintain.
2. All parts in contact with the fruit are thickened and softened, and the classification process will not cause secondary damage to the fruit. 3. The measuring error of the fruit sorter is small, the sensitivity is high, and the stability is reliable.
4. The number and size of grading can be adjusted.
5. Adjustable sorting speed, high efficiency and large output.
6. The fruit sorter has the function of automatic protection to prevent the equipment from being damaged by upside down and misoperation.
7. The working track adopts food grade silicon tape, which is elastic, non-toxic, harmless and aging resistant.
Name | Fruit sorting grading machine | ||
Model | GJFJ-500 | GJFJ-900 | |
Material | 304 Stainless Steel | 304 Stainless Steel | |
Power | 0.37kw | 3kw | |
Voltage | 380V | 380V | |
Capacity | 600-800kg/hour | 1-3T / h | |
Size | 2100*600*1000mm | 4000 * 1180 * 1200mm | |
Weight | 150kg | 320kg | |

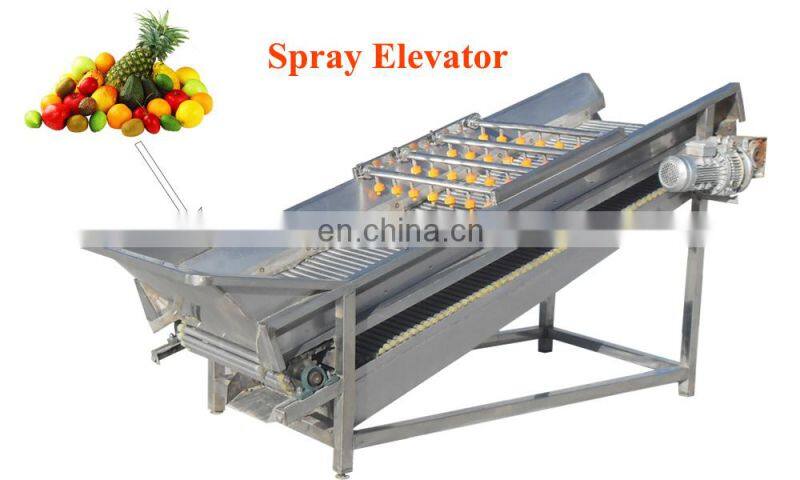

2. Spray Elavator For Fruits and Vegetables
★Features:
1. The parts in contact with the raw materials are made of high-quality stainless steel, which is safe and sanitary.
2. Equipped with a unique rolling bar system, the fruit rolling spray, can discharge the debris into the debris pool to ensure that the fruit is clean.
3. The role is to initially clean debris and soil to ensure that the cleaning pool is clean.
4. Equipped with a continuously variable transmission, the operating speed can be adjusted according to needs, and the operation is more stable.
5. The foot is adjusted by bolts, which is more suitable for sloped ground.
6. The frame adopts integral welding structure, with good overall rigidity and beautiful appearance;
7. Made of all stainless steel materials, in line with food hygiene standards;
8. Simple design, easy to use and maintain;
9. There is no residual pesticides, dust and other dirt on the surface of the processed fruit;
10. Smooth operation, low noise and low failure rate;
11. Can be installed on the assembly line, automated production, low labor intensity.
Model | PLTS—800 |
Size | 2000*900*1300mm |
Voltage | 380v |
Power | 0.75kw |
Capacity | 1000-3000kg/h |

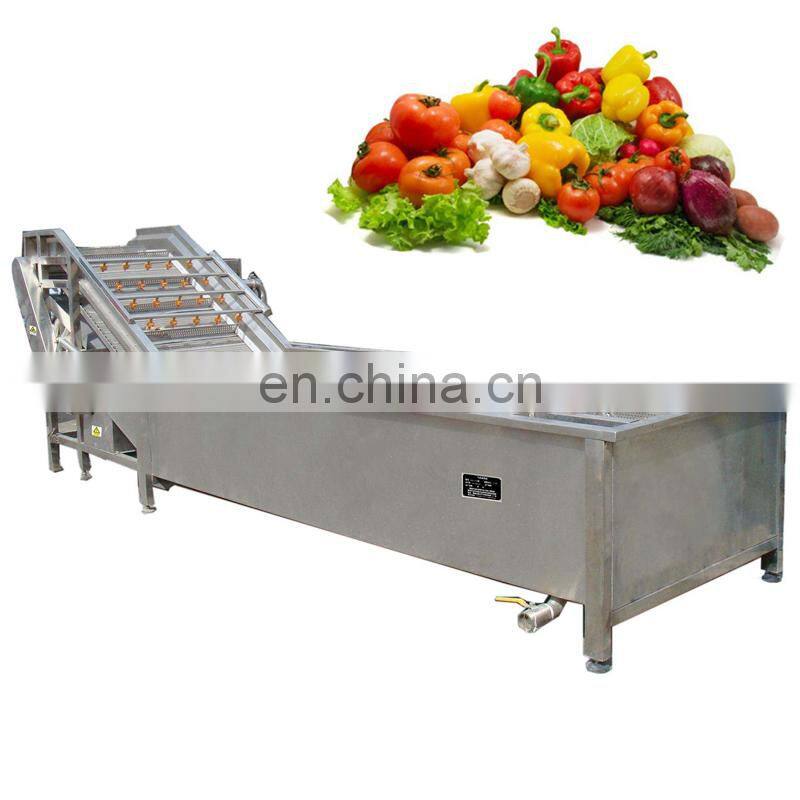

3. Bubble washing machine
By the action of the high pressure water and strong bubble, the vegetables and fruits will be exploded, tumbled, cleaned and convoyed. The silt will sink to the bottom of the machine and will never go up to pollute the vegetables and fruit. The floating sundries, worms, hair and others will be collected and then taken away. The clean vegetable and fruits will be washed again by spraying cleaner above and then delivery to next process.
Model | Capacity (kgh) | Power&Voltage (kwv) | Weight (kg) | Size (mm) |
HDF2500 | 500kg/h | 3.75/380V,50hz | 250 | 2500*1000*1300 |
HDF4000 | 800kg/h | 4.1/380V,50hz | 400 | 4000*1200*1300 |
HDF5000 | 1500kg/h | 5.1/380V,50hz | 500 | 5000*1200*1300 |
HDF6000 | 2000kg/h | 5.5/380V,50hz | 600 | 6000*1200*1300 |

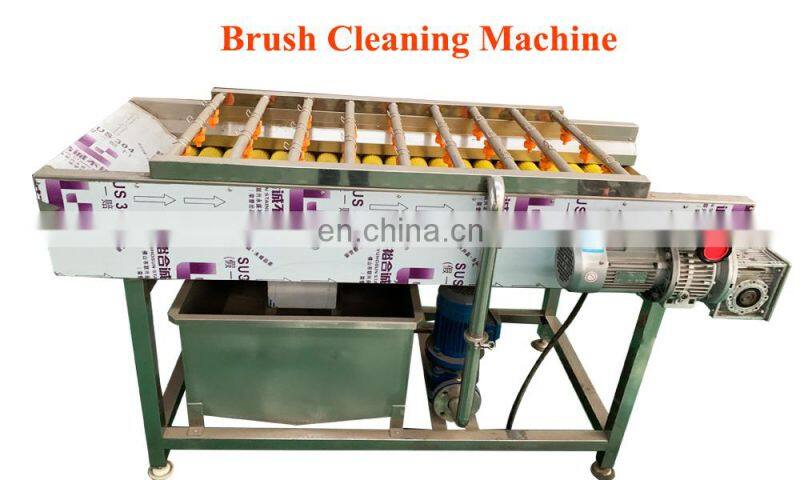

4. Brush Cleaning Machine
The upper part of the machine is sprayed with high-pressure water, the jujube runs forward, and the sundries are discharged from the rollers. After the rear end is cleaned with pure water, the fruit can be cleaned and removed, and the leaves and impurities in the jujube can be removed. Removal of debris such as hair and mud. The brush cleaning machine is not only suitable for cleaning jujubes and red dates, but also for washing strawberries, potatoes, carrots and other spherical fruits and vegetables that are not allowed to damage the epidermis.
The brush roller rotates quickly to knead the fruit. The material rolls with the brush. Under the action of the pallet brush, it rolls in different directions. The soft brush can Stretching into the folds, brushing away the pesticides and dust adsorbed on the surface of the fruit, high-pressure spraying works at the same time, spraying the raw materials, and the cleaning water is concentrated into the water collection tank. It can also be recycled, assisted in cleaning, and promotes the fruit to move forward. Fruit washing is cleaner.
Model | SC—MSQX—30 |
Size | 3000*1000*1300mm |
Power | 3.75kw |
Brush | 30pcs+6pcs |
Brush layers | double |
Capacity | 1000-3000kg/hour |
5. Air drying machine
This type of air dryer is used for draining and air-drying cleaned fruits and vegetables. The bottom has a vibration draining function and collects dirty water for unified treatment. Fans can be increased or decreased according to customer needs. And you can add mesh belts to prevent vegetables from being blown out by strong winds.
Model | size | weight | power |
LEF1000 | 5000*1000*1300 mm | 600 kg | 10kw/380v/50Hz |
6. Date pitting machine
1. The storage hopper is combined with the conveyor belt, and the template is selected according to the shape and diameter of the jujube.
2. Pour the fruit into the storage hopper, and automatically complete the feeding and conveying. After the fruit falls on the conveyor belt, it will automatically enter the template hole. Brush the excess fruit into the other holes through the brush, so that the feeding efficiency can reach 100%. More than 95%, greatly improving work efficiency.
3. After the hole is positioned, the fruit will continue to be transported. The fruit will be cored using the machine tool during the transporting process. The core will be automatically collected and discharged after it falls into the core dustpan. The fruit that has passed the core will continue to be transported. Go to the next step.
Model | YZQH-190S | YZQH-190-16/24 |
Voltage(V) | 380/220Vac | 380/220Vac |
Power (KW) | 1.5 | 1.5 |
Capacity(pcs/h) | 42000 | 84000 |
Pitting rate | 99% | 99% |
Size（mm） | 2300*800*1220mm | 2300*1280*1220mm |
Weight | 370 | 460 |
Dates diameter（mm） | 14~30mm (customized) | 16~25mm (customized) |
Packing & Delivery

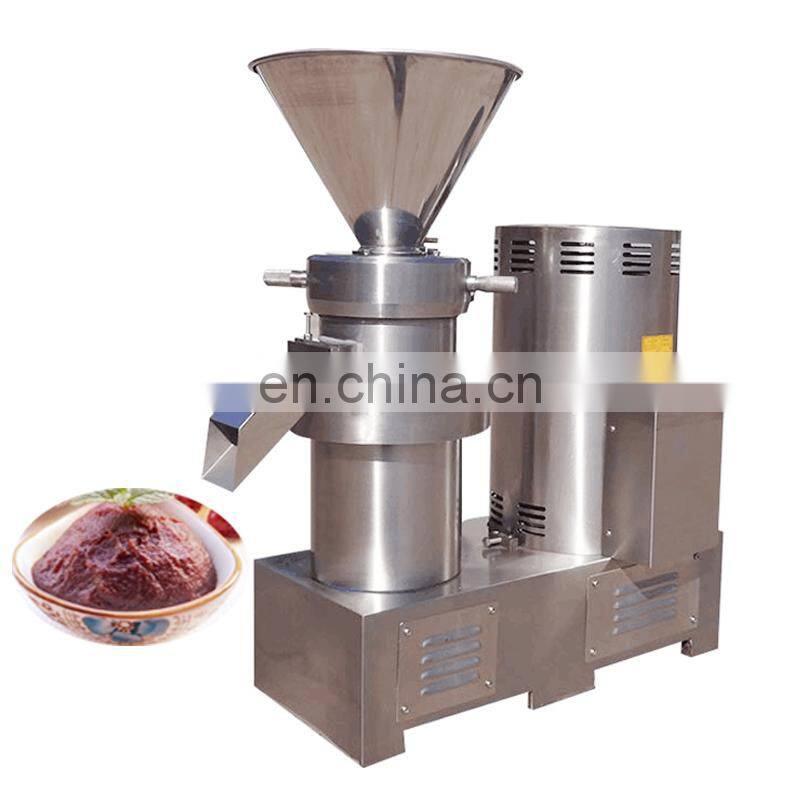

7. Date paste jam making machine
This colloid mill machine is mainly used to crush material into paste, jam in food, medicine, chemical area.
For this machine,the material is multifunctional,like peanut,sesame,almond,mustard,coconut,cashew,soybean spice,pepper,ginger and all kinds of fruit,like peanut,you need peeling the sheller first and then use this machine. Also can make date paste,the final date paste is about 50-120 mesh.
Model | WSS-80 | WSS-130 | WSS-180 | WSS-240 | WSS-300 |
Output size | 50-100 mesh | 100-200 mesh | 100-200 mesh | 100-200 mesh | 60-200 mesh |
Capacity (kg/h) | 30-70 | 300-500 | 800-1000 | 1500-2000 | 3000-4000 |
Power | 4kw | 15kw | 22kw | 45kw | 75kw |
Dimension (mm) | 640*410*900 | 830*440*1100 | 830*490*1100 | 1320*600*1280 | 1500*800*1120 |
Weight(kg) | 150 | 285 | 340 | 1300 | 1600 |
