Low Price Cashew washing Cleaning machine cashew Drying Machine price

 Product applications

cashew roasting machine price

     The nut sheller machine is mainly used to shelling all kinds of nut, such as almond, walnut,cashew nut. This machine is reasonably designed and its ratio of broken kernel is low. It is very easy to operate it, just need to input the nut, and after the machine will come out shells and kernels respectively. In addition, smaller nut shelling machine can be designed based on actual requirements.

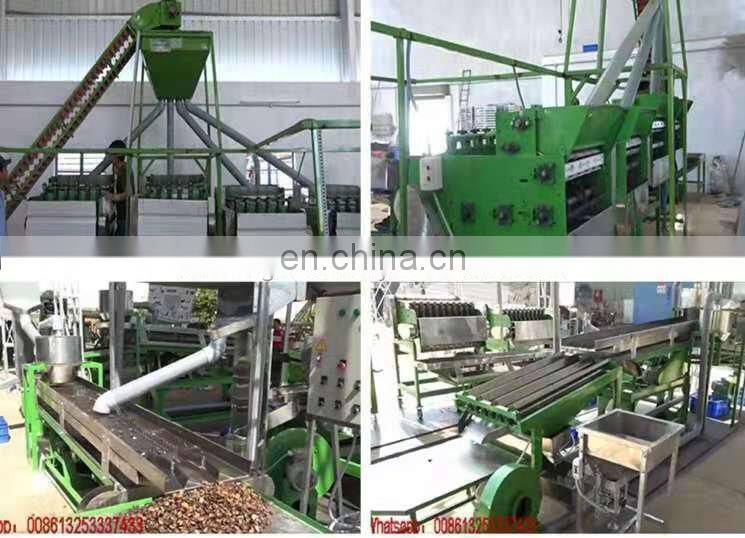

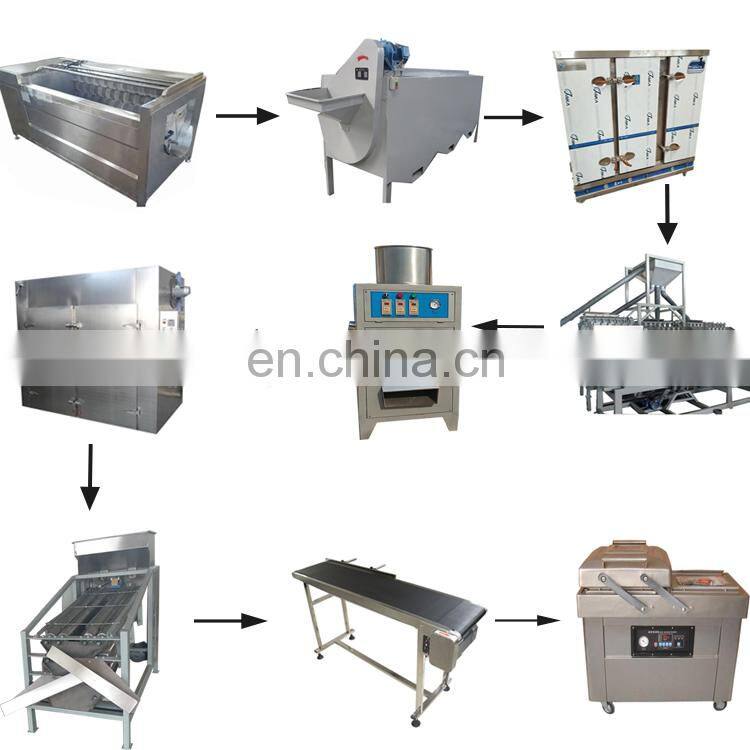

Cashew production process

Raw Cashew -Cashew cleaning-Sorting Machine-Cashew Steaming Machine-Cashew Shelling Line-Drying Machine-Peeling machine-Cashew Color-Cashew Kernel Grading Machine-Packing Machine.

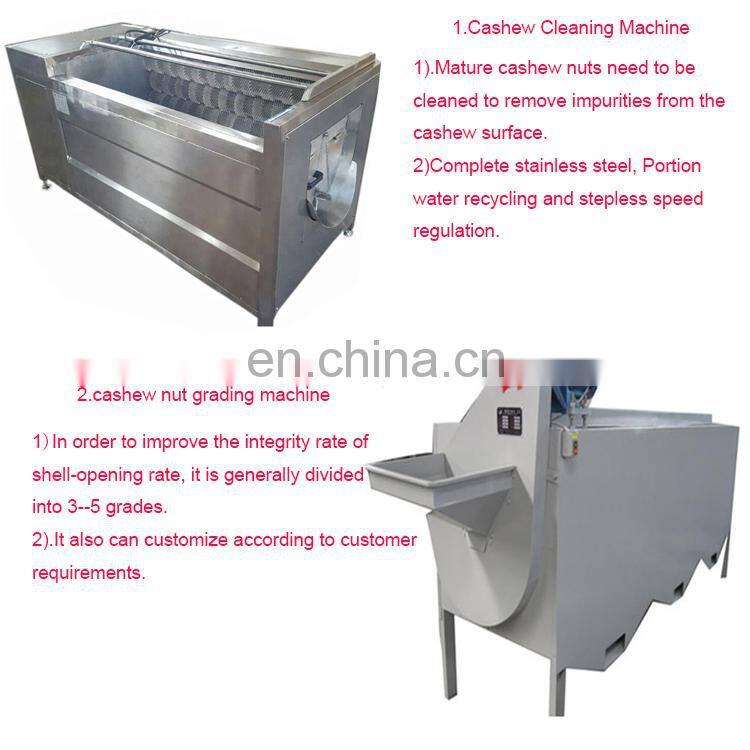

 1.Cashew Cleaning Machine

1).Mature cashew nuts need to be cleaned to remove impurities from the cashew surface. 2)Complete stainless steel, Portion water recycling and stepless speed regulation.

2.cashew nut grading machine

1)The nut sheller is a special cashew machine that removes the cashew nut shell. The cashew nuts should be firstly sized according to their width or divided into 3-5 grades by a classifier.
  Each machine has six inlets. The feeding action is done manually. Yield is related to the proficiency of the operator.

2).It also can customize according to customer requirements.

3.Cashew Cooking Machine

    Boil the cashew by electricity or gas, the temperature of the cooking machine is 180 degrees Celsius. Usually, it needs to be cooked for 15-20 minutes. After cooking, it still needs to be dried for another day. The cashew nuts are cooked, mainly to avoid the cashew nuts when peeling, and to ensure the integrity of the cashew nuts.

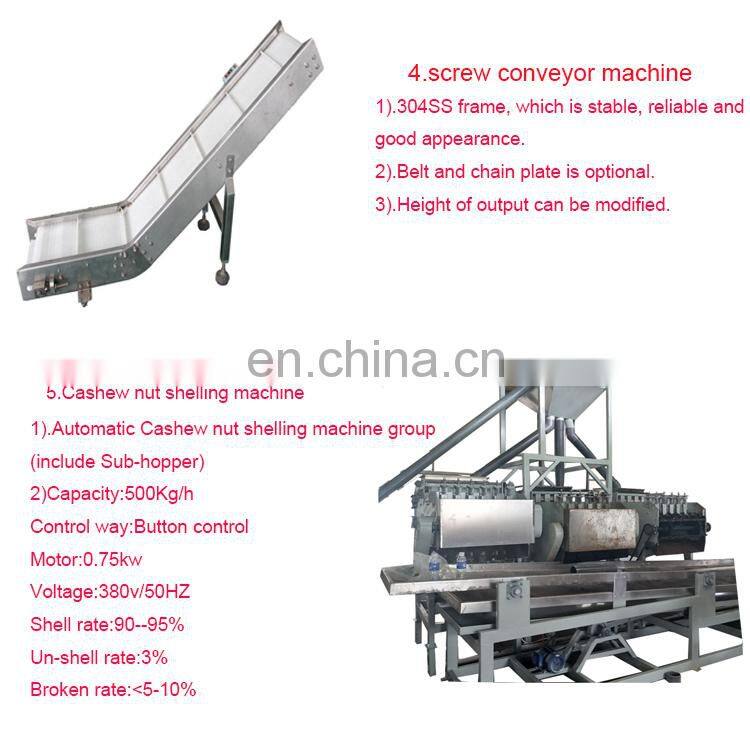

4.screw conveyor machine

1).304SS frame, which is stable, reliable and good appearance.

2).Belt and chain plate is optional.

3).Height of output can be modified.

5.Cashew nut shelling machine

1).Automatic Cashew nut shelling machine group (include Sub-hopper)

2)Capacity:500Kg/h Control way

:Button control

Motor:0.75kw

Voltage:380v/50HZ

Shell rate:90--95% Un-

shell rate:3%

Broken rate:<5-10%

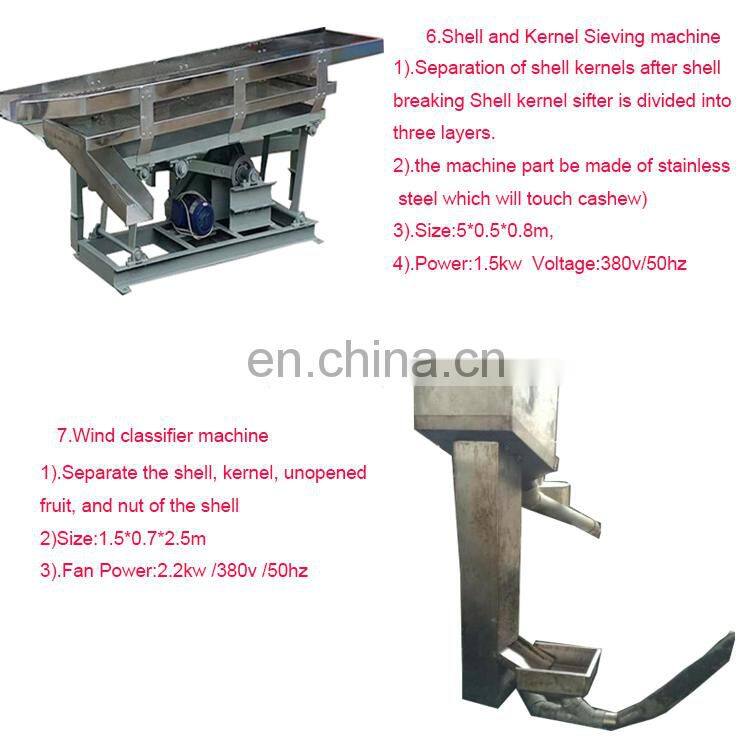

6.Cashew nut shelling machine

1).Separation of shell kernels after shell breaking Shell kernel sifter is divided into three layers.

2).the machine part be made of stainless steel which will touch cashew)

3).Size:5*0.5*0.8m,

4).Power:1.5kw Voltage:380v/50hz

7.Wind classifier machine

1).Separate the shell, kernel, unopened fruit, and nut of the shell

2)Size:1.5*0.7*2.5m

3).Fan Power:2.2kw /380v /50hz

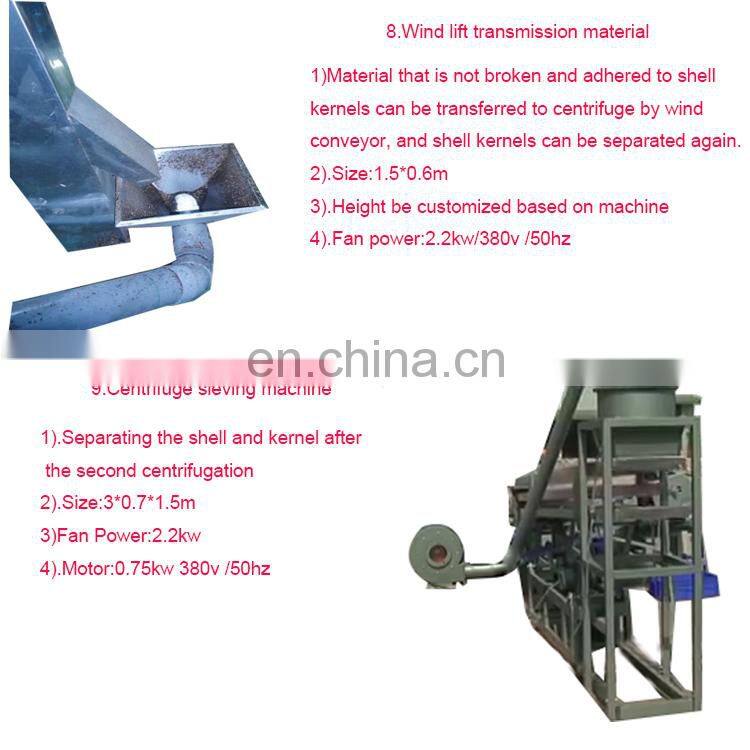

8.Wind lift transmission material

1)Material that is not broken and adhered to shell kernels can be transferred to centrifuge by wind conveyor, and shell kernels can be separated again.

2).Size:1.5*0.6m

3).Height be customized based on machine

4).Fan power:2.2kw/380v /50hz

9.Centrifuge sieving machine

1).Separating the shell and kernel after the second centrifugation

2).Size:3*0.7*1.5m

3)Fan Power:2.2kw

4).Motor:0.75kw 380v /50hz

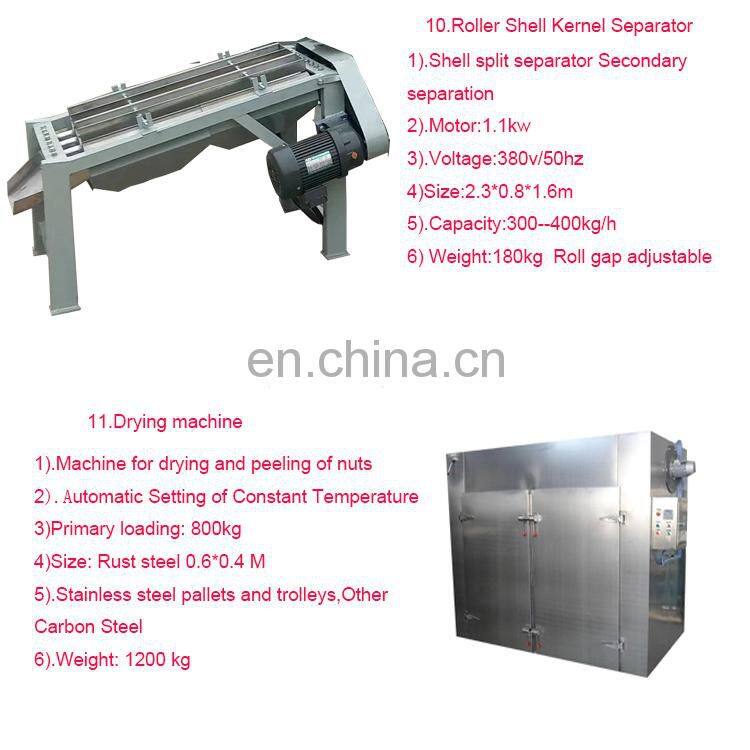

10.Roller Shell Kernel Separator

1).Shell split separator Secondary separation

2).Motor:1.1kw 3).Voltage:380v/50hz

4)Size:2.3*0.8*1.6m

5).Capacity:300--400kg/h

6) Weight:180kg Roll gap adjustable

11.Drying machine

1).Machine for drying and peeling of nuts 2).Automatic Setting of Constant Temperature

3)Primary loading: 800kg 4)Size: Rust steel 0.6*0.4 M

5).Stainless steel pallets and trolleys,Other Carbon Steel

6).Weight: 1200 kg

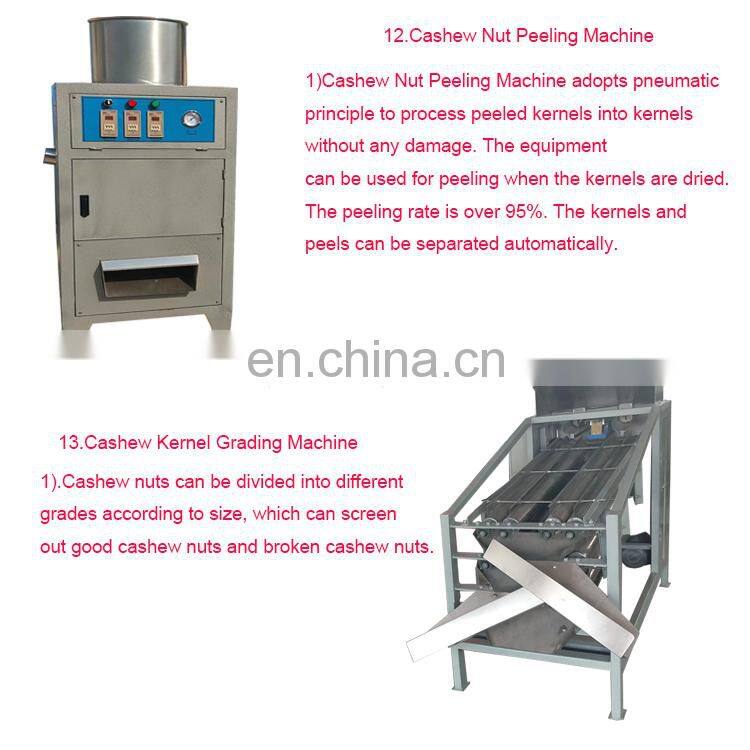

12.Cashew Nut Peeling Machine

1)Cashew Nut Peeling Machine adopts pneumatic principle to process peeled kernels into kernels without any damage. The equipment can be used for peeling when the kernels are dried. The peeling rate is over 95%. The kernels and peels can be separated automatically.

13.Cashew Kernel Grading Machine

1).Cashew nuts can be divided into different grades according to size, which can screen out good cashew nuts and broken cashew nuts.

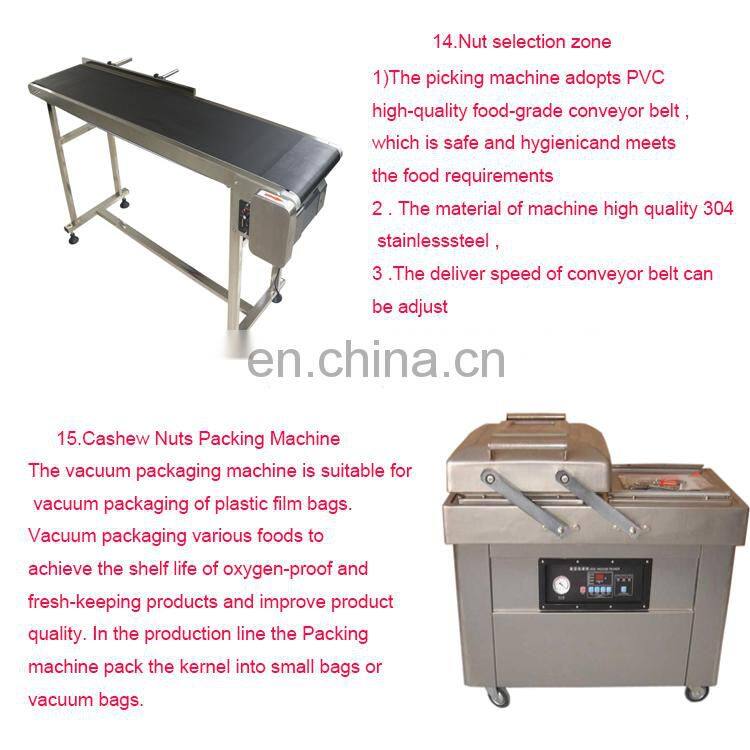

14.Nut selection zone

1)The picking machine adopts PVC high-quality food-grade conveyor belt , which is safe and hygienicand meets the food requirements

2 . The material of machine high quality 304 stainlesssteel ,

3 .The deliver speed of conveyor belt can be adjust

4 : Bearing block . 206 sinless ntee

15.Cashew Nuts Packing Machine

The vacuum packaging machine is suitable for vacuum packaging of plastic film bags. Vacuum packaging various foods to achieve the shelf life of oxygen-proof and fresh-keeping products and improve product quality. In the production line the Packing machine pack the kernel into small bags or vacuum bags.

The Feature of the peanut sheller machine:
1. Lower energy consumption,
2. Compact design
3. Occupy smaller space
4. Easy to operate and maintenance.
5. it can be used to peel all sizes of cashew. Whatever processing line or working separately
6. with a compact, high yield, low broken, easy maintenance features.

 Notes:We only show some models of machines. We have not only fully automatic but also semi-automatic. The output of the machines varies from 30kg/h to 600kg/h. If necessary, please contact us. We will customize the suitable machines for you according to your requirements
