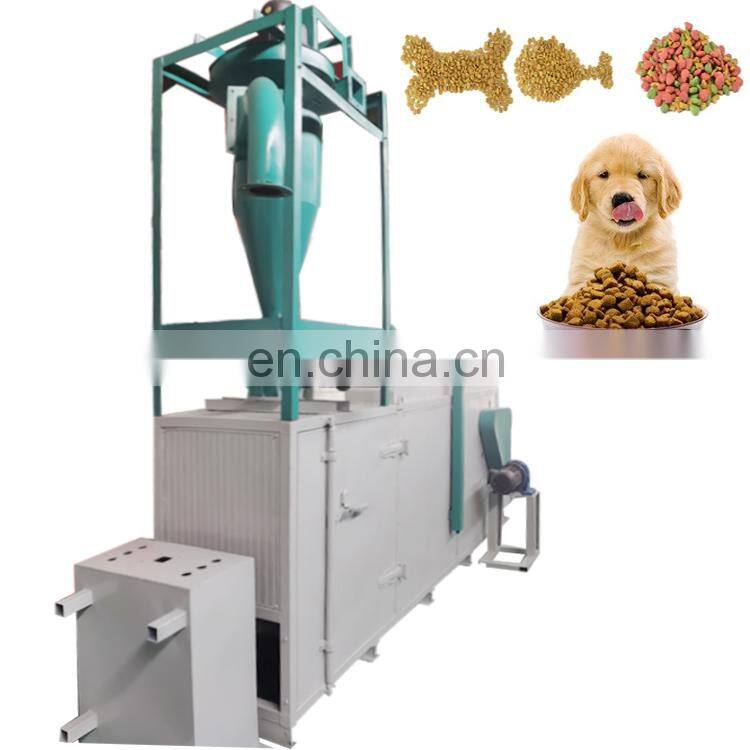

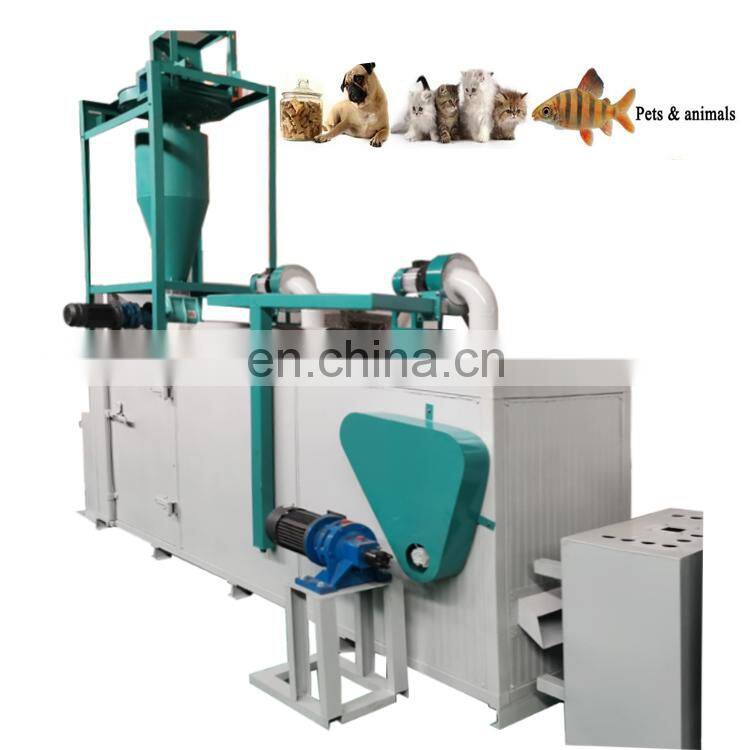

Animal Feed Dry Dog Food Machine Manufacture Food Process Machine Sinking Fish Feed Machine
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Cassava Pulp Rotary Dryer Machine Fodder Mill Plant Aquarium Food Extruder Mill Fish Feed Making Machine
-
Counterflow Cooling Machine Animal Poultry Feed Dryer Machine
-
Farm Used Mesh Belt Drying Equipment Dog Pet Fish Bird Pellet Food Production Equipment
-
0.5-10 Ton Grass Rice Husk Straw Press Machine Ring Die Mills Biomass Sawdust Wood Pellet Mill
-
5TPH Biomass Pellet Briquette Mill Machine
-
Biomass Combustion for Power Generation Wood Pellet Mill
Product Description
Raw material
feed dryer is usually used in combination with feed cooler in the feed pellet line. feed pellets are transported from feed extruder or pelletizer to the pellet dryer machine, then being conveyed on the mesh belt which is made of stainless steel.Speaking of the mesh belt, it is with multi-layer structure and movable, which makes our dryer fast-drying & high-efficiency, so the dryer machine is also called Mesh-belt Type Feed Dryer. This pellet dryer machine is widely applied in chemical, food, medicine, building materials, electronics and other industries, specially applicable to dry granular materials and pellets.

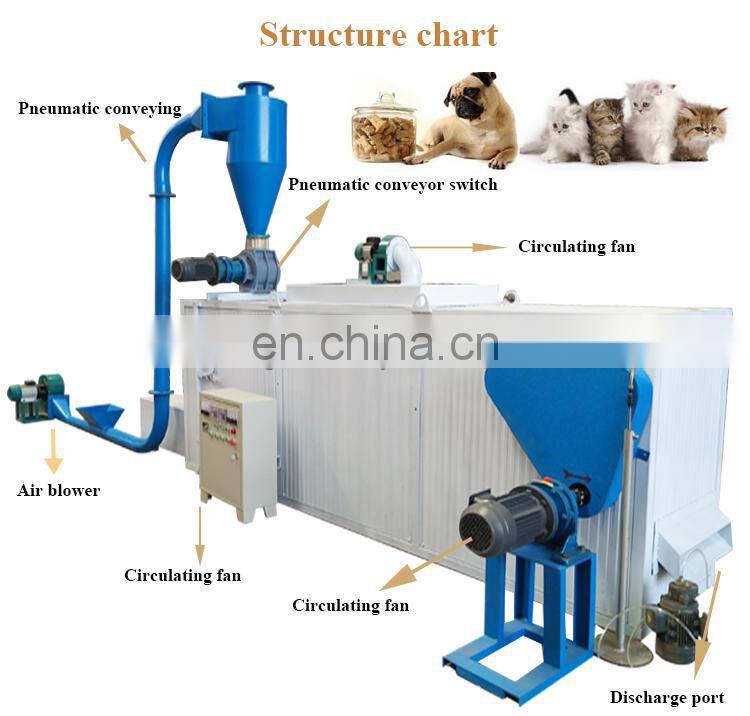

Working principle
1) Transmission system
Adopts mesh belt motor (frequency speed control) + reducer + chain transmission combination structure. Mesh belt running speed can be completed by adjusting motor running frequency.

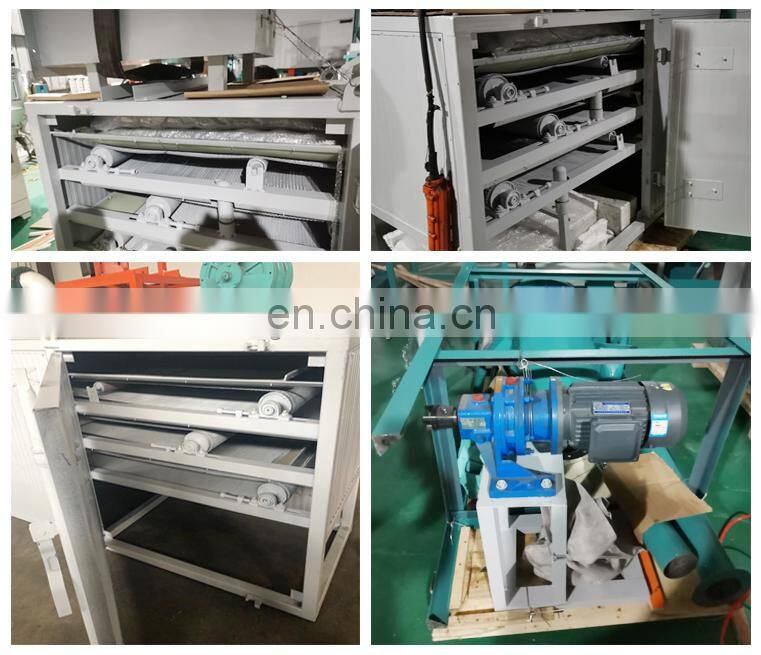

2) Conveying system
Conveyor system consists of driving wheel, conveyor chain, tensioning device, supporting rod and mesh belt. Both sides of chain are connected through a supporting rod, a chain wheel and steel rail positioning. Mesh belt is fixed on the supporting rod, run along with chain and rod. Driving wheel is installed at the discharging side.
3) Drying room
The drying room is divided into main room and air ducting two parts. It has the observation door at the main drying room; the pendent design of bottom is convenient for cleaning the accumulated material.
4) Temperature control
Steam Auto control electromagnetic valve, controls drying temperature of every parts, manual valve unit is mainly set according to the metal thermometer; there's a temperature controller at the electric cabinet for electric heating.
5) Electric control system
See the principle diagram of electric control
Adopts mesh belt motor (frequency speed control) + reducer + chain transmission combination structure. Mesh belt running speed can be completed by adjusting motor running frequency.
2) Conveying system
Conveyor system consists of driving wheel, conveyor chain, tensioning device, supporting rod and mesh belt. Both sides of chain are connected through a supporting rod, a chain wheel and steel rail positioning. Mesh belt is fixed on the supporting rod, run along with chain and rod. Driving wheel is installed at the discharging side.
3) Drying room
The drying room is divided into main room and air ducting two parts. It has the observation door at the main drying room; the pendent design of bottom is convenient for cleaning the accumulated material.
4) Temperature control
Steam Auto control electromagnetic valve, controls drying temperature of every parts, manual valve unit is mainly set according to the metal thermometer; there's a temperature controller at the electric cabinet for electric heating.
5) Electric control system
See the principle diagram of electric control
Product Description
There is circulating fan, heating device, fresh-air-suction-system and exhaust-exiting system. Operator can take independent operational parameter control of temperature, humidity and exhaust gas re-circulation rate, which ensures the reliability of the fish feed pellet dryer, and the optimization of the operating conditions. Mesh-belt Type Fish Feed Dryer has good security and operation flexibility. The drying process is carried out in a fully-sealed box, effectively avoiding dust leakage. Damp materials are evenly spread on the mesh belt which is driven to move by transmission device in the dryer machine. From bottom to top, hot air flow through the mesh belt and fish feed pellets on it. In the drying process, heat exchange is sufficient & uniform, drying efficiency being extremely high.
Product advantages
1.High-efficiency and energy saving
2.Easy to install and maintain
3.Fast drying speed, high evaporation intensity
4.Convenient drying parameters adjustment, flexible operation, wide adaptation
5.Higher work capacity, the range of drying time is adjustable
6.Standardized production, users can increase the number of segments according to production
2.Easy to install and maintain
3.Fast drying speed, high evaporation intensity
4.Convenient drying parameters adjustment, flexible operation, wide adaptation
5.Higher work capacity, the range of drying time is adjustable
6.Standardized production, users can increase the number of segments according to production
Technical information
Model | Output(kg/h) | Heating power(kw) | Net belt motor power (kw) | Blower Power (kw) | The layer number of mesh belt (layer) | Dinmenions(mm) | Weight(kg) |
RH150 | 120-200 | 15 | 1.5 | 0.12*2 | 3 | 3200*1200*1550 | 650 |
RH250 | 200-300 | 18 | 1.5 | 0.12*2 | 5 | 3200*1200*1850 | 850 |
RH350 | 300-400 | 24 | 2.2 | 0.12*2 | 5 | 4000*1350*2150 | 980 |
RH500 | 500-600 | 27 | 2.2 | 0.12+0.55 | 5 | 4500*1500*2400 | 1500 |
RH750 | 700-800 | 30 | 3.0 | 0.12+0.55 | 5 | 5200*1500*2400 | 2200 |
RH1000 | 1000-1200 | 36 | 3.0 | 0.12+1.1 | 5 | 5850*2100*2500 | 3100 |
RH2000 | 1800-2000 | 45 | 4.0-5.5 | 0.37+1.1 | 7 | 6200*2100*2900 | 3850 |

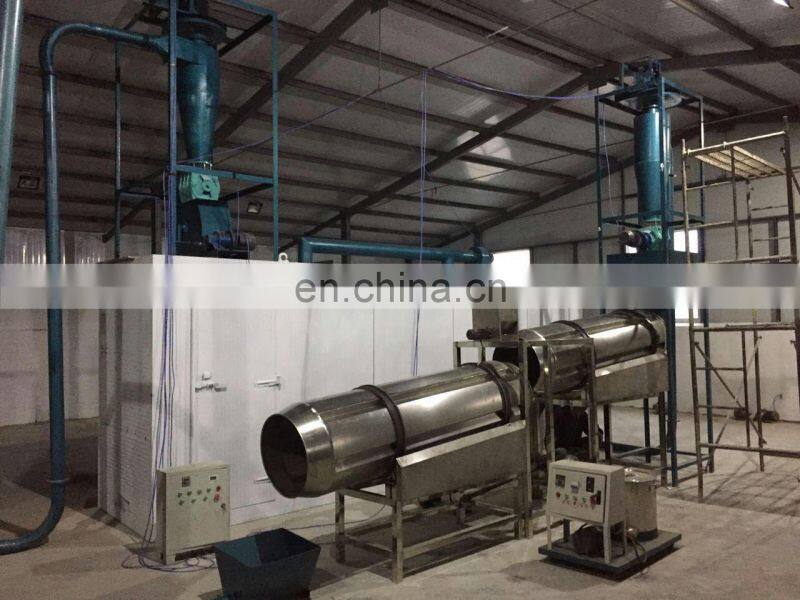

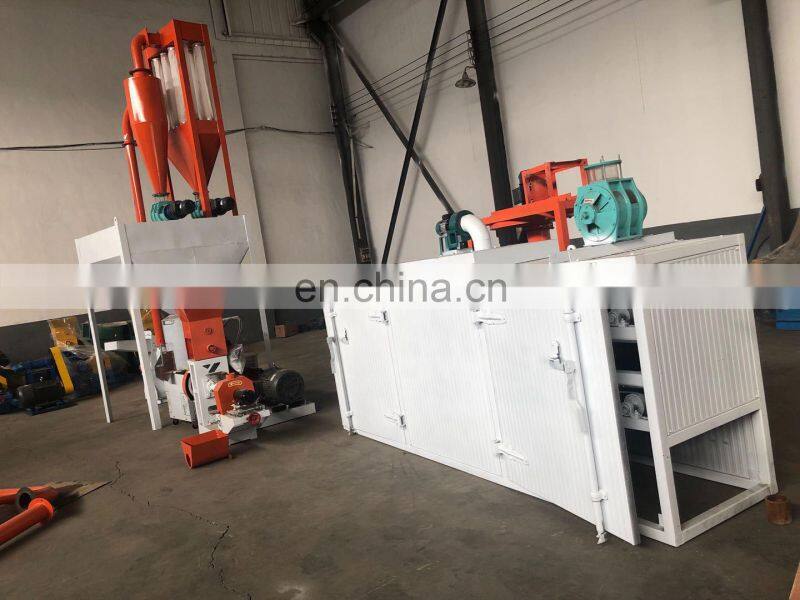

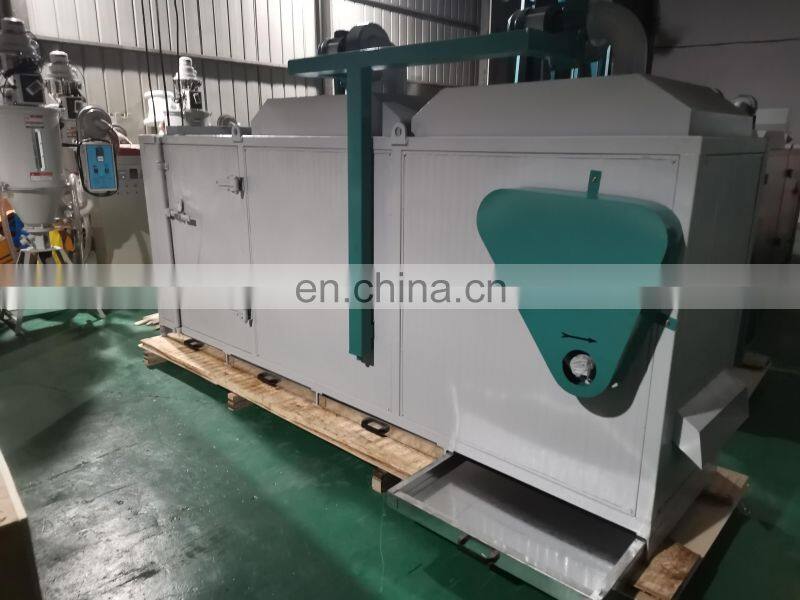

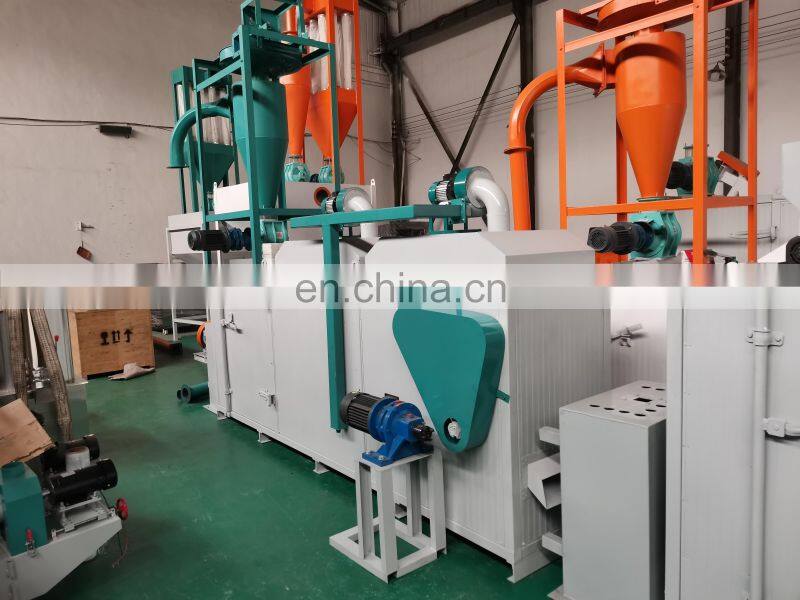

Product display
1. Novel design, high output and stable performance.
2. Main parts are made of special alloy material after heat treatment.
3. High wear resistant degree and long service time.
4. This dry type fish feed machine is suitable for small fish feed plant and professional farmers.
5. Final processed aquatic feed pellets have unique taste and high nutritious.
6. Low energy cost, high capacity, easy to maintain.
7. Diameters and shapes of fish pellets can be adjusted by choosing different molds.
8. Salmonellas and bacterial infections can be killed by high temperature and high pressure process.
9. Feed pellets produced by this fish feed machine of puffing type, thus making it more easily to digest for fishes.
2. Main parts are made of special alloy material after heat treatment.
3. High wear resistant degree and long service time.
4. This dry type fish feed machine is suitable for small fish feed plant and professional farmers.
5. Final processed aquatic feed pellets have unique taste and high nutritious.
6. Low energy cost, high capacity, easy to maintain.
7. Diameters and shapes of fish pellets can be adjusted by choosing different molds.
8. Salmonellas and bacterial infections can be killed by high temperature and high pressure process.
9. Feed pellets produced by this fish feed machine of puffing type, thus making it more easily to digest for fishes.

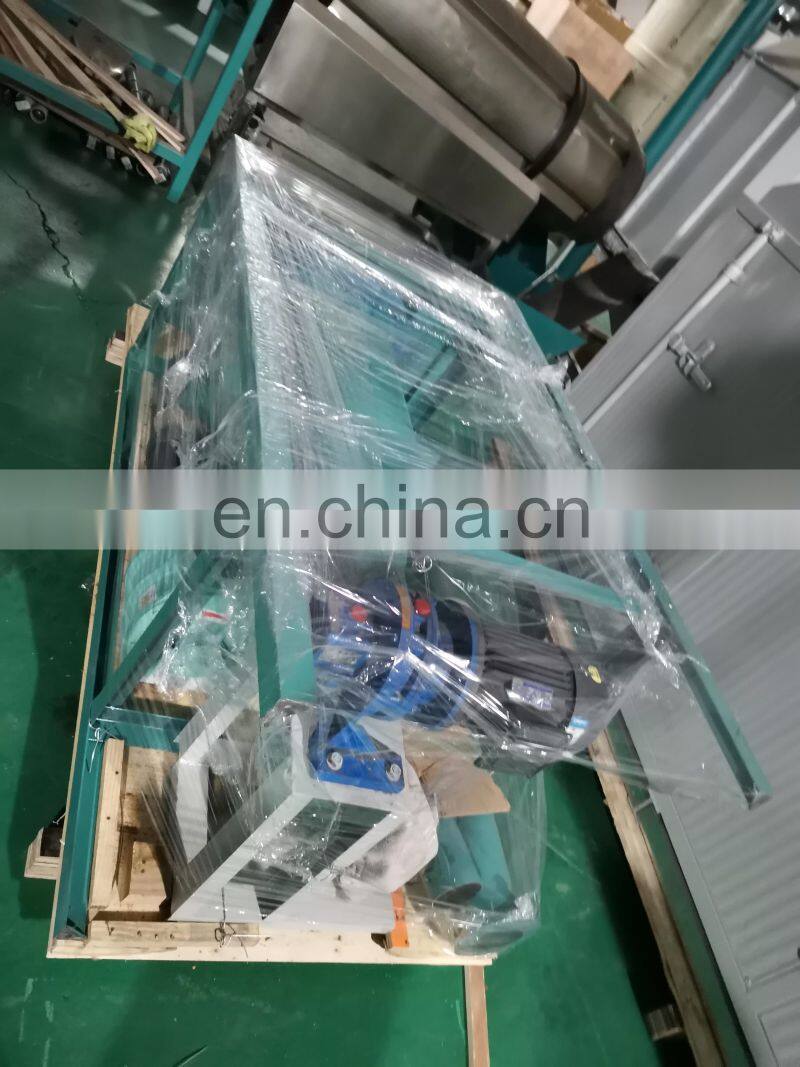

Packing & Delivery
Our Company
Two promises:
1. machines with the best quality and proper price and with high efficiency and low power consumption;
2. warm and elaborate service(before and after sale). We insist that quality is always in the first priority and customer's satisfaction is our final intention.
