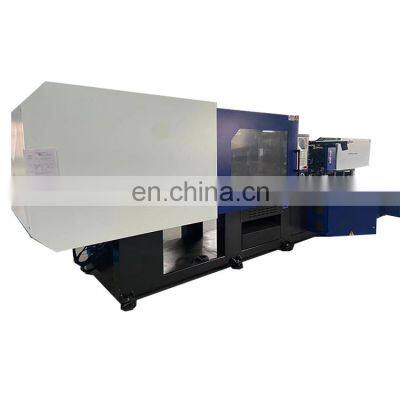

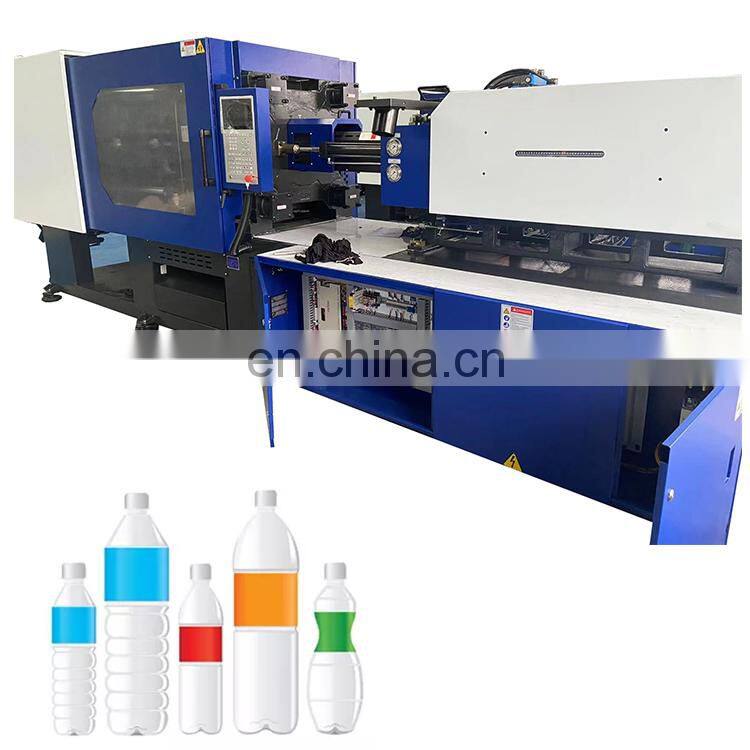

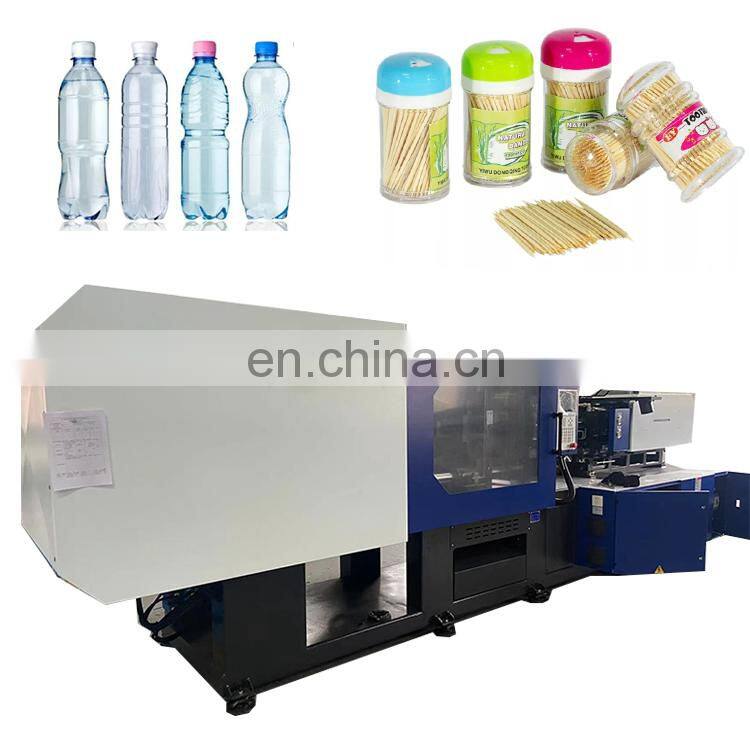

Factory Hot Sales Plastic Injection Molding Machine With A Discount
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Hot Sale Large Capacity 2112 Eggs Incubator Poultry Equipment Egg Hatching Machine
-
Chicken Eggs Hatch Intelligent Next-generation Multi-purpose Incubation Equipment,egg Incubator and Hatcher Machine
-
New Design Egg Incubator, Mini Chicken Egg Incubator for Sale
-
New Fully Automated Incubator Manufacturers Direct Sales
-
Hot Sale Dual Power Incubator Poultry Egg Incubator 2000 Chicken Egg Capacity
-
1232 Chicken Egg Incubator /Chicken Eggs Incubator and Hatcher / Egg Incubator of Egg Hatching Machine
Product Description
Product Description
High Efficiency Energy Saving Injection Molding Machine adopts proportional pressure and flow control, the pressure and the speed can be adjusted, stable movement curve and gentle shock, the computer is imported from
Industry family.The LCD displaying screen with high clarity has Chinese and English language to use.Close-loop PID temperature control with the advantage of high precision.The operating table of the injection moulding machine have two safety, one is machine safety, another is electrical safety, .
Industry family.The LCD displaying screen with high clarity has Chinese and English language to use.Close-loop PID temperature control with the advantage of high precision.The operating table of the injection moulding machine have two safety, one is machine safety, another is electrical safety, .
Feature
- A variety of text can be switched.
- Manual, semi-automatic and fully automatic mode.
- To provide EUROMAP robot interface.
- Automatic movement monitoring with alarm and fault diagnosis.
- Function of slope setting can set the start and stop of movements, so as ensure the smooth movement.
- A variety of text can be switched.
- Manual, semi-automatic and fully automatic mode.
- To provide EUROMAP robot interface.
- Automatic movement monitoring with alarm and fault diagnosis.
- Function of slope setting can set the start and stop of movements, so as ensure the smooth movement.

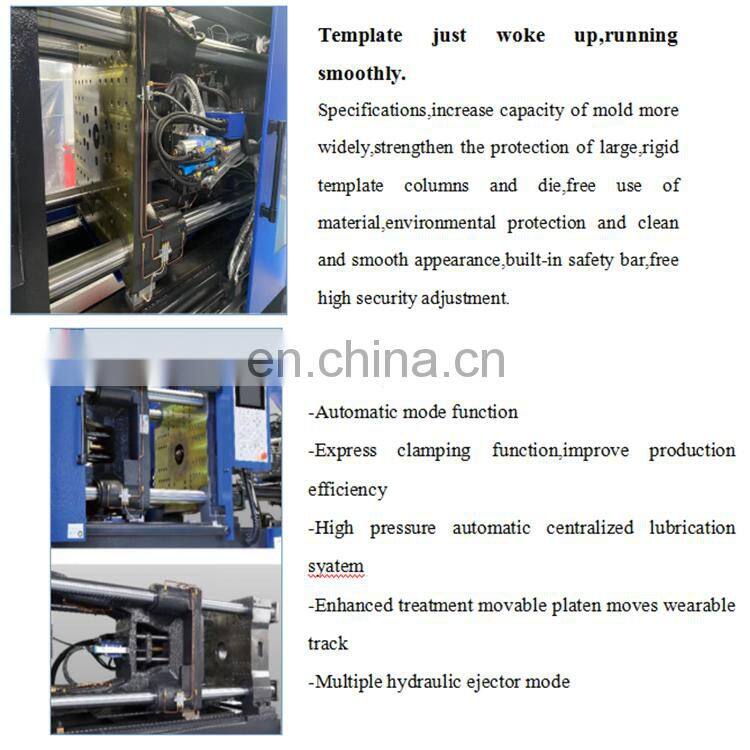

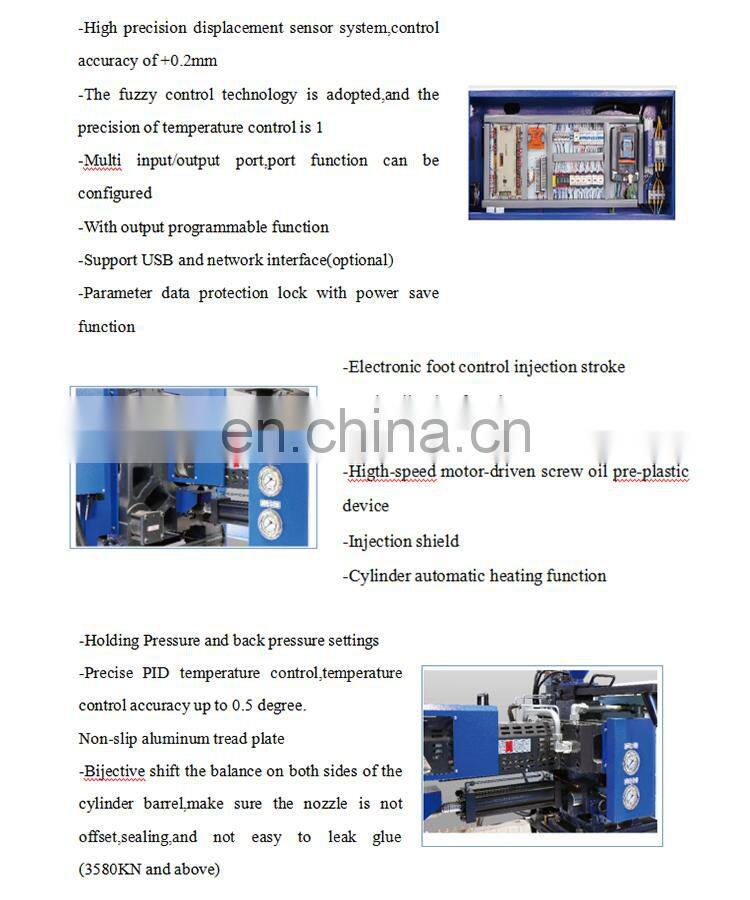

Detailed Images
Size Information
Screw Diameter(mm) mm | 45 |
Screw L/D Ratio L/D | 20 |
Shot Size(Theoretical) cm | 320 |
Injection Weight(PS) g | 291 |
Injection Rate(g/s) | 148 |
Injection Pressure(Mpa) | 169 |
Plasticizing Capacity(g/s) | 22.6 |
Screw Speed(rpm) | 0-205 |
Clamp Tonnage (KN) | 1600 |
Toggle Stroke(mm) | 432 |
Space Between Tie Bars(mm) | 470*470 |
Max.Mold Height(mm) | 520 |
Min.Mold Height(mm) | 180 |
Ejector Stroke(mm) | 140 |
Ejector Tonnage(KN) | 33 |
Max.Pump Pressure (Mpa) | 16 |
Pump Motor Power(KW) | 22 |
Heater Power (KW) | 9.95 |
Machine Dimension(L*W*H) | 5.4*1.30*2.08 |
Manufacture Specification
-There are three or four screws and barrels with optimal design, respectively, nitride, hard plating, dual-metal, which is
suitable for different processes of a variety of plastics. and the choice of product.
- Two-guided guided bar supports, double-balanced rapid injection.
- The high-torque hydraulic motors offer a stable plasticizing capacity, highprecision electronic device position detection enable accurate measurement.
- Multi-injection speed and pressure and multi-level holding pressure settings, switch from the injection time, location, pressure control to ensure the quality of molding.
- Multi-level back-pressure of pre-plastic and pre-speed are computer-controlled, anti- drooling and automated auto purge.
- Expected to prevent cold-start function to ensure that the screw, Liao Tong will not be harmed. Stability of the injection unit.
- Security doors fitted with hydraulic, mechanical and electrical interlocking triple safety device. When the safety door is open, the machine cannot clamp.
- Low pressure mold protection device to prevent damage to platen.
- Plywood, frame, the bridge, and the template attached structure, the finite element analysis.
- Hydraulic ejector, adjustable stroke, and top speed of ejector in and out, for multiple actions.
- Flexible tie bars nut eliminates fatigue fracture; assure the working life of tie bars
- Automatic adjustment. The replacement of different mold, the parameters set by clamping force to achieve the automatic adjustment.
- High-precision electronic detection device, multi-stage control of opening stoke, speed and location, location accuracy.
suitable for different processes of a variety of plastics. and the choice of product.
- Two-guided guided bar supports, double-balanced rapid injection.
- The high-torque hydraulic motors offer a stable plasticizing capacity, highprecision electronic device position detection enable accurate measurement.
- Multi-injection speed and pressure and multi-level holding pressure settings, switch from the injection time, location, pressure control to ensure the quality of molding.
- Multi-level back-pressure of pre-plastic and pre-speed are computer-controlled, anti- drooling and automated auto purge.
- Expected to prevent cold-start function to ensure that the screw, Liao Tong will not be harmed. Stability of the injection unit.
- Security doors fitted with hydraulic, mechanical and electrical interlocking triple safety device. When the safety door is open, the machine cannot clamp.
- Low pressure mold protection device to prevent damage to platen.
- Plywood, frame, the bridge, and the template attached structure, the finite element analysis.
- Hydraulic ejector, adjustable stroke, and top speed of ejector in and out, for multiple actions.
- Flexible tie bars nut eliminates fatigue fracture; assure the working life of tie bars
- Automatic adjustment. The replacement of different mold, the parameters set by clamping force to achieve the automatic adjustment.
- High-precision electronic detection device, multi-stage control of opening stoke, speed and location, location accuracy.
Best Selling
Company Introduction
Henan Lefu Machinery Equipment Co., Ltd. was established in 2012. It is a professional manufacturer integrating R&D, manufacturing and trade. We have been committed to vegetable processing machinery, fruit processing machinery, snack processing machinery, nut processing machinery, packaging machinery for many years. . The company adheres to the business philosophy of "honesty and quality", and always puts quality first to ensure high-quality products and the most professional services to meet customer needs.
Therefore, our products have been exported to various countries. Customer praise. We welcome new and old customers from all walks of life to contact us to establish future business relationships and achieve success together. Welcome everybody!
Therefore, our products have been exported to various countries. Customer praise. We welcome new and old customers from all walks of life to contact us to establish future business relationships and achieve success together. Welcome everybody!

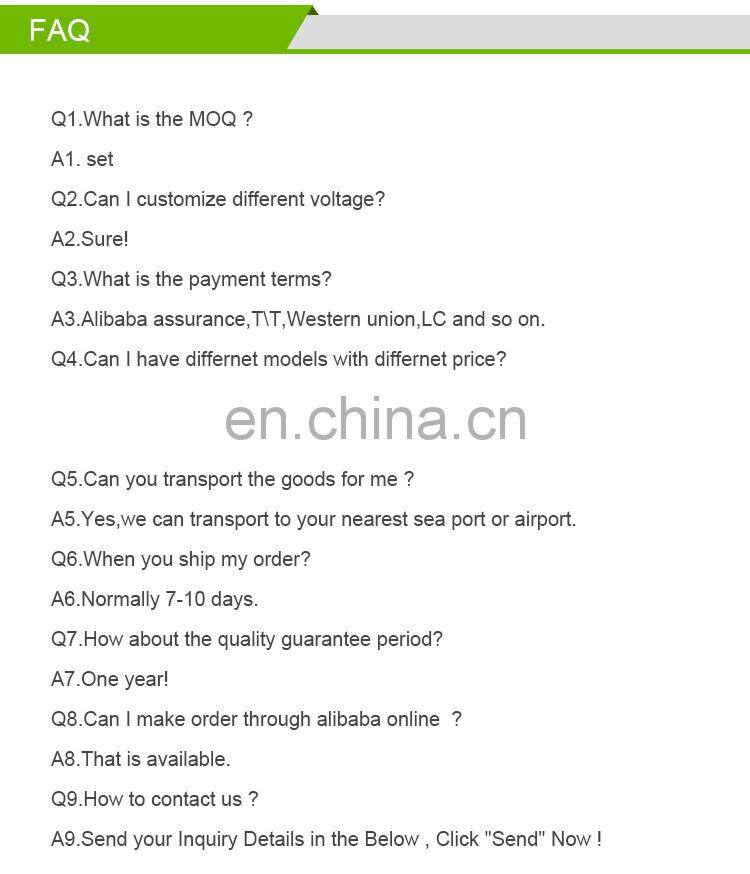

FAQ
