Dry and Wet Corn Harvester Hand Working Tractor Mini Maize Combine Harvester
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
China Original Manufacturer 4 Rows Corn Harvester and One Row Corn Picker Corn Harvester
-
China Original Manufacturer 4 Rows Corn Harvester and Maize Harvester and Corn Cob Harvesting Machine
-
Chinese Original Manufacturer 4 Rows Corn Combine Harvester Automatic Harvest Machine
-
Easy Operating Automatic Making Machine Bamboo Toothpick / Tooth Pick Making Machine
-
Commercial Automatic Bamboo Stick Making Machine / Bamboo Toothpick/stick Making Machine
-
High Quality Toothpick Machine Price / Toothpick Production Line / Toothpick Making Machines
Product Description
Product description:

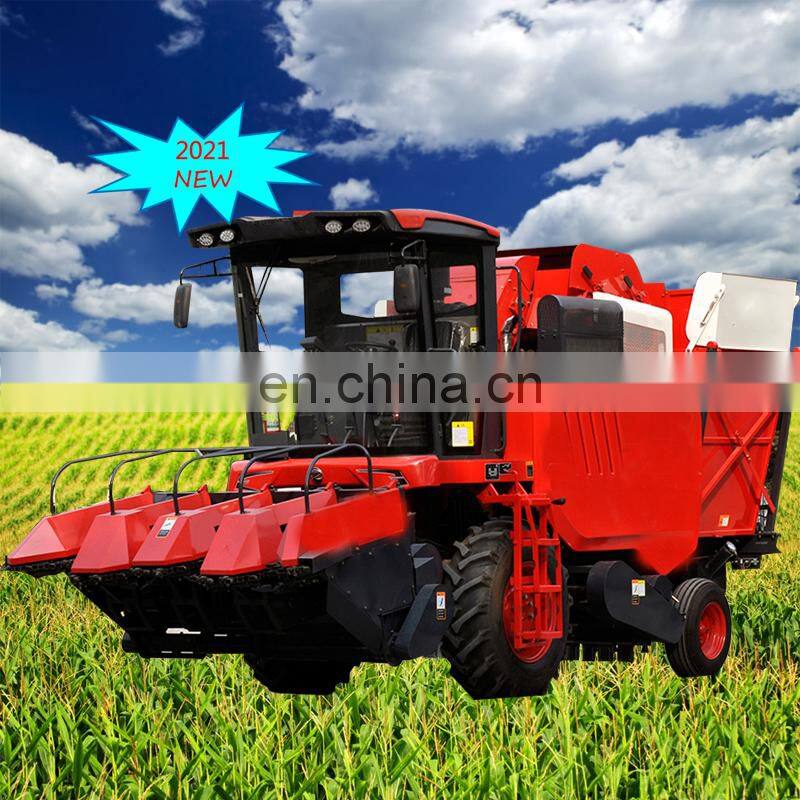

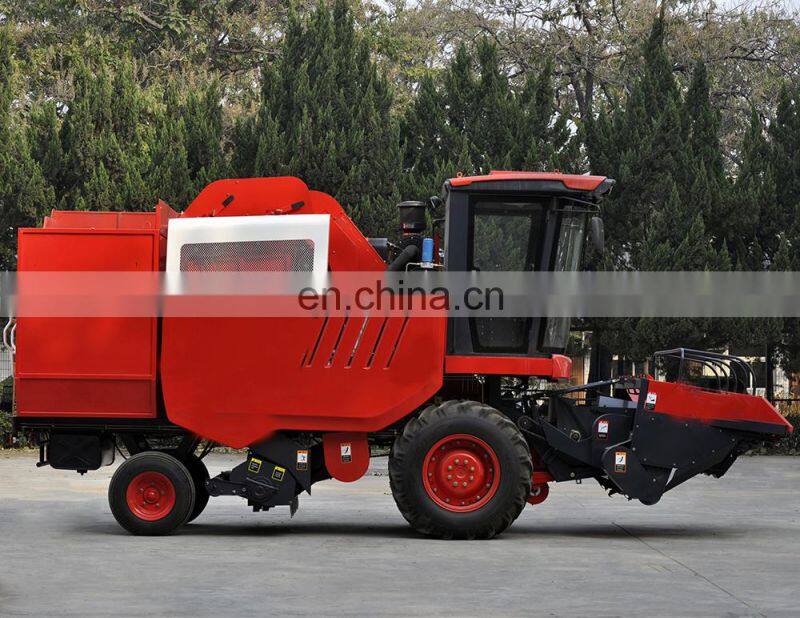

1, This is a self-propelled combine corn harvester whose structure consists of a driving device,a harvesting device,and a harvesting conducting wheel.
2, The steering is flexible, greatly reducing the working radius and improving the efficiency of harvesting.
3, The combine corn harvester has the advantages of reasonable design,simple structure and convenient.
Detail show

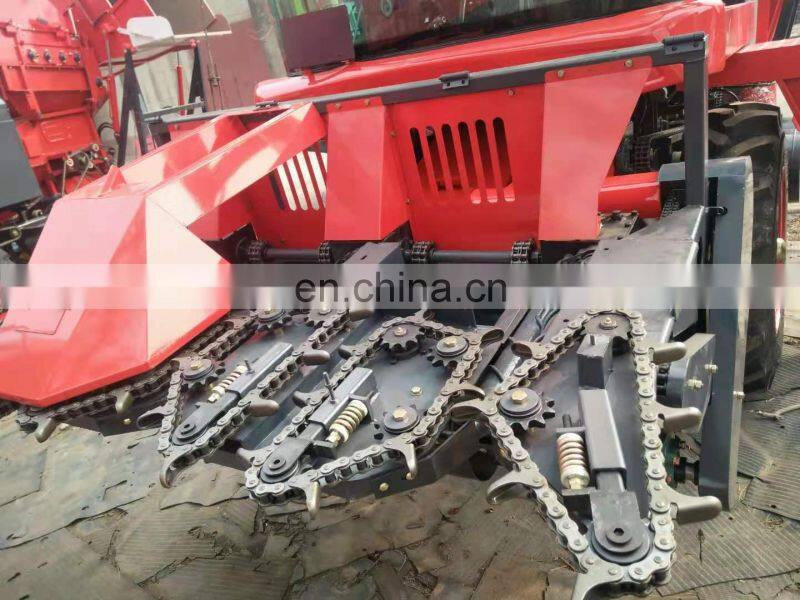

1.Cutter:
Adopts double helix picking roller, which has the advantages of fast speed, no grain drop and low transmission failure rate.

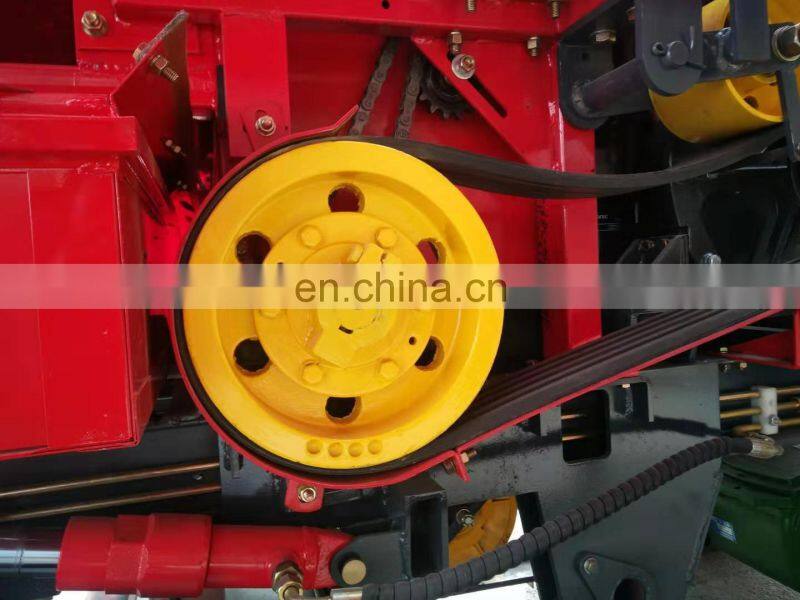

2.Power master clutch:
The power clutch adopts five joint group B belts,with strong power and high efficiency.
If the power not enough or weak during the use, it indicates that five joint group has insufficient tension and needs adjustment.

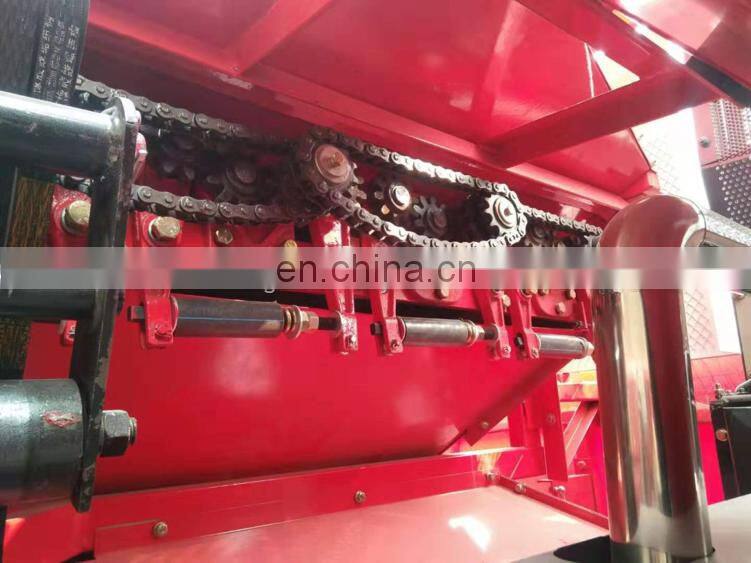

3.Peeling:
The peeling device adopts adjustable vibrating sieve and adjustable pressure transmitter; it is equipped with a pressure transmitter rapid alarm device.

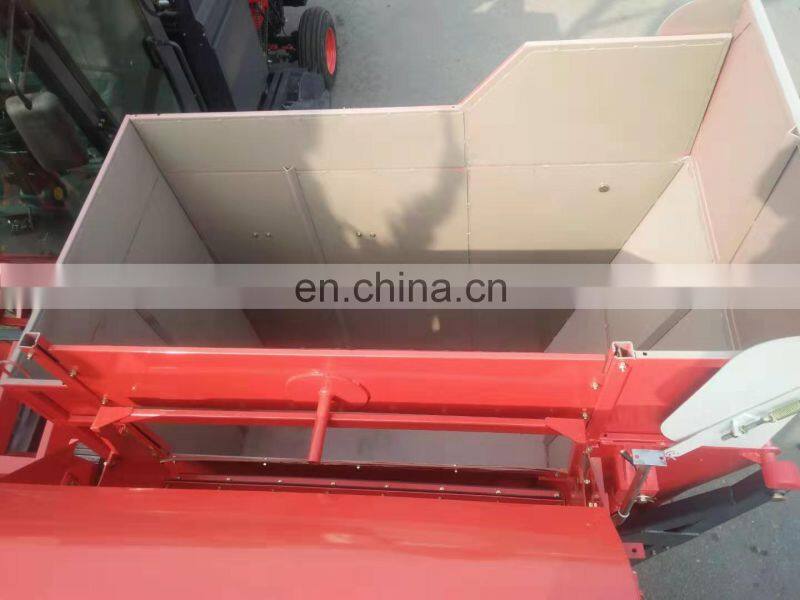

4.Granary:
Heightening type unloading height.
Sealed grain unloading baffle.

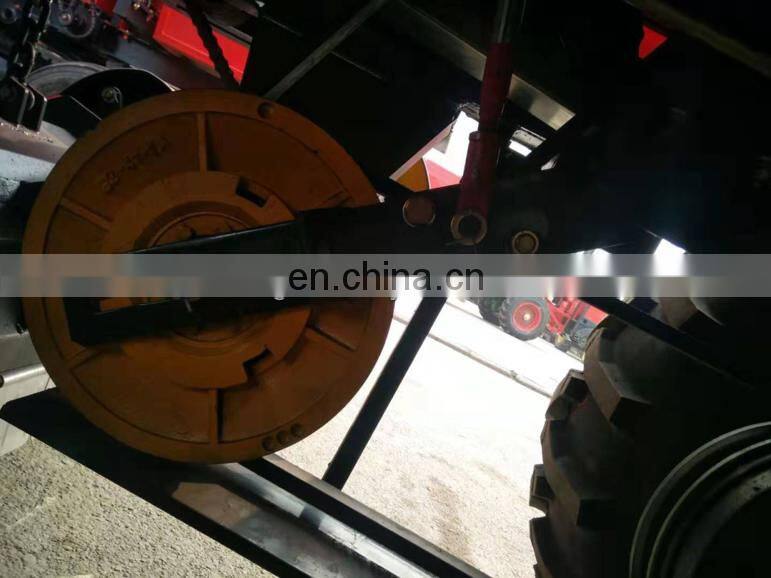

5.CVT Traveling :
After using CVT transmission for a period of time, you need to check the walking belt. If there is a loose belt, please adjust the adjusting screw in time.
Technical information
Cutting width | 2.3m |
Harvester rows | 4 |
Enhine Power | 175hp |
Clearing structure type | Cross flow fan + vibrating sieve |
Unloading height | 2.10m |
Capacity | 1.71m³ |
Size ( L*W* H ) | 6.392*2.544*3.21m |
Net weight | not include cutter） 4990kg |
Driving speed | all gear can be achieved within the CVT |
Granary volume | 2200 L |
