Twin Screw Extruder for Chocolate Core Filling Puffed Snacks Food
- Shanotu ,China
- T/T L/C
You May Like
Product Details
| Brand Name | Shantou Huaxing | Place of Origin | China | |
| Model Number | TS | Warranty | 1 year but except for man-made and wearing parts. | |
| Weight | 1730 | Dimension(L*W*H) | L- 254mm, W- 850 mm, H-1850 mm | |
| Condition | New | Voltage | 380V，3 phases，50Hz | |
| Application | Chips | Power(W) | 24KW |
Product Description
Twin Screw Extruder for Chocolate Core Filling Puffed Snacks Food
40+ years snack food machine manufacturing experience

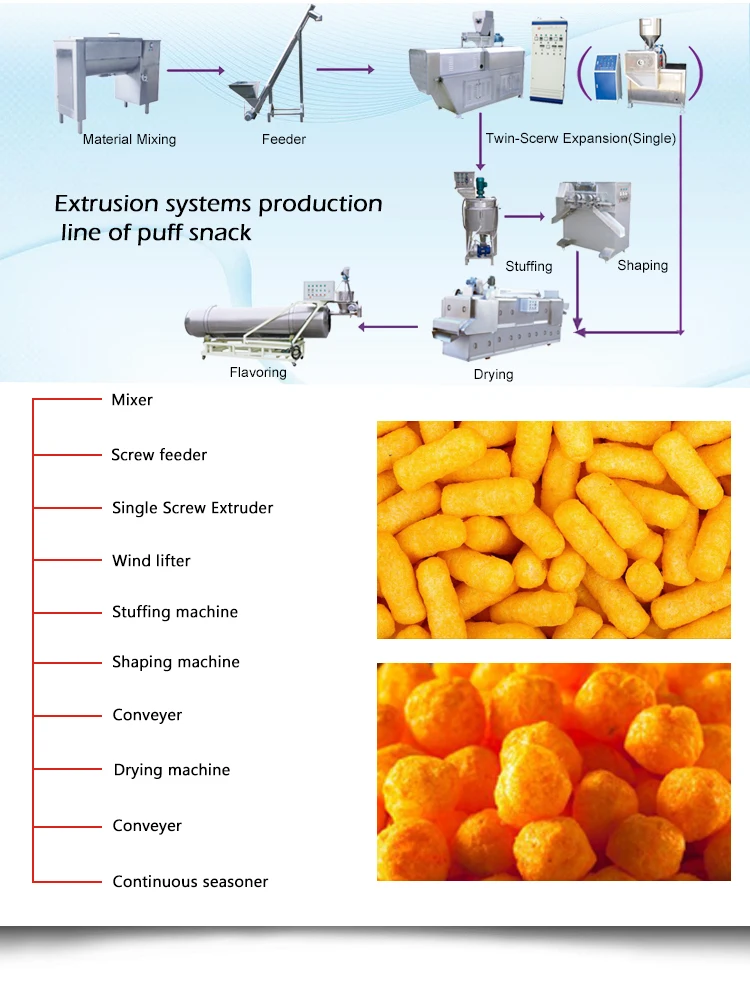

Extrusion Systems Production Line of Puff Snack HX Extrusion Systems Production Line of Puff Snack is used for making various of puff snacks, with corn and rice as the raw material (the processing of different materials are separately under different moulds). The main machine of this line is PH Single screw Extruding Machine or TS Twin Screw extruding machine, the puffs produced from above machine is the semi-finished products. After the final processes of shaping and seasoning, the products become extremely even and crisp. The whole processing is without any frying. This production line is a good quality corn puffed extruder snack machine. |
Model | Output | Power | Dimension |
PH | 40-60 kg/h | 45 KW | 25400×2000×2400mm |
TS | 80-120 kg/h | 49 KW | 26200×2000×2400mm |
Auto system | 160-240kg/h | 73 KW | 26200×4000×2400mm |
| CLICK THE MACHINE PHOTO TO GET MORE DETAIL |

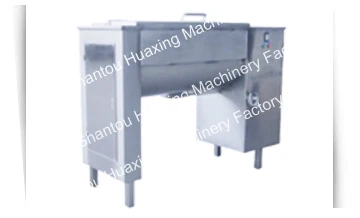

| CL-MIXER FUNCTION: Mixing the material. DRIVE POWER: 2.2 KW CAPACITY: 180-240KG/H DIMENSION: L- 1570mm, W- 600mm, H-1550mm WEIGHT: 345KG |

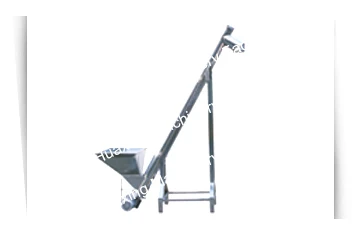

ST-SCREW FEEDER FUNCTION: Receiving mixed material and feed into extruder. DRIVE POWER: 1.1 KW CAPACITY: 180-240KG/H DIMENSION: L-3000mm,W-600mm,H-2550mm |
|
| PH-SINGLE SCREW EXTRUDER FUNCTION: Main machine for produce the puff snack, through different die can get different shape snack. DRIVE POWER: 19.2 KW CAPACITY:40-60KG/H DIMENSION: L-1800mm,W-1430mm,H-1980mm WEIGHT: 1360KG |

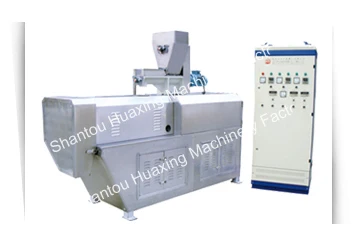

TS-TWIN SCREW EXTRUDER FUNCTION: Main machine for produce the puff snack, through different die can get different shape snack. DRIVE POWER: 24 KW CAPACITY: 80-120KG/H DIMENSION: L-2540mm,W-850mm,H-1850mm WEIGHT: 1730KG | |

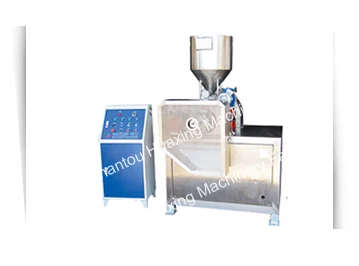

| JX-STUFFING MACHINE FUNCTION: For fill the cream into the tube shape puff snack DRIVE POWER: 1.8 KW CAPACITY:Matching with extruder DIMENSION: L-1100mm,W-830mm,H-1660mm |

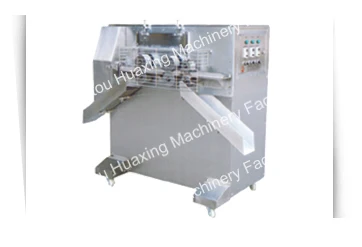

ZX-SHAPING MACHINE FUNCTION: Level up the tube shape puff snack. DRIVE POWER: 1.5 KW CAPACITY: Matching with extruder DIMENSION: L-1360mm,W-820mm,H-1430mm WEIGHT: 390KG |
|

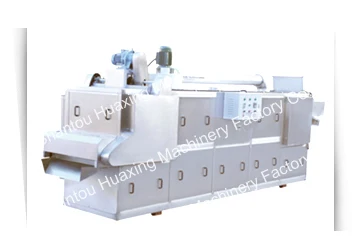

| A300S-DRYING MACHINE FUNCTION: Drying the products to make the puff snack become soft DRIVE POWER: 4 KW CAPACITY:100-200KG/H DIMENSION: L-6100mm,W-1400mm,H-2380mm WEIGHT: 2940KG |

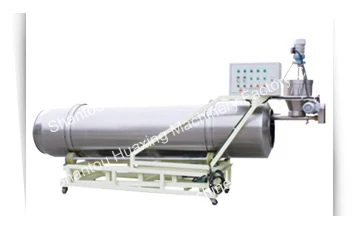

LX200-CONTINUOUS SEASONER FUNCTION: For spray the flavoring powder on th e snack DRIVE POWER: 1.75 KW CAPACITY:120-250KG/H DIMENSION: L-4020mm,W-930mm,H-2050mm WEIGHT: 615KG |
|
| Shantou Huaxing Machinery Factory Co., Ltd is a professional manufacturer for snack machinery.We started to produce the snack machines around 40+ years ago.We have sold our machines to over 50 countries already. We have obtained ISO9001:2000 certificate. Some of machine ,we have abtained CE certificate.We welcome customers from all over the world to cooperate with us , if you are interested in any of our series, please do not hesitate to contact us of details. |
Pre-sales service:
1. Related machines’s technical parameter supplied.
After sale service:
1. Training how to instal the machine, training how to use the machine. |
1.Are you a manufacturer or a trading company? |
