Copper Plated Self Lubricating Oilless POM SF-2 DX Plain Sleeve Bearing Bushing
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Factory Supplier SF-1 Steel Base Bush PTFE Sintered DIN1494 Standard High Quality and Competitive Price Print Machine Bushing.
-
THECO Self Lubricating Dry PTFE Coated Oilless Sliding Sleeve DU Bearing Bushing Composed of Steel Backing and Bronze Powder.
-
Tehco Custom DX Oilless Sleeve POM Coated Cylindrical Bearing Bushings for Generator
-
SF-2 POM Coated Boundary Lubricating Bearing PAP P20 DX Bearing Bushings
-
PAP 3025 P20 Maintenance-free Steel Backing POM Bushing Metal Polymer Composite Plain Bearings SF-2 DX Bush
-
Self-lubricating Composite Du Bushings With PTFE
Product Description
Products Description

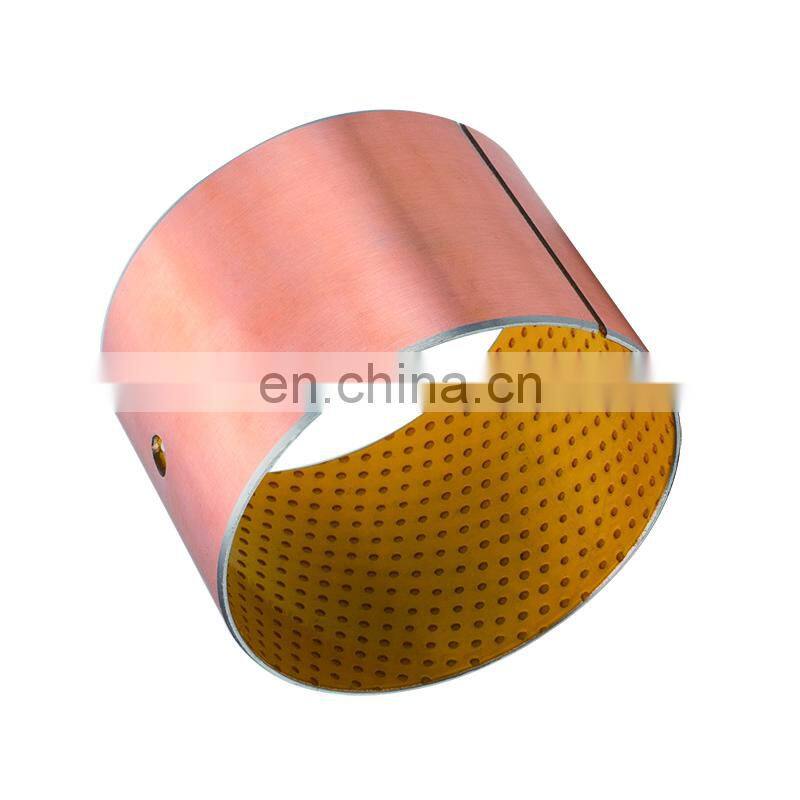

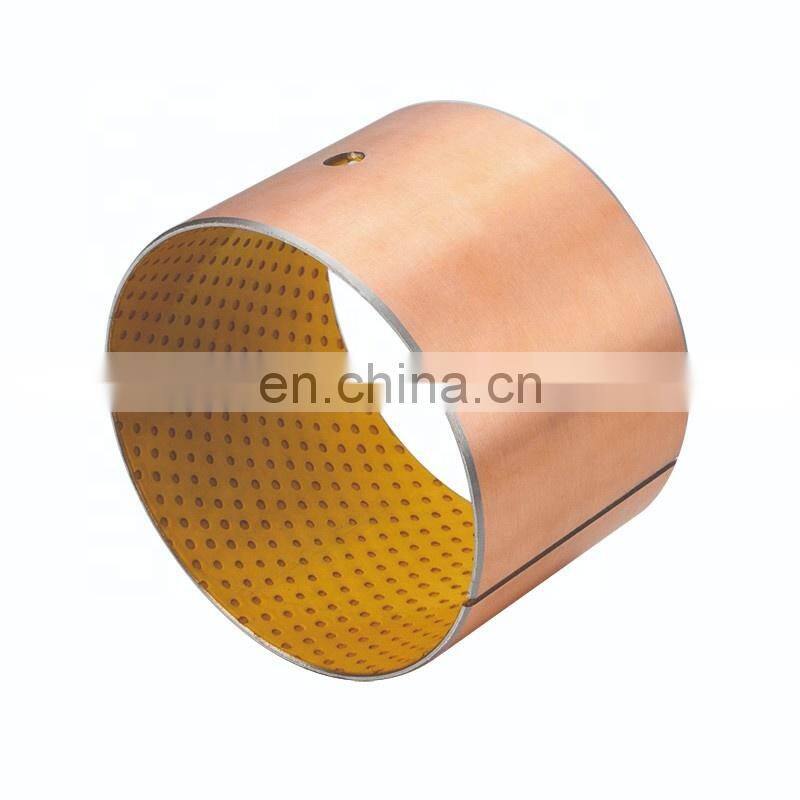

Copper Plated Self Lubricating Oilless POM SF-2 DX Plain Sleeve Bearing Bushing
Copper Plated Self Lubricating Oilless POM SF-2 DX Plain Sleeve Bearing Bushing
(1) material structure is Steel base + Bronze powder + POM (yellow).
(2) good load capacity and wear-resistant.
(3) applied to the vehicle chassis, forming machine tools, steel metallurgical machinery, mineral mountain machinery, hydraulic
industry and rolling steel industry, etc.
(4) because of without lead, this product is according with environmental requirement.
Performance Index | Data | |||
Product Name | Copper Plated Self Lubricating Oilless POM SF-2 DX Plain Sleeve Bearing Bushing | |||
Max load capacity P | Static Load | 140N/mm² | ||
Dynamic Load | 70N/mm² | |||
Max line speed V | Grease Lubrication | 2.5m/s | ||
PV value limit | 2.8N/mm²·m/s | |||
Friction coef u | 0.06~0.12 | |||
Mating Axis | Hardness | >270 HB | ||
Roughness | Ra=0.4~1.25 | |||
Material | Steel+Bronze+POM | |||
Typical application | It's used in vehicle chassis, forming machine tools, steel metallurgical machinery, mineral mountain machinery, hydraulic industry and rolling steel industry, etc. | |||
Working Temperature | -40~+120℃ | |||
Thermal conductivity | 52W/(m·k) | |||
Coefficient of linear expansion | 11×10-6/K | |||
Outside surface Plating | copper/tin | |||
We can also develop according to customers special request while out of this table | ||||
Details Images
Application
Company Profile
FACTORY WORKSHOP
Tehco is always focusing on the overseas markets, by satisfying the ever-increasing demands of modernization of customers. We could provide products according to the international standards, and could also provide as per the customers' requests. With stable product quality and best level of services, our products have been exported to dozens of countries and regions from the Europe, the United States, and Southeast Asia, etc.
Packing & Delivery
1. Inner Packing
For small products:
100pcs-200pcs per sealed plastic bag.
For bigger products: 2pcs-10pcs per plastic film roller (depends on the product size)
2. Outer Packing
8pcs-300pcs per carton (depends on the product size)
3. Shipment Packing
18-24 cartons per wood case or pallet, shockproof and safe for transportation.
Delivery pictures
Products loaded on container.
Products arrives at the destination.
Customer is unloading.
Our Advantages
FAQ
Q: Are you trading company or manufacturer?
A: Our management is focused on exporting activities for more than ten years and we have our own bushing factory. TEHCO is always professional and reliable. Our advantages are multiple resource integration, strong quality assurance and excellent service level. We are always responsible for our products.
Q: Hong long is your delivery time?
A: Generally 10-25 days after order. It depends on the quantity.
Q: Do you produce samples? Is it free or extra?
A: For standard products, we produce samples free of charge for our customers. And the express costs will be burdened by the customer, but can be returned after the order is placed.
Q: How to ensure the quality?
A: We produce as per the confirmed technology or drawings for each order for our customers. And our factory has a strict quality control system. We inspect goods during production according to a certain frequency and we also perform the final inspection before the goods are packed.
Q: Do you like to serve the customers only with small orders?
A: We are always glad to grow up together with all our customers whatever big or small.We hope our customers become stronger and stronger to be with us.
A: Our management is focused on exporting activities for more than ten years and we have our own bushing factory. TEHCO is always professional and reliable. Our advantages are multiple resource integration, strong quality assurance and excellent service level. We are always responsible for our products.
Q: Hong long is your delivery time?
A: Generally 10-25 days after order. It depends on the quantity.
Q: Do you produce samples? Is it free or extra?
A: For standard products, we produce samples free of charge for our customers. And the express costs will be burdened by the customer, but can be returned after the order is placed.
Q: How to ensure the quality?
A: We produce as per the confirmed technology or drawings for each order for our customers. And our factory has a strict quality control system. We inspect goods during production according to a certain frequency and we also perform the final inspection before the goods are packed.
Q: Do you like to serve the customers only with small orders?
A: We are always glad to grow up together with all our customers whatever big or small.We hope our customers become stronger and stronger to be with us.
