TCB401 Oil Sintered Fan and House Use Electric Machine Bearing Bushing Made of Bronze Powder Sintered in High Temperature.
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Copper Based Powder Metallurgy Parts Sintered Bearing Sintered Oilite Bushing Bronze Bushing Bearing
-
TCB40 Iron Oil Sintered Bearing Bush Made of Iron Powder Protect Shaft with Oil Applied for Textile Machine and Fan Bushing.
-
Tehco Professional Bushing Manufacture High Precision Bronze Iron Fan bushings For Sale
-
Tehco Factory Steel Bearing DX Sleeve Boundary Lubricating Oilless Metal PTFE POM Bush Oil Sliding Pap Bushing
-
DX bearing cylindrical steel bushing SF-2 sliding bush
-
Self-lubricating multilayer composite shock absorber bushing car bearing
Product Description
Product Description
TCB401 Oil Sintered Fan and House Use Electric Machine Bearing Bushing Made of Bronze Powder Sintered in High Temperature.
Oil Sintered Bronze Oilite Electric Fan Bushing is mold pressed under high pressure and then sintered under high temperature, and oil is
soaked into the homogeneously spreaded tiny pores of the metal under vacuum.
This bearing can withstand dry condition in medium speed and low load for short time. Moreover it is cheap and stable in dimension.
Application:
This is widely used in domestic electric and electronic machines, electric tools, textile machines, chemical engineering machines, automobiles and official business machines.Product Name | TCB401 Oil Sintered Fan and House Use Electric Machine Bearing Bushing Made of Bronze Powder Sintered in High Temperature. | |
Material | Bronze powder | |
Density | 6.4~6.8g/cm3 | |
Static Load | 200N/mm² | |
Dynamic Load | 18N/mm² | |
Max linear speed | 7m/s | |
Volume of oil impregnation | 22% | |
Hardness | 25HB | |
Friction coefficient | 0.03μ | |
Traction resistance | 10~20N | |
Elongation | 1~2.5% | |
Max thermal temperature | -20~+120℃ | |
Application | Domestic electric and electronic machines,electric tools,textile machines,chemical engineering machines,automobiles and official business machines , fan parts,etc. | |
Notice: In addition to the standard product catalog is displayed, we provide non-standard product or to order according to customer requirements. | ||

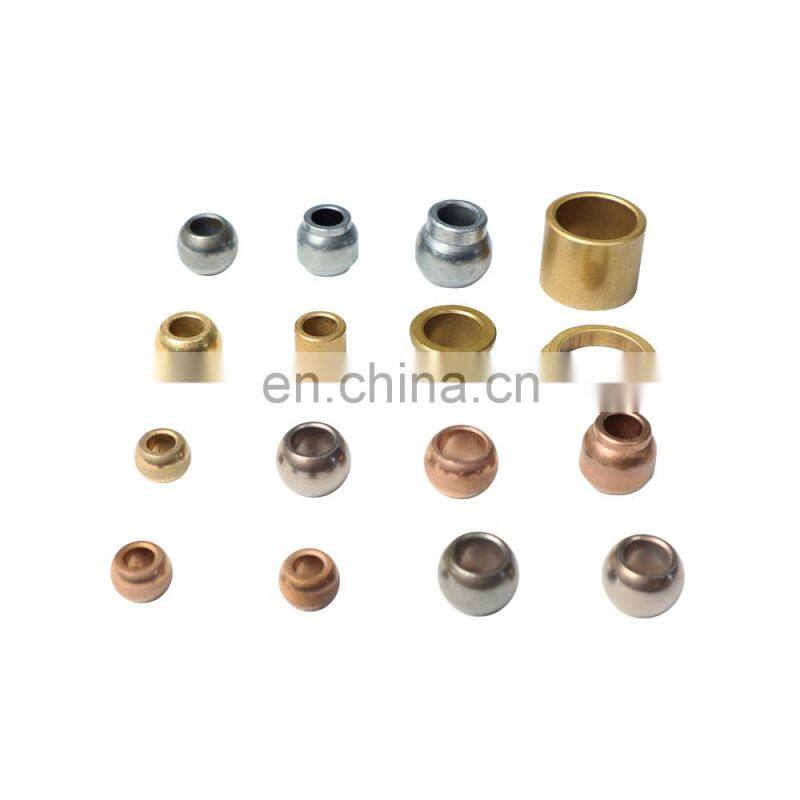

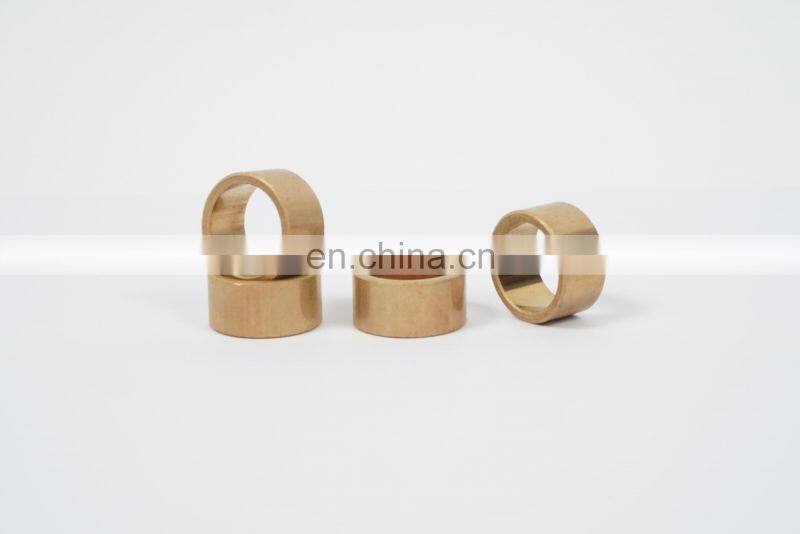

Detailed Images
